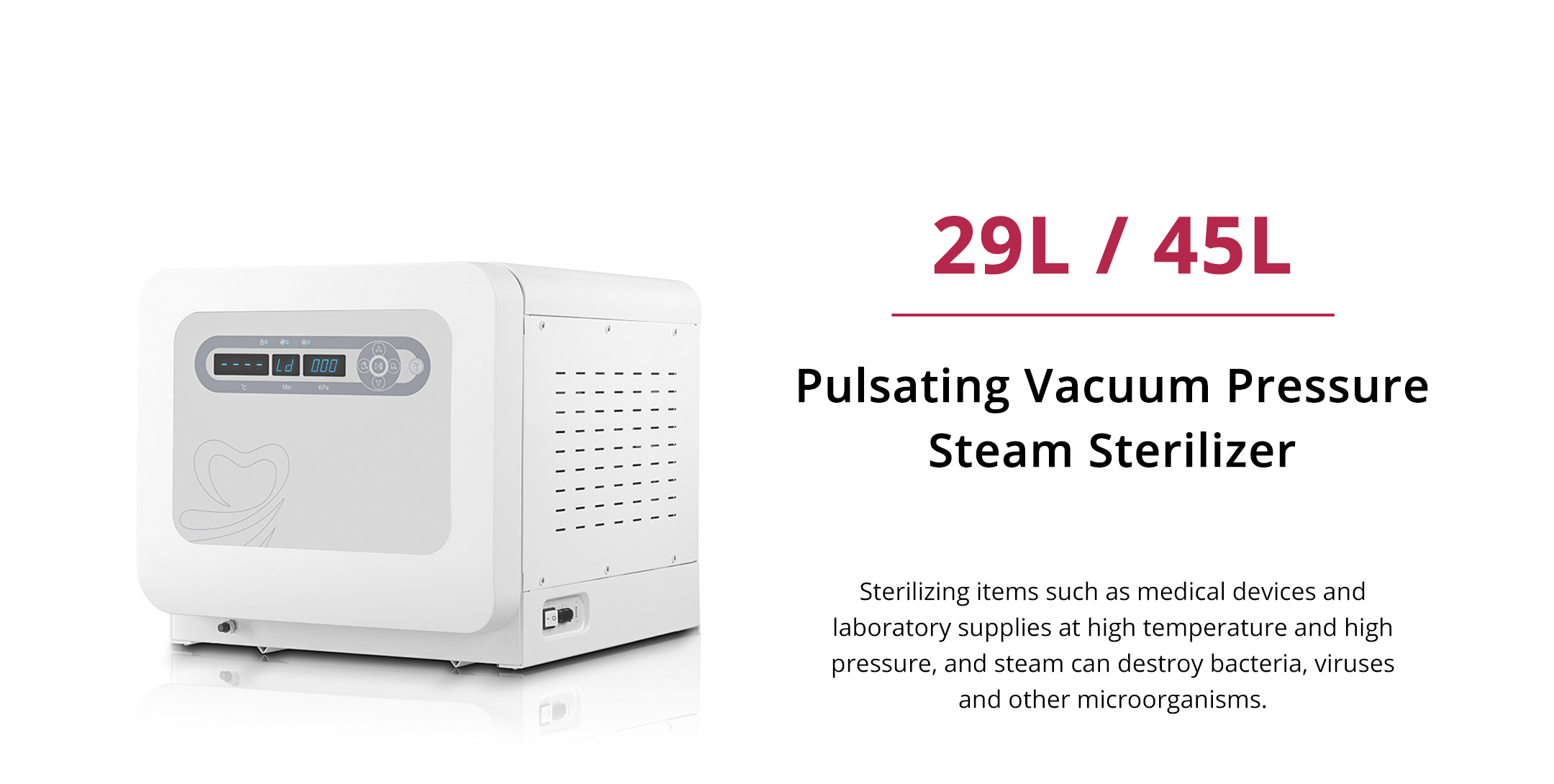

Model

CAL-29L

CAL-45L

Capacity

29 L

45 L

Chamber dimensions

319 mm × 420 mm

319 mm × 620 mm

Product size

535 mm × 650 mm × 505 mm

535 mm × 850 mm × 505 mm

Input power

2500W

3300W

Voltage

220 V / 50 Hz

Water capacity

8 L

Sterilization temperature

121 ℃ / 134 ℃

Sterilization temperature difference

± 0.5 ℃

Temperature control accuracy

Temperature sensing control, ≤ ± 1 ℃

Display

Touch screen

Program

B & D / Helix test program / Leak test program

Standard

European B standard

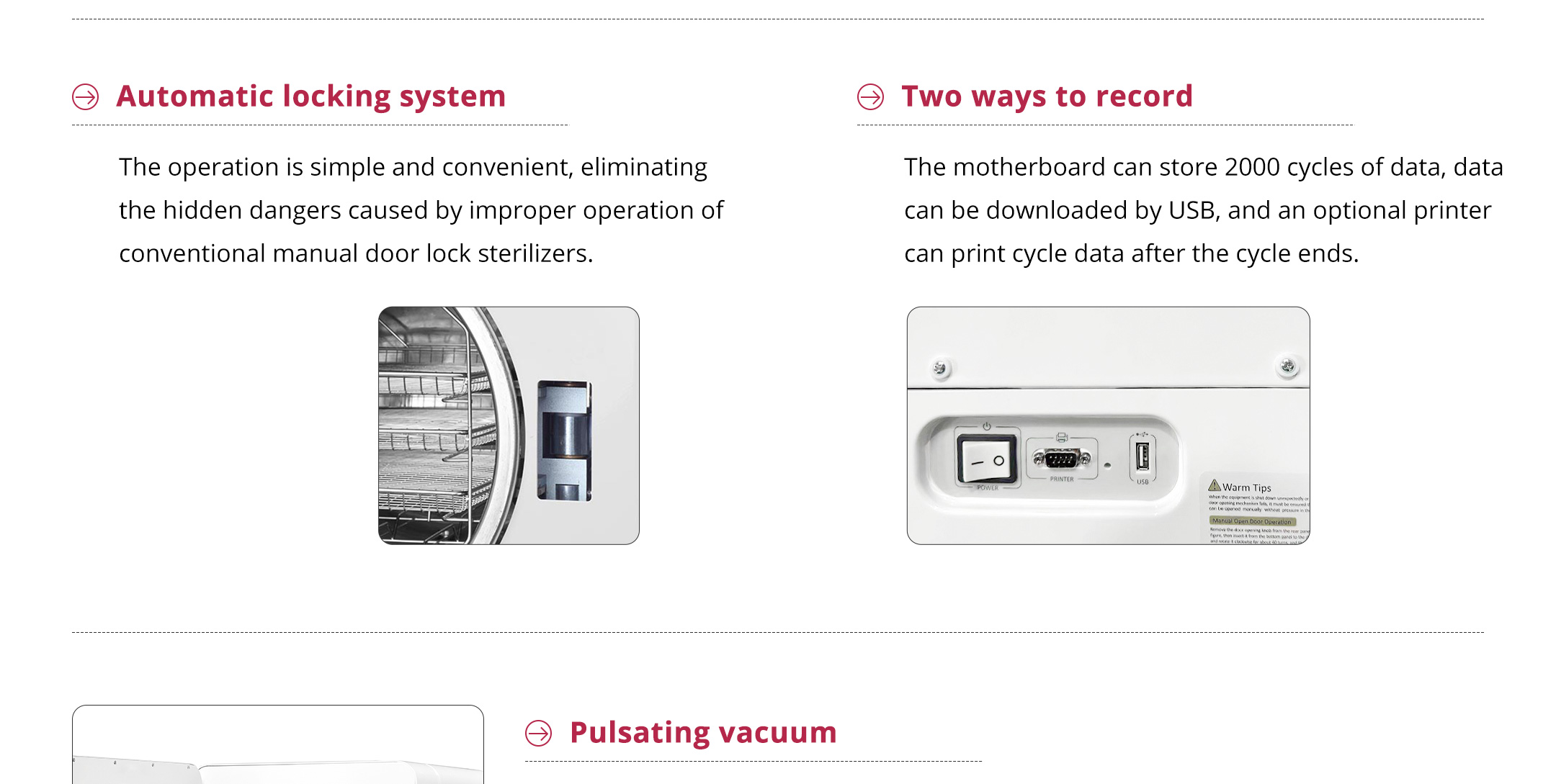

Locks

Automatic locking system

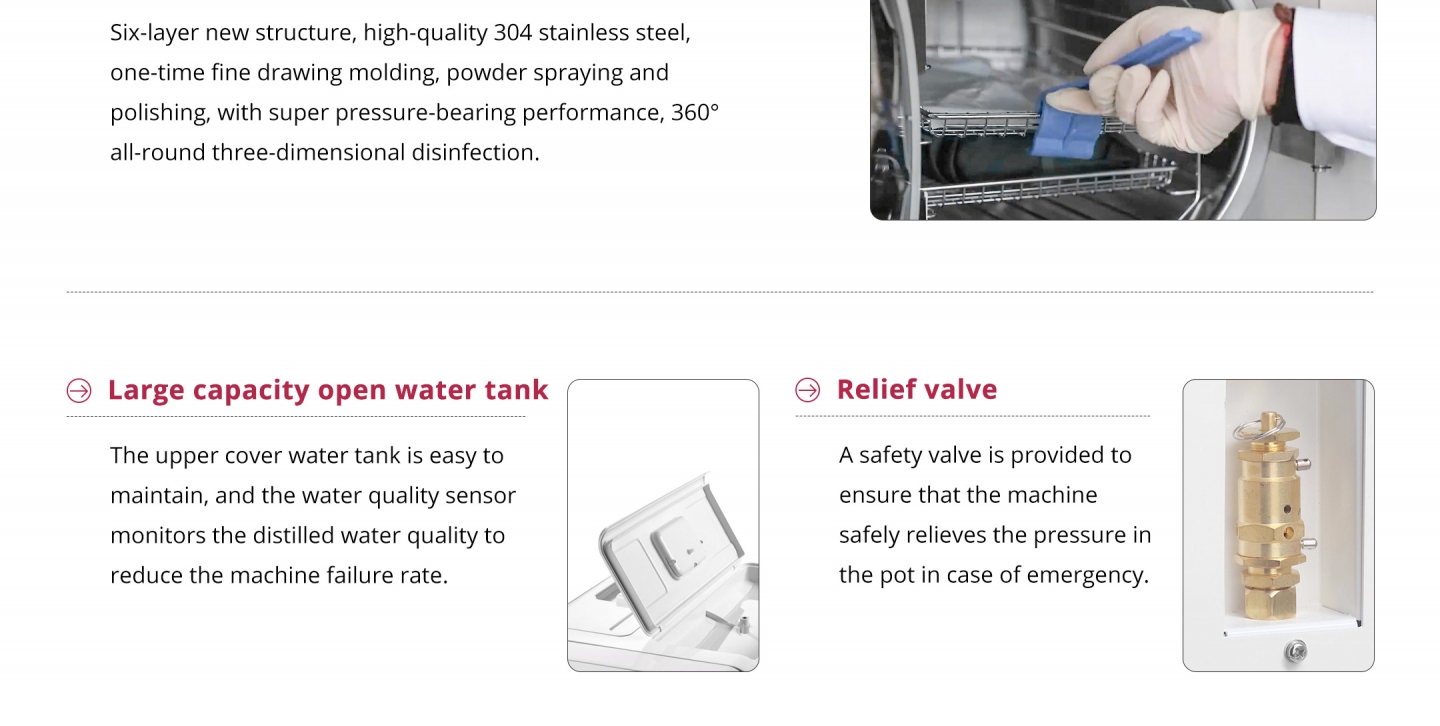

Water tank

Open water tank

Water supply system

Open double water tank for disinfection and cleaning

Water quality testing

It can detect whether the water quality meets the requirements of this equipment

Special sterilization

Inactivation of AIDS, hepatitis B, mad cow virus and spore

Pulsating pre-vacuum

3 times pre-vacuum

Maximum vacuum

Not less than - 0.8 bar

Sterilization pressure

Maximum sterilization pressure ≥ 2.0 bar

Drying procedure

After intense vacuum drying, the residual humidity of the instrument < 0.2 %

Cleaning procedure

Automatic cleaning of internal piping and steam generator

Sterilization records

Built-in USB / Connect a printer to print the sterilization record

Security

A safety valve is provided to ensure that the machine safely relieves the pressure in the pot in case of emergency, fault self-test

Fault alarm

Automatically display fault information and display fault alarms

The number of error messages

28

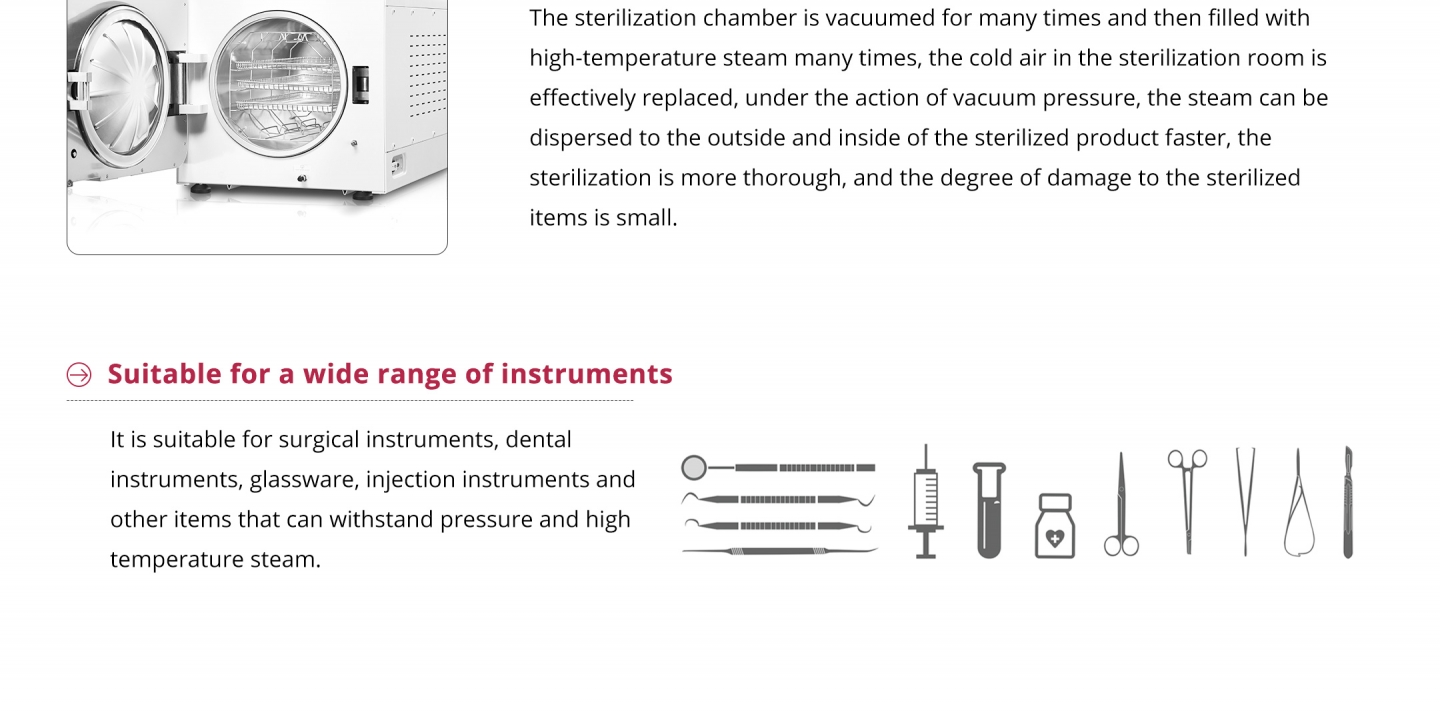

Sterilized items

It can be used to sterilize surgical instruments, dental instruments, glassware, injection instruments, fabrics, etc.
