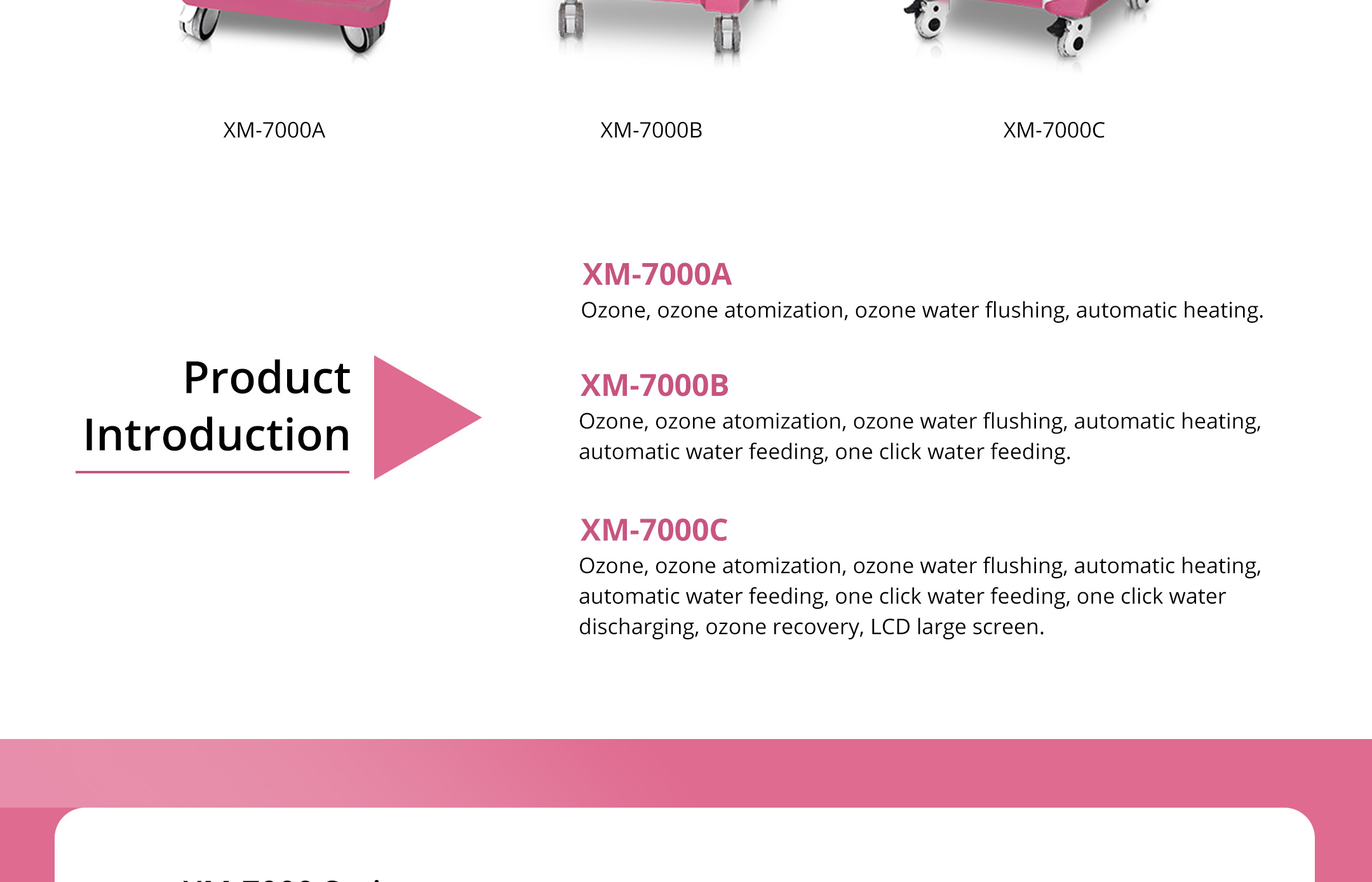

Model

XM-7000A

XM-7000B

XM-7000C

Function

Automatic heating

Automatic heating,

Automatic water filling

Automatic heating,

Automatic water supply
(water filling or discharge),

Ozone recovery,

Large LCD screen

Therapeutic mode

Ozone gas, ozone mist, ozone water flushing

Control mode

Controlled by micro-computer

Working condition

Environment temperature

5℃ ~ 40℃

Relative humidity

30% ~ 75%

Atmospheric pressure

86kPa ~ 106kPa

Power supply

220V ± 22V, 50Hz ± 1Hz

Ozone concentration

≥ 500mg/m³

Ozone gas flow

0.8L/min ~ 1.5L/min

Concentration of ozone water

≤ 10mg/L

Ozone water outlet pressure

≤ 0.5MPa

Ozone gas leakage

≤ 0.15mg/m³

Atomization rate

≥ 10mL/h

Temperature control selection range

30℃ ~ 40℃ adjustable, the error is ± 2℃

Water temperature heating time

≤ 30min

Noise

≤ 60dB (A)

Over temperature protection

When the temperature of the flushing solution exceeds 45 ℃,
both heating and flushing cannot work, and an alarm will be given.

Ozone water preparation function

Blow ozone into the bucket for 5 minutes with an error of 5 seconds.

Storage and transportation environment

Environmental temperature

- 40℃ ~ 55℃

Relative humidity

≤ 95% (without water condensation)

Atmospheric pressure

70.0kPa ~ 106.0kPa
