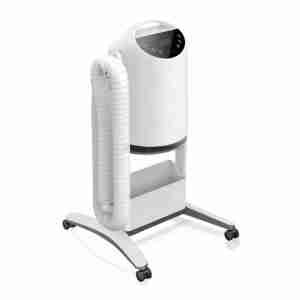

Model

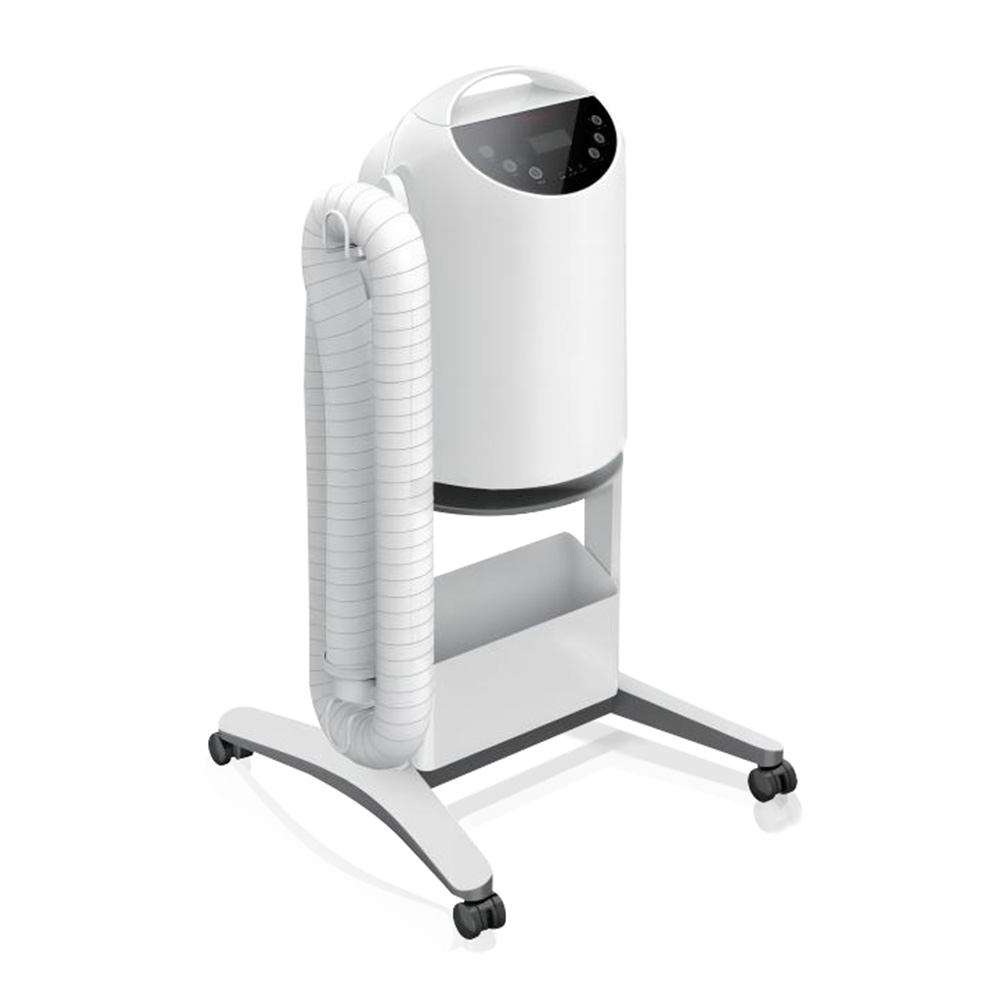

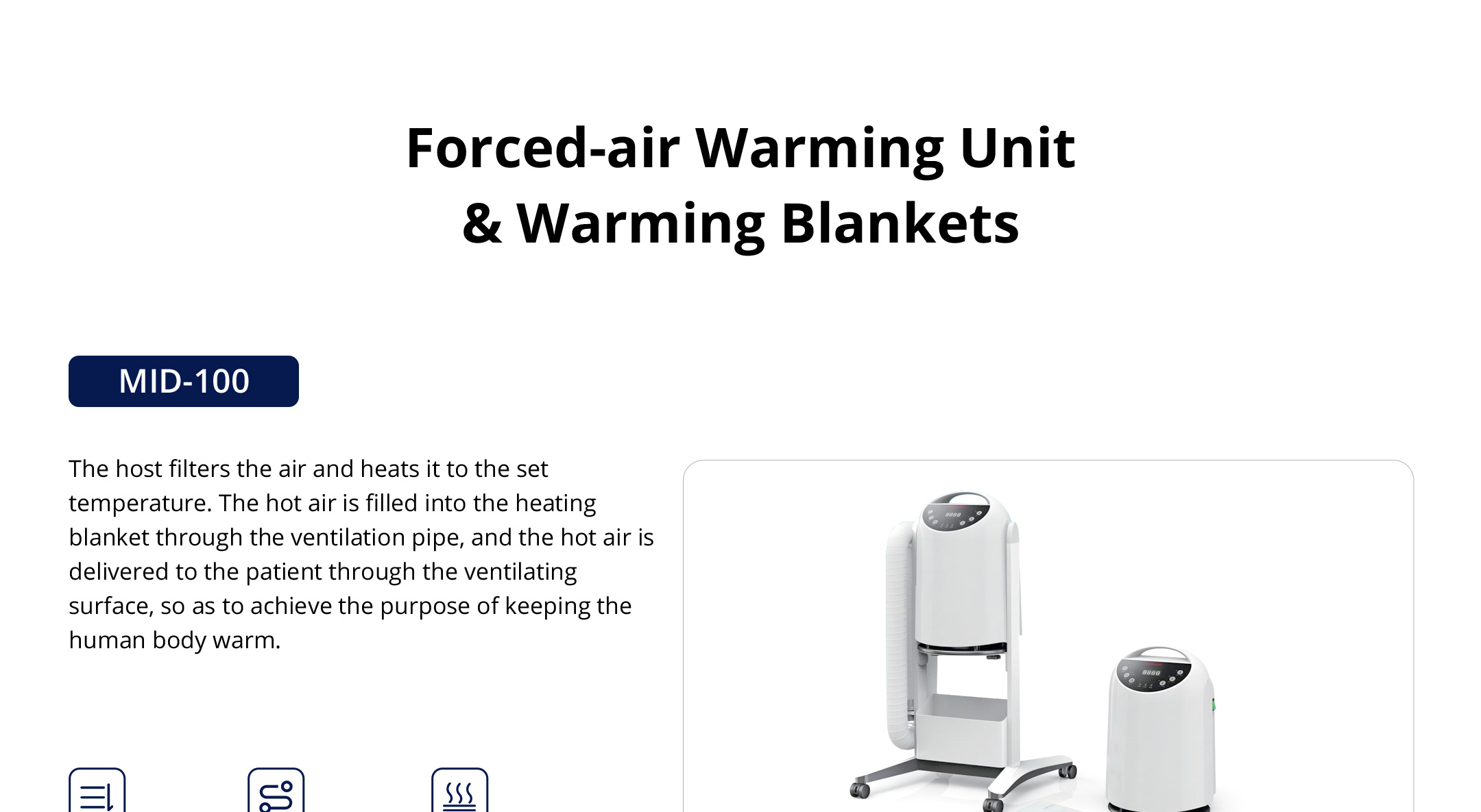

MID-100

Power supply

AC220V 50Hz

Rated power

1200VA

Heating method

Hot air heating

Modes of operation

Natural wind mode

Warming mode

Temperature selection

Room temperature

Low temperature (32℃)

Moderate temperature (38℃)

High temperature (43℃)

Accuracy

± 1.5℃

Time to achieve steady-state output

≤ 5min

Wind force

Accuracy

± 1m/s

High speed

9m/s

Low speed

6.6m/s

Ventilation pipe

Inside diameter

65mm

Straightening length

2m

Filtration

0.2μm

Filter replacement cycle

500h (over 500 hours of automatic reminder)

Abnormal or fault prompt

LED indicator, buzzer and nixie tube display

Temperature switching

The device will automatically switch to medium temperature mode after continuous operation for 45 minutes in high temperature mode

Safety class

Class I Type BF

Waterproof grade

IPX0

Temperature control protection

Level 1

If the temperature detected by the equipment is above or below the set temperature by more than 3℃, the equipment stops heating and air supply.

Level 2

At any temperature range, when the device detects a temperature higher than 52℃, the device stops heating and air supply.

Level 3

If the software high-temperature protection fails, the temperature controller will forcibly cut off the power supply, and the temperature of the host's air outlet will not exceed 65℃.

Dimensions

280mm×240mm×450mm (L×W×H)

Weight

9.6kg

Working noise

≤ 60dB (A)

Working condition

Environment temperature

15℃ ~ 30℃

Relative humidity

≤ 80% (No water condensation)

Atmospheric pressure

860hPa ~ 1060hPa
