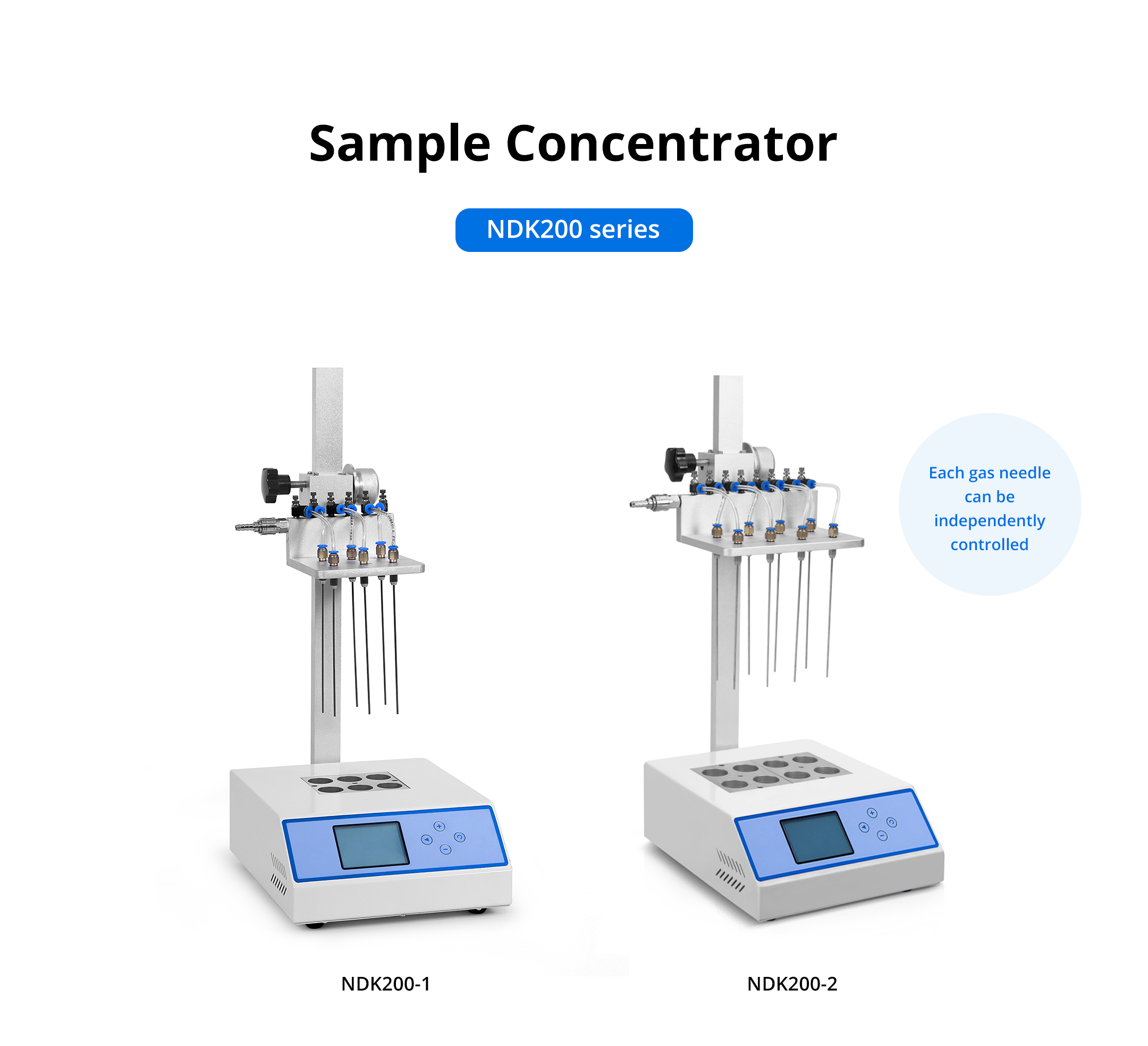

Model

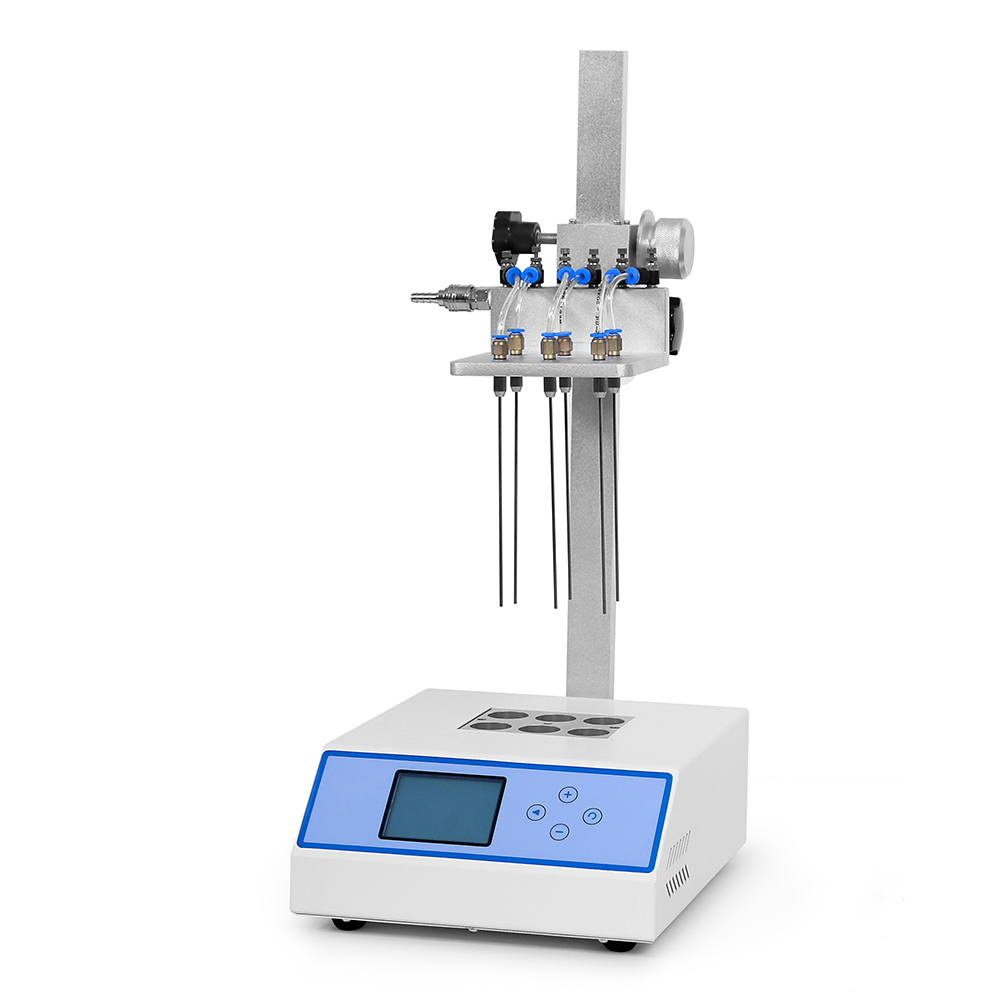

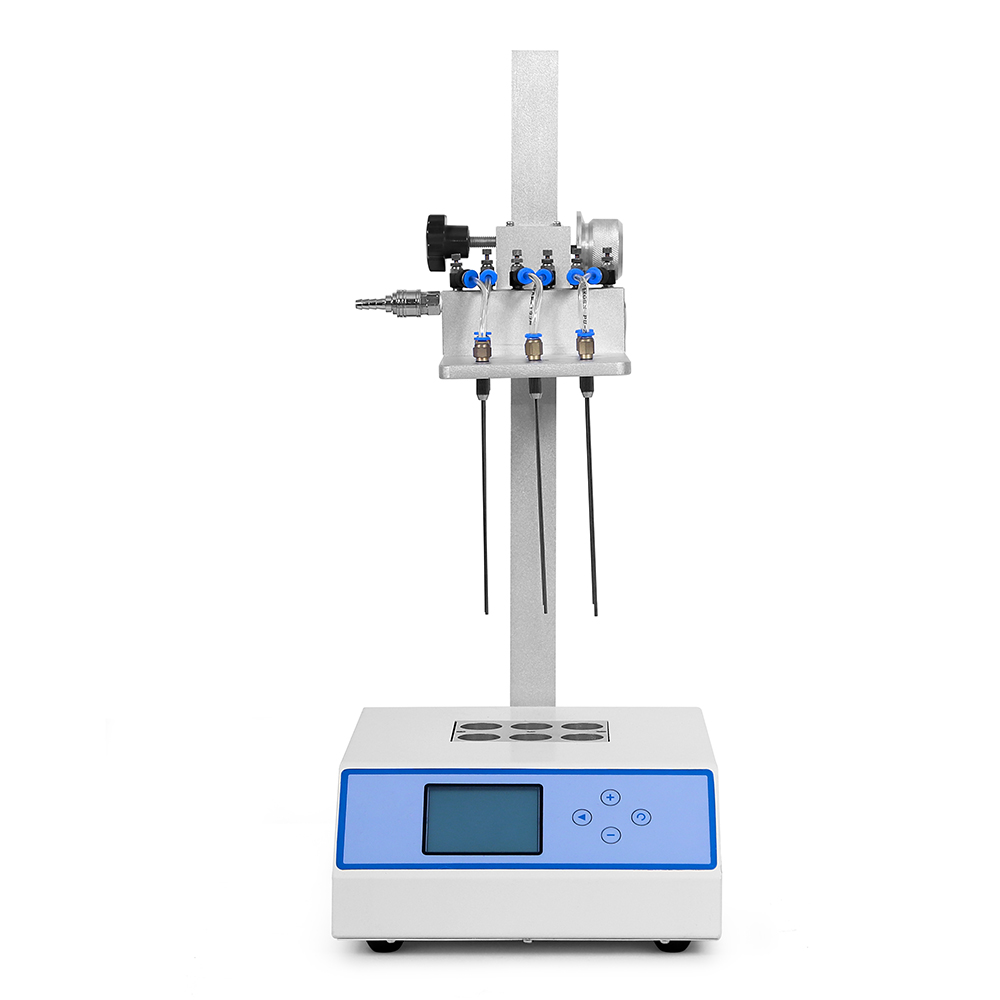

NDK200-1

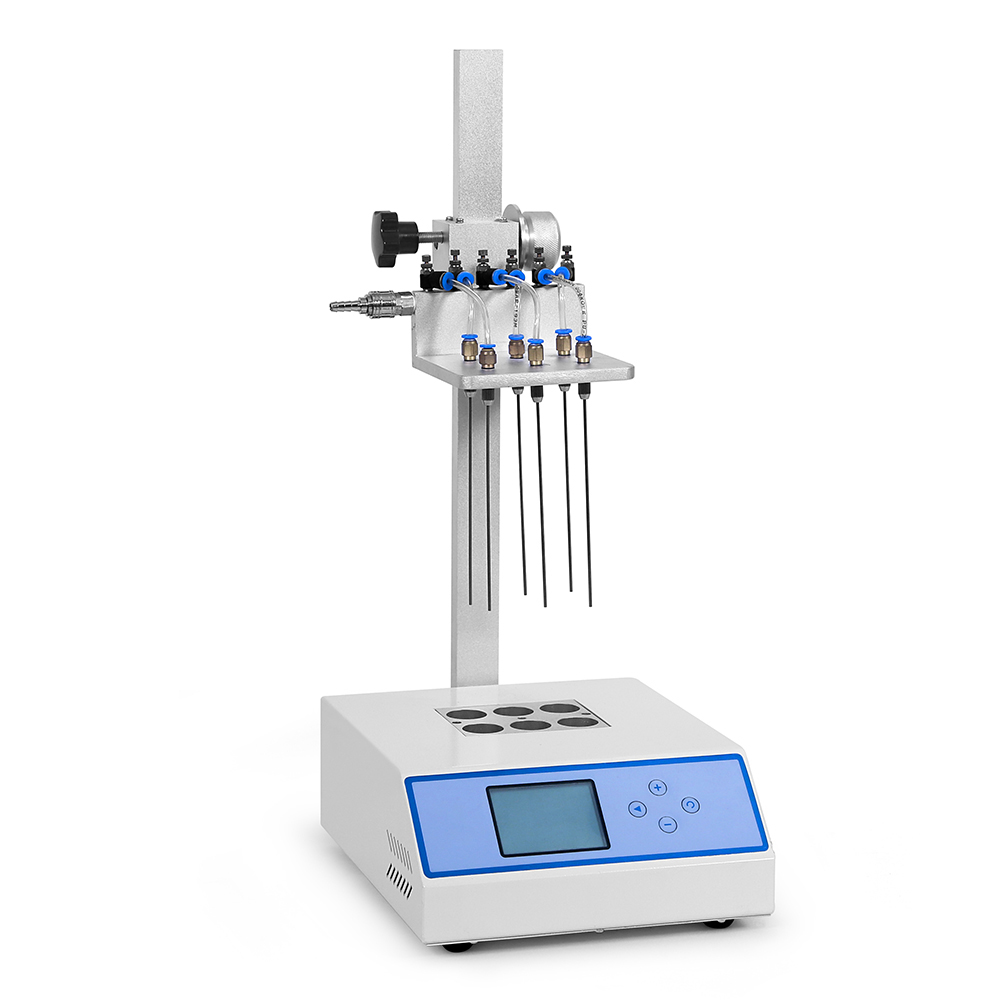

NDK200-2

Temperature range

R.T. +5℃ ~ 150℃

Heating time

≤ 30min (from 40℃ to 150℃)

Temperature accuracy

(40℃ ~ 100℃)

± 0.5℃

Temperature accuracy

(100℃ ~ 150℃)

± 1℃

Temperature uniformity (100℃)

± 0.5℃

Block quantity

1 block

2 blocks

Time range

9999min

Nitrogen flow rate

0 ~ 10L/min

Nitrogen pressure

≤ 0.1MPa

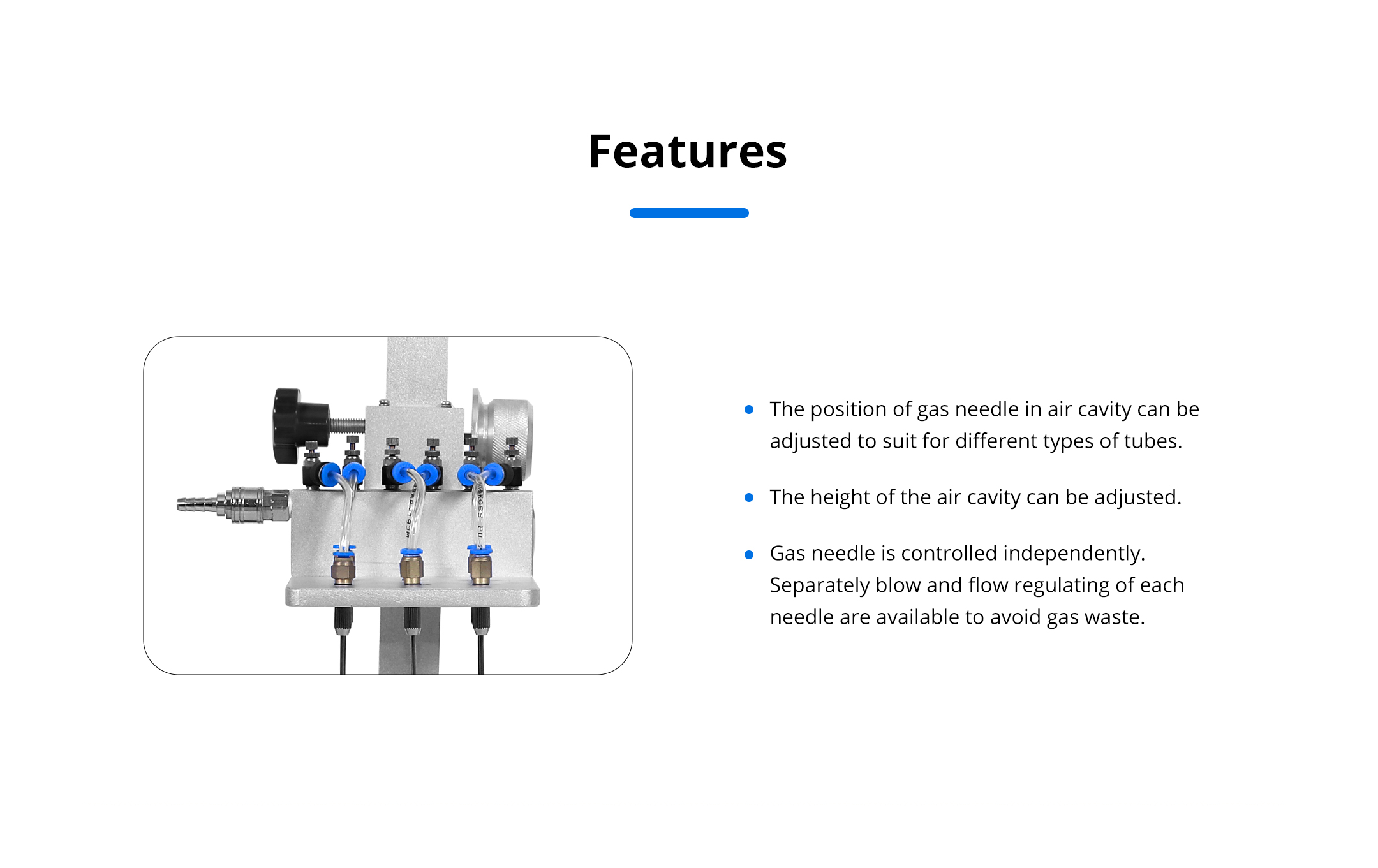

Gas needle control method

Independently controlled

Power

200W

400W

Dimensions

310mm x 220mm x 530mm

Optional Blocks

Model

Hole diameter

Hole number

Block size

DT01A

6mm

12

95.5mm x 76.5mm x 50mm

DT02A

7mm

12

95.5mm x 76.5mm x 50mm

DT03A

10mm

12

95.5mm x 76.5mm x 50mm

DT04A

12mm

12

95.5mm x 76.5mm x 50mm

DT05A

13mm

12

95.5mm x 76.5mm x 50mm

DT06

15mm

12

95.5mm x 76.5mm x 50mm

DT07

16mm

12

95.5mm x 76.5mm x 50mm

DT08

19mm

12

95.5mm x 76.5mm x 50mm

DT09

20mm

6

95.5mm x 76.5mm x 50mm

DT10

26mm

6

95.5mm x 76.5mm x 50mm

DT11

28mm

4

95.5mm x 76.5mm x 50mm

DT12

40mm

2

95.5mm x 76.5mm x 50mm

DT13A

0.5ml tube

12

95.5mm x 76.5mm x 50mm

DT14A

1.5ml tube

12

95.5mm x 76.5mm x 50mm

DT15A

2.0ml tube

12

95.5mm x 76.5mm x 50mm

DT16A

0.2ml

12

95.5mm x 76.5mm x 50mm
