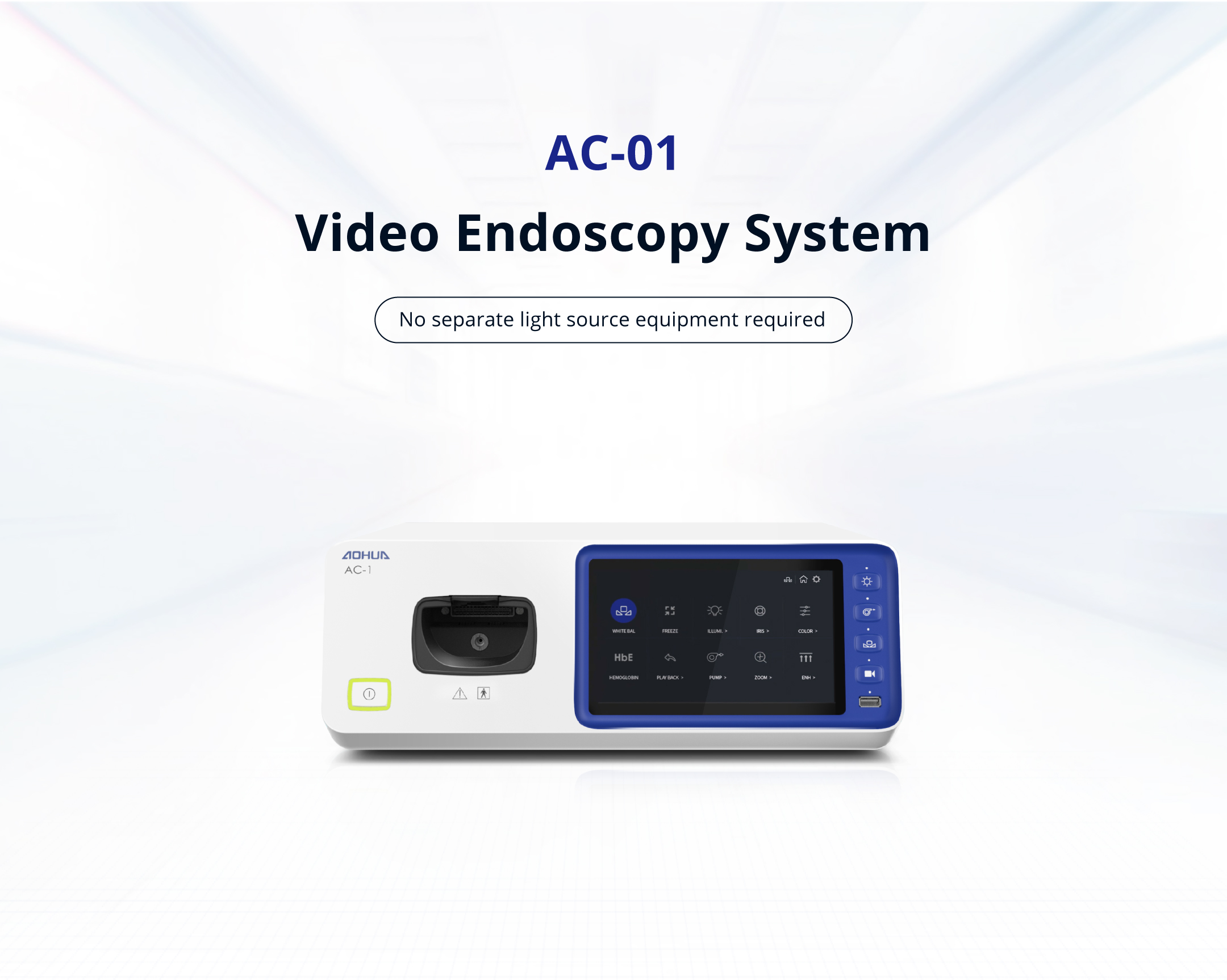

Endoscope Imaging Processor

Type of protection against electric shock

Class I

Operation model

Continuous operations

Voltage

100 ~ 240 V AC

Frequency

50 / 60 Hz

Input power

80 VA

Digital signal output interface

DVI

Analog signal output interface

AV, Y/C (Y/G, Pb/B, Pr/R, SYNC)

Air pump flow

Off / L / M / H level

Brightness adjustment

Automatic, manual

Functions & Features

White balance

It makes the image color closer to reality.

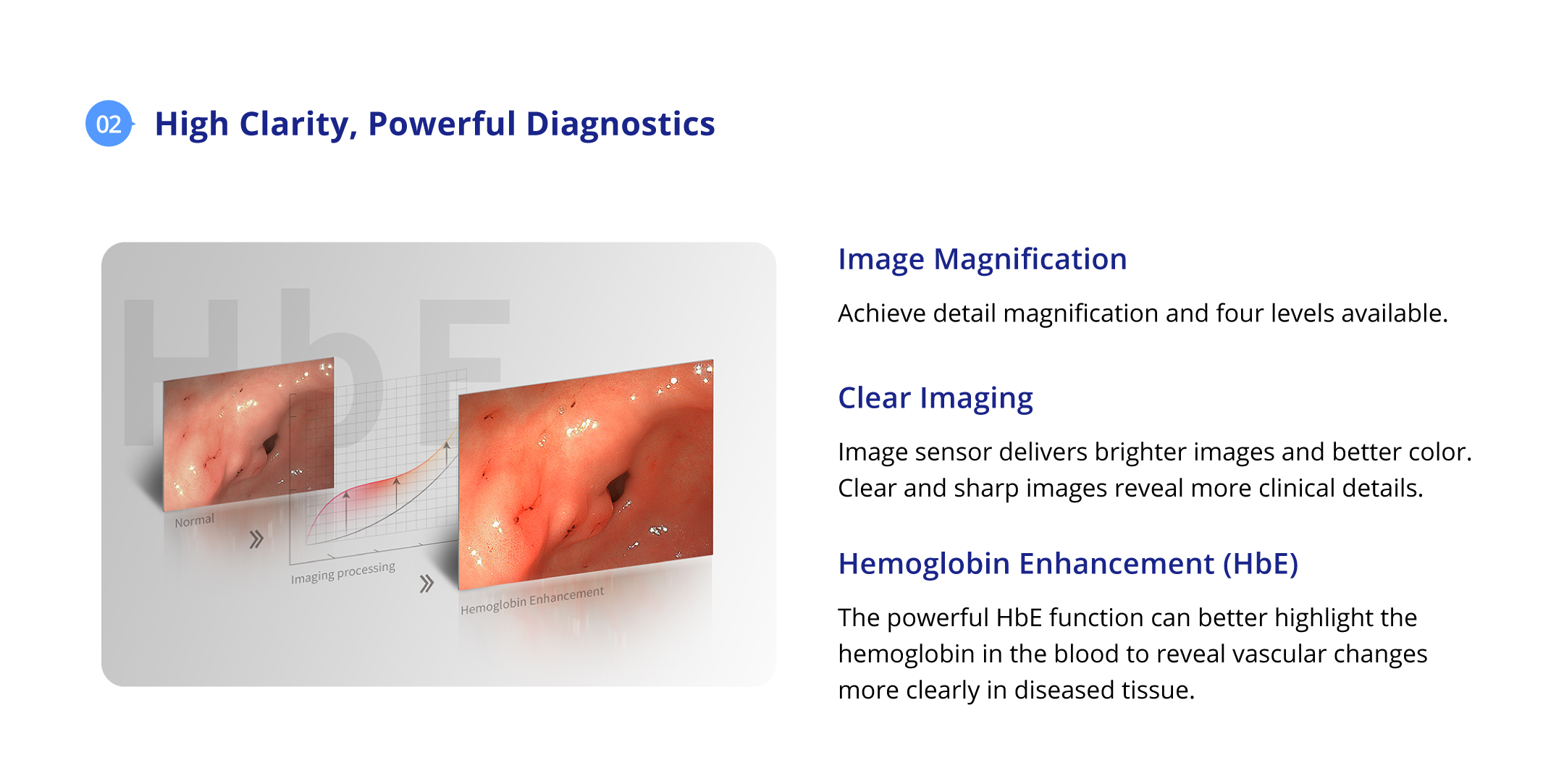

HbE enhancement

Can highlight the mucosal capillary morphology.

Structure enhancement

It can highlight the structure of endoscopic images.

Edge enhancement

It can highlight the border and profile of endoscopic images.

Metering mode

Average, Peak, Automatic

USB storage

High definition images and videos can be stored at any time, convenient to carry.

Color adjustment

Adjustment of Y (luminance), R (red), or B (blue) component within 21 levels (from - 10 to 10).

Freeze and playback

It can freeze a real-time image and play back the frozen image.

Digital zoom

Four optional positions with 1 / 1.2 / 1.5 / 2 times.
