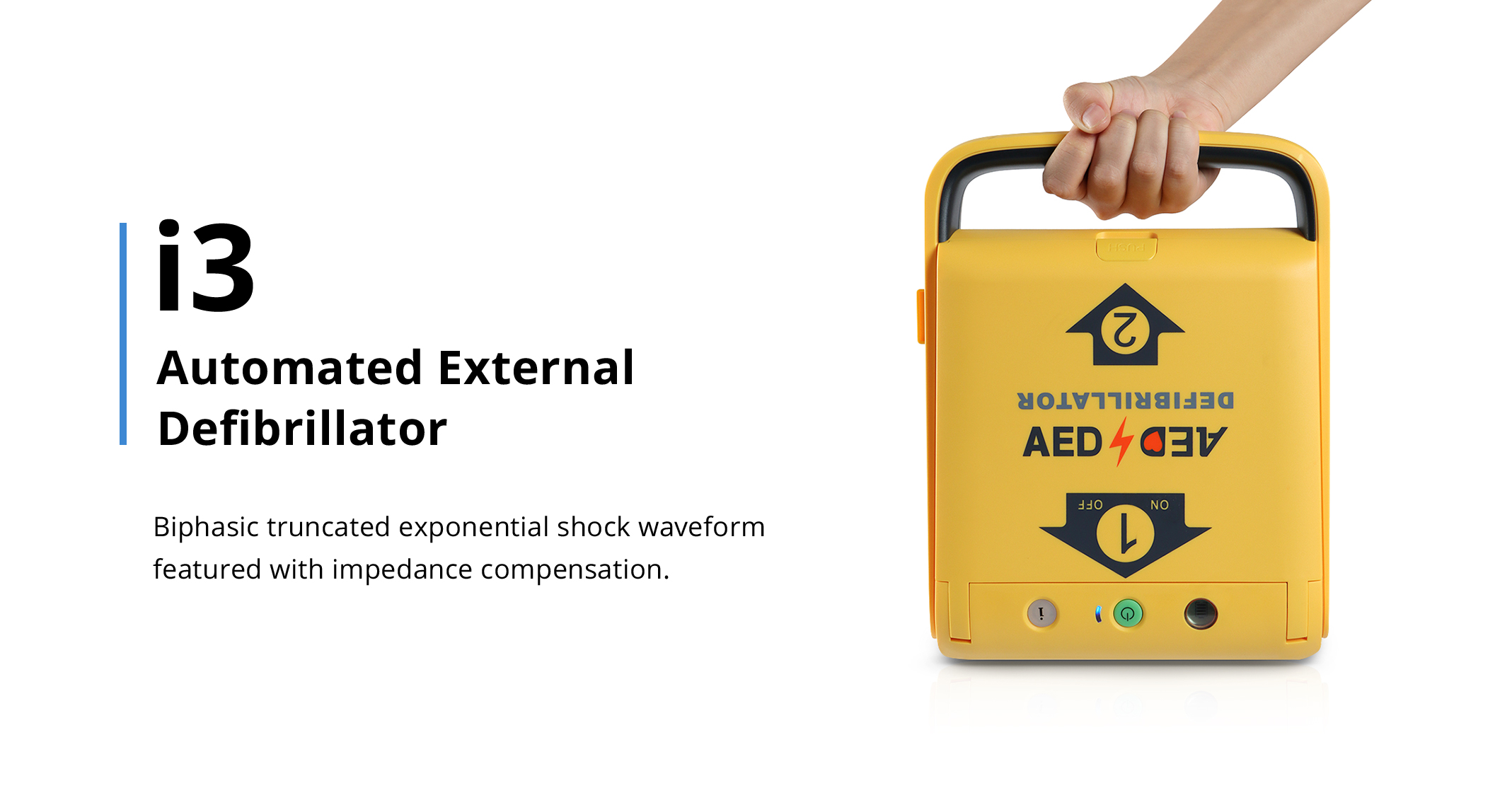

Model
|
i3
|
|
Dimensions
|
289 mm × 217 mm × 91 mm
|
|
Weight
|
About 2.5 kg
|
|
Classification
|
Nominal specification
|
|
Operation mode
|
Continuous operation
|
|
Waveform
|
Two-phase e-cube (attenuation index chopped wave type): impedance
compensation
|
|
Output energy
|
Output waveform of adult patient (200 J)
|
|
Charging control
|
Automatic control of software (arrhythmia detection system and charging control)
|
|
Heat rhythm analysis time
|
Less than 8 s (temperature 20 ℃)
|
|
Energy storage and charging time
|
Less than 10 s: applicable to fully-charged new battery (temperature 20 ℃).
|
|
Less than 12 s: applicable to fully-charged new battery after fully discharged for 15 times (temperature 20 ℃).
|
|
Time for analysis start to
shock preparation
|
Less than 15 s: applicable to fully-charged new battery (temperature 20 ℃).
|
|
Less than 17 s: applicable to fully-charged new battery after fully discharged for 15 times (temperature 20 ℃).
|
|
Time from startup to
shock preparation
|
Less than 32 s: applicable to fully-charged new battery (temperature 20 ℃).
|
|
Less than 35 s: applicable to fully-charged new battery after fully discharged for 15 times (temperature 20 ℃).
|
|
Charging completion indication
|
Voice prompt “Press flashing orange button for shock immediately”.
|
|
The backlight of “Shock” flashes.
|
|
The buzzer buzzing continuously.
|
|
Time interval from CPR to shock
|
The time from CPR completion to shock is 6s.
|
|
ECG acquisition
|
Classification: nominal specification
|
|
Collected ECG lead: Lead II
|
|
Frequency response: 1 Hz ~ 30 Hz
|
|

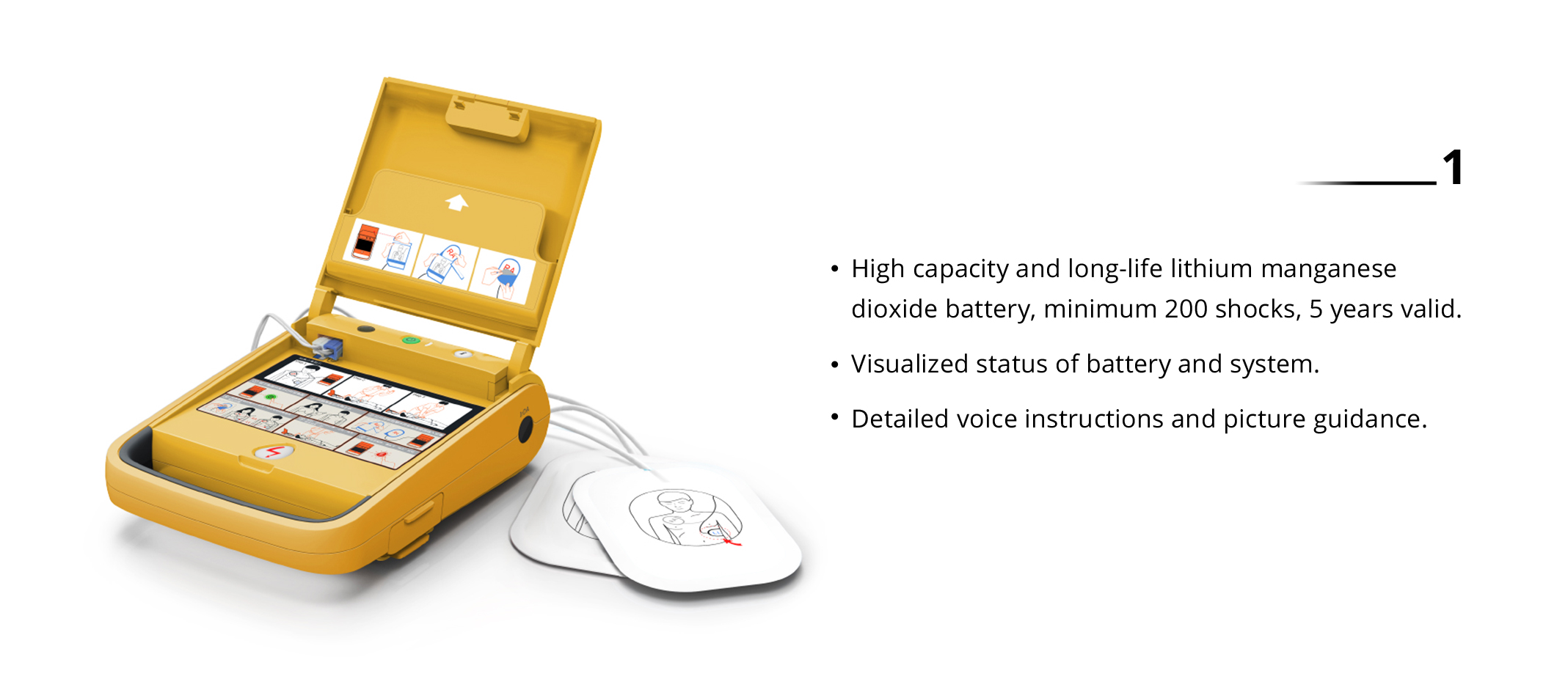

Battery
|

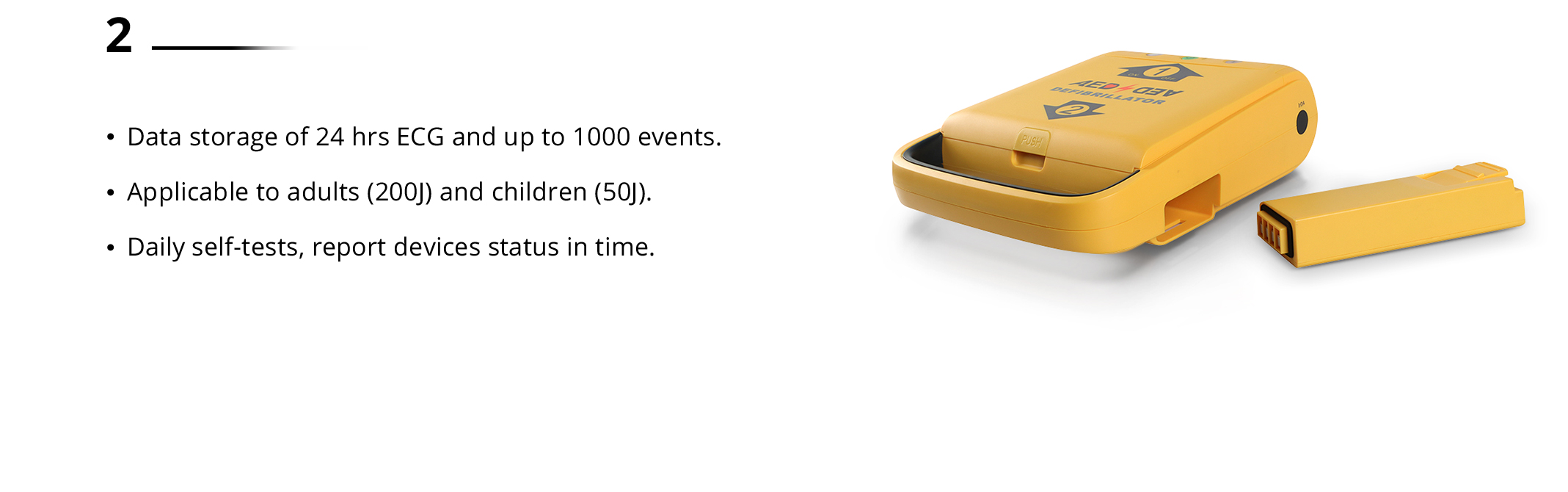

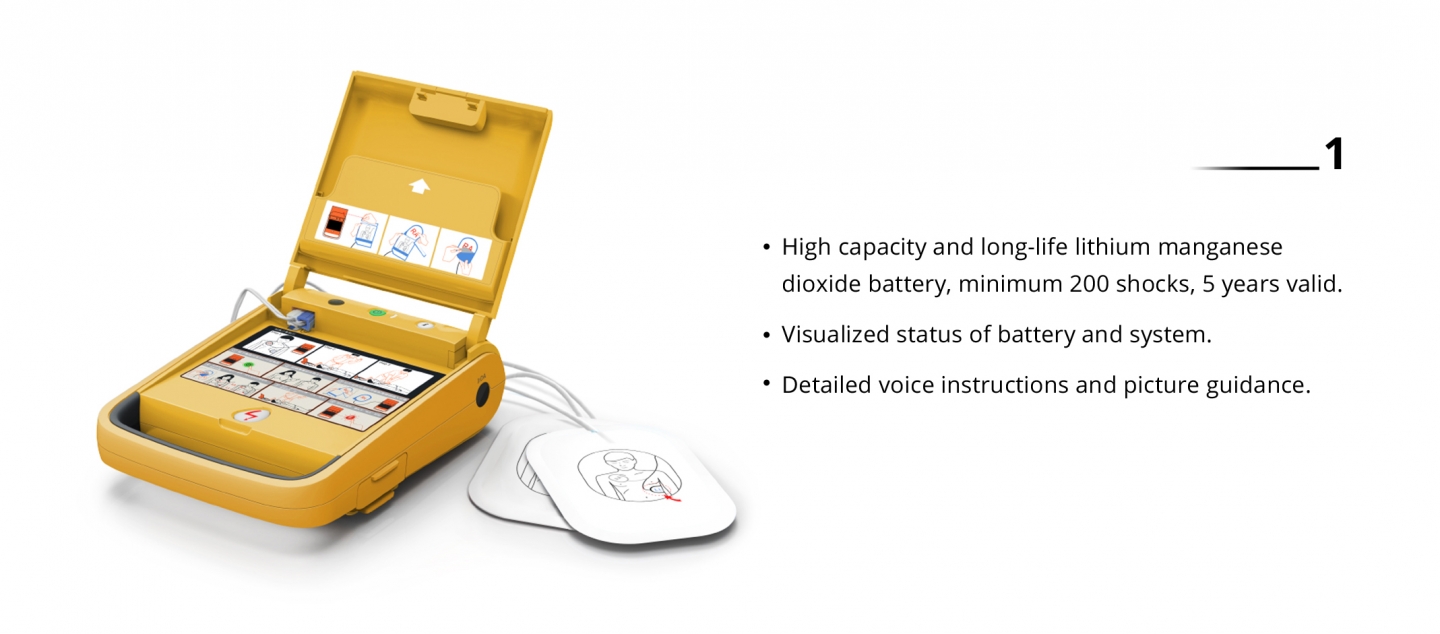

Type: DC 12 V, 4.5 Ah Li-MnO2 battery, non-rechargeable
|
|
Capacity: at least 200 shocks or work for 4 hours
|
|
Temperature: (Operating state) 0 ℃ ~ 50 ℃, (Storage state) - 30 ℃ ~ 70 ℃
|
|
Working environment
|
Temperature: 0 ℃ ~ 50 ℃
|
|
Humidity: 5 % ~ 95 % (no condensation)
|
|
Air pressure: 70 kPa ~ 110 kPa
|
|
Storage environment
(host machine)
|
Temperature: -30 ℃ ~ 70 ℃
|
|
Humidity: 5 % ~ 95 % (no condensation)
|
|
Air pressure: 70 kPa ~ 110 kPa
|
|
Storage environment
(electrode pads)
|
Temperature: 0 ℃ ~ 50 ℃
|
|
Humidity: 20 % ~ 80 % (no condensation)
|
