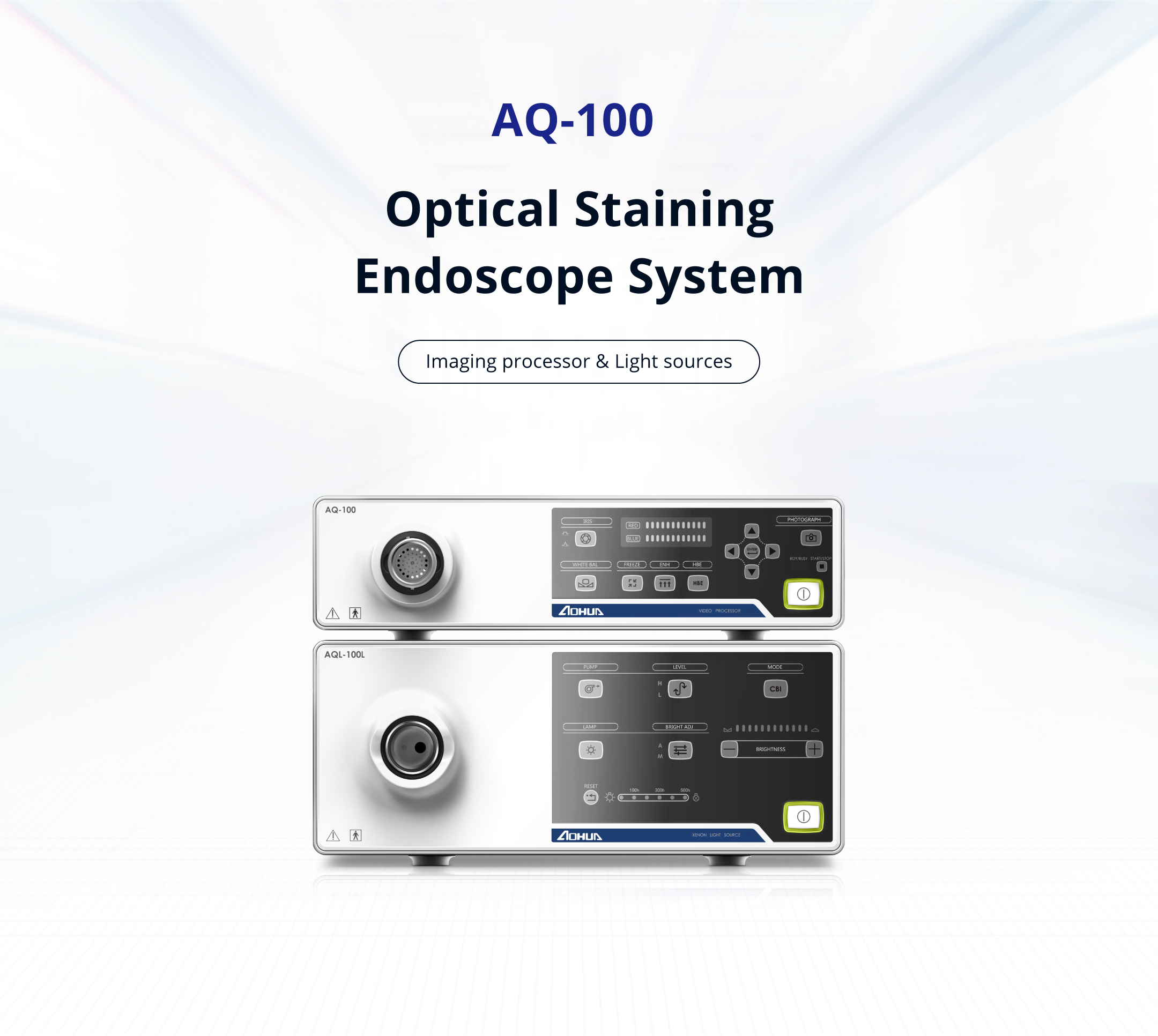

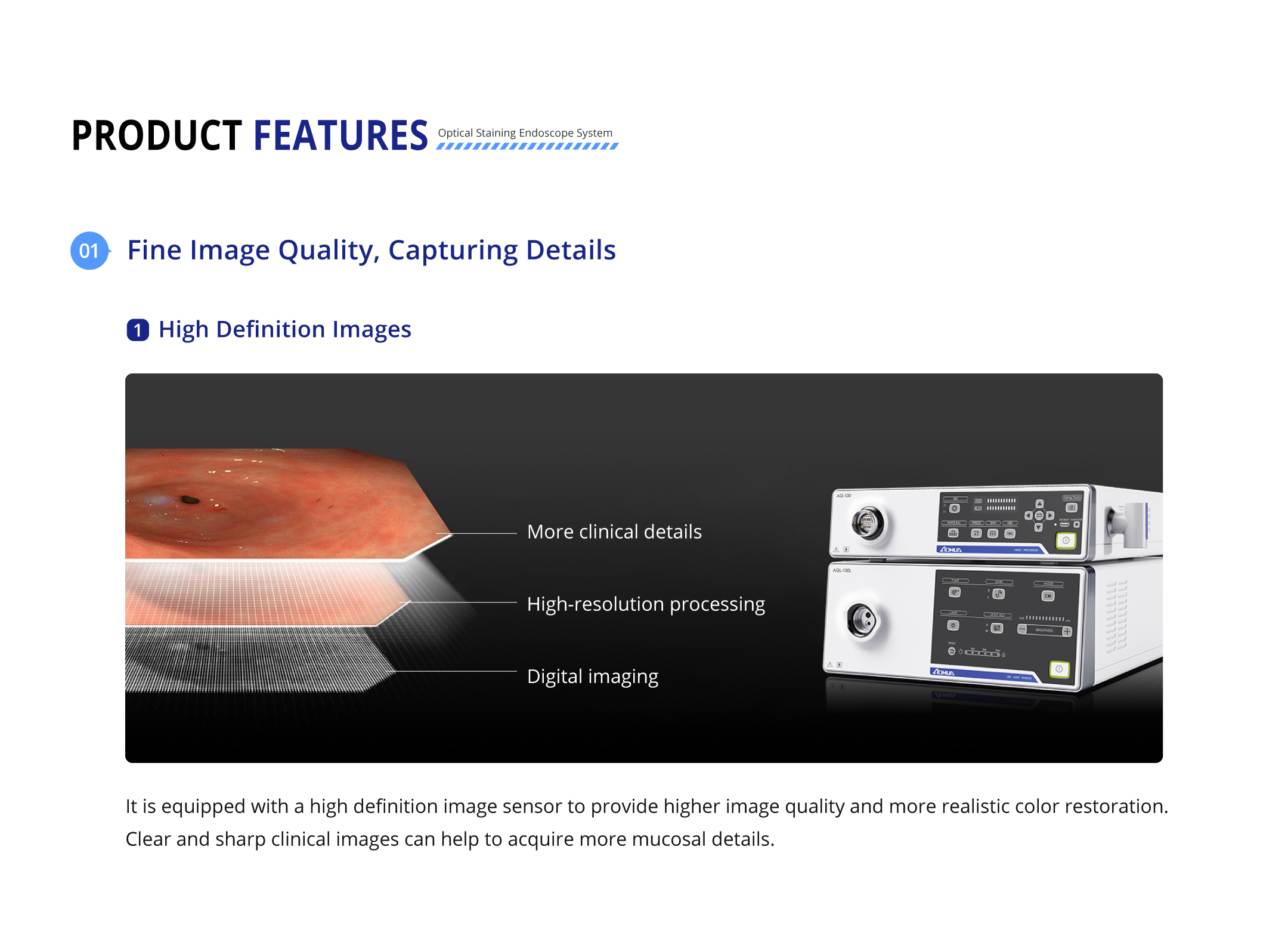

Endoscope Image Processor

Model

AQ-100

Type of protection against electric shock

Class I

Operation model

Continuous operations

Voltage

100 ~ 240 V AC

Frequency

50 / 60 Hz

Input power

60 VA

Digital signal output interface

DVI

Analog signal output interface

AV, Y/C (Y/G, Pb/B, Pr/R, SYNC)

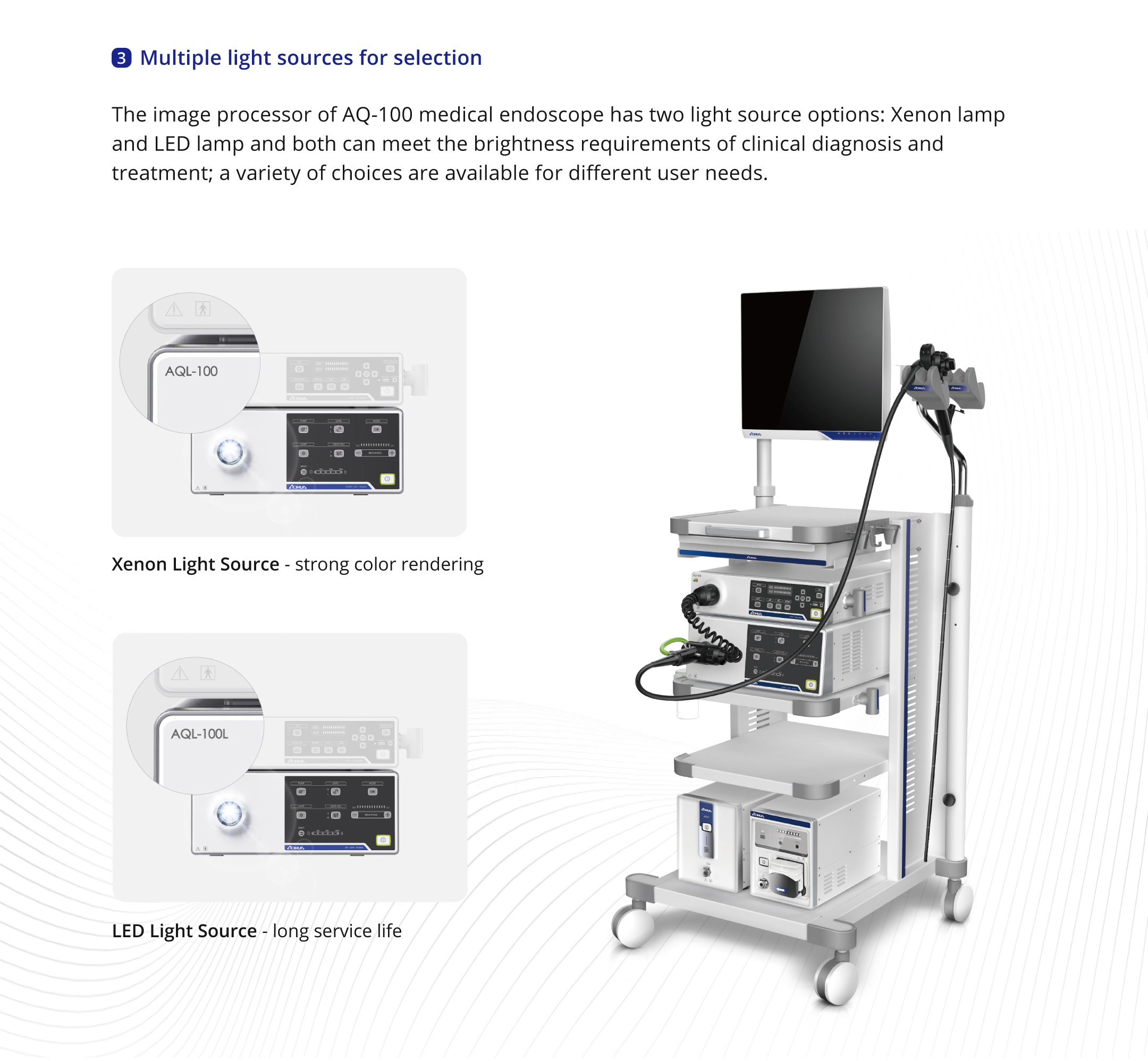

Light Source

Model

AQL-100

AQL-100L

Primary lamp

Xenon lamp

LED lamp

Frequency

50 / 60 Hz

Average life of lamp

About 500 h

About 10000 h

Total output luminous flux

About 300 lm

Color rendering index

≥ 90

Color temperature

3000 ~ 7000 k

Air pump flow

Off, L and H Level

Brightness adjustment

Automatic, manual

Functions & Features

White balance

It makes the image color closer to reality.

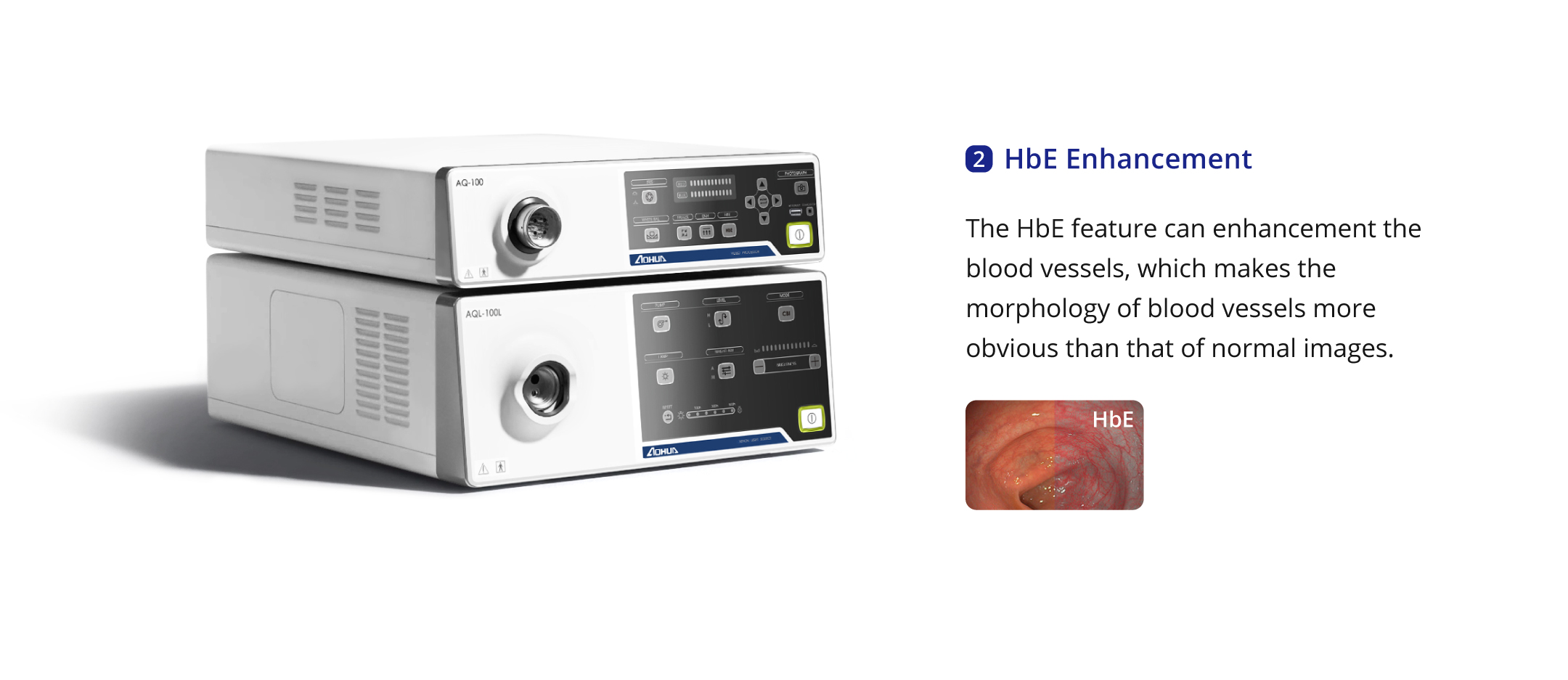

HbE enhancement

Can highlight the mucosal capillary morphology.

Structure enhancement

It can highlight the structure of endoscopic images.

Edge enhancement

It can highlight the border and profile of endoscopic images.

Metering mode

Average, Peak

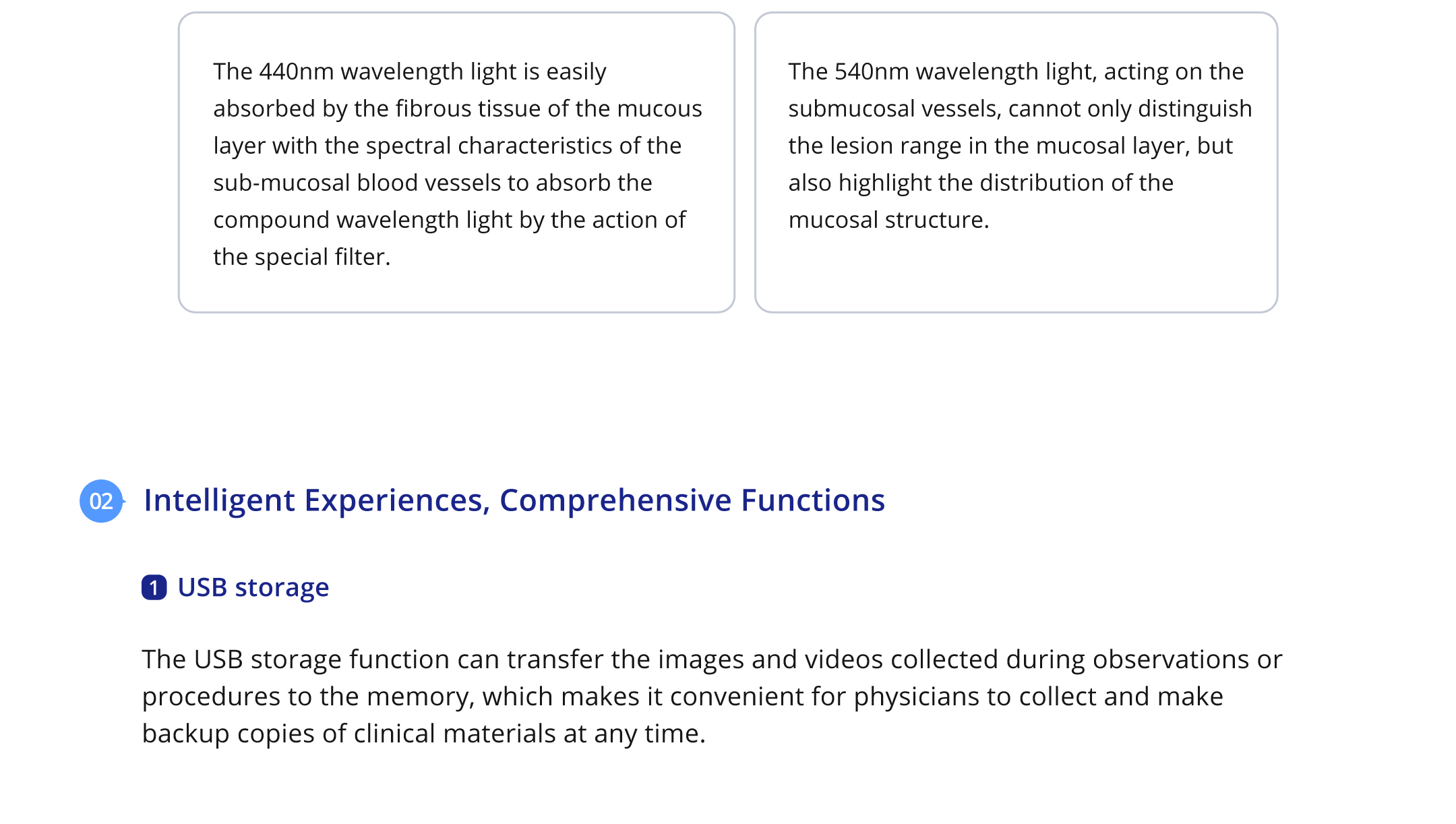

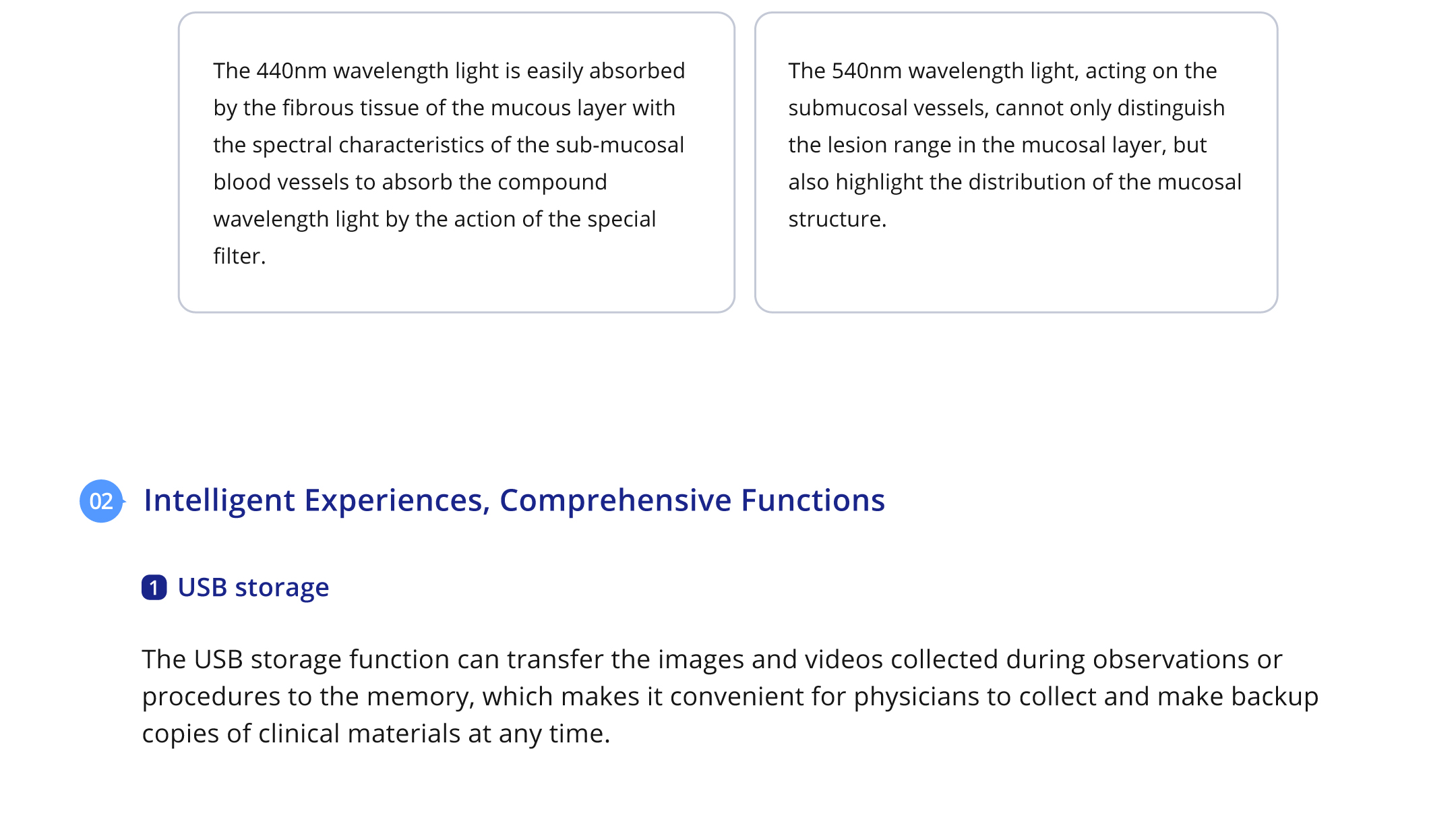

USB storage

High definition images and videos can be stored at any time, convenient to carry.

Color tone adjustment

Adjustment of R and B: multi-stage adjustment with 12 stage options.

Freeze and playback

It can freeze a real-time image and play back the frozen image.

Digital zoom

Four optional positions with 1 / 1.2 / 1.5 / 2 times.

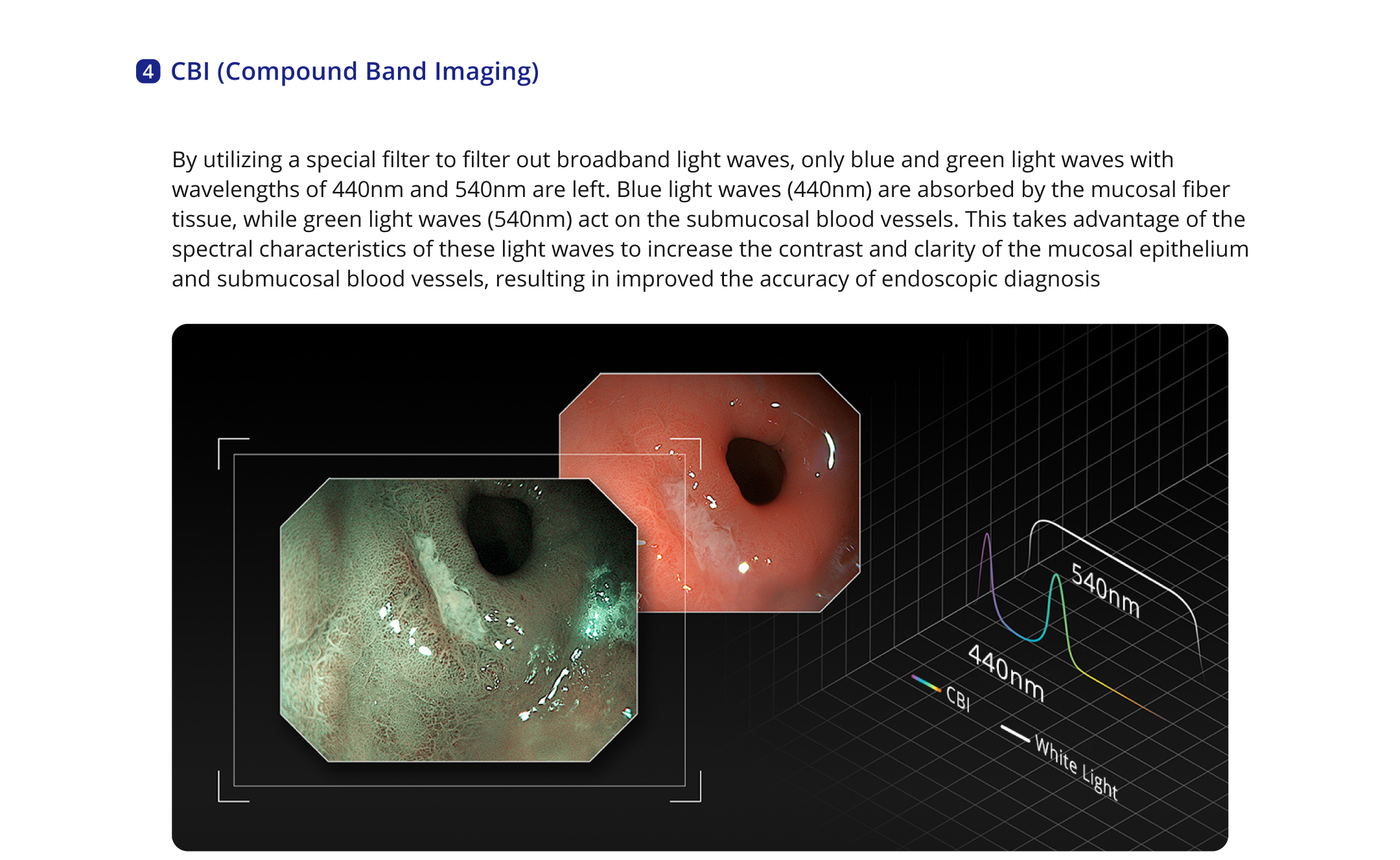

Optical chromoendoscopy techniques

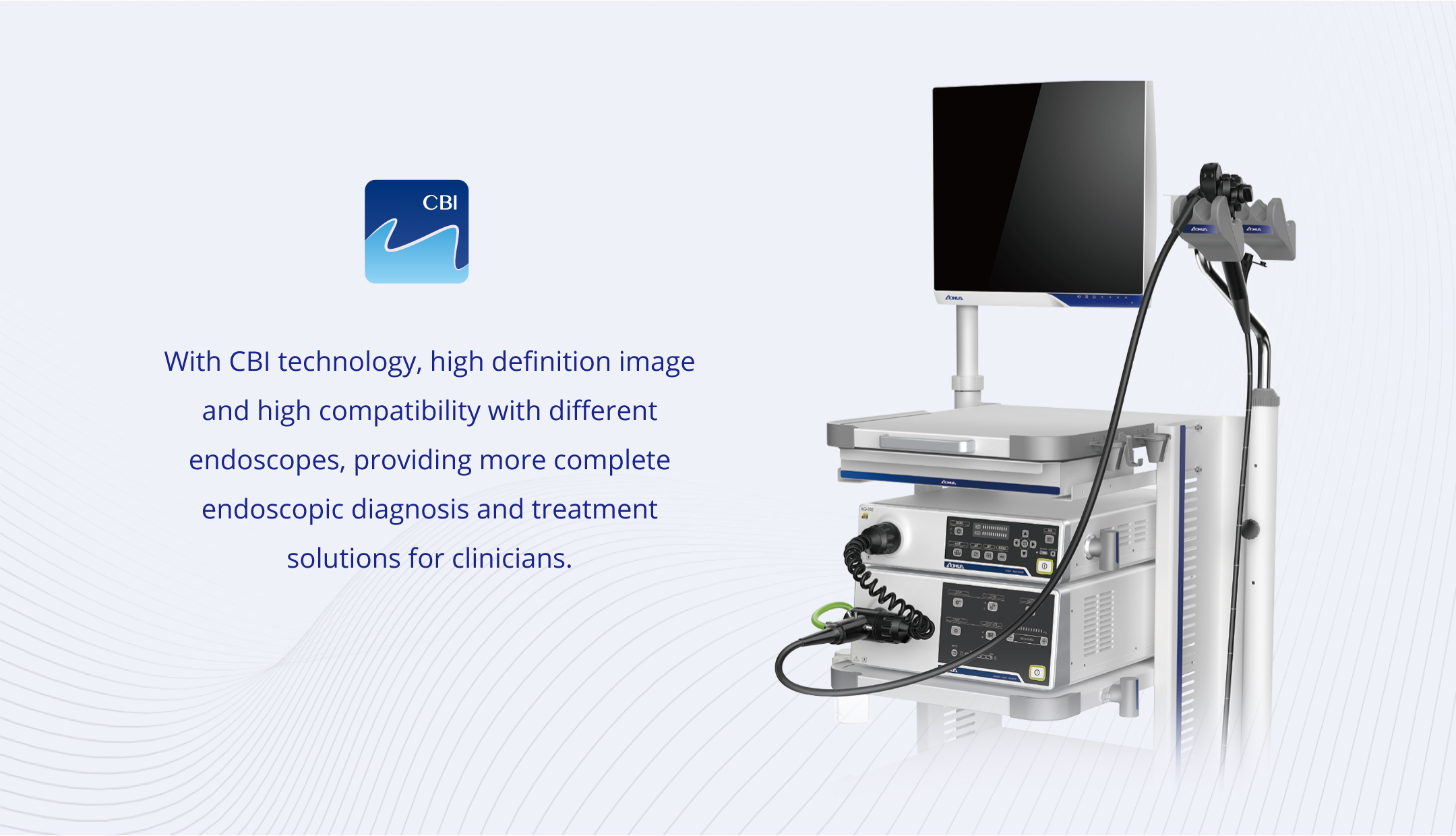

CBI illumination mode
