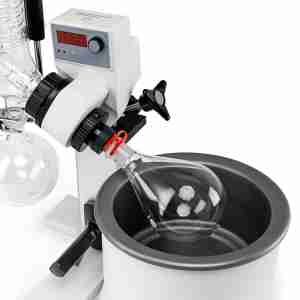

RE100-S LED digital rotary evaporator
Product ID: MQ81525
P/N: MQ815251
It is a basic chemical laboratory instrument suitable for evaporation, distillation and separation of chemicals.
Model
RE100-S
Condensing area
1200 cm²
1700 cm²
Optional Items / FunctionsMultiple choices available
Selected ( 0 )
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/pack, 1 pack(s)/carton
Recommend related products

Model

RE100-S

Evaporating flask volume

50ml ~ 3000ml

Temperature range

Room temp. ~ 180℃

Temperature control accuracy

Water: ± 1℃

Oil: ± 3℃

Rotation speed

20rpm ~ 200rpm

Evaporation capacity

1.56L/h

Direction of rotation

Clockwise and counterclockwise

Temperature control

Micro processer PID control

Display

LED (temperature / speed / time)

Timer

Yes

Time setting range

1min ~ 999min

Lifting mode

Manual

Lifting stroke

110mm + auxiliary 100mm

Heating bath size

300mm × 300mm × 240mm

Motor type

Brushless DC motor

Heating power

1200W

Power

1245W

Voltage / Frequency

100V ~ 120V / 200V ~ 240V, 50 / 60Hz

Dimension (D×W×H)

440mm × 320mm × 450mm

Weight

Main Unit: 7kg

Heating Bath: 3kg

Permissible ambient temperature

5℃ ~ 40℃

Permissible ambient humidity

 80% RH

USB interface

Yes

Protection class

IP20

Safety features

Motor over-current protection / Earth-leakage protection
Lifting overload protection /
Boil-dry protection / Overheating protection
