Model

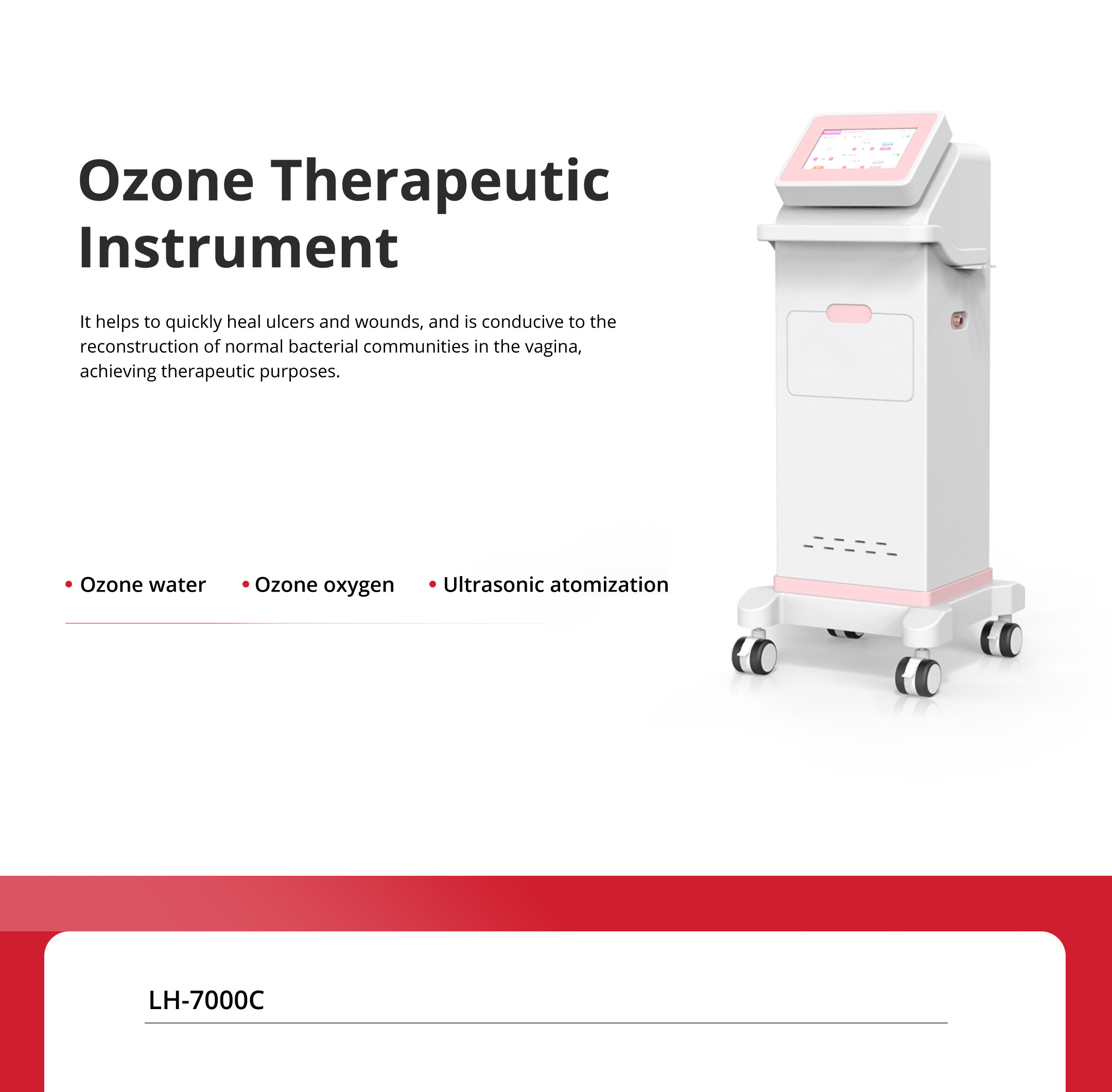

LH-7000C

Screen

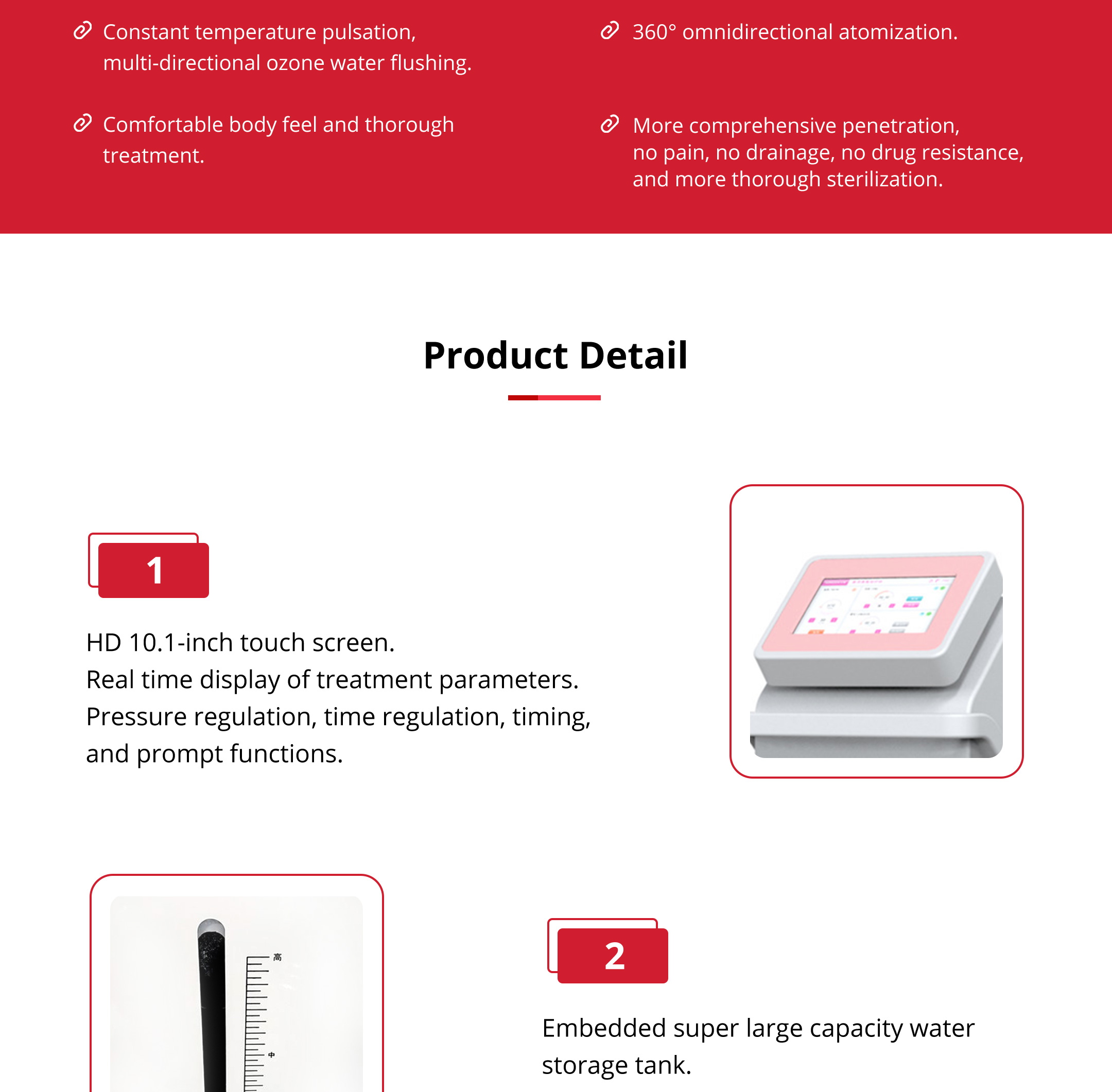

10.1 inch touch screen

Therapeutic mode

Ozone gas, ozone mist, ozone water flushing

Control mode

Controlled by micro-computer

Power supply

AC220V, 50Hz

The rated input power

≤ 1500VA

Ozone concentration

≥ 80mg/m³

Ozone gas flow

0.5L/min ~ 3L/min

Concentration of ozone water

0.1mg/L ~ 15mg/L

Ozone water flow rate

0.6L/min ~ 3L/min

Ozone water outlet pressure

0.01MPa ~ 0.04MPa

Ozone gas leakage

≤ 0.16mg/m³

Timing range

0 ~ 99min

Step size

1min

Time precision

± 1min

Atomization rate

≥ 10mL/h

Ultrasonic atomization working frequency

1.7MHz ± 10%

Temperature control selection range

19℃ ~ 39℃ adjustable, the error is ± 3℃

Noise

≤ 60dB (A)

Over temperature protection

When the temperature of the flushing solution exceeds 45 ℃, both heating and flushing cannot work, and an alarm will be given.

Over temperature error

± 10%

Ozone water preparation function

Blow ozone into the bucket for 5 minutes with an error of 5 seconds.

Continuous running time

≥ 8h

Working condition

Environmental temperature

10℃ ~ 40℃

Relative humidity

30% ~ 75%

Atmospheric pressure

86.0kPa ~ 106.0kPa
