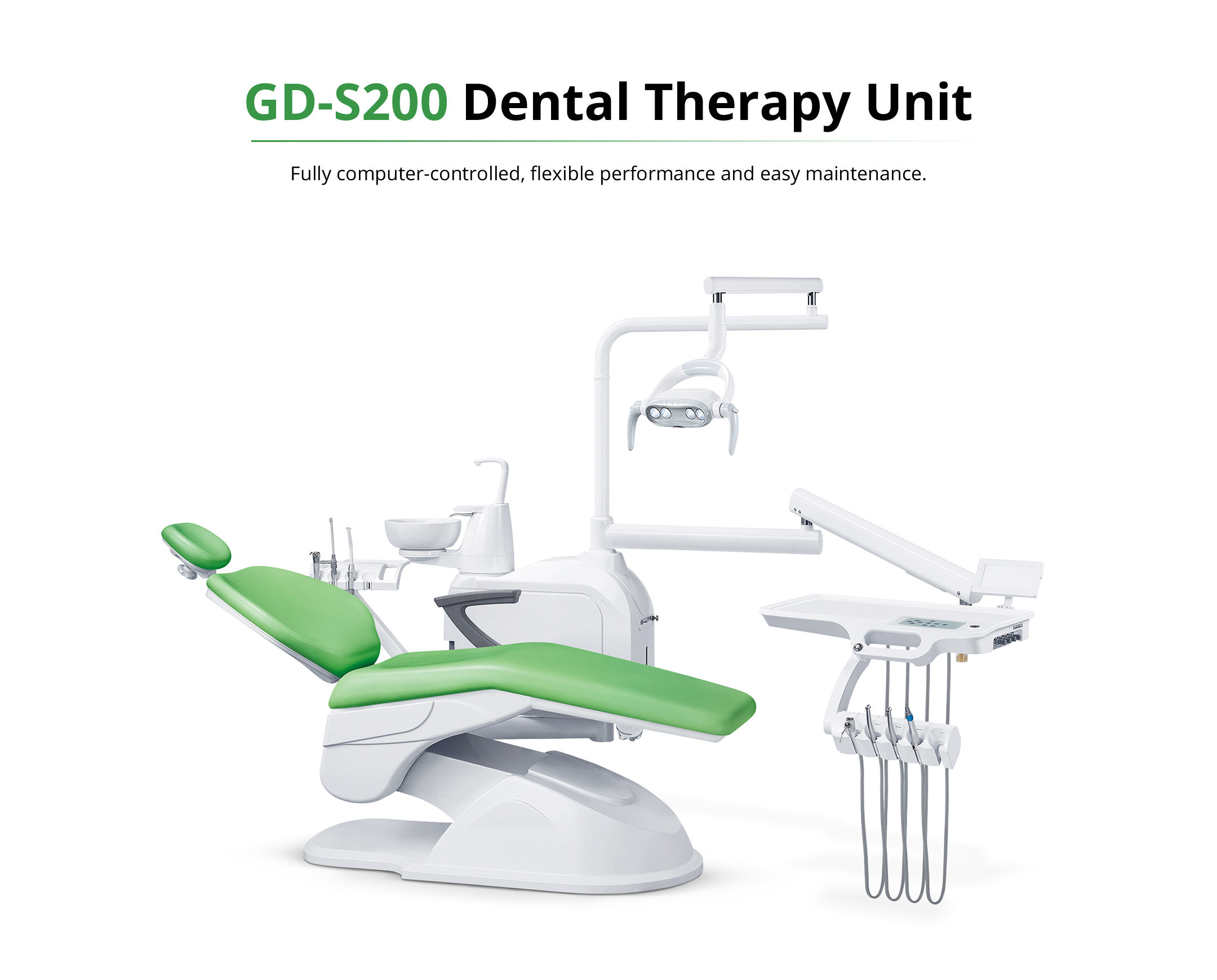

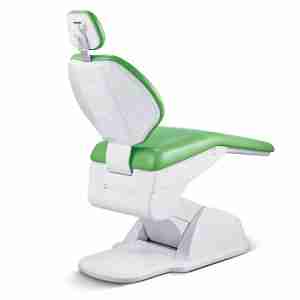

Model

GD-S200

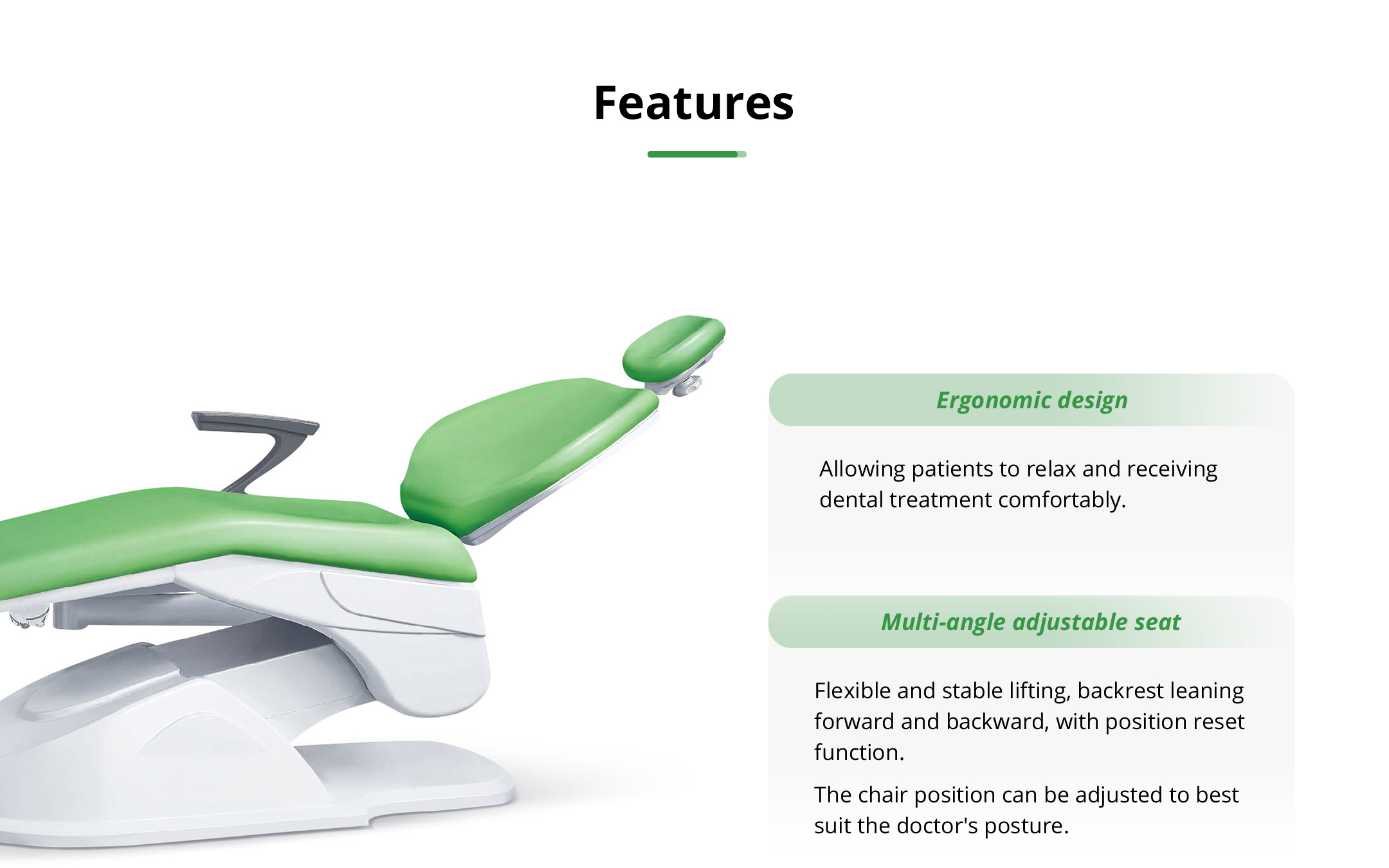

Lowest seat position

400 mm

Highest seat position

700 mm

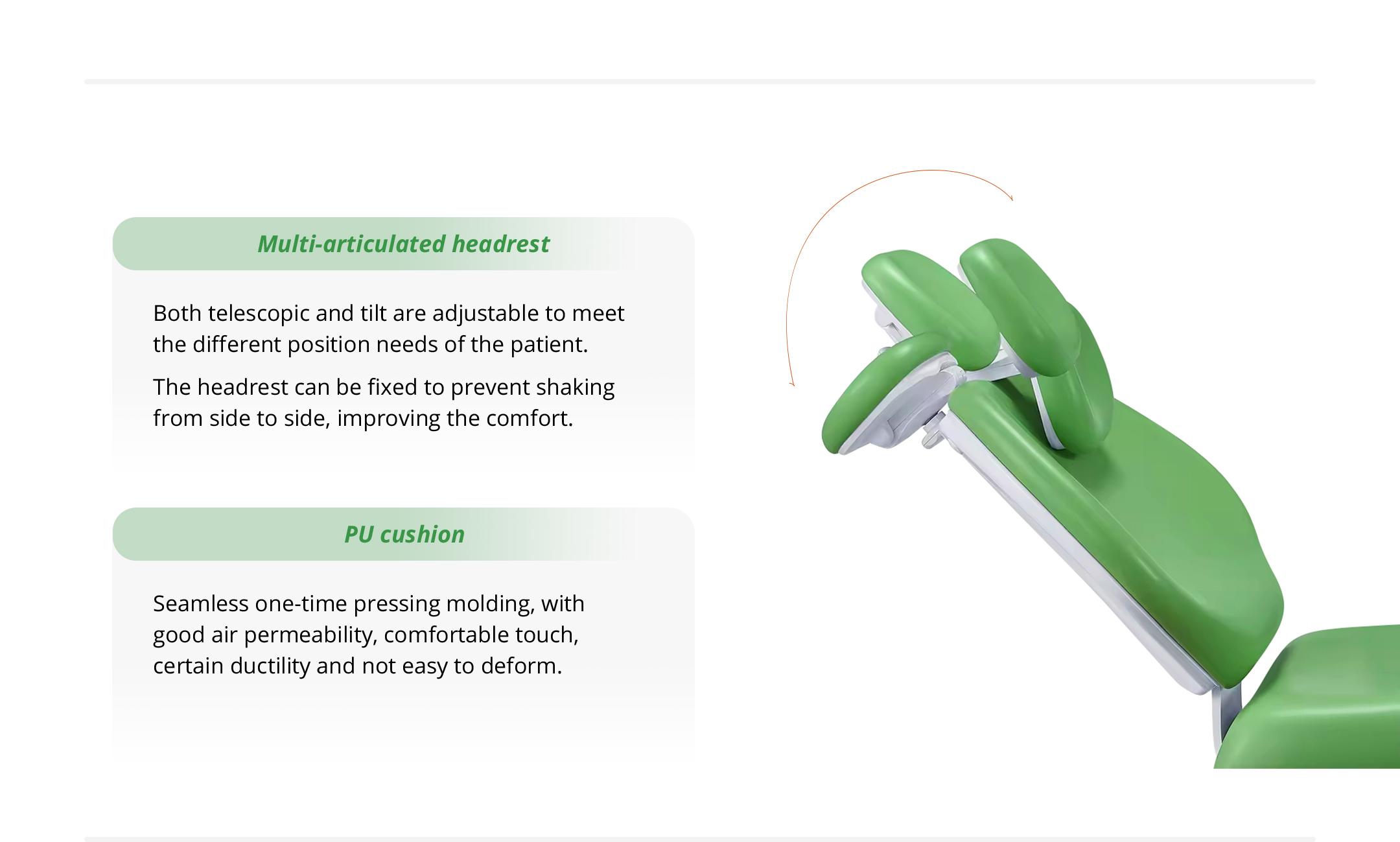

Headrest tilted forward

20 °

Headrest tilted backward

40 °

Headrest telescopic length

< 120 mm

Power voltage

110 / 220 V, 50 / 60 Hz

Motor voltage

24 V

Water pressure

0.25 MPa - 0.6 MPa

Air pressure

0.55 MPa - 0.75 MPa

Standard accessories

High speed handpiece tube

2 pcs

Low speed handpiece tube

1 pc

3-way syringe (cold and hot)

2 pcs

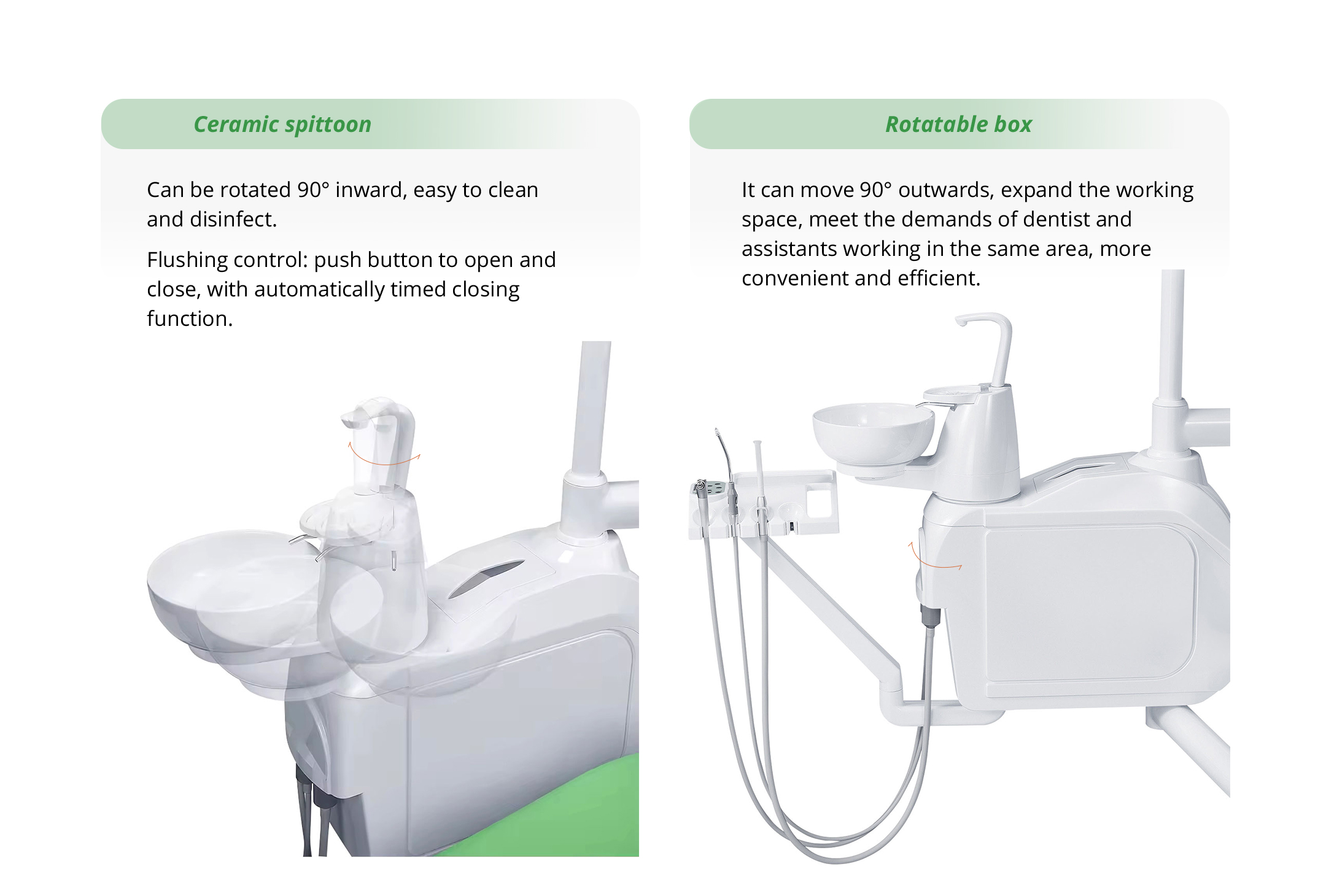

Rotatable 90° spittoon

1 pc

Rotatable unit box

1 pc

Main control system

1 set

Assistant operating control system

1 set

Water heater system

1 set

Luxury multifunctional foot controller

1 pc

Strong suction tube

1 pc

Weak suction tube

1 pc

Water purification system

1 set

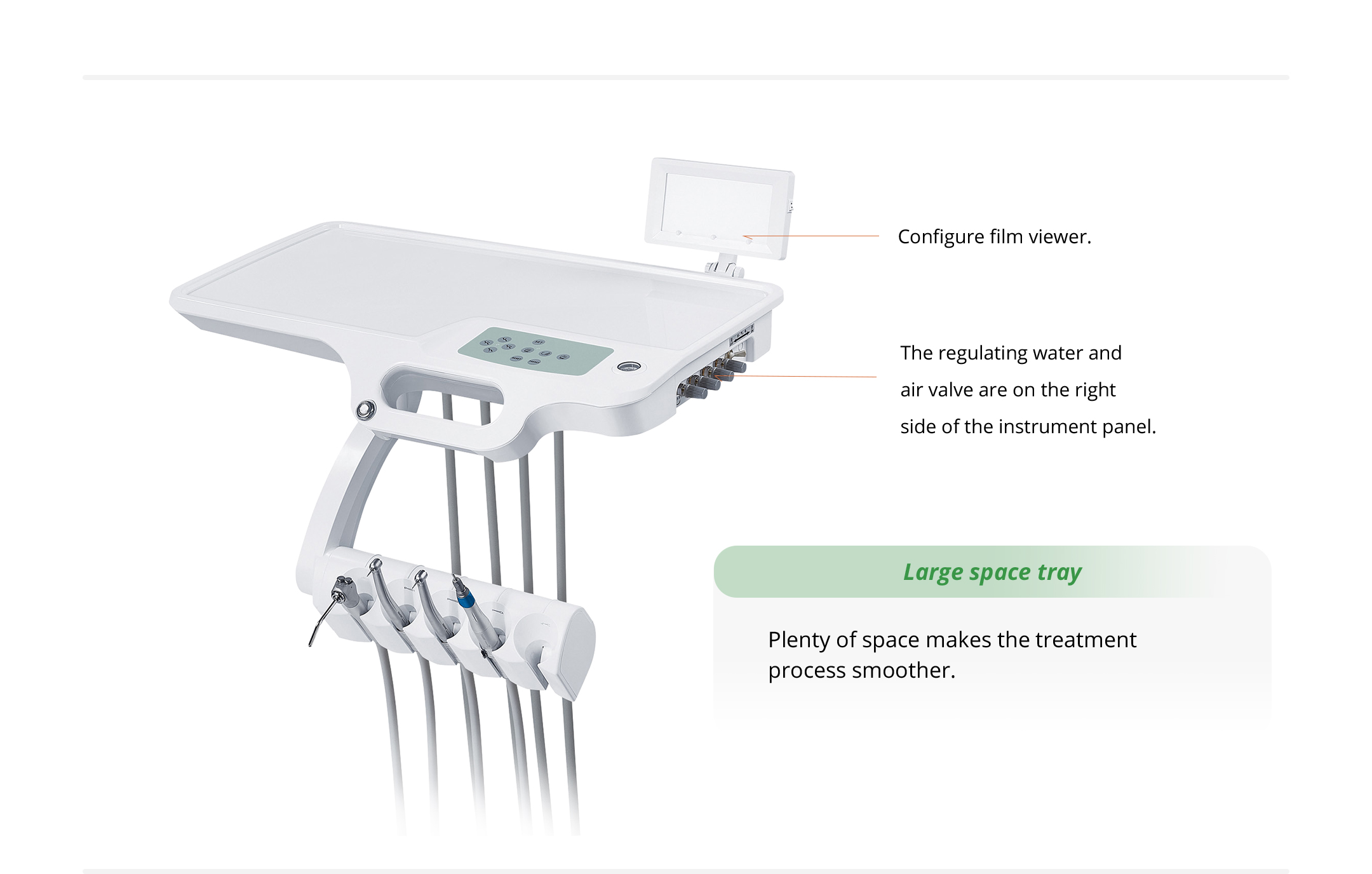

Air brake instrument tray

1 pc

Auto spittoon flush and cup filler control system

1 set

Air & water pipe

1 set

PU cushion

1 set

Normal pillow

1 pc

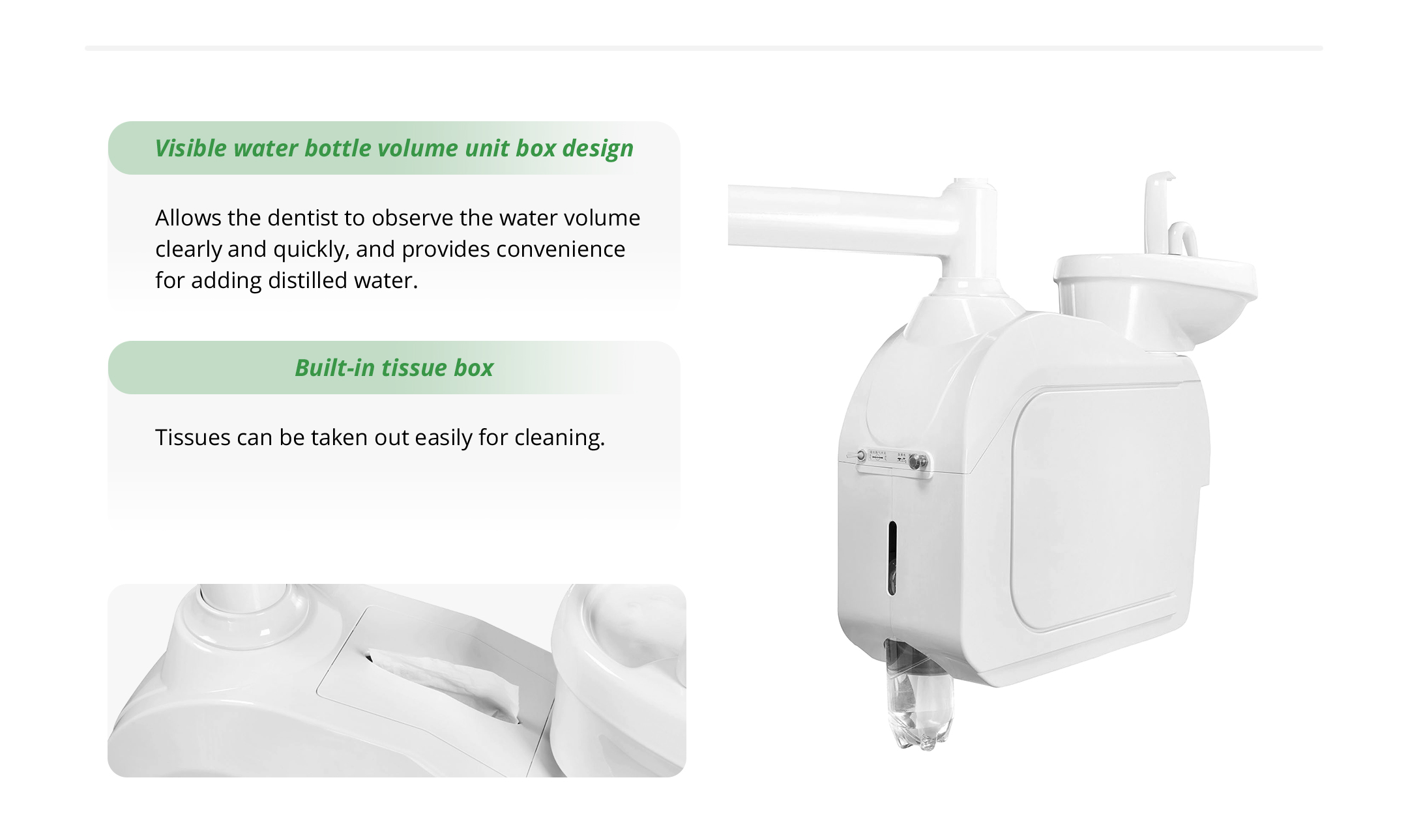

Built-in tissue box

1 pc

Normal x-ray film viewer

1 pc

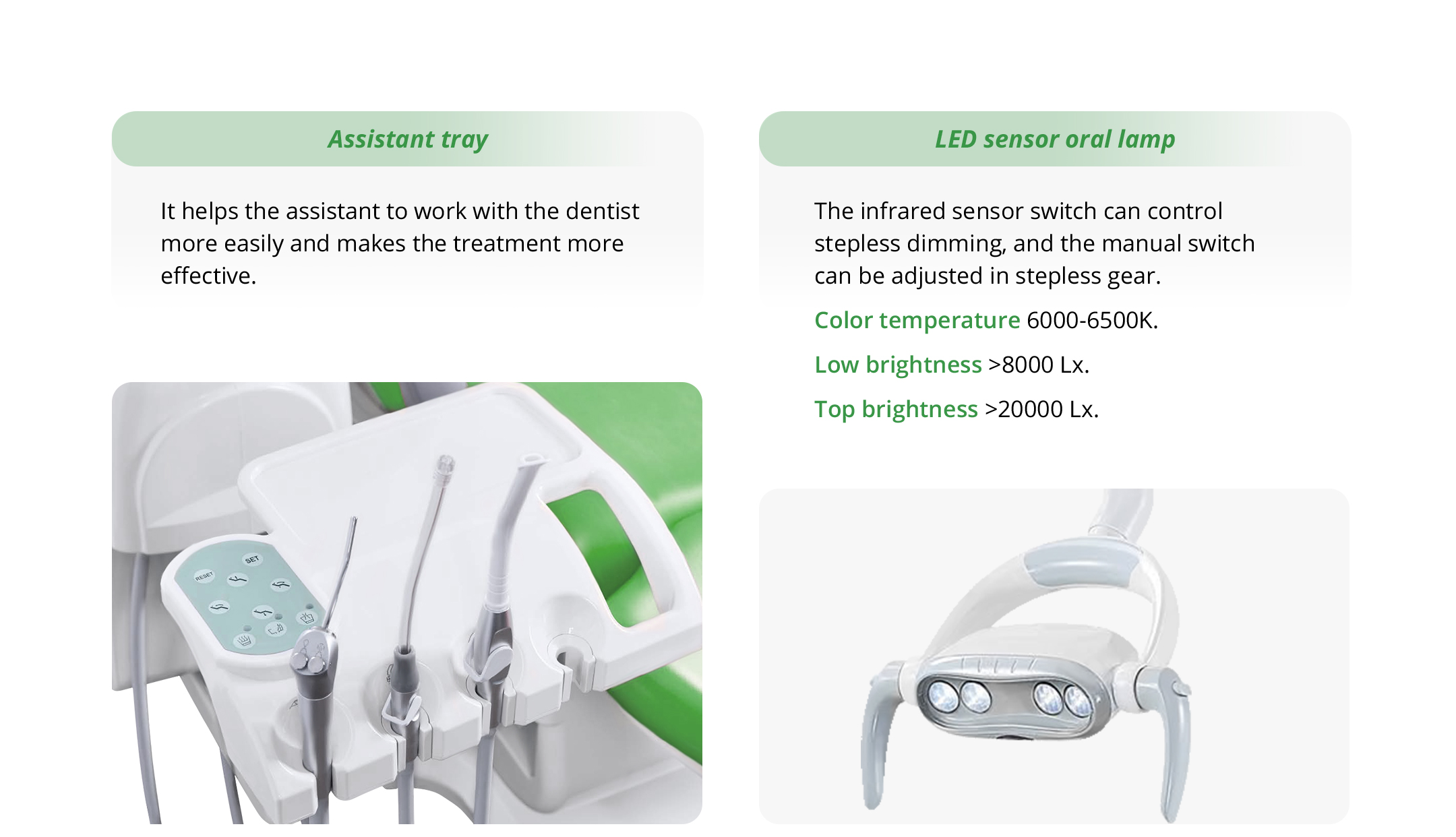

LED sensor light

1 pc

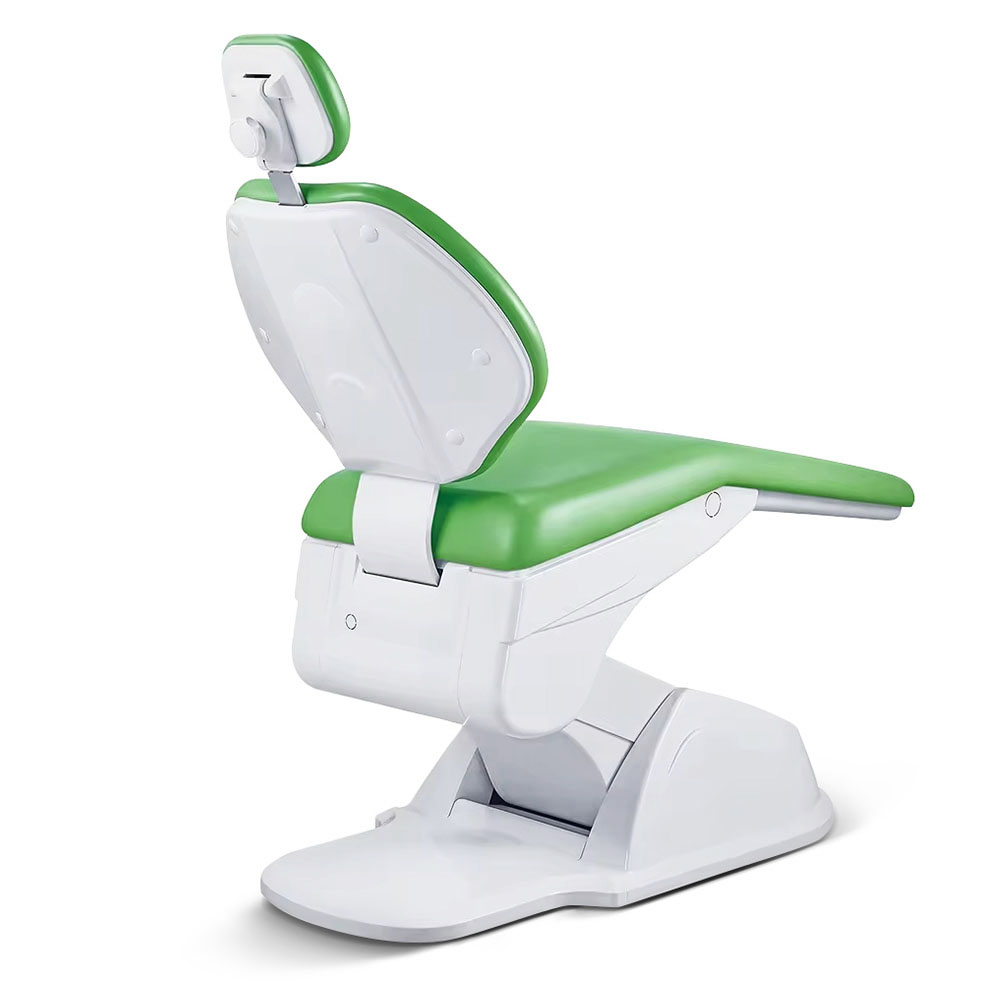

Normal chair frame

1 pc

Normal solenoid valve

1 pc

Normal dental stool

1 pc

24V DC motor

1 pc
