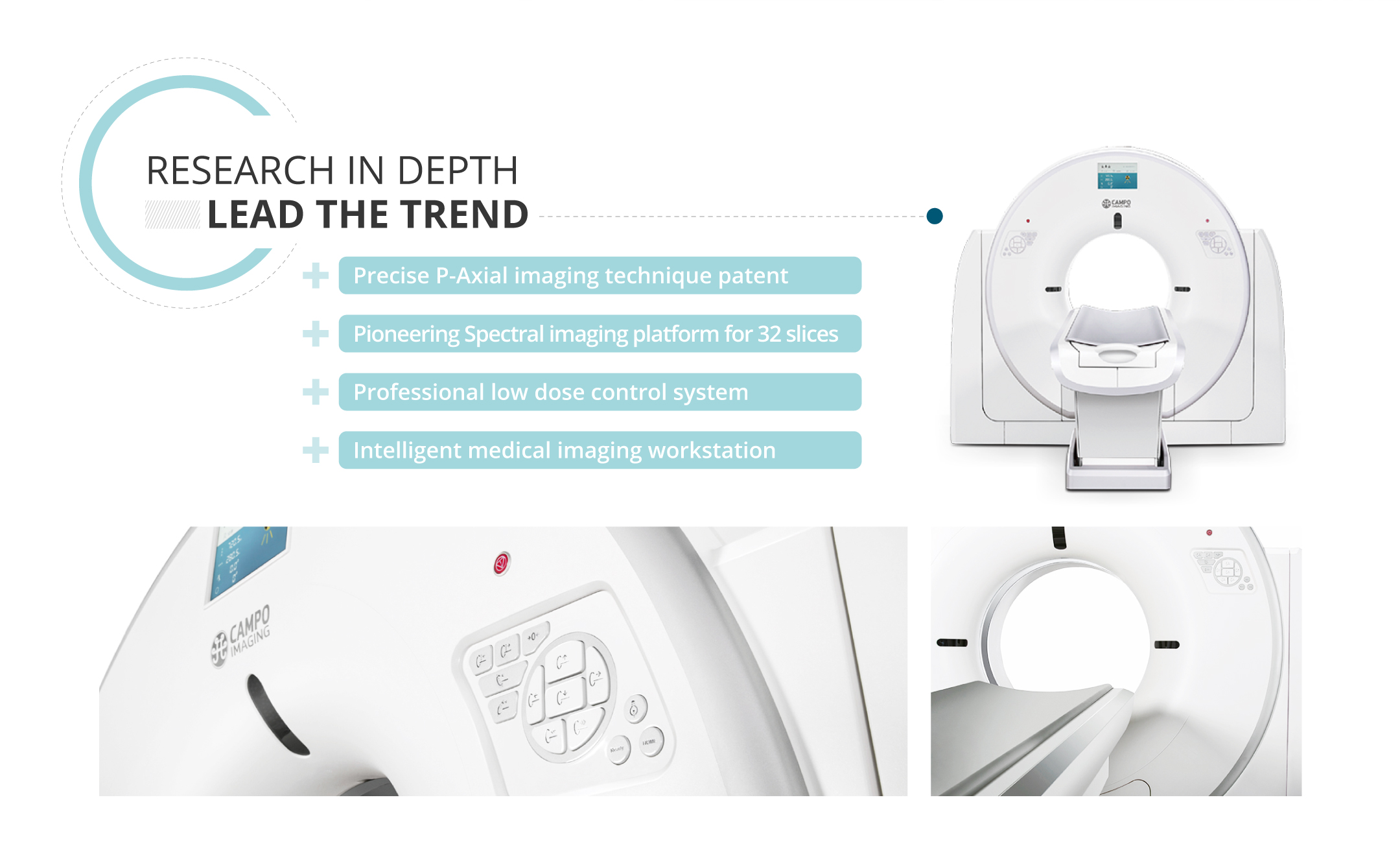

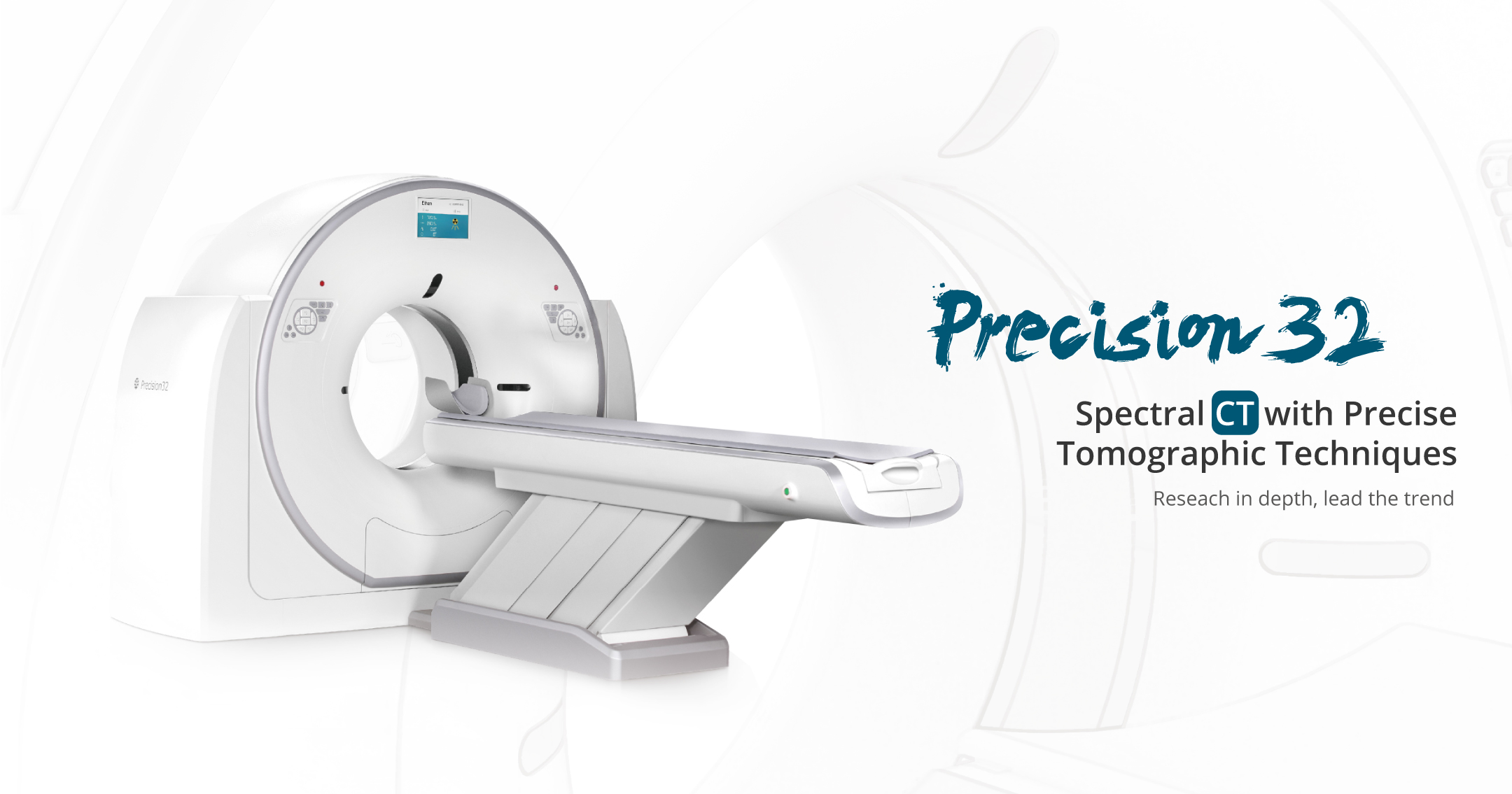

Spectral CT with precise tomographic techniques
Product ID: MB56875
P/N: MB568751
0.275 mm ultra-thin layer scanning, comprehensive 32 slices spectral imaging platform, accurate low dose care, high definition algorithm of megapixel.
Model
Precision 32
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/pack, 1 pack(s)/carton
Recommend related products

Model

Precision 32

Ambient condition

Temperature

Scan room: + 18  ~ + 24

Operation room: + 10  ~ + 40

Relative humidity

Scan room: 30 % ~ 60 % (no condensing)

Operation room: 30 % ~ 75 % (no condensing)

Air pressure

Scan room: 70 kPa ~ 106 kPa

Scan room: 70 kPa ~ 106 kPa

Power supply

Voltage

380 V AC ± 10 %

Frequency

50 Hz ± 1 Hz

Power

 500 K VA

Gantry

Slip ring

Low-voltage slip ring

Aperture size

715 mm

Tilt angulation range

± 30 °

Laser positioning system

Yes, provide sagittal, coronal and internal and external cross-sectional positioning lines.

Scanning collimation

2 × 1.1 mm, 8 × 0.55 mm, 16 × 0.55 mm, 16 × 1.1 mm

Sampling rate

1800 view / cycle

Min scan time (s / 360 °)

0.72 s

Max FOV (field of view)

500 mm

Data transmission mode

Digital transmission

Cooling-down method

Air cooling heat dissipation

Detector

Detector type

GOS ceramic solid detector

Detector number

888 × 24

Detector row

24

Detector channel per row

888

Detector thickness per row

0.55 mm

X-ray system

Focal point

Bifocus

Focal spot size

0.7 mm × 0.8 mm, 1.2 mm × 1.4 mm

Heat storage capacity

3.5 MHu

Max anode cooling rate

8750 W (12250 HU/sec)

Tube life

100,000 second exposure

Max output of tube voltage

140 kV

Min output of tube voltage

60 kV

Output voltage

60 kV, 70 kV, 80 kV, 100 kV, 120 kV, 140 kV

Max output of tube current

350 mA

Min output of tube current

10 mA

Max power

42 kW

Max continuous exposure time

100 s

Scanner table

Horizontal movement range

0 ~ 1725 mm

Max scan range

1650 mm

Max horizontal speed range

300 mm/s

Repetitive positioning accuracy

± 0.25 mm

Min vertical range

450 mm

Vertical lift range

470 mm

Max load capacity

205 kg

Scanning and image reconstruction system

Scan mode

Tomoscan, Helical scan, Precision Tomoscan, Dual energy scan (optional)

Min image thickness

0.275 mm

Recon matrix

512 × 512, 768 × 768, 1024 × 1024

Max recon matrix

1024 × 1024

Max continuous scan length

1650 mm

Max scan field of view

500 mm

Max recon field of view

500 mm

Min recon field of view

50 mm

Spatial resolution

16.6 LP/cm @ MTF 10 %, 21 LP/cm @ MTF 0 %

Low density resolution

4.0 mm @ 0.3 %

CT value display range

± 16383

Display gray scale

256, 24 bit color

Thin-layer scanning of different thick layers reconstruction function

Possess

Iterative reconstruction

Yes, P-IR dual-domain iterative de-noising reconstruction technology, real image, no wax symbol.

Posterior cranial fossa constructed defect correction

Yes, effective reduction of posterior fossa artifact.

Automatic milliampere modulation

Yes, automatic adjustment of scanning dose according to patients body type.

Timing scan

Yes, automatic start of timing sequence scanning according pre-set time.

Tracking scan

Yes, supports manual and automatic trigger.

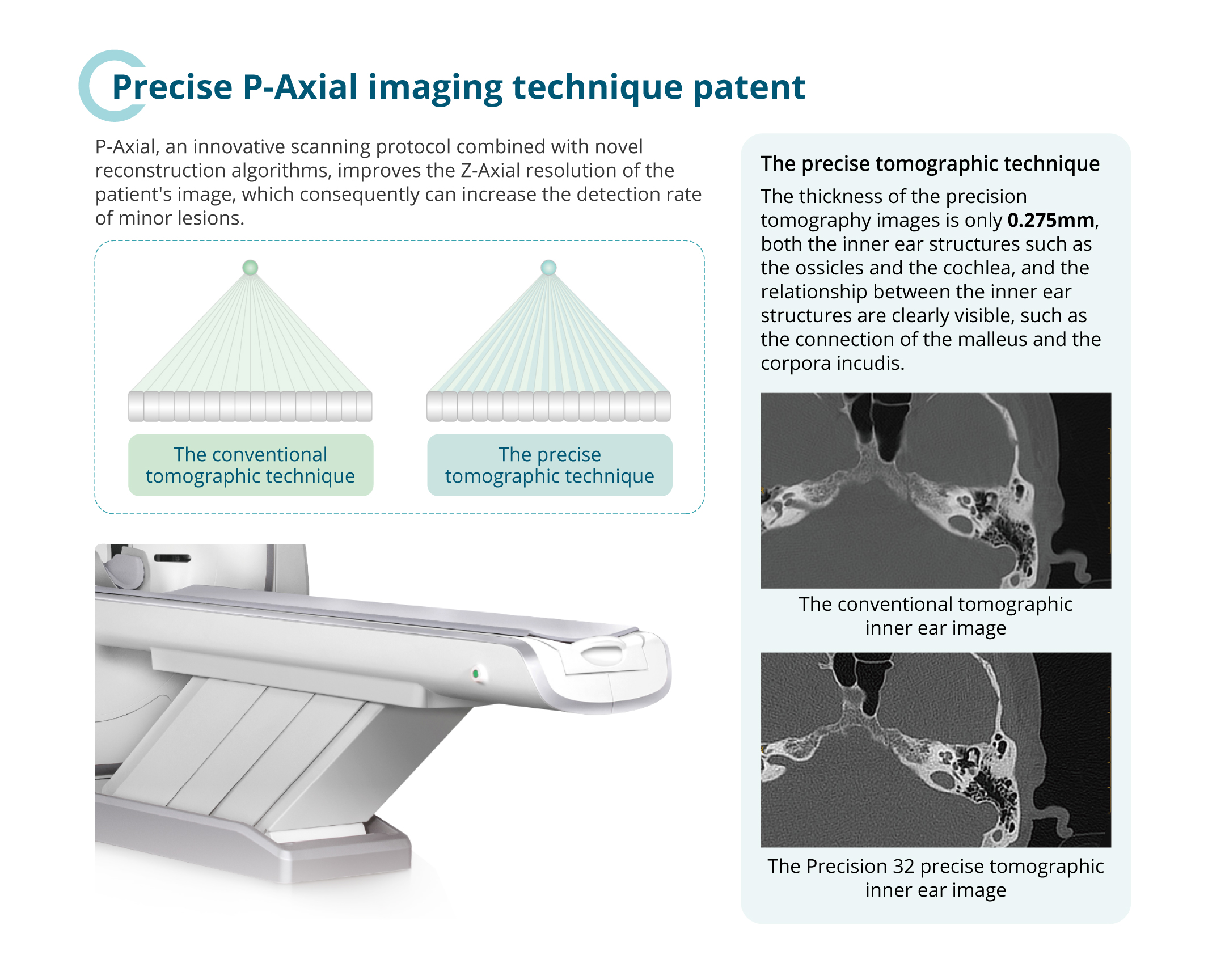

Precision axial scan

The ultra-thin layer image of 0.275 mm can be obtained by precision axial scanning.

Test-Bolus scan

Yes, test-bolus scan allows for optimization of time delay by capturing vessels enhancement.

Perfusion scan

Optional, effective and quantificationally reflect the change of tissue blood perfusion,

which is able to estimate the blood supply of the lesion.

CTFLU scan

Optional, supports two CTFLU scan mode: single mode and continuous mode.

Dual energy scan

Optional, Dual-energy CT (DECT) utilizes two separate energy sets to examine the different attenuation properties of matter,

having a significant advantage over traditional single energy CT. It can provide more information for diagnosis.

Dual energy scan mode

High and low voltage alternation

Low-dose dual energy scan

Support

Mainframe computer system

Console configuration

Single console of original main engine

Display specifications

1 set, 23.8-inch color flat panel high-resolution display, display matrix 1920 × 1080

Main CPU operand

64 bits

Main CPU frame size

3.5 GHz

Number of main CPUs

4 cores

Host memory

16 GB

Total volume of raw data hard disk

1 TB

Total volume of image hard disk

1 TB

Mainframe task parallel processing function

Parallel processing of tasks such as scanning, reconstruction, display, image transmission, post-processing, photography, printing, etc.

Standard DICOM 3.0 Interface

Possess

Clinical application software and feature

Image viewer

Yes, supports plain 2D image browsing.

DICOM viewer

Yes, supports loading DICOM data in external storage device.

Archives management

Yes, classification of patient information according to different conditions.

Image post-processing function

Yes, 2D, 3D post-processing

Multiplanar reconstruction (MPR)

Yes, provides sagittal, coronal, oblique, curved surface reconstruction.

Three-dimensional reconstruction

Yes, three-dimensional reconstruction with thin-layer data.

Volume reconstruction (VR)

Yes, supporting volume reconstruction.

Max intensity projection (MIP)

Yes, supports the maximum density projection function.

Average density projection (AIP)

Yes, supports the average density projection function.

Min density projection (Min IP)

Yes, supports the Min Density Projection function.

Surface 3D reconstruction (SSD)

Yes, supports the surface 3D reconstruction function.

Image format conversion function

Yes, all images can be converted to JPEG, BMP, PNG, DICOM derivative, DICOM screenshot file.

Film printing

Having, printing an image into a film

Peak analysis

Yes, after processing the image scanned with the test bolus protocol,

the time curved of contrast agent concentration change was obtained.

Dual energy analysis

Optional, more information can be obtained by analyzing the data scanned by the energy spectrum function.

101-level keV single-energy images

The single energy image of the energy level range 40 ~ 140 keV can be obtained, the low energy region image can improve

the contrast noise ratio, and the high energy level can reduce the Harden artifact of the wire beam.

80 - 140 kV mixed energy images

Available to obtain conventional mixed-energy CT images of the scanned location.

Material density analysis

Material density images can be reconstructed to provide qualitative and quantitative information on tissue composition

and contrast media distribution, and material separation and density analysis can be achieved.

Effective atomic number analysis

The effective atomic numbers of compounds (such as water) and mixtures (such as muscles or bones) are calculated,

which can be used for material detection, identification and separation of substances.

Energy spectrum curved analysis

The energy spectrum curve shows the change of the CT value in the ROI range over a sequence of single-energy images.

The ROI option can be set, and the energy spectrum curve of the known substance can be added for comparison and analysis,

and the determination of the homology is facilitated.

Analysis of renal stone

Urolithiasis is suitable for different treatment methods because of its different chemical composition and physical and chemical properties.

Urolithiasis analysis can accurately judge the stone composition in ROI range according to the distribution of known substances.

Analysis of gout nodules

According to the distribution of known substance (uric acid) scatter plot, gout nodule analysis can accurately judge

whether there is urate deposit in ROI range and whether it is gout nodule or not.

Perfusion analysis

Optional, Dynamic CT images were collected directly after injection of contrast agent.

The type and extent of perfusion abnormalities can be evaluated quickly and reliably.

Virtual endoscope

Optional, roaming the colon and lumen tissue, roaming according to the path, recording and playback, for non-invasive

examination, the patient is painless, can observe more cavities that are not accessible by traditional endoscopes.

Diagnostic report

Optional, report editing for patient examination.
