Model

FS-50B

FS-70B

Shaking Mode

Cyclotron Oscillation

Function

Amplitude

Ф 20 mm

Temp. Resolution

0.1 ℃

Temp. Motion

± 0.1 ℃

Temp. Uniformity

± 1 ℃

Temp. Range

RT + 5 ～ 65 ℃

RT + 4 ～ 65 ℃

Rotary Speed

30 ～ 300 rpm

30 ～ 300 rpm

Rotary Speed Precision

± 1 rpm

Structure

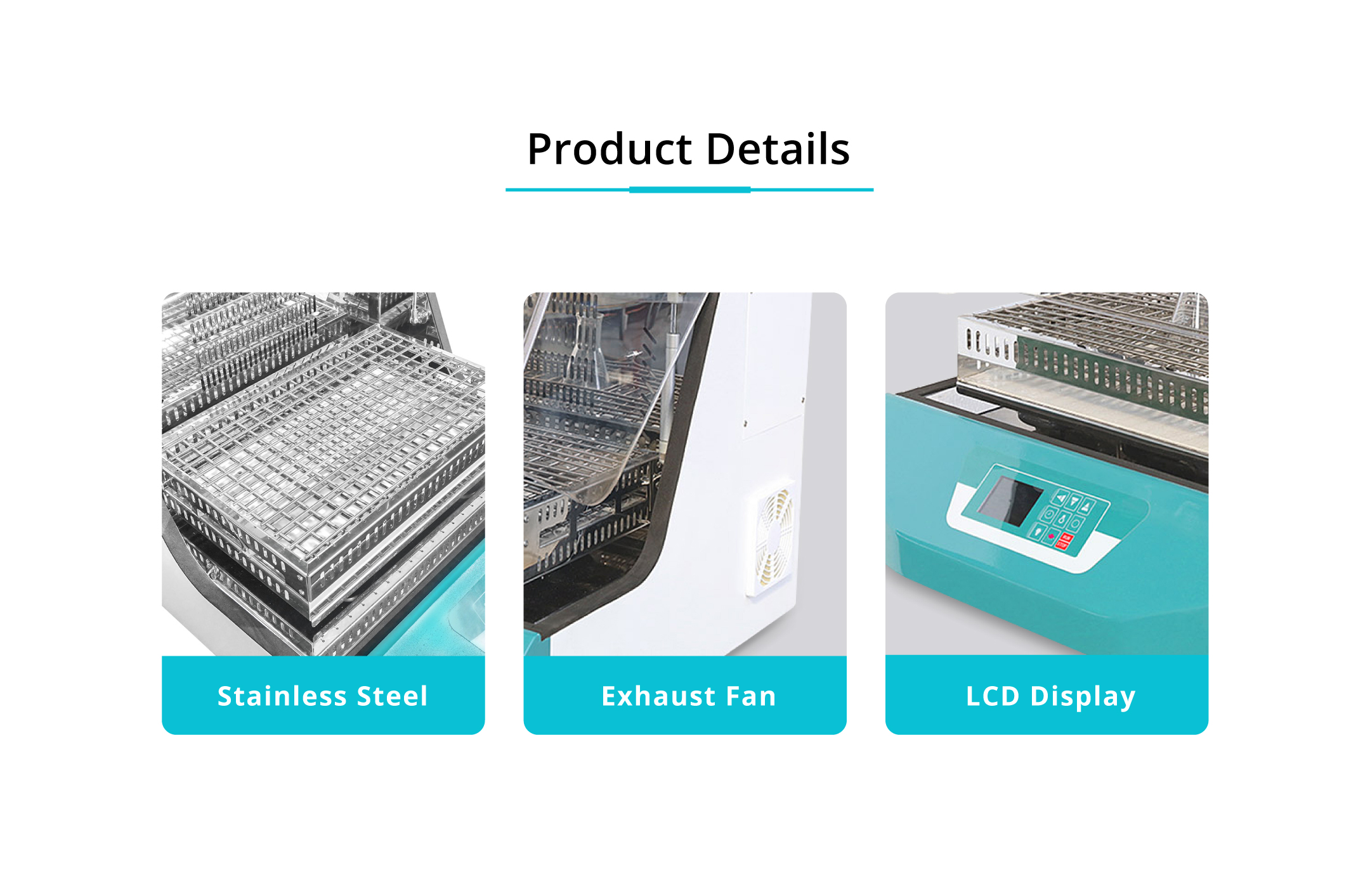

Chamber Material

Mirror Stainless Steel

Outer Shell

ABS

Observation Window Material

Imported resin

Thermal Insulation Material

Polyurethane

Cooling System

No

Yes

Coolant

No

R134a

Heater

Stainless steel heating tube

Drive Mode

Three-axis level

Oscillating Plate

Spring Wire Rack

Air Circulation Mode

Horizontal convection

Power Rating

0.6 kW

0.8 kW

Controller

Temp. Control Mode

LCD PID intelligent control

Cyclotron Control Mode

Setting Mode

Automatic changes of rotation direction

Temp. Display Mode

Touch button setting

Speed Display Mode

LCD display

Timer

0 ～ 9999 min

Operation Function

Fixed value operation, timing function, bidirectional automatic

switchover, auto stop, quick stop start

Temperature Sensor

Pt100

Speed Sensor

Hoare

Gating System

Yes

Additional Function

Deviation correction, menu keys locked, power-off memory

Safety Device

over temperature alarm, menu locked,

gating system, power-off protection, plugging turn protection

Specification

Inner Chamber Size (W * L * H) (mm)

455 * 380 * 290

560 * 390 * 320

Exterior Size (W * L * H) (mm)

500 * 640 * 480

600 * 770 * 500

Packing Size (W * L * H) (mm)

812 * 630 * 670

923 * 730 * 683

Shelf Size (mm)

380 * 320

480 * 315

Max capacity of Shelf for single

specification (ml * pc)

100 ml * 16 / 250 ml * 9 / 500 ml * 4 / 1000 ml * 4

100 ml * 24 / 250 ml * 12 / 500 ml * 6 / 1000 ml * 6

Number of flask clamp

as standard (ml * pc)

250 ml * 8

250 ml * 12

Inside Volume

50 L

70 L

Shelf Load Bearing

≤ 10 kg / layer

≤ 15 kg / layer

Shelf Layer

1

Power Supply (50 / 60 Hz) Current Rating

AC 220 V / 2.5 A

AC 220 V / 3.5 A

NW / GW (kg)

44 / 55

65 / 85
