Model

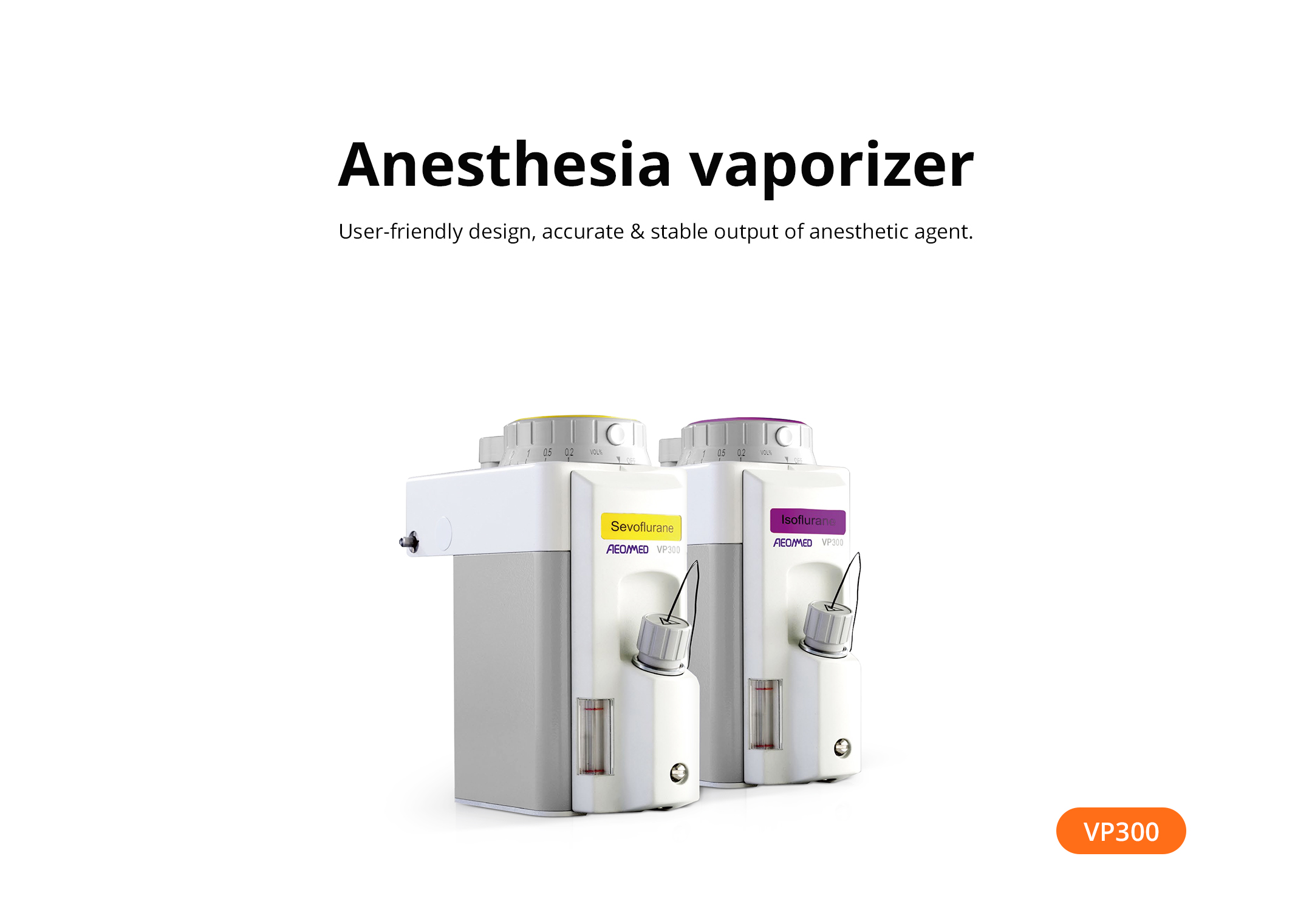

VP300

Anesthetic agent

Sevoflurane

Isoflurane

Enflurane

Halothane

Concentration range

0.2 % ~ 8 %

0.2 % ~ 5 %

0.2 % ~ 5 %

0.2 % ~ 5 %

Filling method

Pour-fil / Key-fil / Quik-fil^® (only for Sevoflurane)

Mount interface

Selectatec^® / Plug-in^® / North American Drager compatible

Capacity

About 300 ml with dry wick, about 250 ml with moist wick

Compensation

Temperature, pressure and flow

Inter-lock

Yes

Operation temperature

15 ℃ ~ 35 ℃

Weight

6.2 kg

Dimension (H×W×D)

Selectatec compatible with Interlock: 230 mm × 120 mm × 210 mm

Drager “Plug-in” compatible interlock: 235 mm × 104 mm × 195 mm

North American Drager compatible interlock: 235 mm × 104 mm × 161.5 mm
