Application

Modular Design

Compatible Surgical Procedures

Includes the Surgical Module, ESD Module, ERCP Module, Ablation Module, Snare Module, and Argon Plasma Coagulation Module.

Compatible with open surgery, minimally invasive rigid endoscopy, and flexible endoscopy. Supporting ESD, ERCP, POEM, STER, EMR, polypectomy, radiofrequency ablation, etc.

Working modes

Nine operating modes

Auto cut

Fully automatic mode with careful output control. A versatile mode for beginners and electrically conductive tissues.

Dry cut

Hemostasis effect at the cutting edge with voltage regulation and modulation waveforms.

Endo l cut

Automatic mode with fractioned cut and altemating cut / coag effect. For endoscopic needle (I) applications.

Endo Q cut

Automatic mode with fractioned cut and alternating cut / coag effect. For endoscopic snare (Q) applications.

Force coag

Basic, fast and effective coagulation for devitalization or hemostasis with low thermal penetration and moderate carbonization.

Soft coag

Low intensity coagulation at large coverage with minimum carbonization and low adhesion risk.

Spray coag

Fast and effective non-contact coagulation with standard instrument or special probe.

Swift coag

Fast effective coagulation which is very suitable for dissection with high hemostasis due to its limited tissue-cutting property.

Spray coag / Spray coag I & II

Efficient, non-contact coagulation at superficial layer with continuous or pulsed (I / II) spray and low thermal penetration.

Power output

Maximum CUT output

300 W for 500 Ohm

Maximum COAG output

200 W

Frequency

381 KHZ

Argon

Argon input pressure

0.15 ~ 0.90 Mpa

Argon output flow rate

0.1 ~ 9.0 L/min (adjustable by 0.1 L/min)

Power requirements

Voltage (AC)

100 ~ 240 V

Frequency

50 / 60 Hz

Input

880 VA

Fuse

F5AH 250V × 2

Size (W × D × H)

420 mm × 395 mm × 190 mm

Weight

10 kg

Standard configuration

Part Name

Quantity

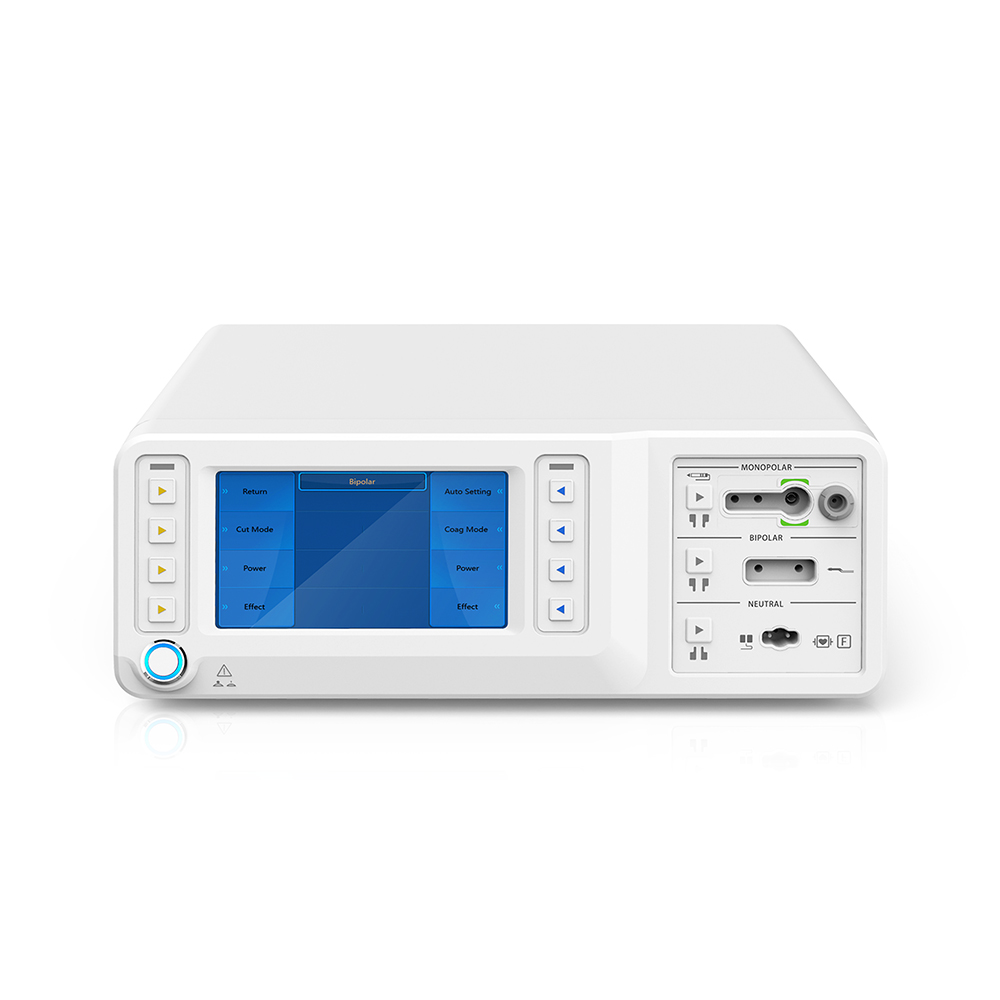

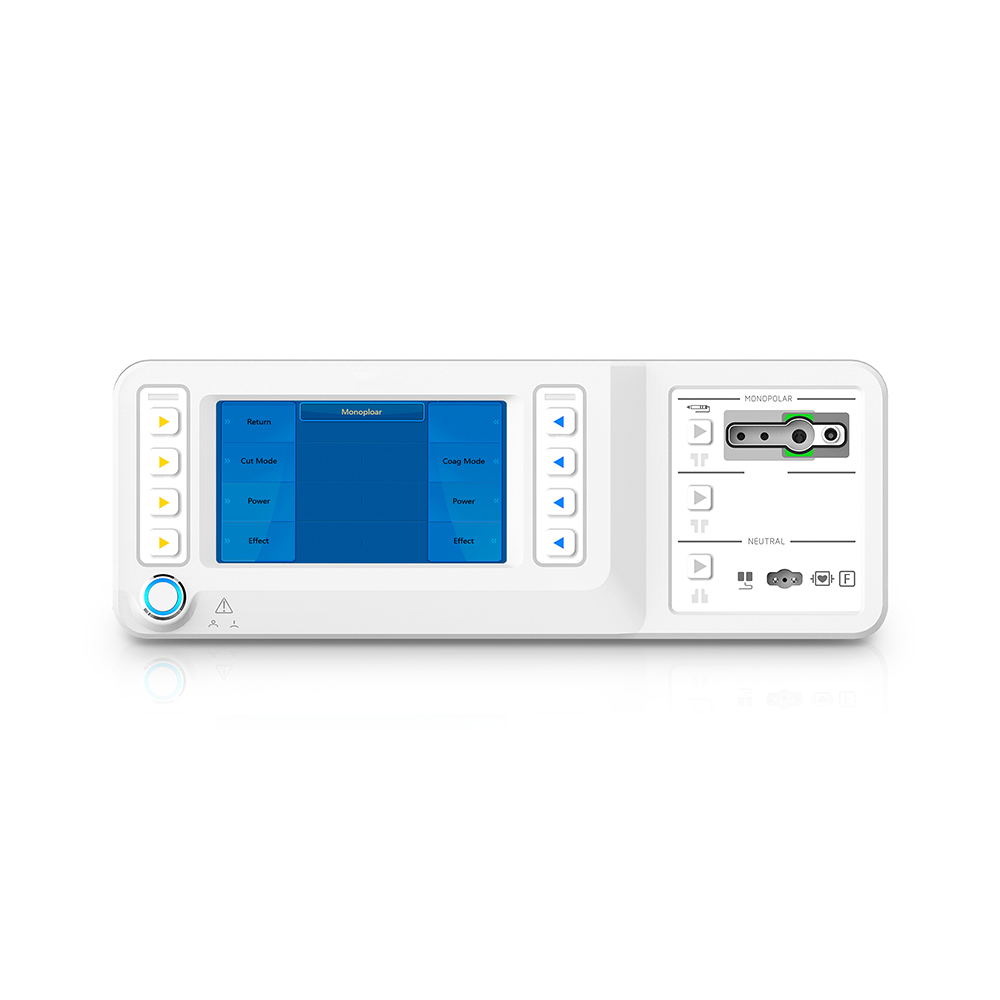

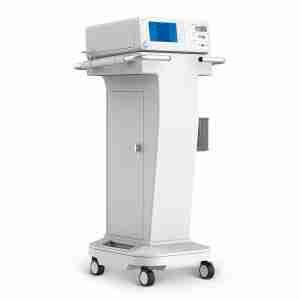

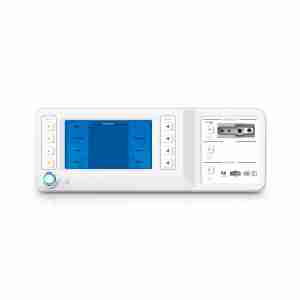

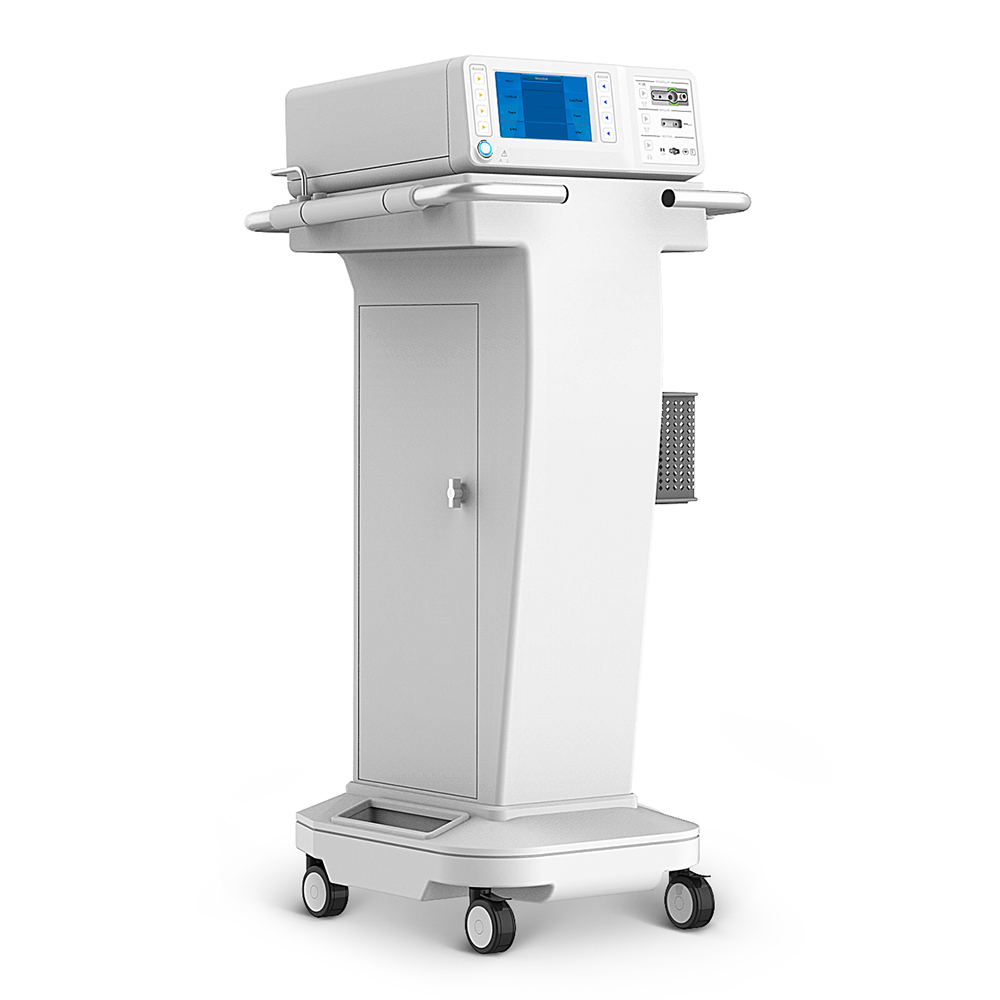

Argon-electrosurgery unit

1 unit

Power cord

1 pc

User manual

1 pc

Quick guide

1 pc

Footswitch

1 pc

Fuse

1 pc

Argon pressure reducer

1 pc

Gas cylinder connector

1 pc

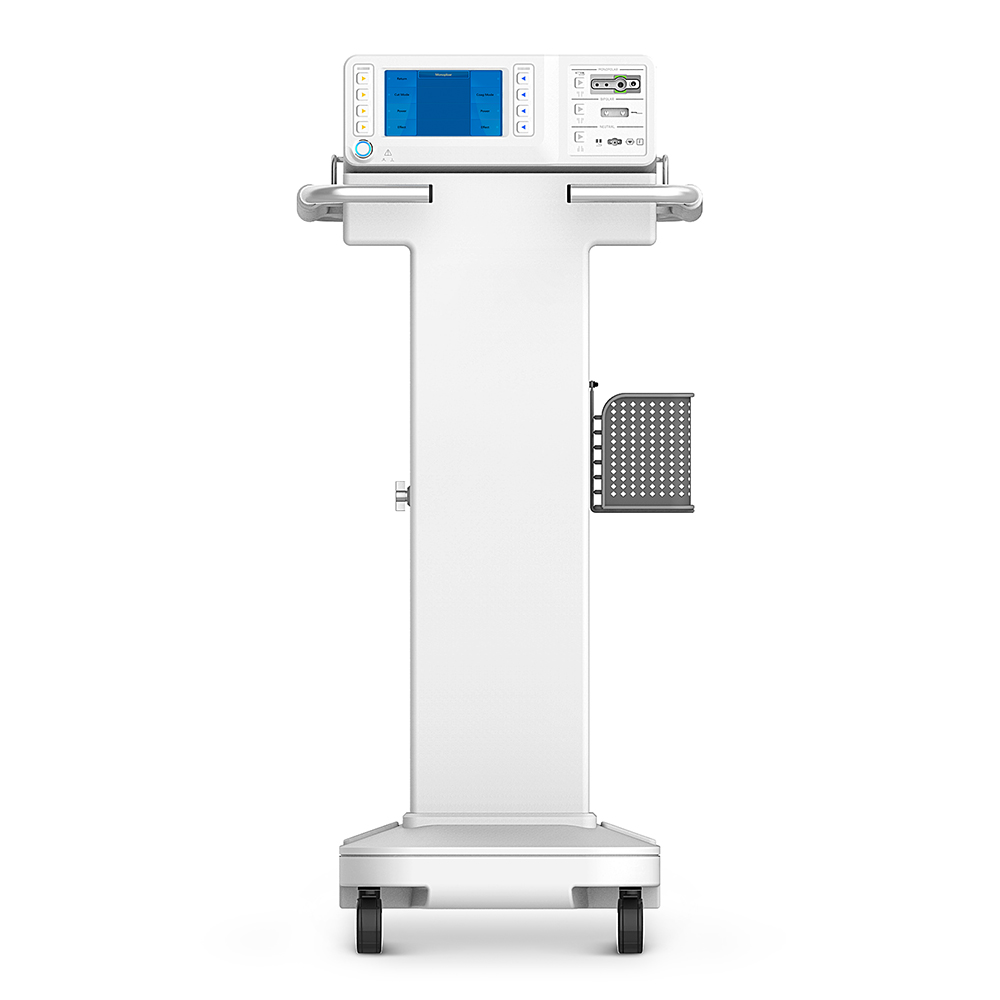

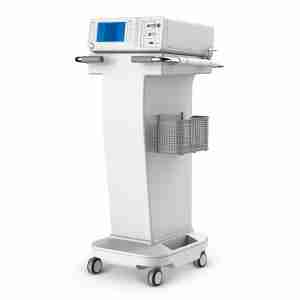

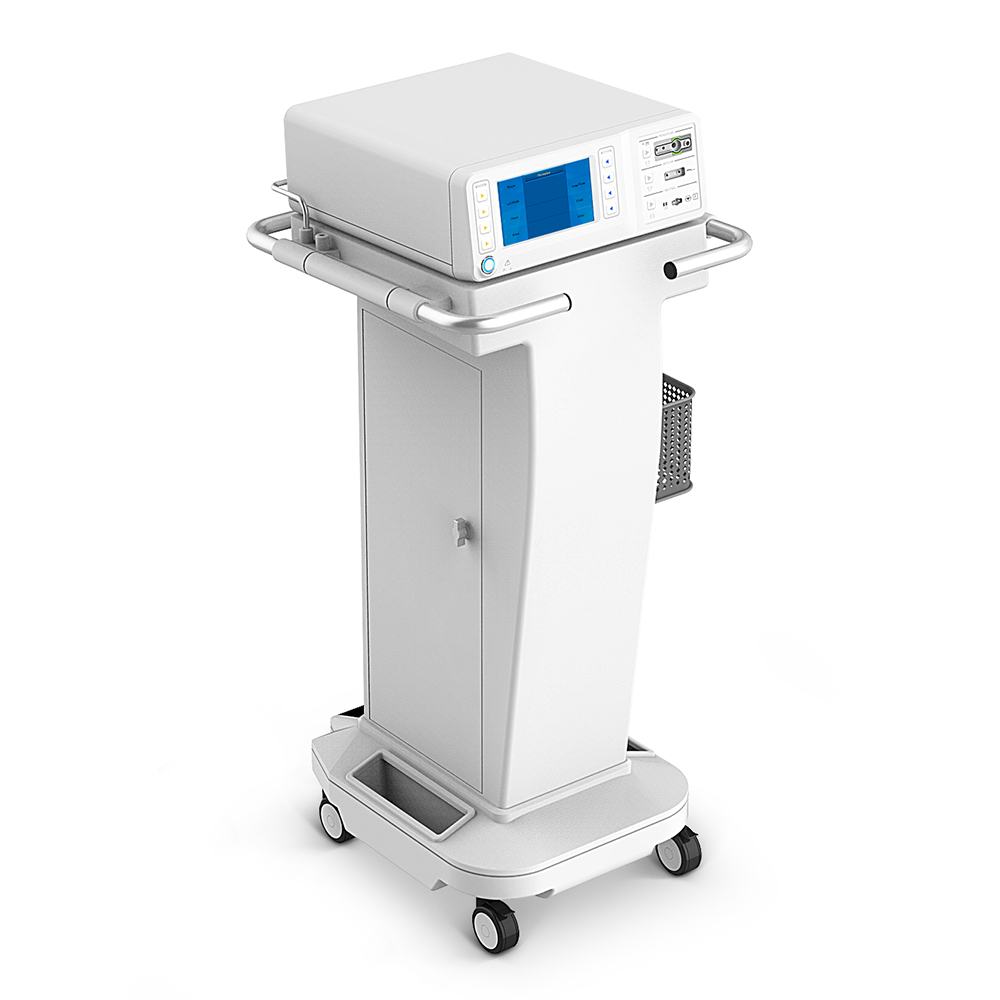

Trolley

1 unit

Argon gas tank

1 pc

Negative plate

1 pc

Monopolar connecting cable

1 pc

Neutral electrode

1 pc
