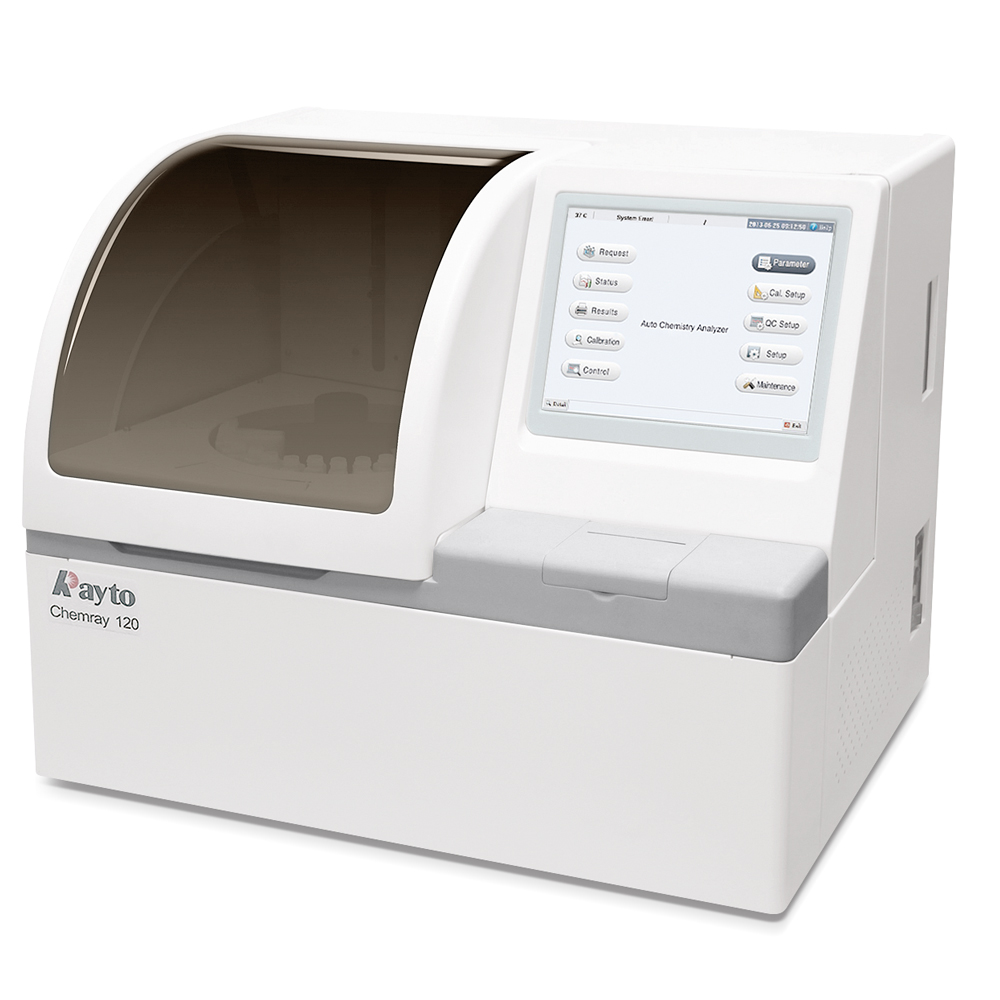

Model

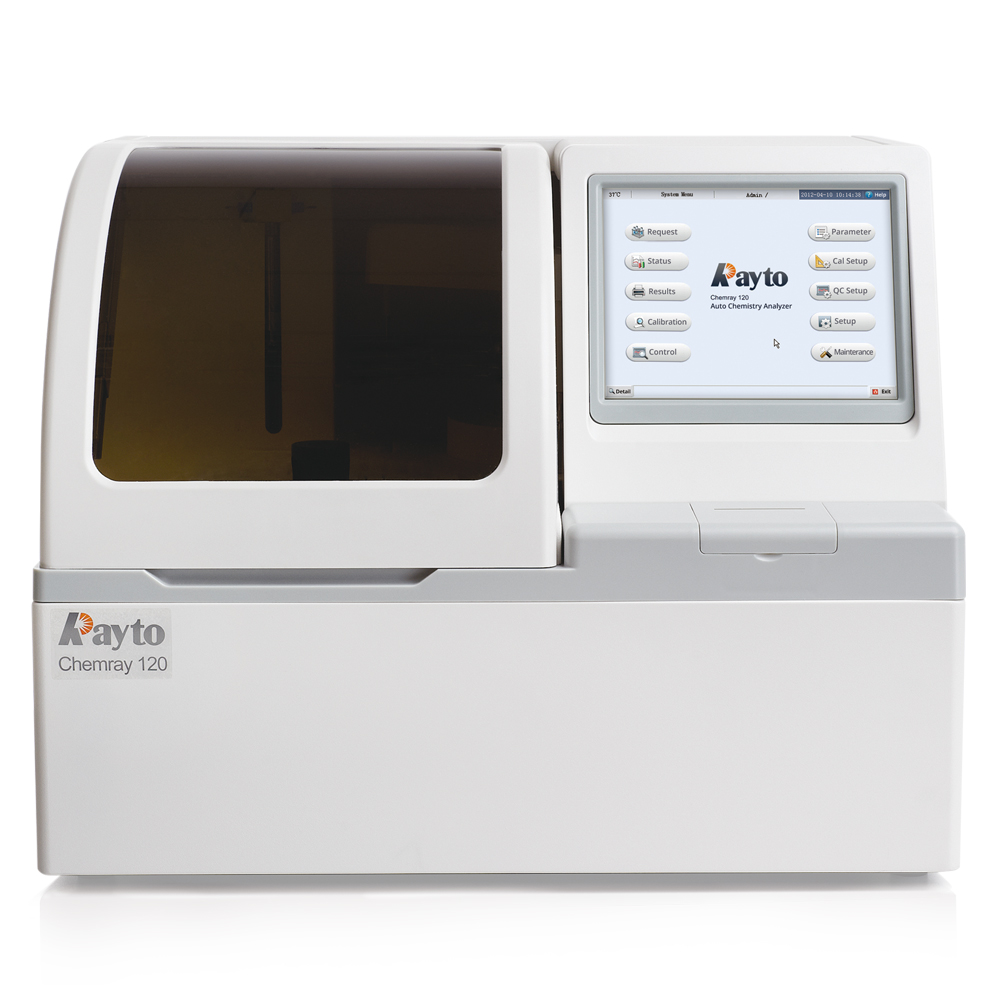

Chemray 120

System function

Throughput

Up to 100 tests per hour

Testing method

Immunoturbidimetric / Colorimetric

Analytical modes

End-point, Two-point, Kinetic

Programming

Open system with user defined programs

Automatic, Random Access

STAT sample priority

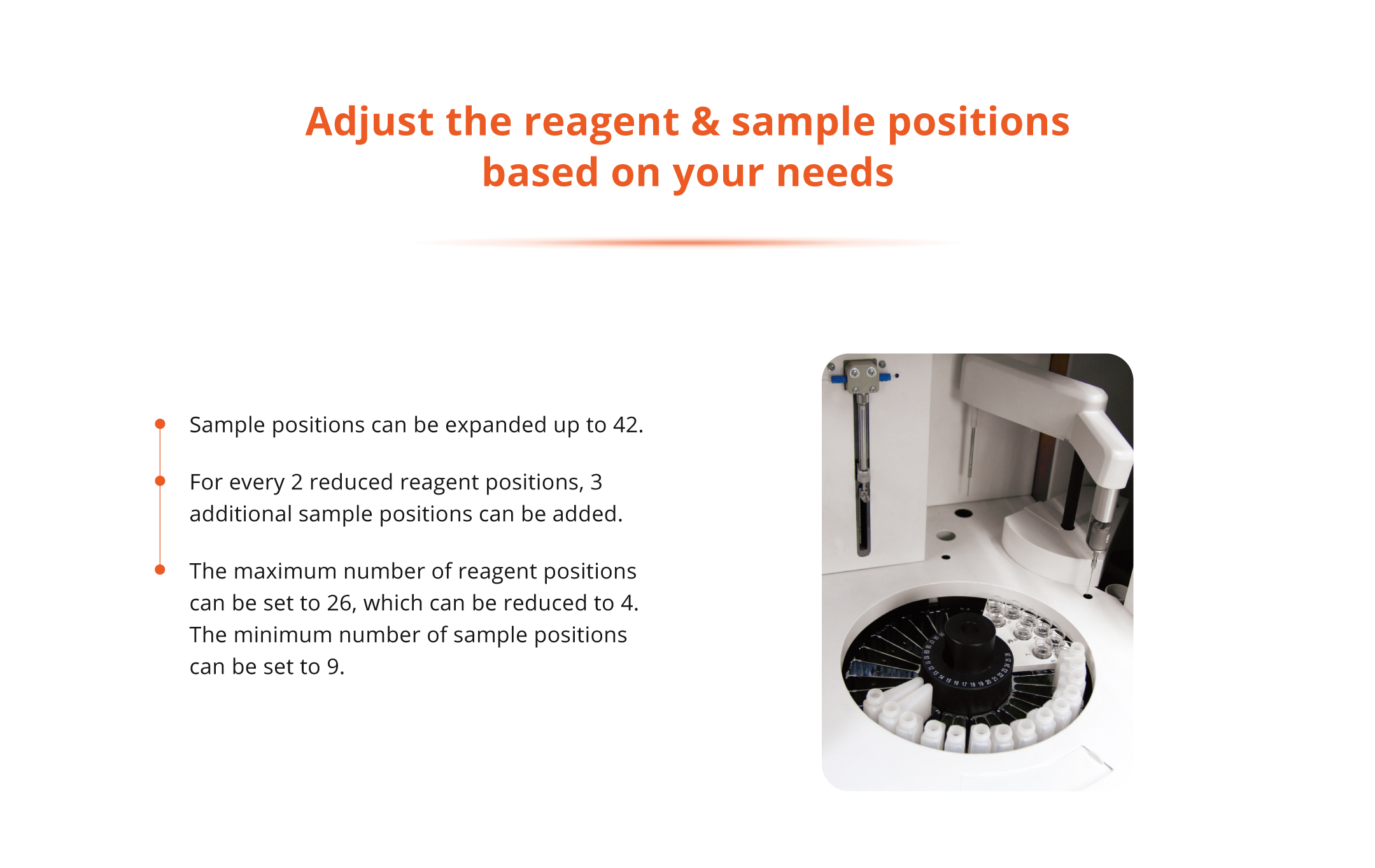

Sample tray

Sample position

9 positions

Sample volume

3～45 μL, 0.1 μL adjustable

Any position for standard and quality control setting

Reagent tray

Reagent position

26 positions

Reagent volume

R1

R2

180～450 μL, 0.1 μL adjustable

3～450 μL, 0.1 μL adjustable

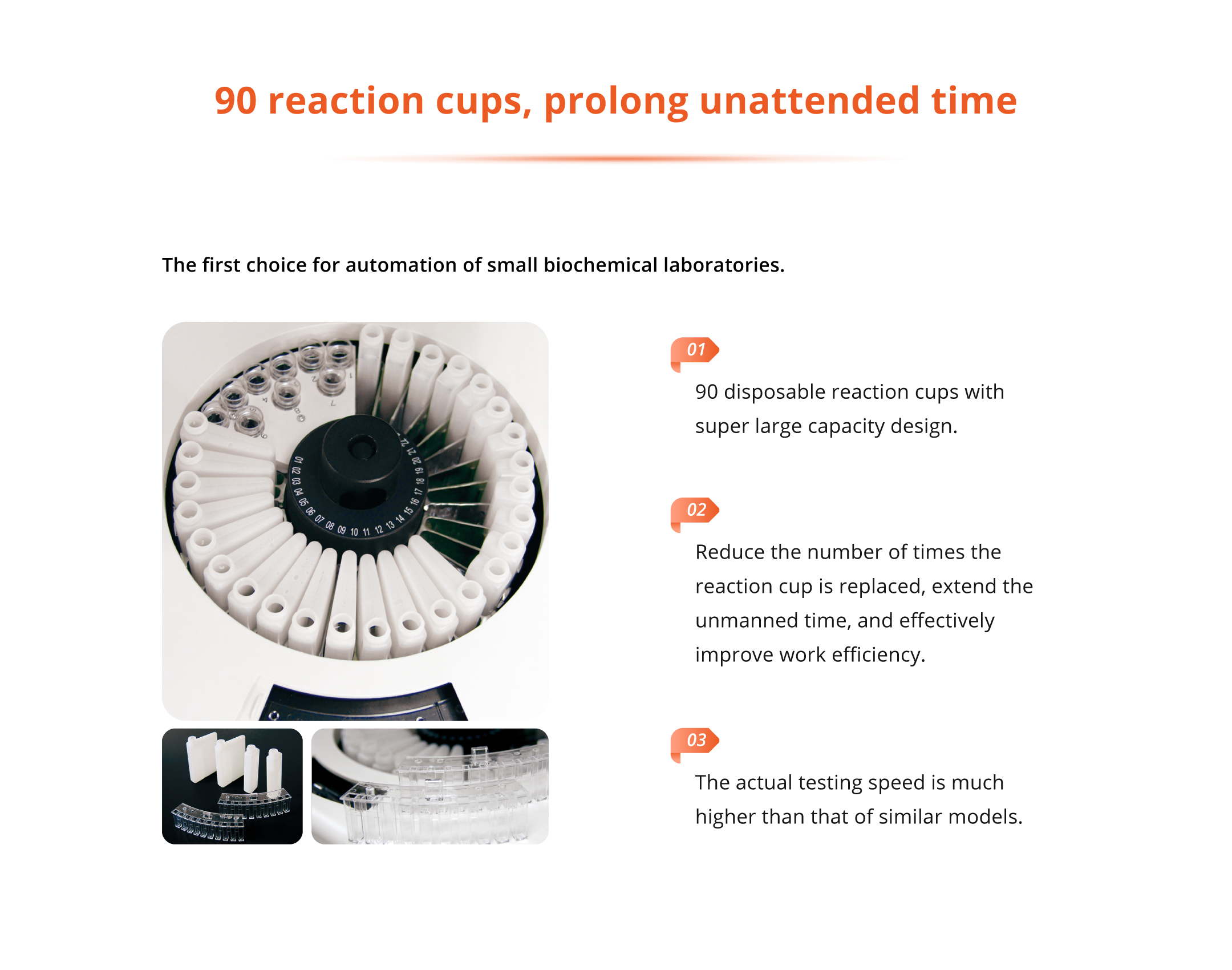

Reaction tray

Reaction positions

90 cuvettes, 10 cuvettes / strip

Cuvette

Optical length 5 mm

Reaction volume

180～500 ul

Reaction temperature

37 ℃, fluctuation ± 0.2 ℃

Probe

Pre-heating for reagent

Collision protection, Liquid level detection and Inventory checking

Automatic inner and outer probe washing after every cycle, carry-over ≤ 0.2 %

Print out

Built-in thermal printer, external printer optional

Measuring & Optic system

Light Source

Halogen lamp

Wavelengths

8 wavelengths from 320 ~ 850 nm

Absorption range

0～3.500 Abs

Resolution

0.0001 ABS

Working condition

Power supply

100～240 V, AC 50 / 60 Hz

Temperature

10～35 ℃

Humidity

35 ~ 80 %

Water consumption

< 3 L / hour

Dimension

630 cm (L)*480 cm (W)*510 cm (H)

Weight

70 kg
