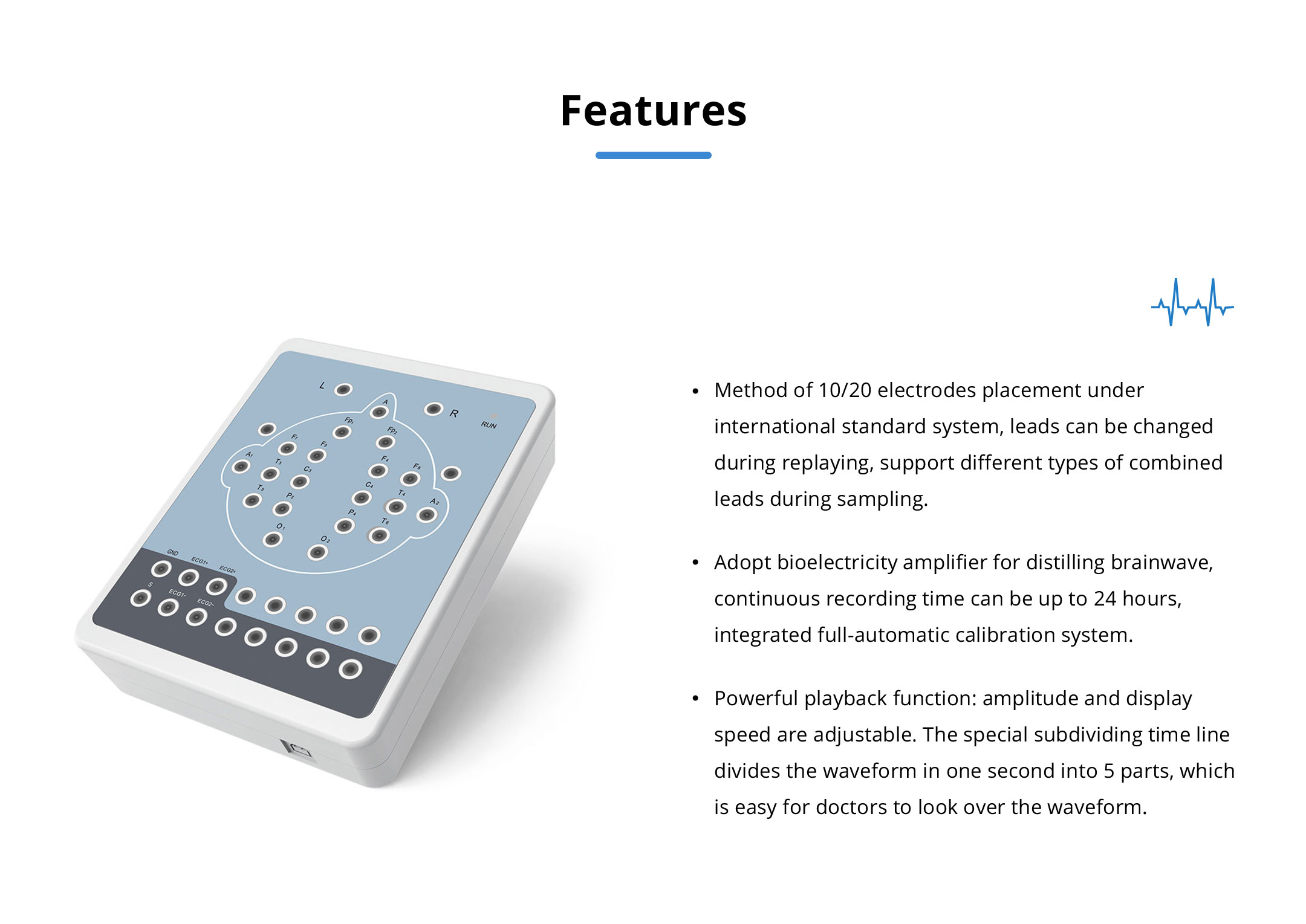

Model

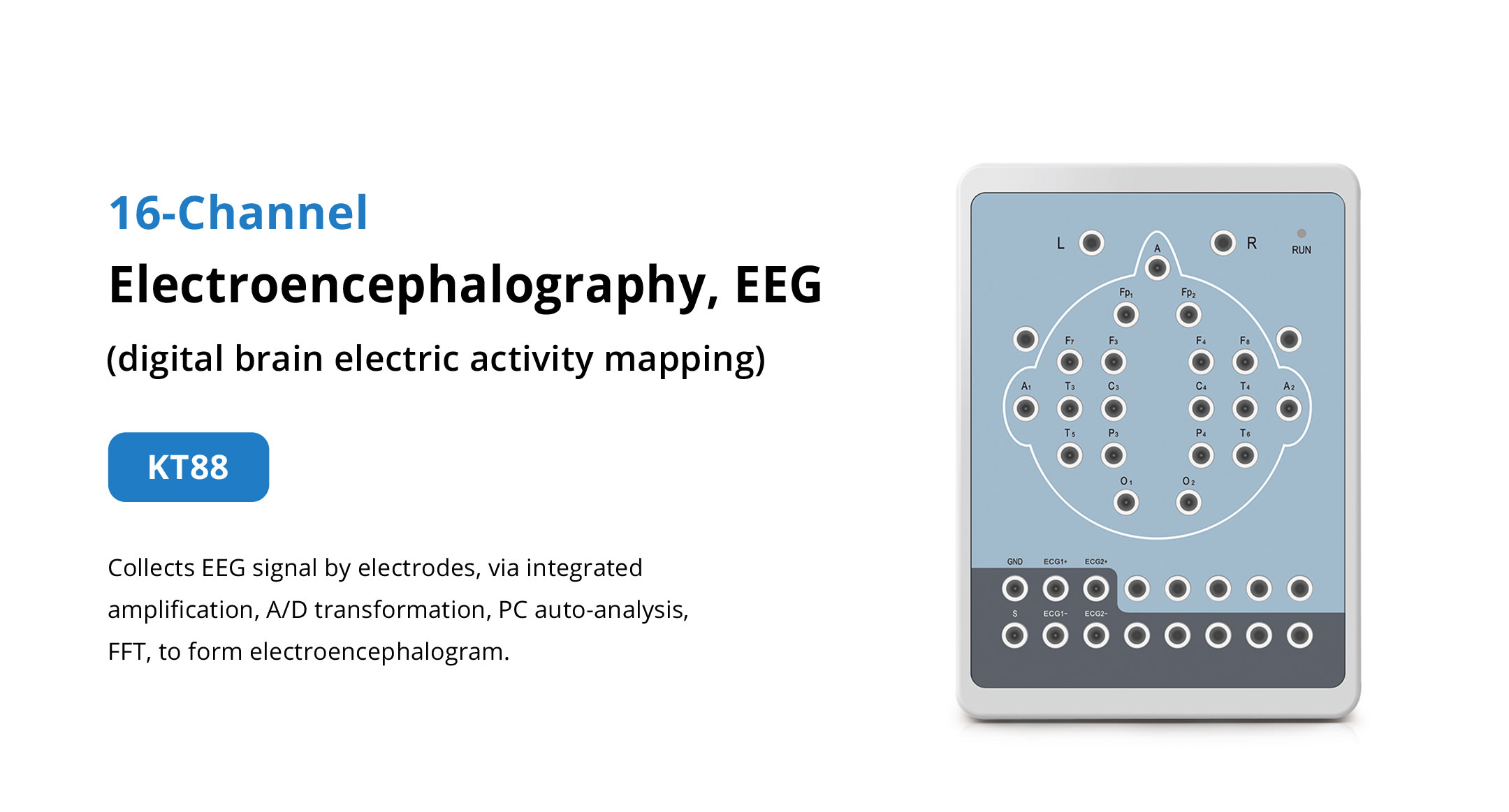

KT88

Dimensions

186 mm × 135 mm × 89.2 mm

Weight

550 g

Channel

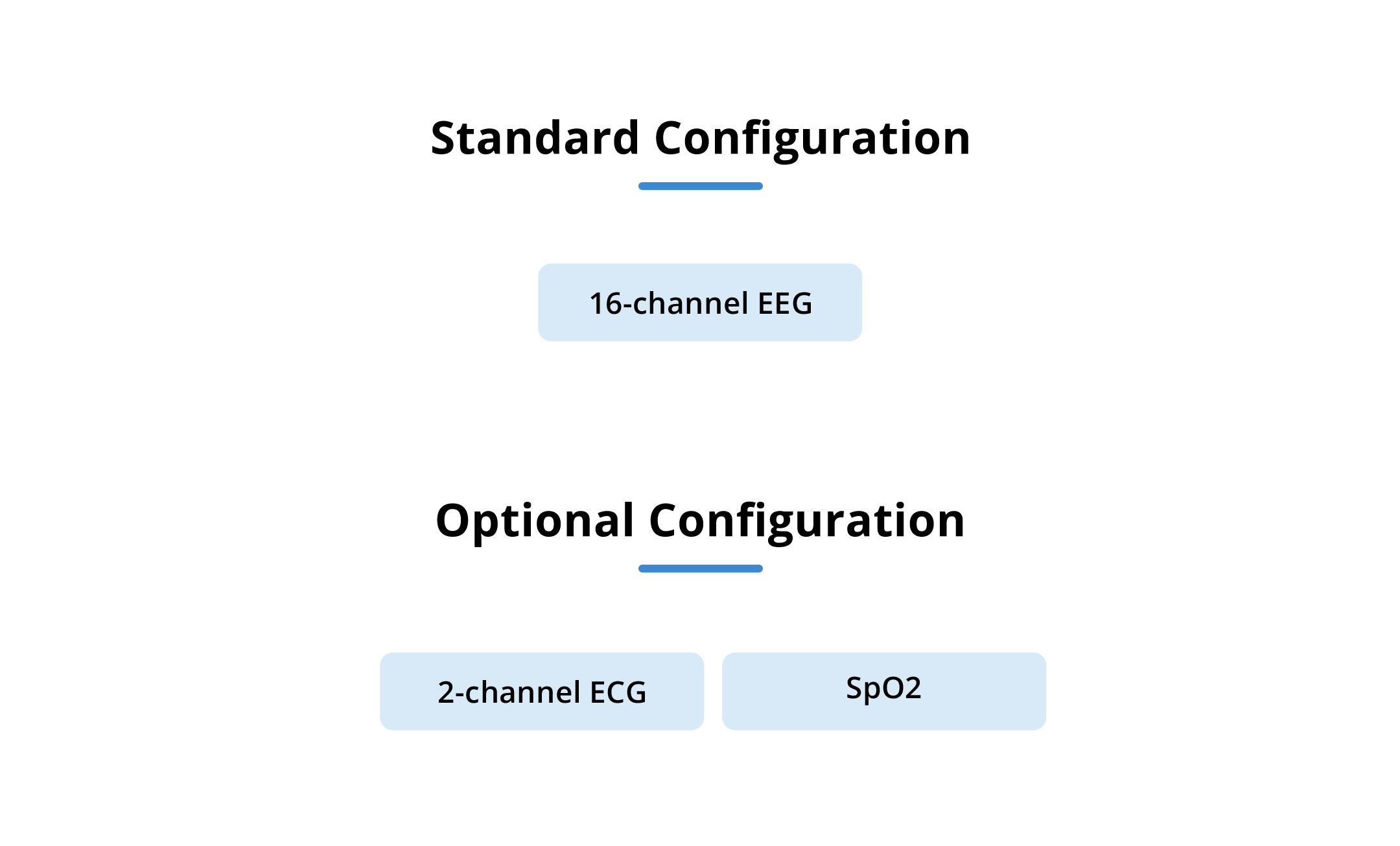

16 channels of EEG + 2 channels of ECG (ECG is optional)

Sampling rate

100 dots/s

Accuracy

12 bit

Input impedance

≥ 10 MΩ

Patient leak current

< 10 µA

Noise level

≤ 5 µVp-p

CMRR

≥ 90 dB

Magnification multiple

10000

Filter constant

All digital and free enactment

Display speed (paper speed)

5, 10, 15, 30, 60, 120 mm/s

Amplitude

1, 1.5, 2, 3, 5, 7.5, 10, 12, 15, 20, 30, 50 mm / 50 µV

Playback speed

1 time, 2 times, 3 times, 10 times, 20 times, 40 times, 60 times

50 Hz interference suppression

≥ 30 dB

Safety type

Class II, type BF applied part

Operational environment

Temperature: + 5 ℃ ~ + 40 ℃

Relative humidity: 25 % ~ 95 % (no condensation)

Atmospheric pressure: 700 hPa ~ 1060 hPa

Power supply: USB 5V DC

Storage environment

Temperature: - 20 ℃ ~ + 55 ℃

Relative humidity: ≤ 90 %

Atmospheric pressure: 700 hPa ~ 1060 hPa
