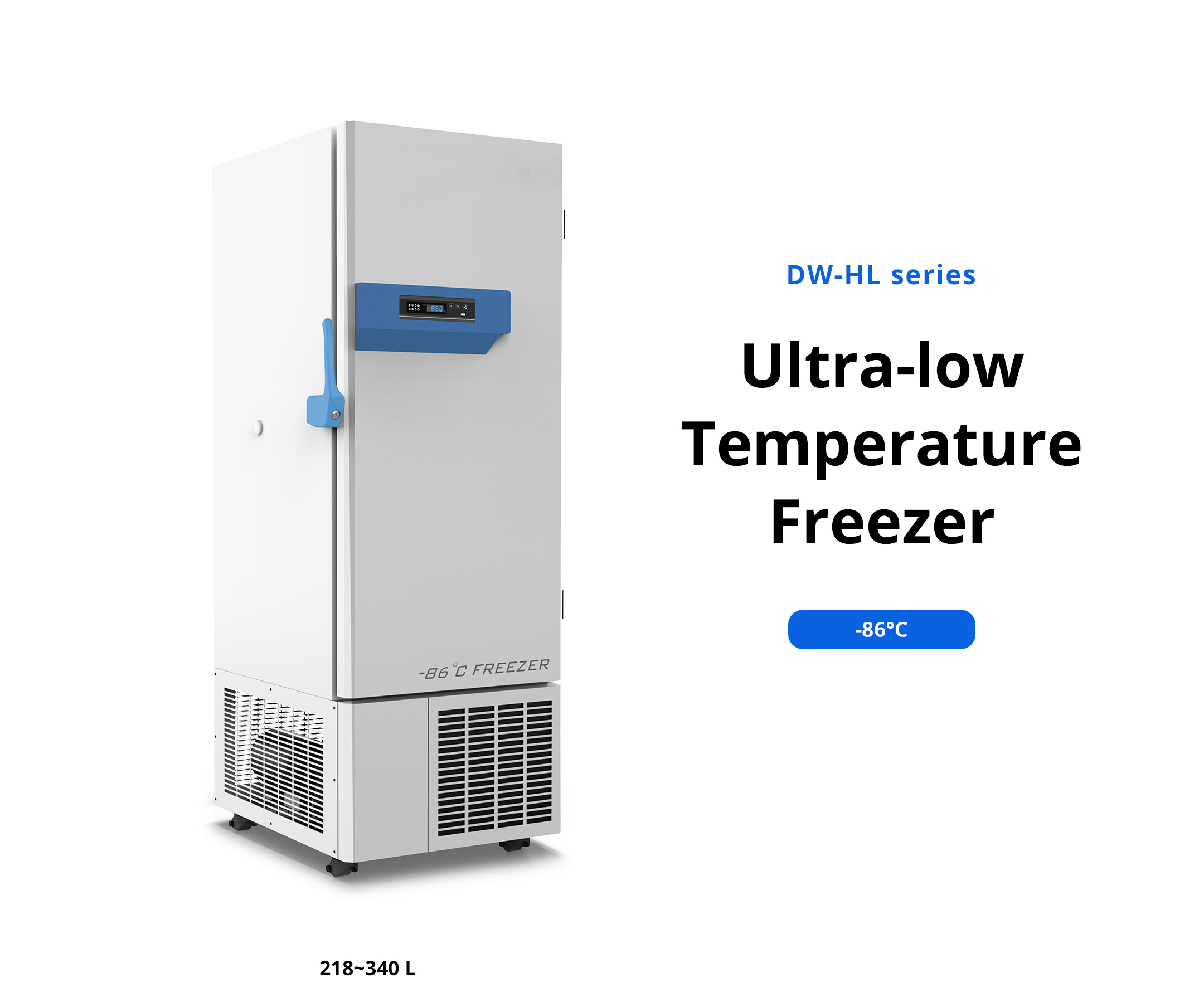

Model

DW-HL218

DW-HL340

Basic parameters

Cabinet type

Upright

Capacity (L)

218

340

Internal size (W*D*H) mm

470*580*767

470*578*1250

External size (W*D*H) mm

862*976*1555

777*873*1967

Package size (W*D*H) mm

983*1073*1741

895*1003*2186

NW / GW (Kgs)

218 / 235

208 / 277

Performance

Temperature range

-86 ~ -40℃

Ambient temperature

16 ~ 32℃

Cooling performance

-86℃

Climate class

N

Controller

Microprocessor

Display

Digital display

Refrigeration

Compressor

1 pc

Cooling method

Direct cooling

Defrost mode

Manual

Refrigerant

Mixture gas

Insulation thickness (mm)

155

110

Construction

External material

Steel plates with spraying

Inner material

304 Stainless Steel

Shelves

1 (Stainless steel)

3 (Stainless steel)

Door lock with key

Yes

External lock

Yes

Door

1 pc

Access port

1 pc, Ø 25mm

Casters

4

Data logging / Interval / Memory capacity

USB / Record every 10 minute / 2 years

Alarm

Temperature

High / Low temperature, High ambient temperature

System

Power failure, Low battery

Construction

Sensor failure, Condenser overheating, Door ajar, Built-in datalogger, USB failure,

Main board communication error

Electrical

Power supply (V / HZ)

220 ~ 240 / 50

Power (W)

1200

1100

Power consumption (kWh / 24h)

8.63

11

Rated current (A)

5.96

5.32

Accessories

Standard

Backup battery, RS485, Remote alarm contact

Options

Chart recorder, CO2 backup system, Printer, RS232
