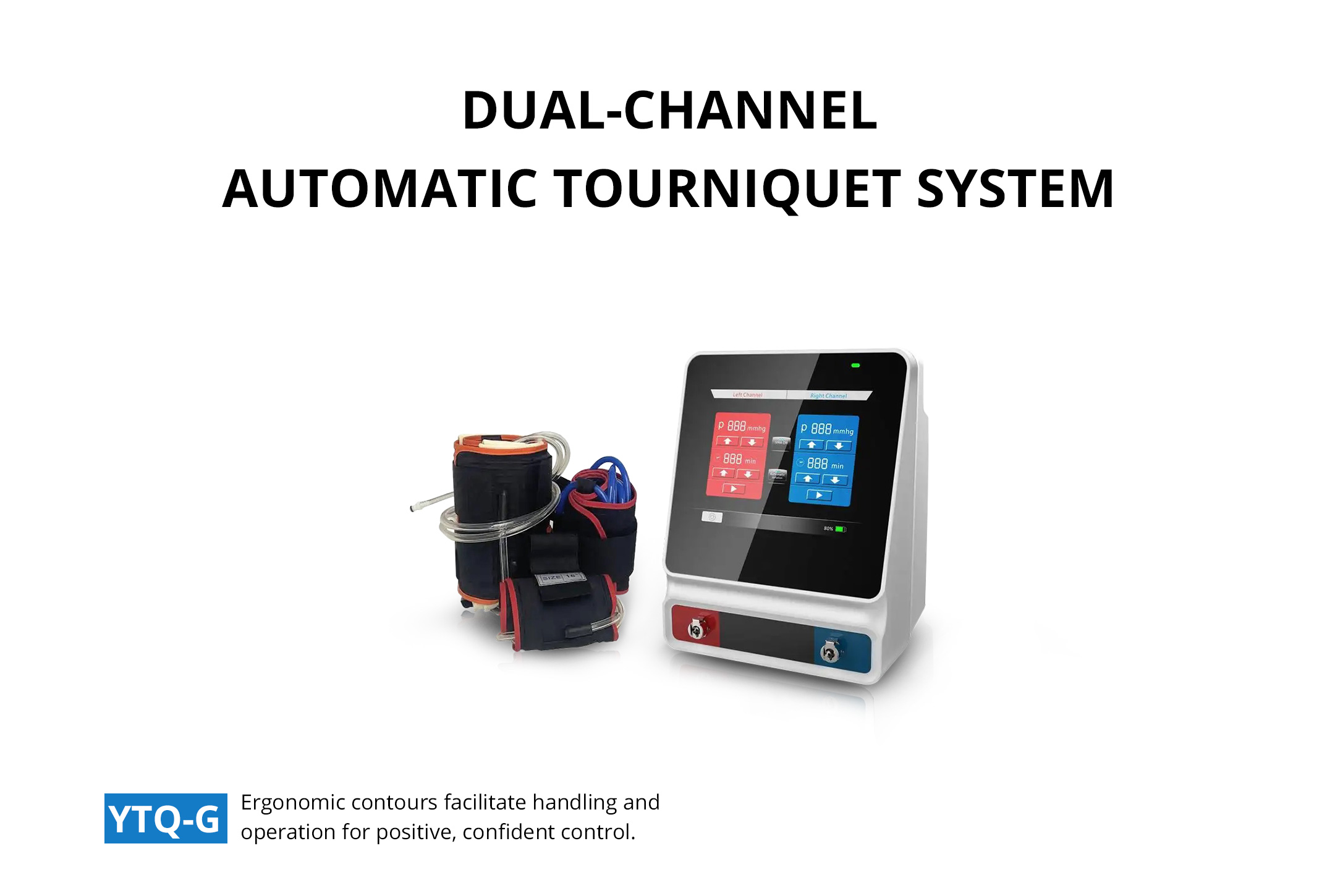

Dual-channel automatic tourniquet system with touch screen / Pneumatic hemostasis
Product ID: MB13930
P/N: MB139301
Automatic tourniquet system with 8" color touch display and built-in lithium battery.
Model
YTQ-G (portable)
YTQ-G (vertical)
Panel color
Red-blue
Blue-green
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/pack, 1 pack(s)/carton
Recommend related products

Model

YTQ-G

Output mode

Dual channel

Screen

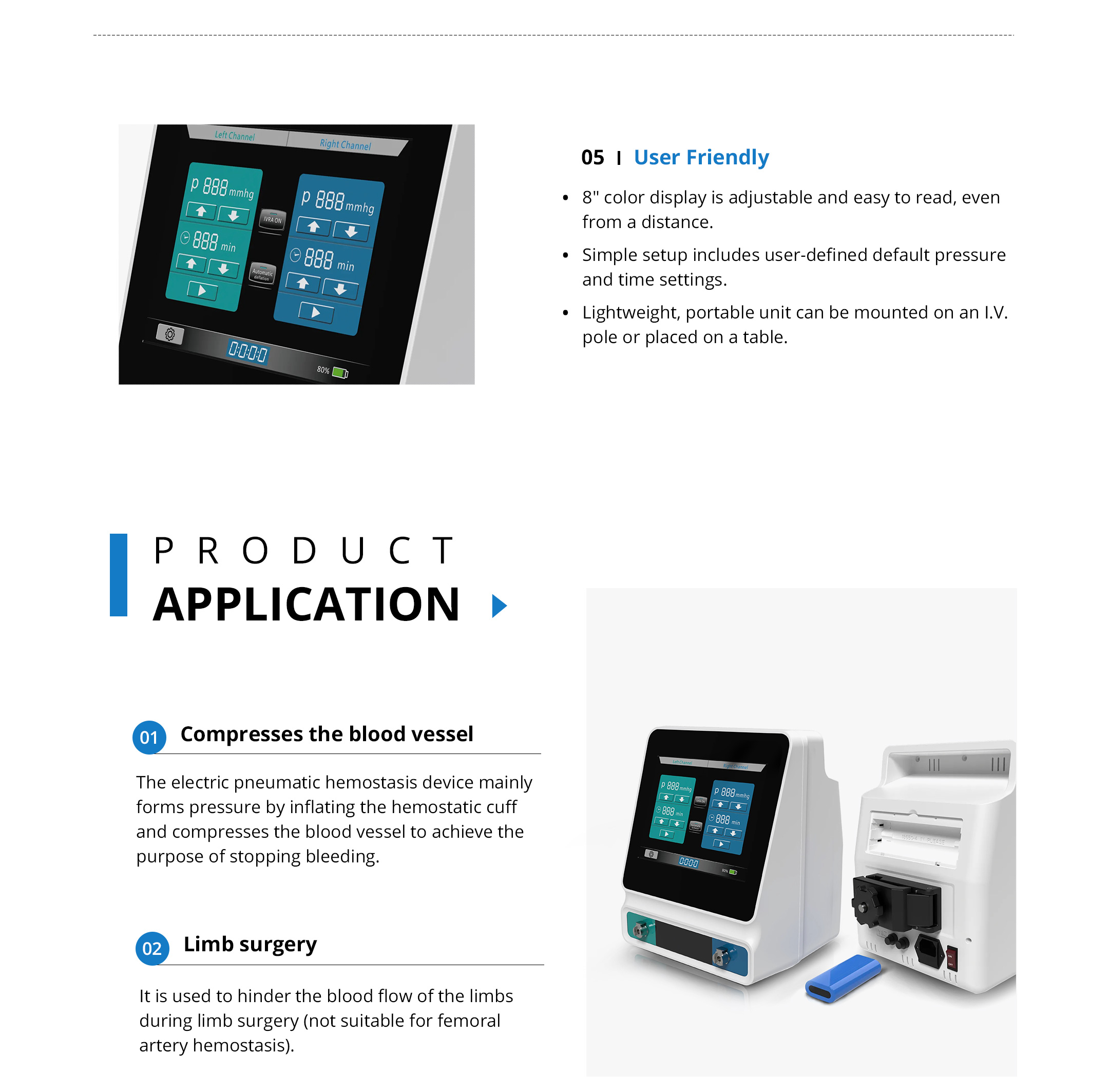

8" color touch display

Appearance size

320mm×340mm×350mm

Material

One-piece film-forming ABS material

Working condition

Power supply

AC100-240V 50Hz/60Hz

Environment temperature

5℃ ~ 40℃

Relative humidity

≤ 85%

Atmospheric pressure

860hPa ~ 1060hPa

Input power

90VA

Working pressure

Pressure set

30mmHg ~ 650mmHg

Tolerance

± 10mmHg

Operation mode

CPU control

Insurance function

Step deflation

Pressure maintenance in power failure

Emergency valve device

Manual emergency deflation

Working noise

≤ 80dB (A)

Voice prompt function

Alarms remind operators at 10mins, 5mins and 1min before the surgery completed.

Reminds operators the completion at the end of the surgery.

In case air pressure in hemostasia cuff exceeds ± 5kPa of the set value over 2mins, reminds operators.

Extended airway size

≥ 1m

Hemostatic cuff size

Large cuff

863mm×101mm, 2pieces

Medium cuff

457mm×101mm, 2pieces

Small cuff

305mm×89mm, 2pieces

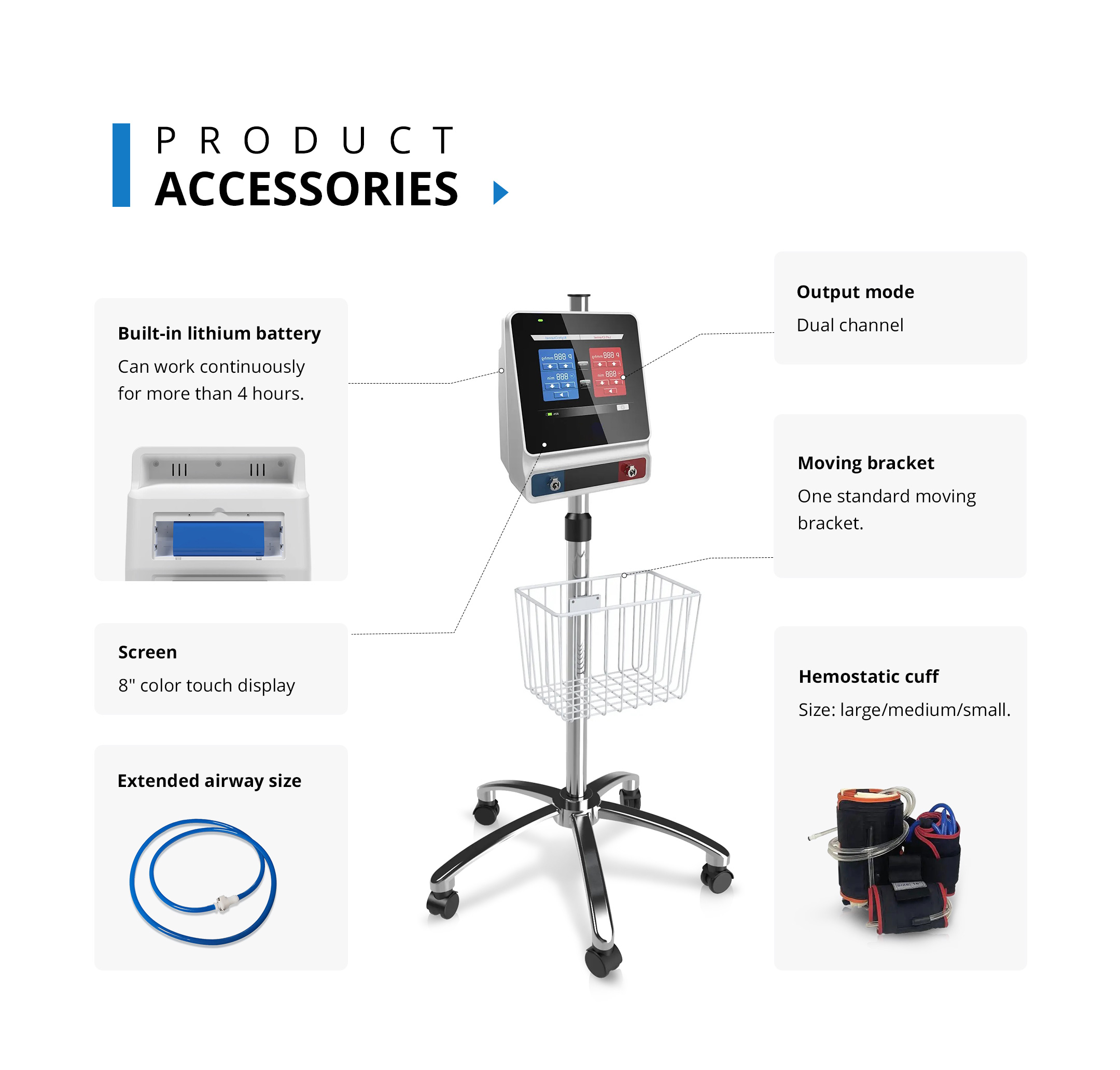

Moving bracket

Optional

Built-in lithium battery

Can work continuously for more than 4 hours

Inflation time

≤ 60s
