Model
|
YCD-FL289
|
YCD-FL300
|
YCD-FL450
|
YCD-FL519
|
|
Basic parameters
|
Cabinet type
|
Upright
|
|
Capacity (L)
|
289, R: 189, F: 100
|
300, R: 197, F: 103
|
450, R: 225, F: 225
|
519, R: 323, F: 196
|
|
Internal size (W*D*H) mm
|
R: 600*510*670,
F: 500*460*505
|
R: 600*510*657,
F: 500*460*535
|
R: 650*570*627,
F: 650*570*627
|
R: 750*610*740,
F: 650*560*565
|
|
External size (W*D*H) mm
|
745*650*1845
|
700*640*1826
|
810*735*1960
|
910*740*1972
|
|
Package size (W*D*H) mm
|
812*747*2004
|
760*720*1935
|
895*820*2035
|
985*855*2140
|
|
NW / GW (Kgs)
|
143 / 165
|
100 / 108
|
146 / 159
|
186 / 215
|
|
Performance
|
Temperature range
|
R: 2 ~ 8 ℃, F: -10 ~ -40 ℃
|
|
Ambient temperature
|
16 ~ 32 ℃
|
|
Cooling performance
|
R: 5 ℃, F: -40 ℃
|
|
Climate class
|
N
|
|
Controller
|
Microprocessor
|
|
Display
|
Digital display
|
|
Refrigeration
|
Compressor
|
2 pcs
|
|
Cooling method
|
R: Forced air cooling, F: Direct cooling
|
|
Defrost mode
|
R: Automatic, F: Manual
|
|
Refrigerant
|
R: R134a, F: R290
|
R: R600a, F: R290
|
|
Insulation thickness (mm)
|
R: 50, F: 100
|
R: 80, F: 80
|
R: 50, F: 100
|
|
Construction
|
External material
|
Carbon steel spraying
|
Powder coated material
|
Spray cold rolled steel plate
|
|
Inner material
|
304 Stainless steel
|
Aluminum plate with spraying
|
Stainless steel
|
|
Shelves
|
R: 3+1 (Stainless steel),
F: 3 (ABS)
|
R: 3 (coated steel wired shelf),
F: 3 (ABS)
|
R: 3 (coated steel wired shelf),
F: 6 (ABS)
|
R: 3+1 (stainless steel),
F: 6 (ABS)
|
|
External Lock
|
Yes
|
|
Lighting
|
LED
|
|
Access port
|
2 pcs (Ø 25 mm)
|
|
Casters
|
4 + (2 caster with brake)
|
|
Data logging / Interval / Memory capacity
|
USB / Record every 10 minutes / 2 years
|
|
Door with heater
|
Yes
|
|

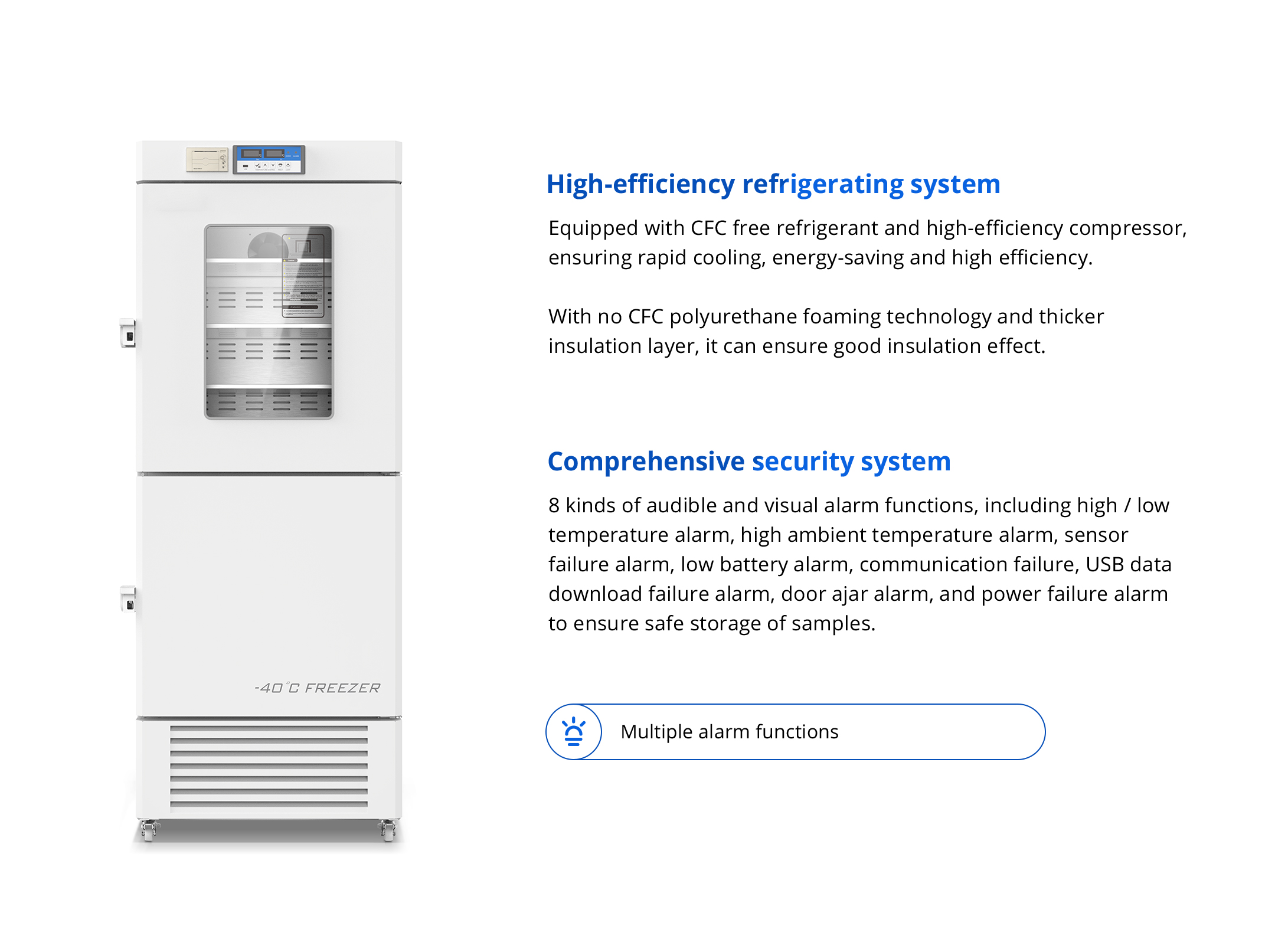

Alarm
|
Temperature
|
High / Low temperature, High ambient temperature
|
High / Low temperature
|
High / Low temperature, High ambient temperature
|
|
Electrical
|
Power failure, Low battery
|
/
|
Power failure, Low battery
|
|
System
|
Sensor failure, Door ajar, USB datalogger failure, Communication failure, Remote alarm
|
Sensor failure, Door ajar
|
Sensor failure, Door ajar, USB datalogger failure
|
Sensor failure, Door ajar, USB datalogger failure, Communication failure
|
|
Electrical
|
Power Supply (V / HZ)
|
220 ～ 240 / 50
|
|
Power (W)
|
352
|
300
|
400
|
422
|
|
Power Consumption (kWh / 24h)
|
3.76
|
2.98
|
4.95
|
5.17
|
|
Rated Current (A)
|
2.5
|
2.67
|
3.12
|
3.57
|
|
Accessories
|
Standard
|
RS485, Remote alarm contact,
Backup battery
|
RS485, Remote alarm contact
|
|
Options
|
RS232, Printer
|
