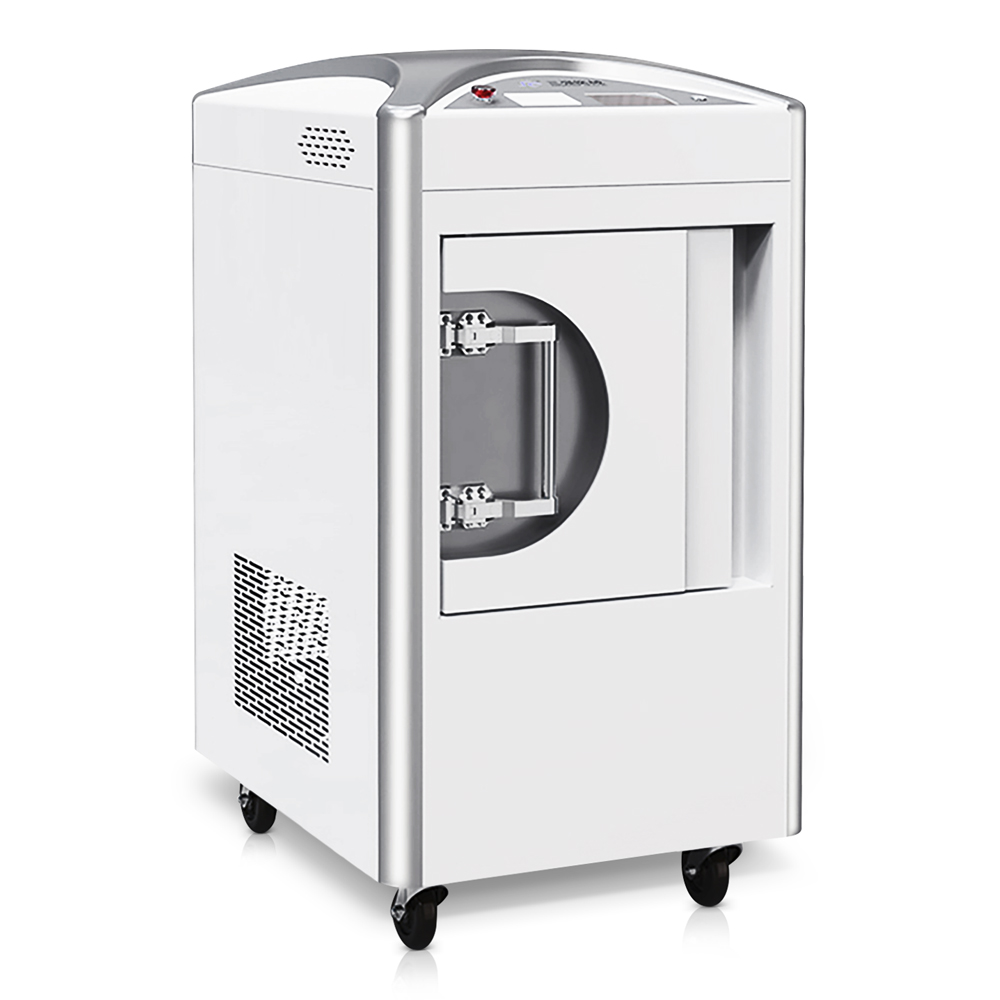

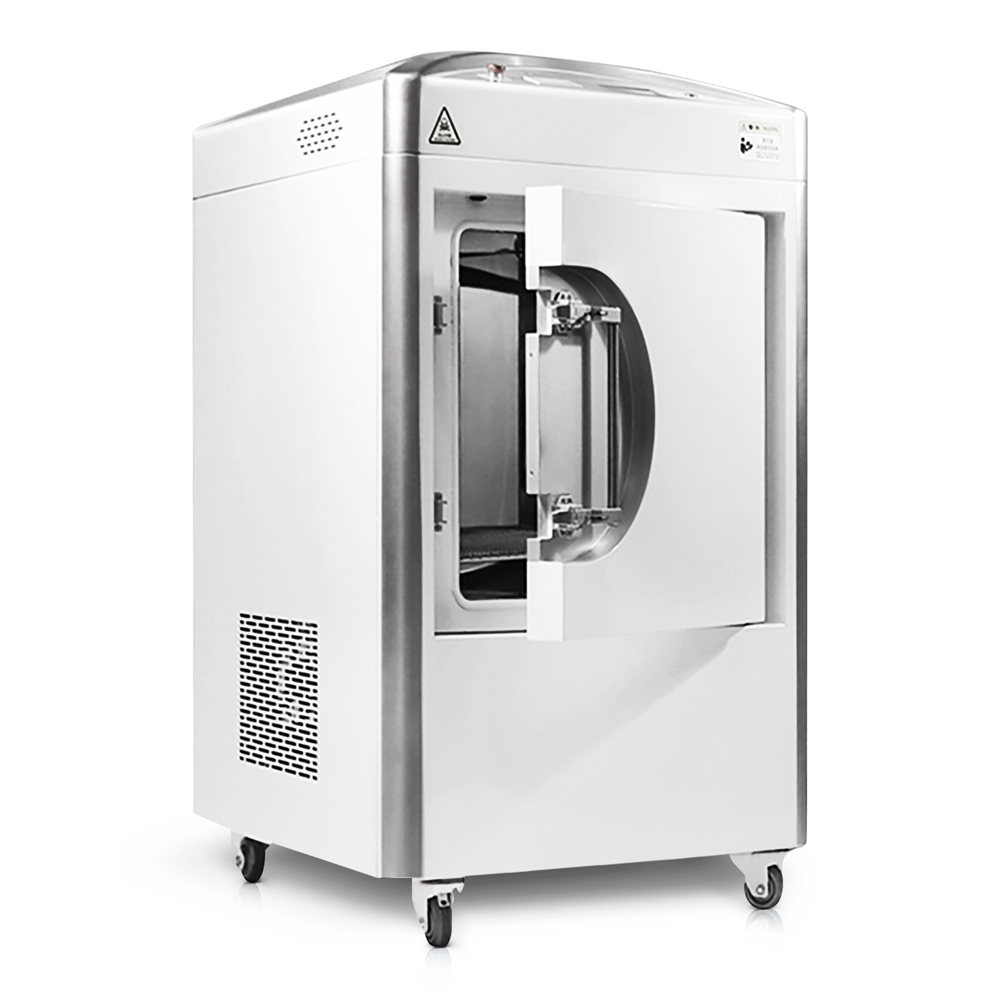

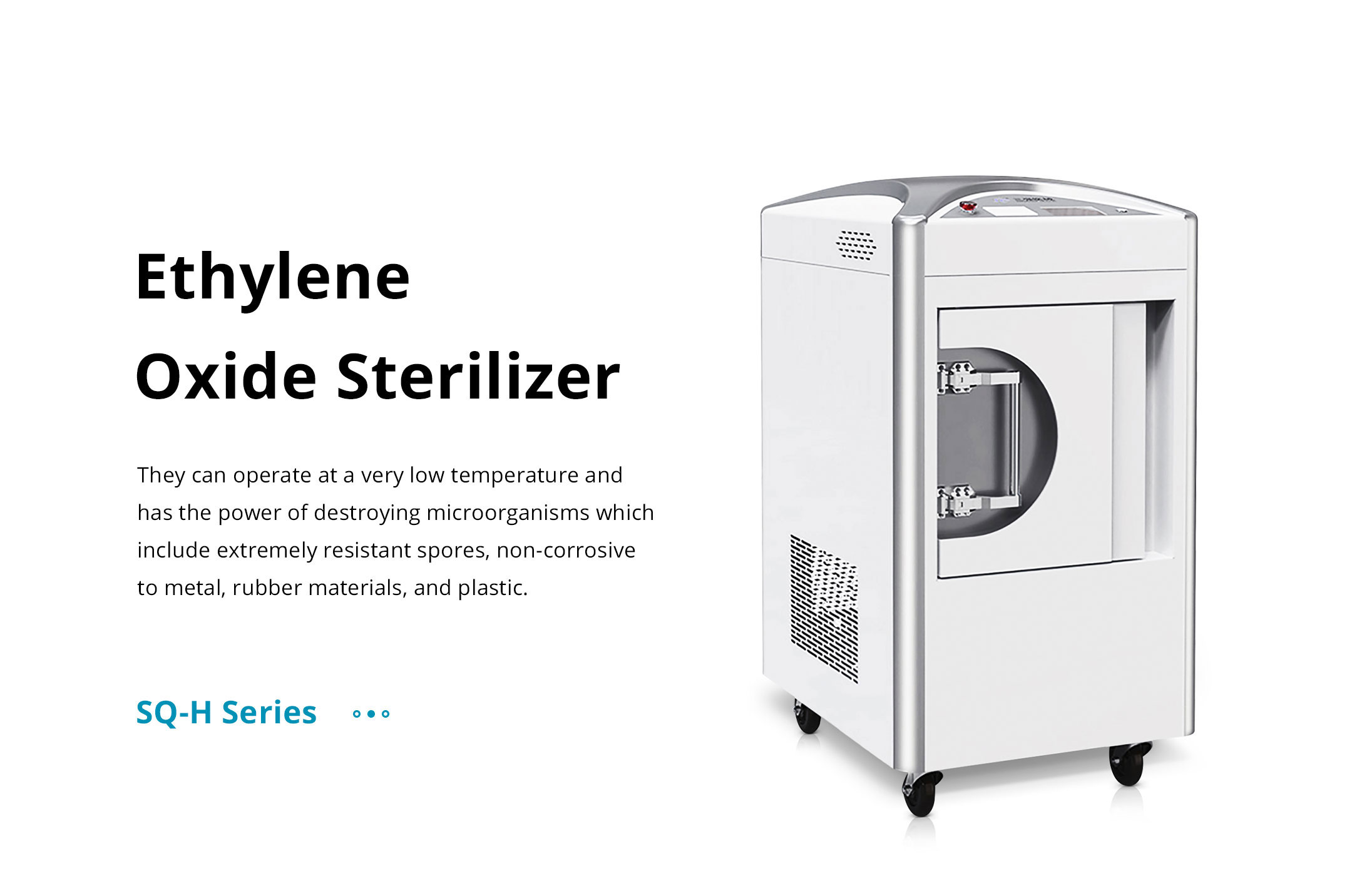

Ethylene oxide sterilizer, 23~330L
Product ID: MQ80386
P/N: MQ803861
The machine is used to disinfect items, such as surgical precision medical instruments, optical instruments, electronic equipment, plastic products, rubber materials, and various medical supplies. And there is no corrosion.
Model
SQ-H40 (capacity: 23L)
SQ-H80 (capacity: 80L)
SQ-H120 (capacity: 120L)
SQ-H220 (capacity: 220L)
SQ-H330 (capacity: 330L)
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/pack, 1 pack(s)/carton
Recommend related products
$ Inquiry after Sign-In
$ Inquiry after Sign-In

Model

SQ-H40

SQ-H80

SQ-H120

SQ-H220

SQ-H330

Capacity

  23 Liter

 80 Liter

120 Liter

 220 Liter

330 Liter

Sterilizing temperature

36 - 55  adjustable

Sterilizing time

8 - 10 hours, depending on materials

Sterilization method

Low temperature, gas sterilization.

Display

LCD screen, soft touch operate key

Safety features

Temperature and pressure protection

Tray

2 stainless net tray

Voltage

220 V, 50 Hz

Data review

Thermal mini-printer and USB port (download)

EO gas

100 % pure EO gas cartridge

Control system

PLC unit and 5 touch screen

Sterilization chamber

S304 stainless steel

Vacuum  system

High-performance, low-noise, oil-free vacuum pump

Built-in printer

Thermal printer

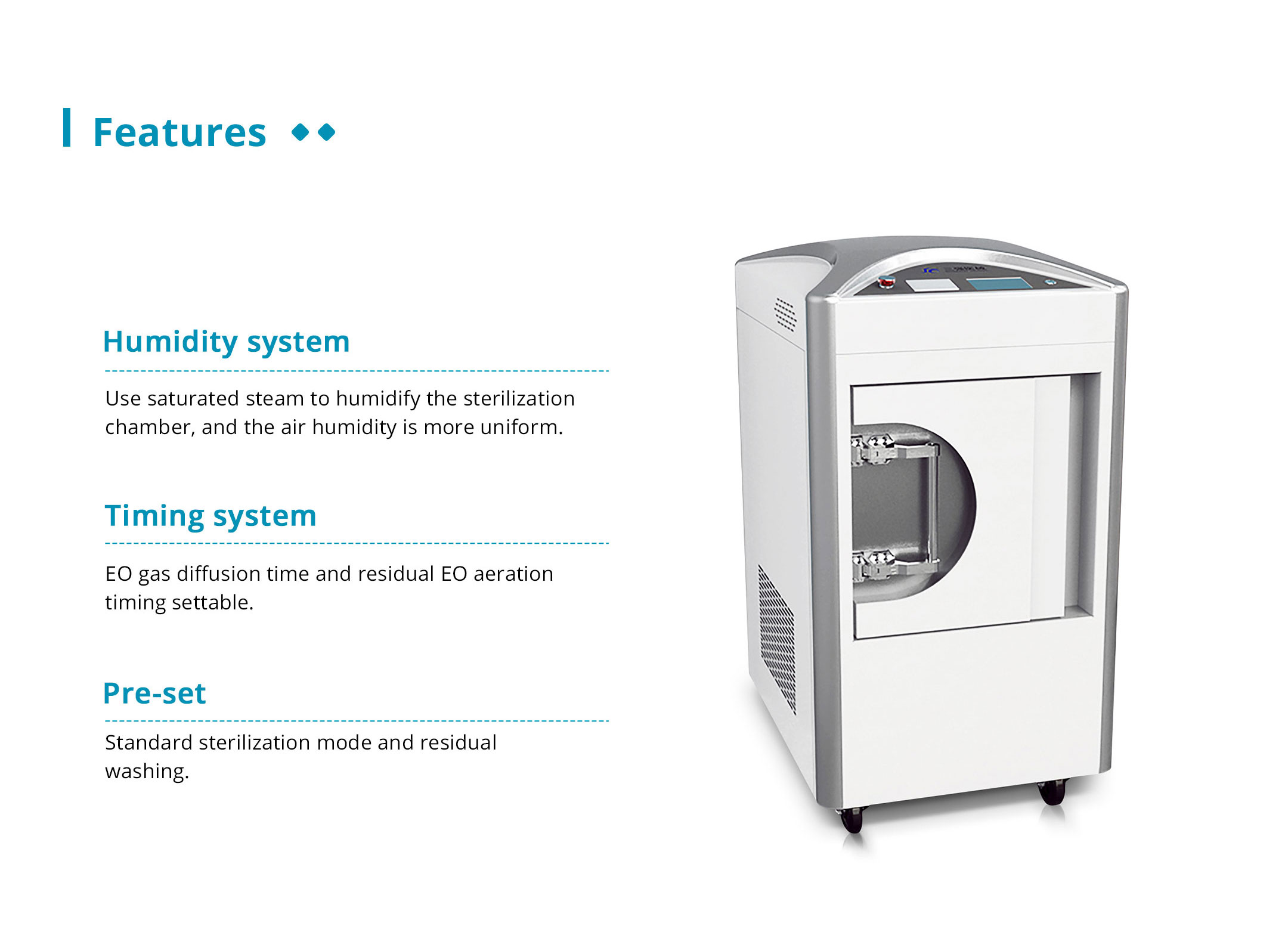

Humidity system

Use saturated steam to humidify the sterilization chamber, and the air humidity is more uniform

Timing system

EO gas diffusion time and residual EO aeration timing settable

Pre-set

 Standard sterilization mode and residual washing
