Model

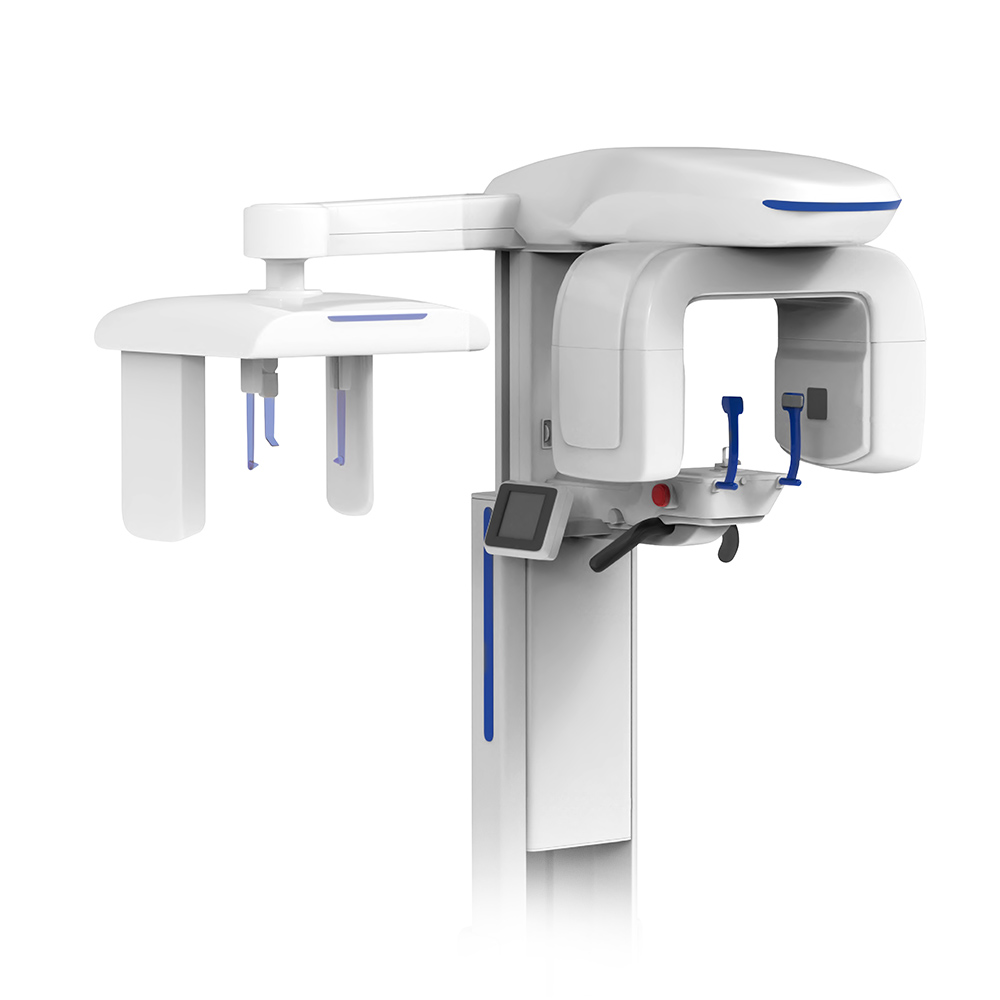

SS-X9010DPRO-3DE

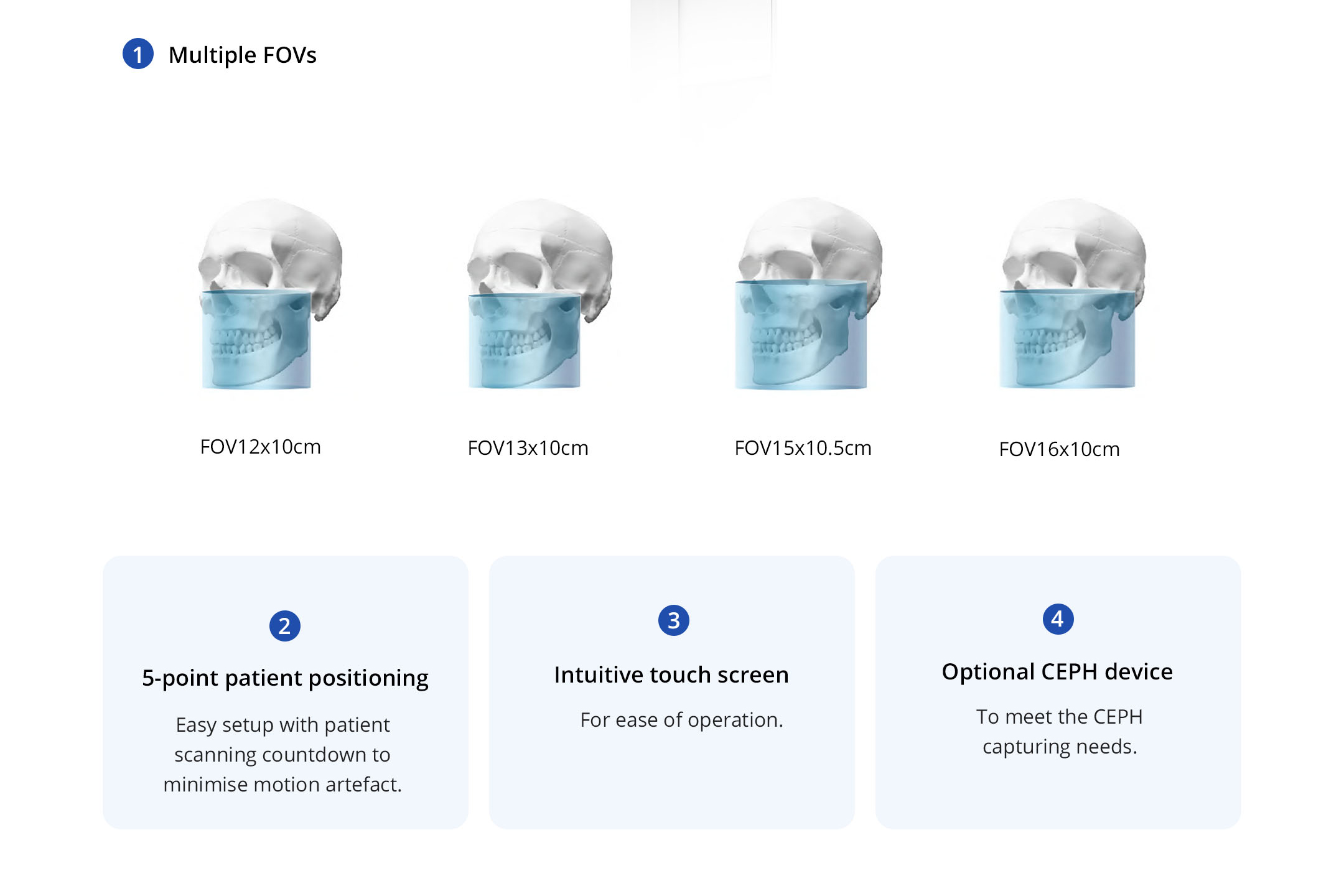

Field of view (FOV)

12 × 10 cm, 3.4 × 3.4 cm

13 × 10 cm, 5 × 8 cm

15 × 10.5 cm, 8 × 10 cm

16 × 10 cm, 5 × 8 cm

Resolution

70 - 420 μm

80 - 420 μm

180 - 420 μm

80 - 420 μm

Dimensions

Without ceph

1065 mm (L) × 1415 mm (W) × 2485 mm (H)

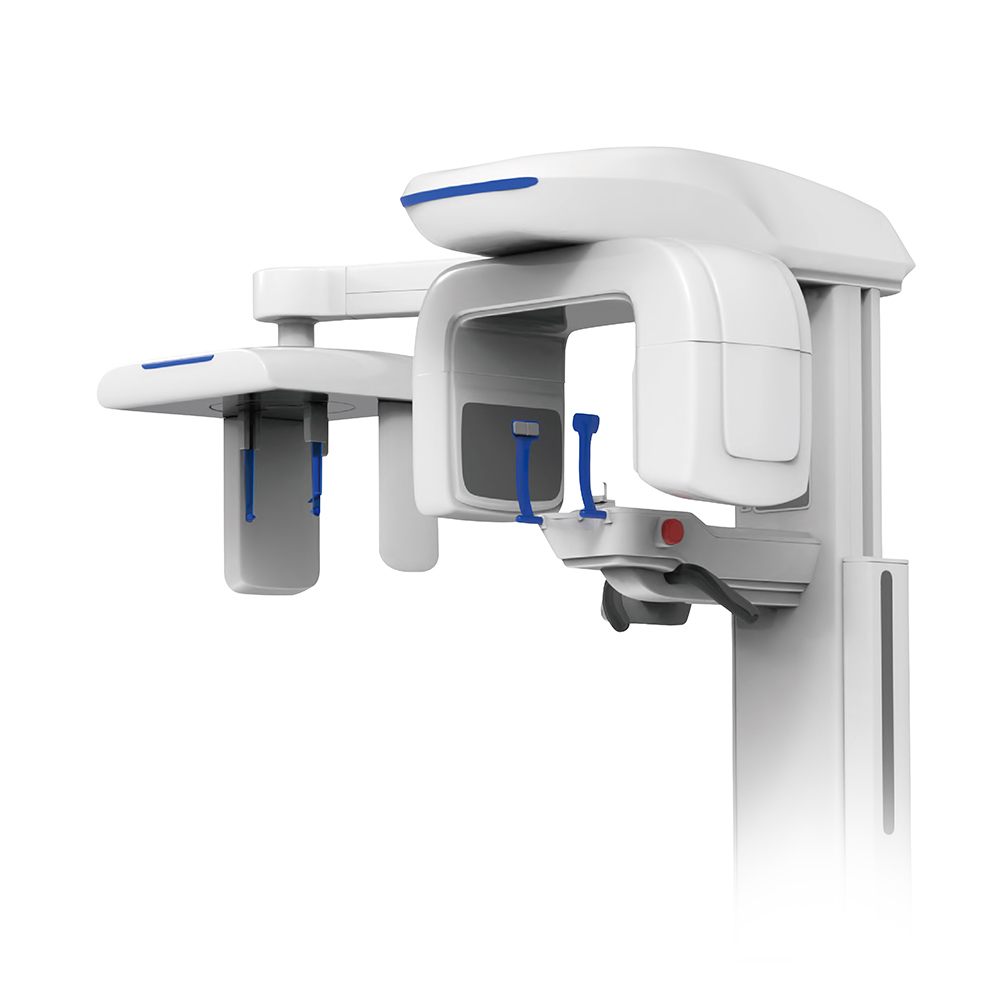

With ceph

1880 mm (L) × 1415 mm (W) × 2485 mm (H)

Weight

Without ceph

220 Kg / 485 lbs

With ceph

260 Kg / 573 lbs

Operation

Touch-Panel / Remote Control

Patient positioning

Standing / seated, chin rest, biteblock, ear clips and forehead support

Scan time (Exposure time)

CBCT: 20 s (8.7s), Pano: 17 s, Ceph: 12 s, Endo: 12 s

Reconstruction time

Less than 60s

Resolution in 3D: voxel size

From 70 - 420 μm

Focal spot

0.5 mm (IEC 60336)

Gray scale

16 bit (65536 gray levels)

X-ray tube current

2 - 10 mA (1 mA adjustable)

X-ray tube voltage

60 - 90 kV (1 kV adjustable)

Nominal supply voltage

200 - 240 V

Input power frequency

50 Hz / 60 Hz

System requirement

Windows 10 or Above

Child mode

Yes

Wheelchair accessible

Yes
