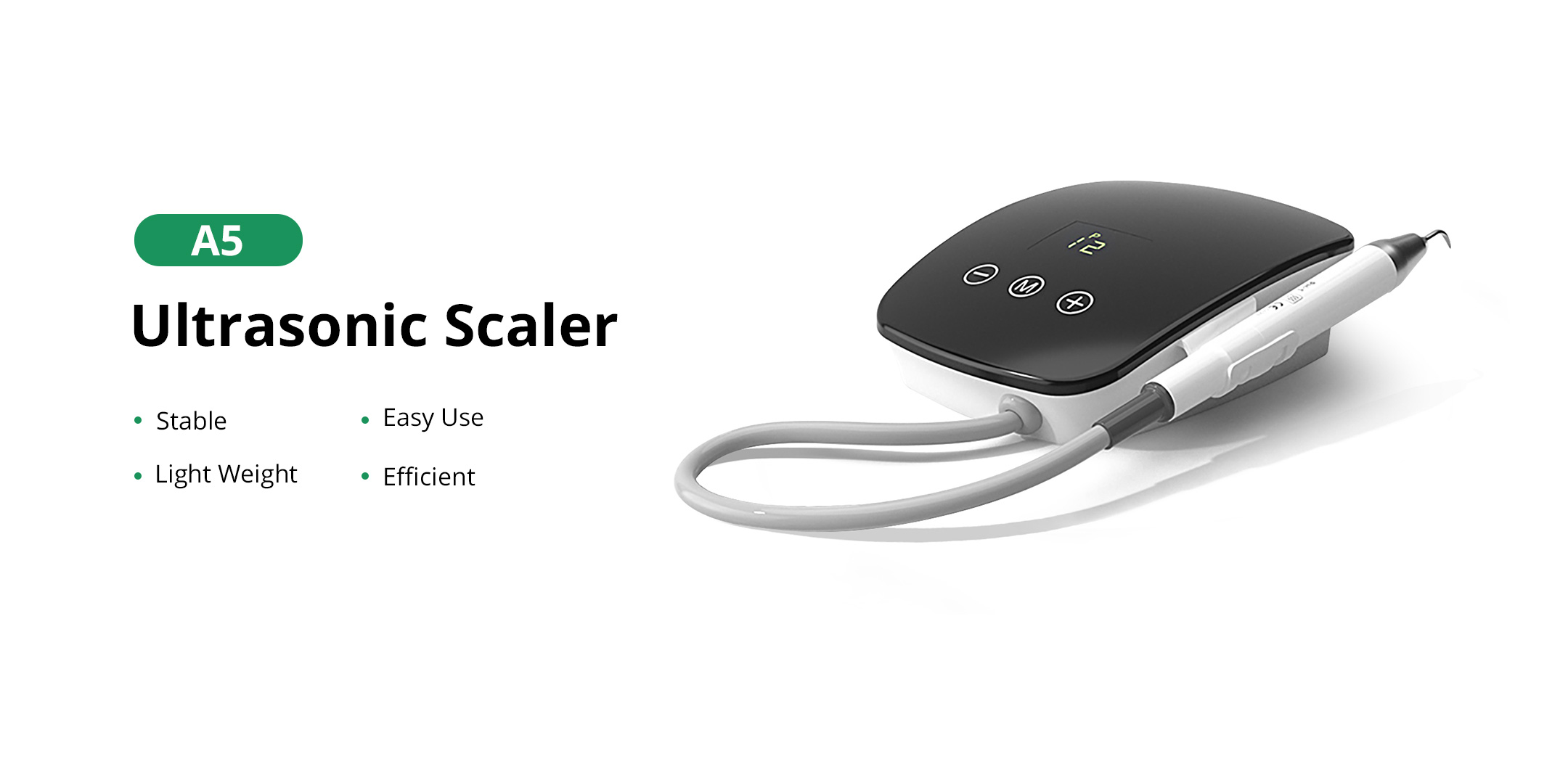

Model

A5

Handpiece

LED detachable handpiece

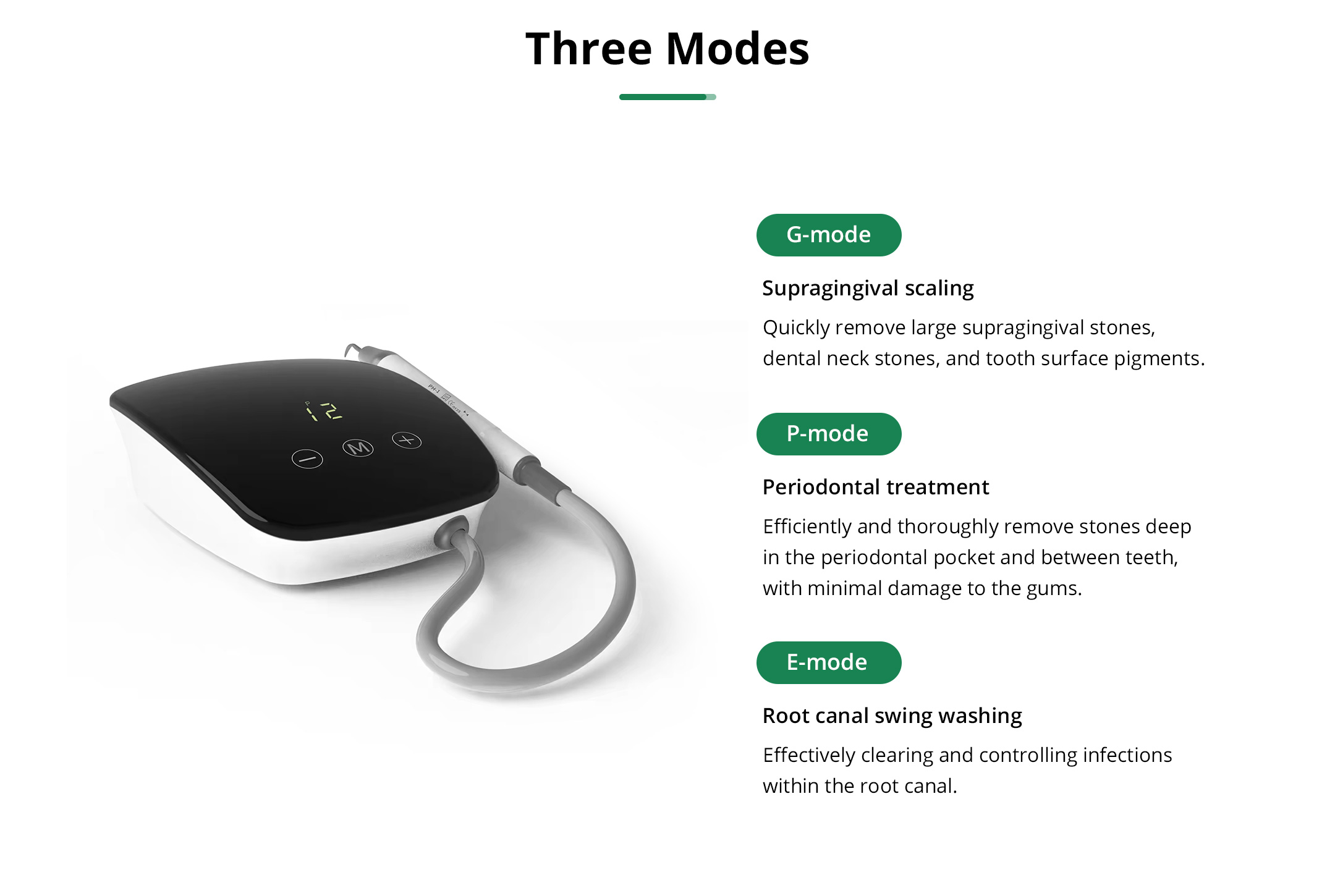

Treatment mode

Scaling & Perio & Endo

Control mode

Touch control

Tip vibration frequency

28kHz ± 3kHz

Tip amplitude

Minimum

1μm

Maximum

100μm

Deviation

± 50%

Half deflection force

Minimum

0.1N

Maximum

2N

Deviation

± 50%

Input voltage

220V ± 22V, 50Hz/60Hz

Host input

AC 24V

Input power

40VA ~ 60VA

Ultrasonic output power

3W ~ 20W

Water pressure

0.1bar ~ 5bar (0.01MPa ~ 0.5MPa)
