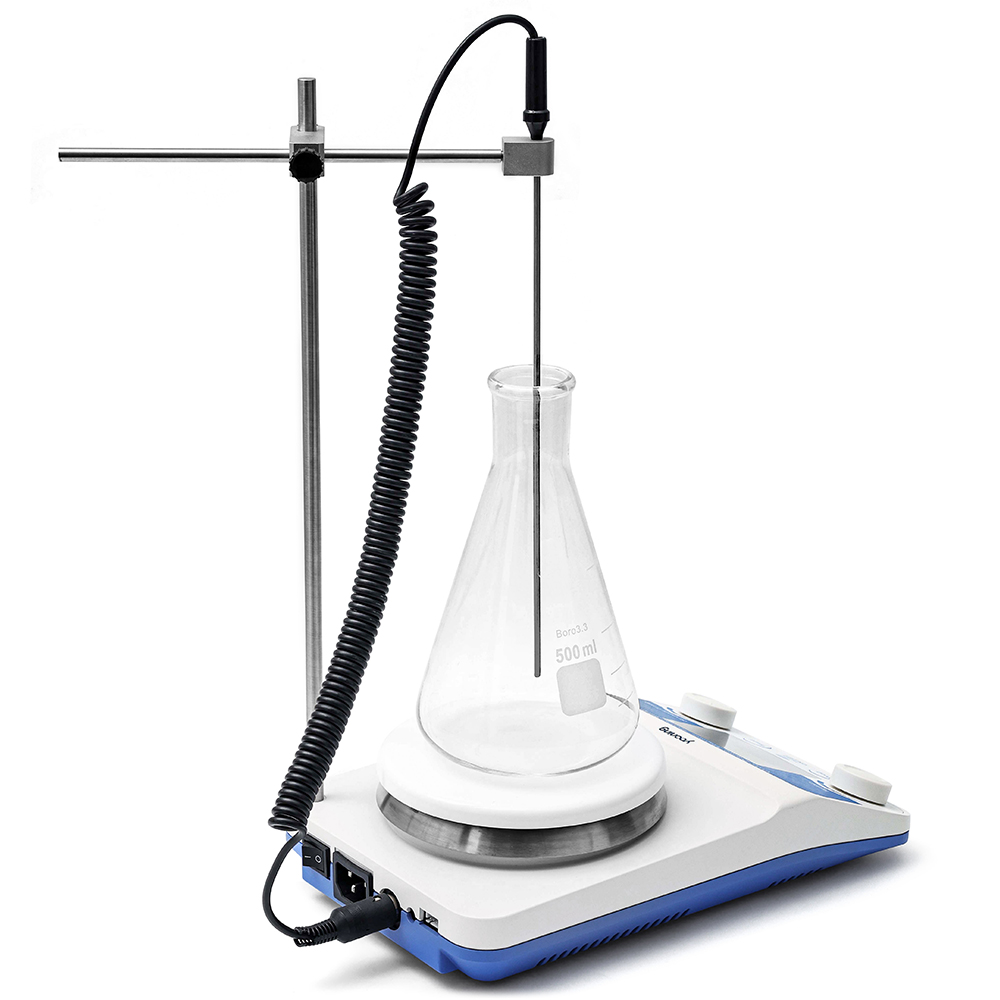

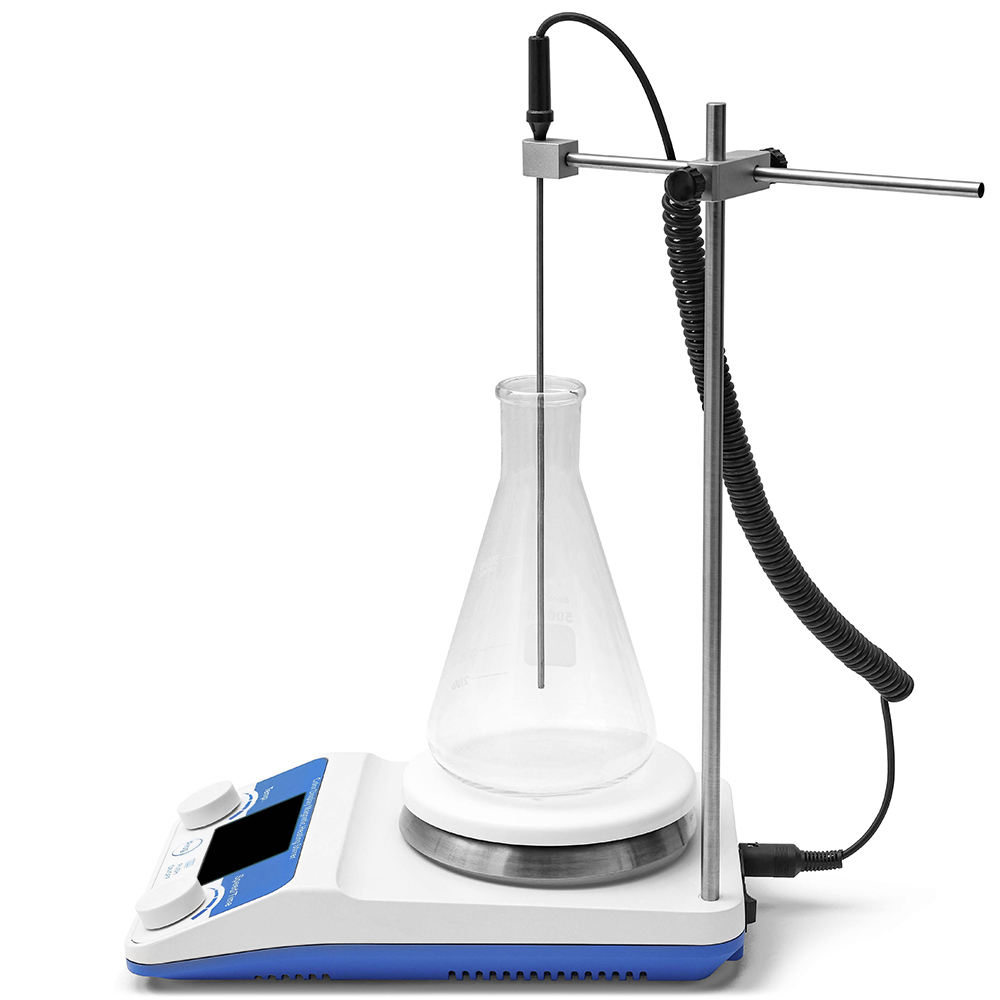

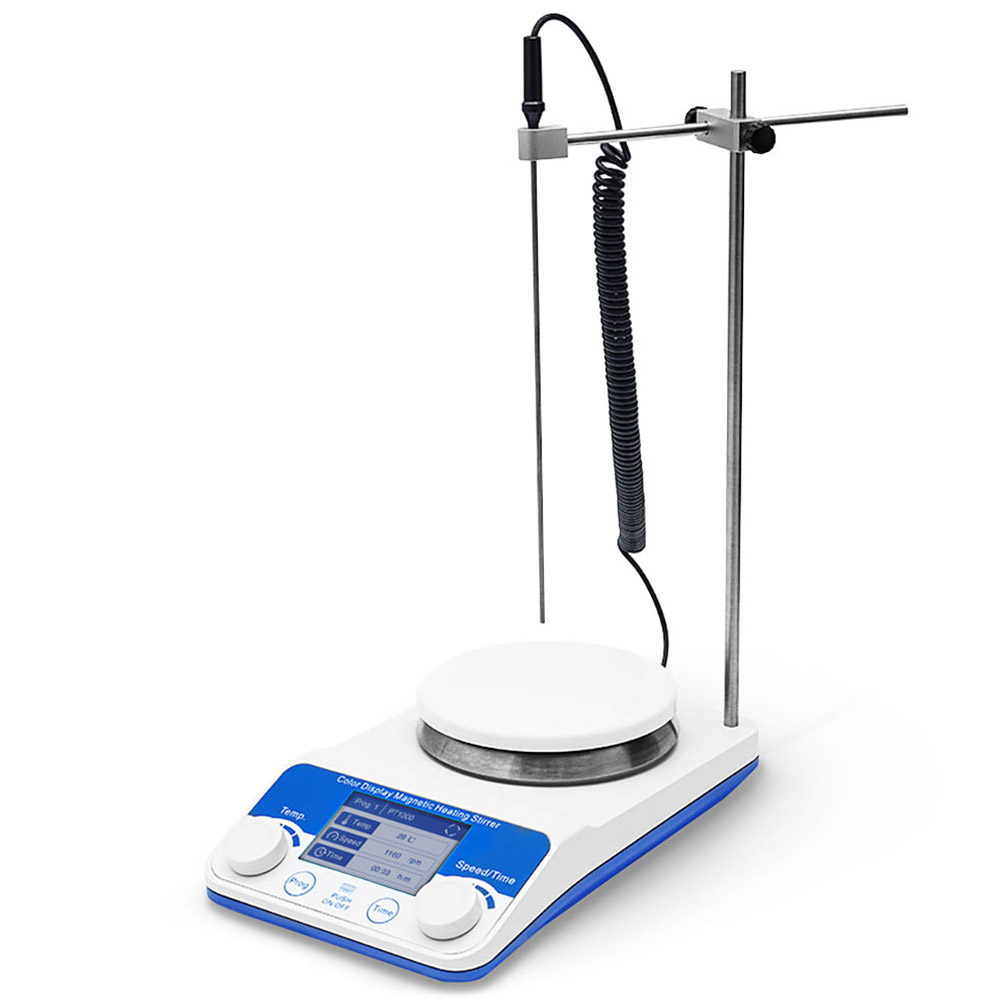

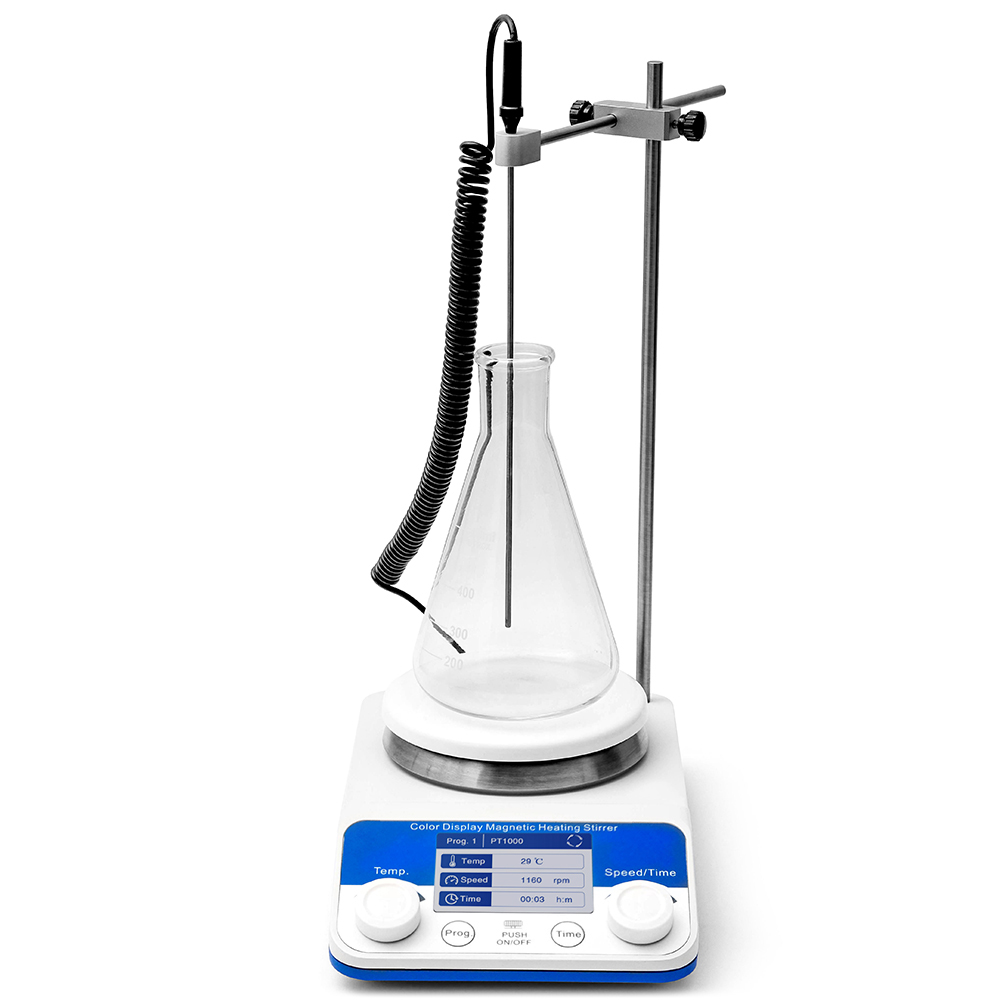

TFT color display hotplate magnetic stirrer
Product ID: ME78273
P/N: ME782733
Max. stirring quantity (H2O): 20L

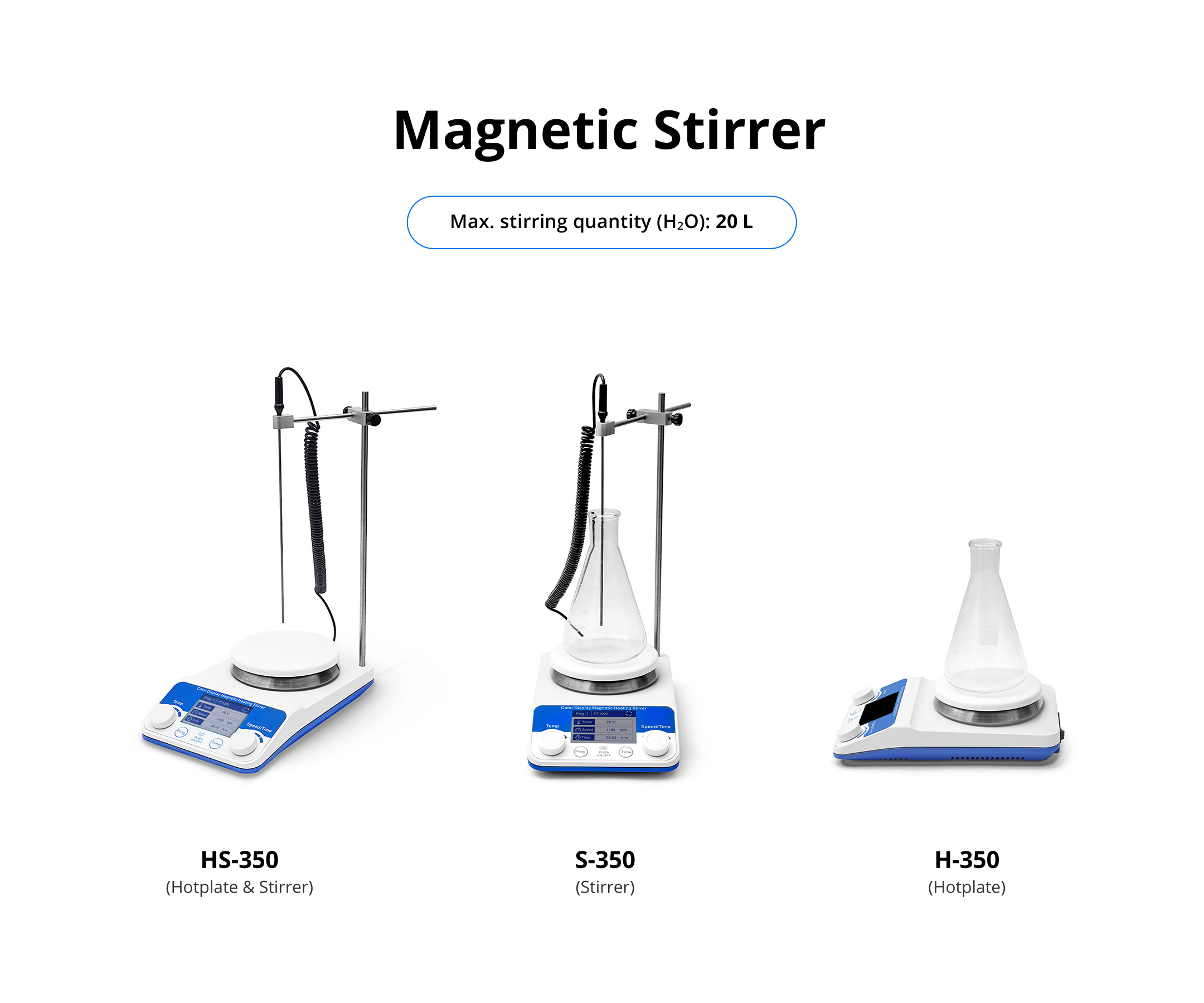

Model
HS-350 (TFT color display hotplate magnetic stirrer)
S-350 (TFT color display magnetic stirrer)
H-350 (TFT color display hotplate)
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/pack, 1 pack(s)/carton
Recommend related products

Model

HS-350

H-350

S-350

Power Supply

AC 100 ~ 120 V / AC 200 ~ 240 V, 50 ~ 60 Hz

Working disc size

φ 135 mm

Timing range

99 h 59 m

Number of mixing points

1

Working, panel surface material

Stainless steel + Nanoceramics



Stainless steel

Temperature range

Room temperature + 5 ~ 340



-

Temperature stability

± 3

-

External sensor interface

PT 1000



-

Speed range

50 ~ 1500 rpm

-

50 ~ 1500 rpm

Mixing volume (H20)

20 L

-

20 L

Agitator length

80 mm

-

80 mm

Small value of adjustabie safety temperature circuit

50

50

-

Maximum value of adjustable safety temperature circuit

400

400

-

Power

550 W

500 W

30 W

Overall dimension (W x D x H)

170 x 275 x 76 mm

Net weight

2.2 kg

2 kg

1.8 kg
