Model

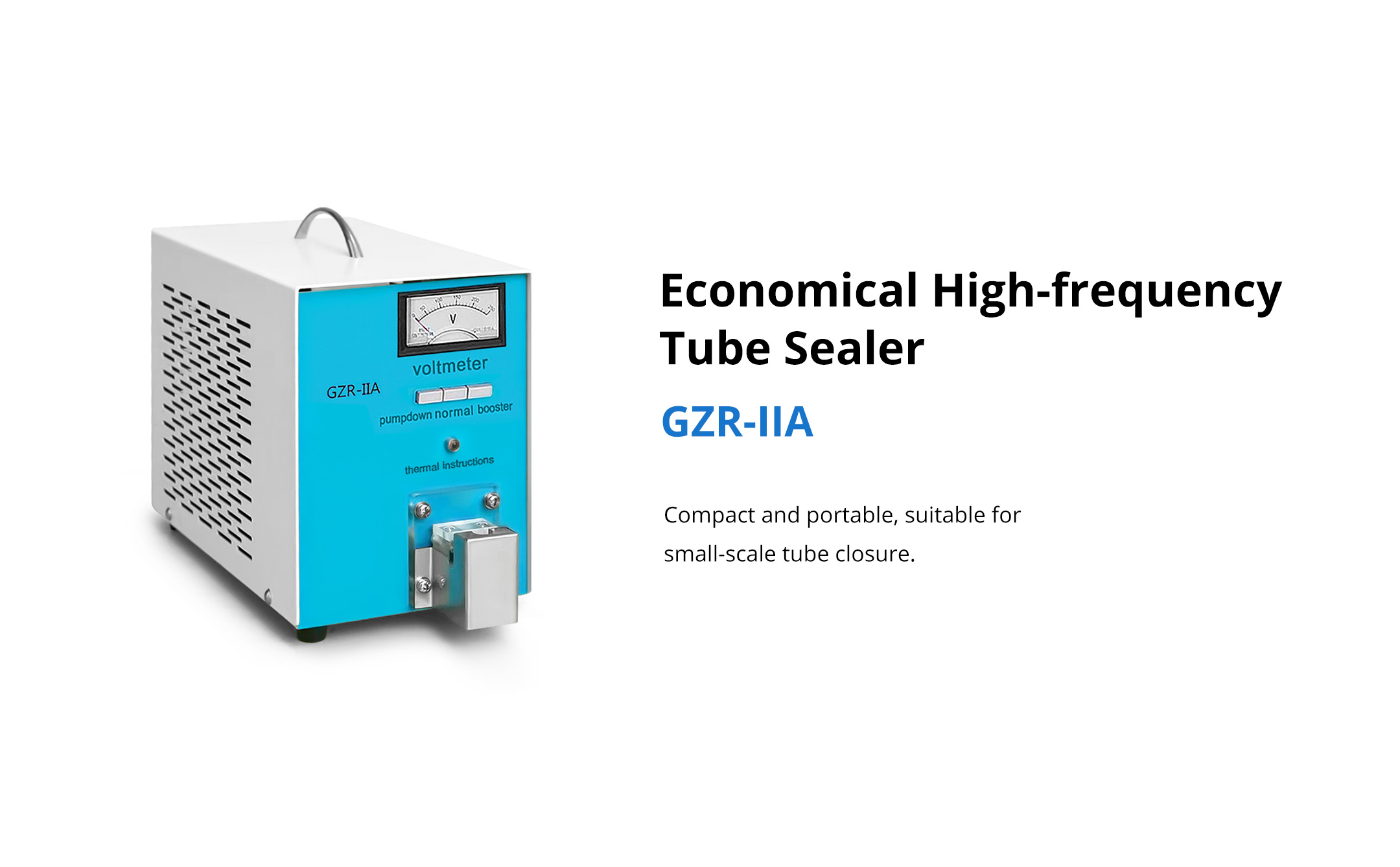

GZR-IIA

Material of Frame

Steel

High Frequency Output

27.12 MHz

Heating Time

2 ~ 3.5 s

Heating Tube Diameter

PE or PVC, 3 mm ~ 6 mm

Heating Tube Thickness

≤ 0.5 mm

Overcurrent Protection

Yes

EDM Protection

Yes

Heat Sealing Head Protection

No

No-Load Heat Sealing Alarm

No

Power

220 V ~ 260 V, 50 Hz / 60 Hz, 5 A, 150 W

Dimension

280 mm × 150 mm × 200 mm

Packing Measurement

350 mm × 250 mm × 250 mm

Net Weight / Gross Weight

5 kg / 5.5 kg
