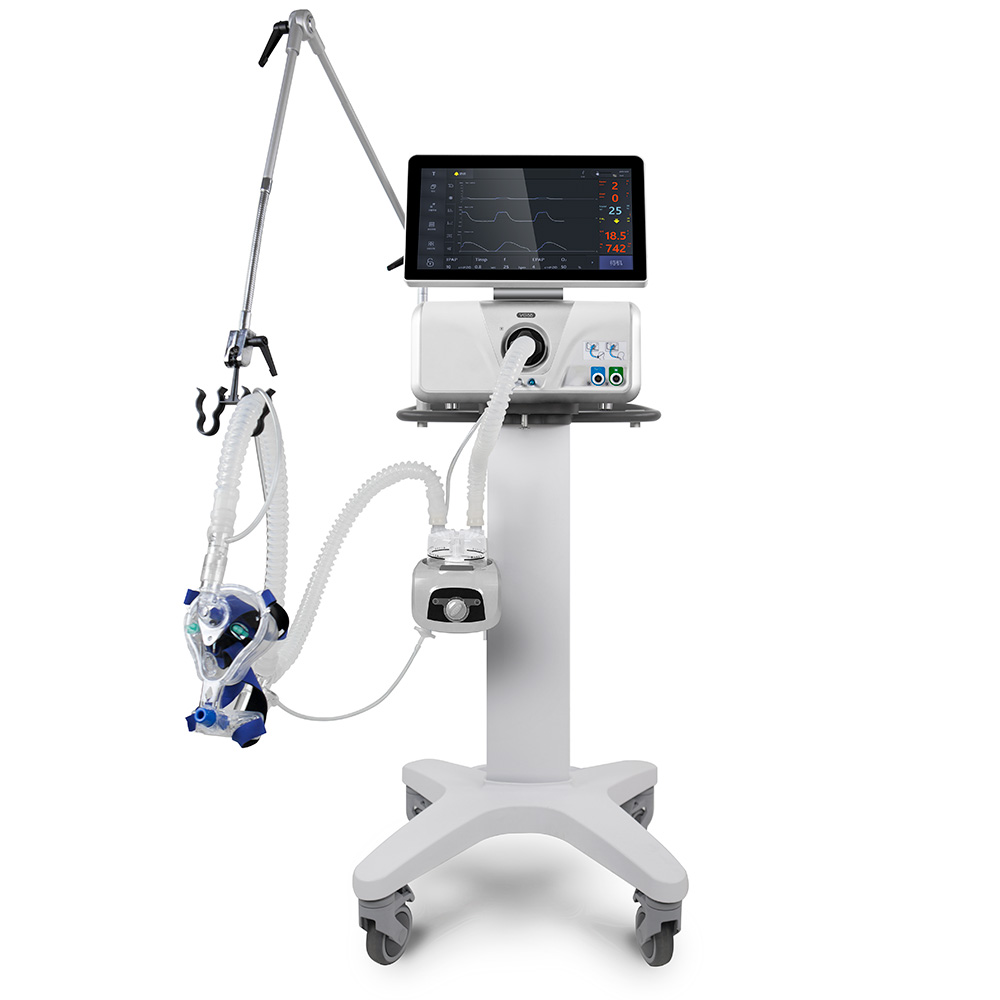

Model

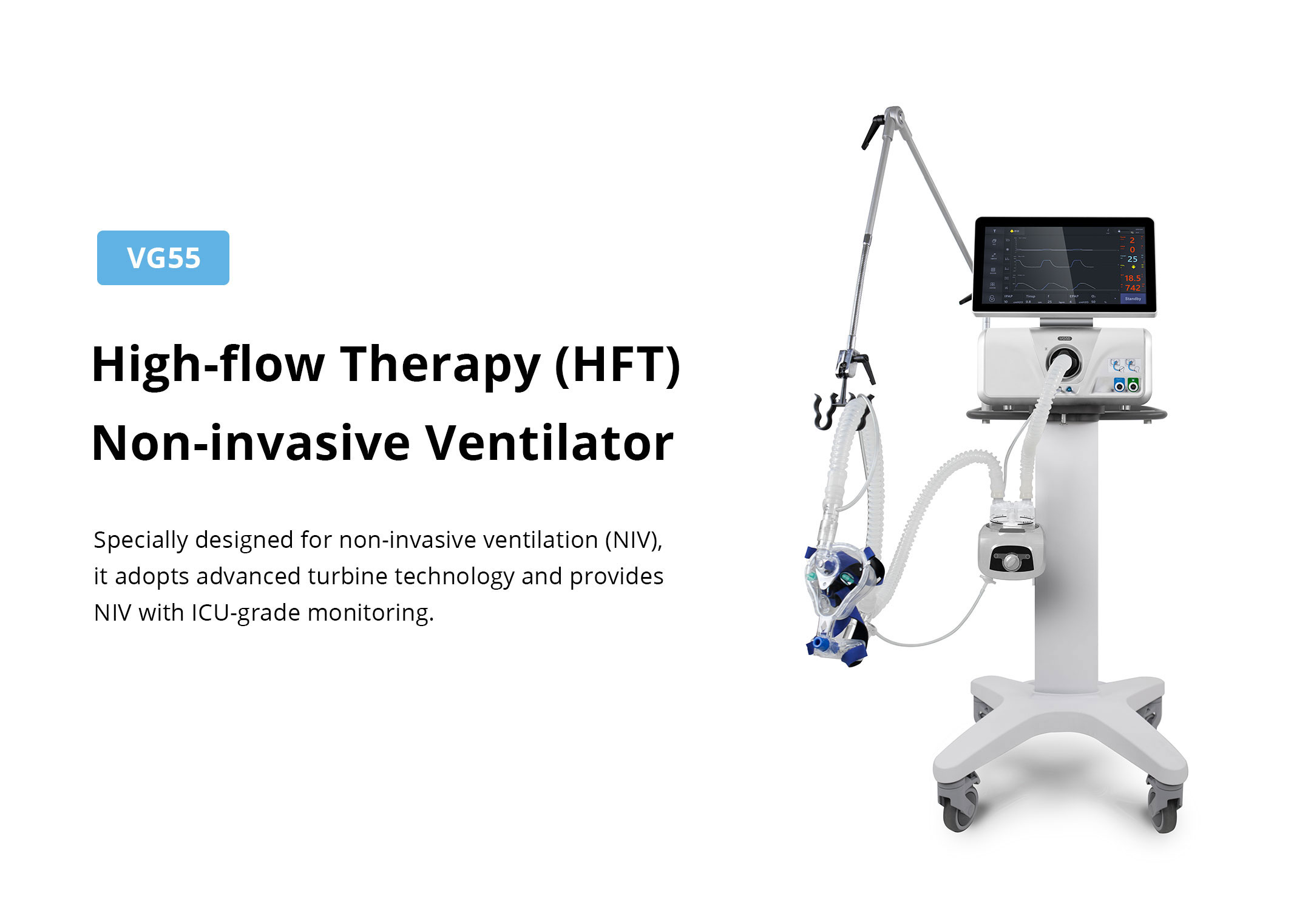

VG55

Dimension

Main unit: 370 mm (W) × 160 mm (H) × 340 mm (T)

Weight

Total weight: 48.8 kg, cart weight: 27.2 kg

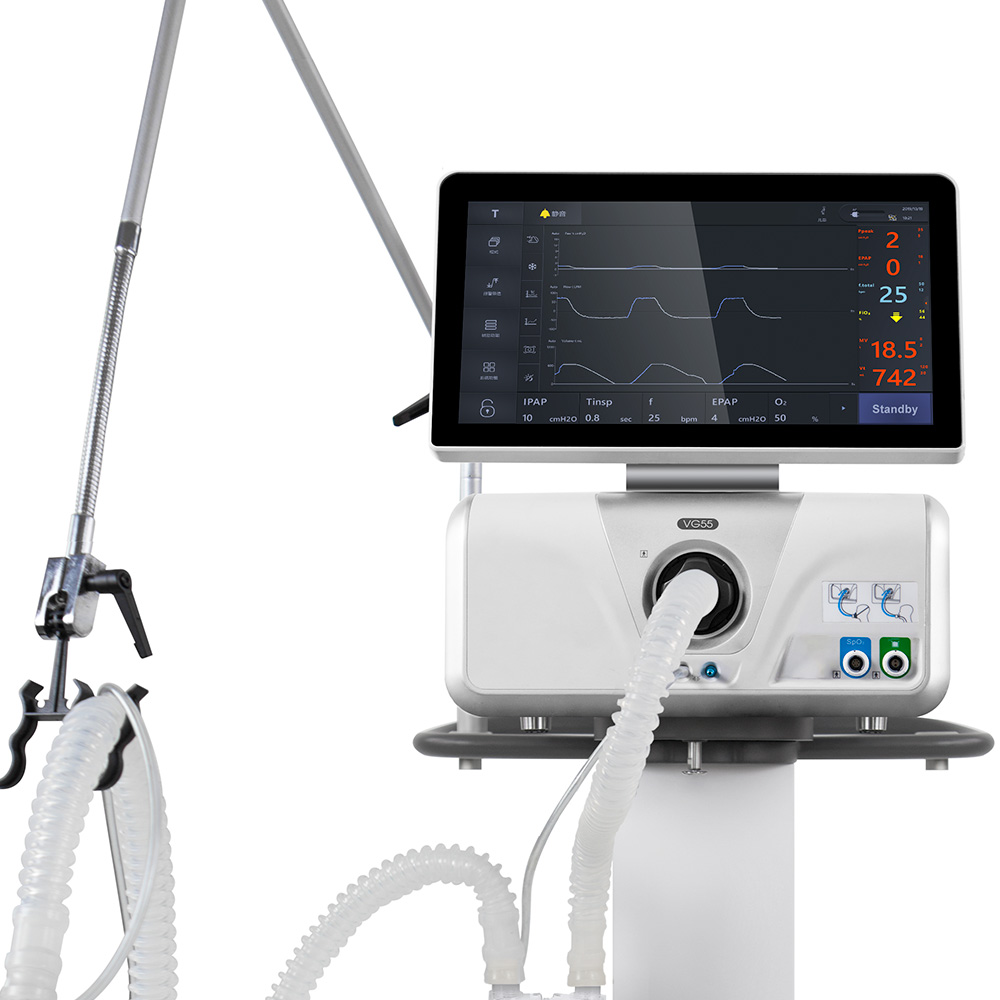

Display

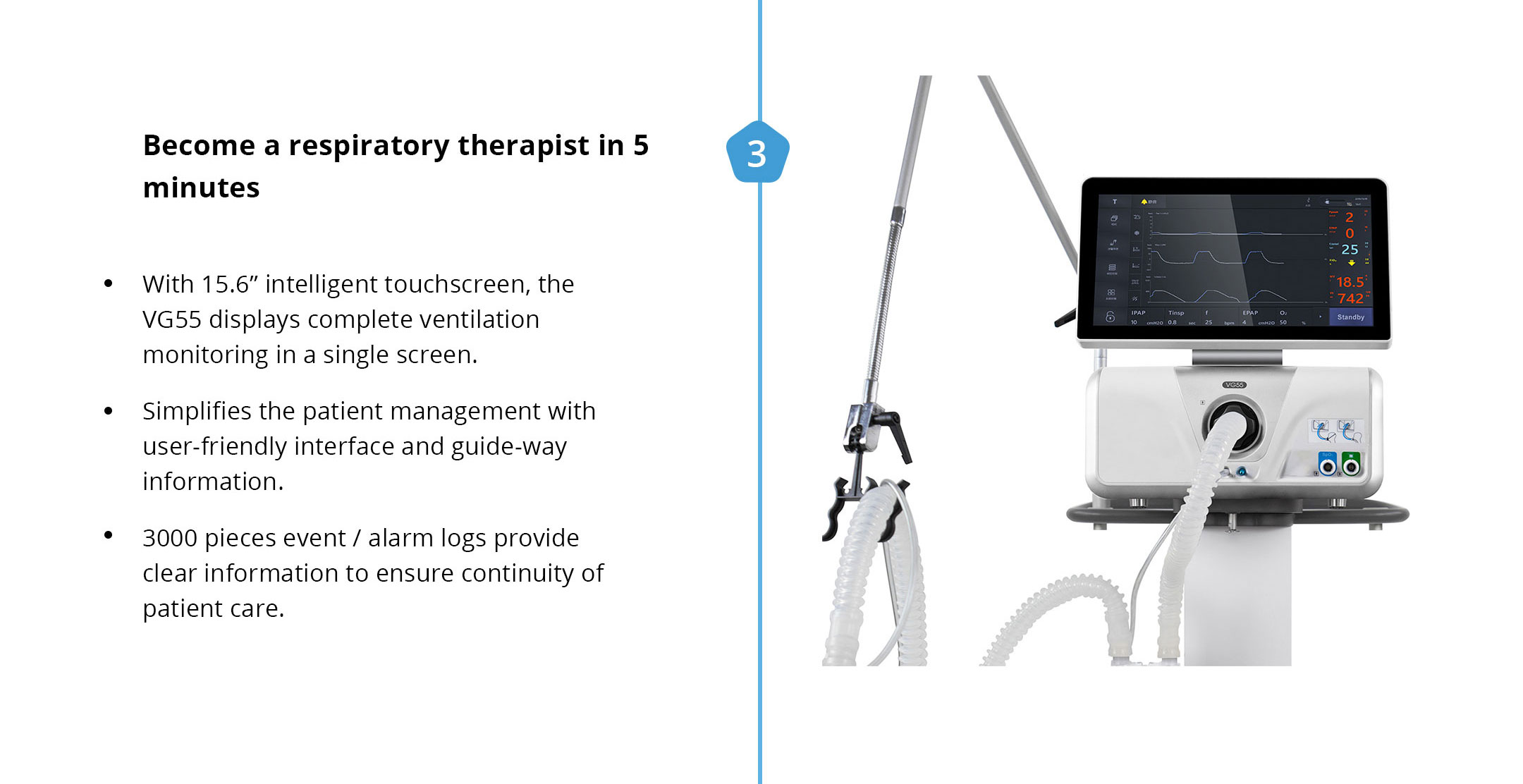

15.6” color touch screen, resolution: 1920 × 1080

Communication ports

Nurse call port, ethernet port, USB port, SpO₂ port

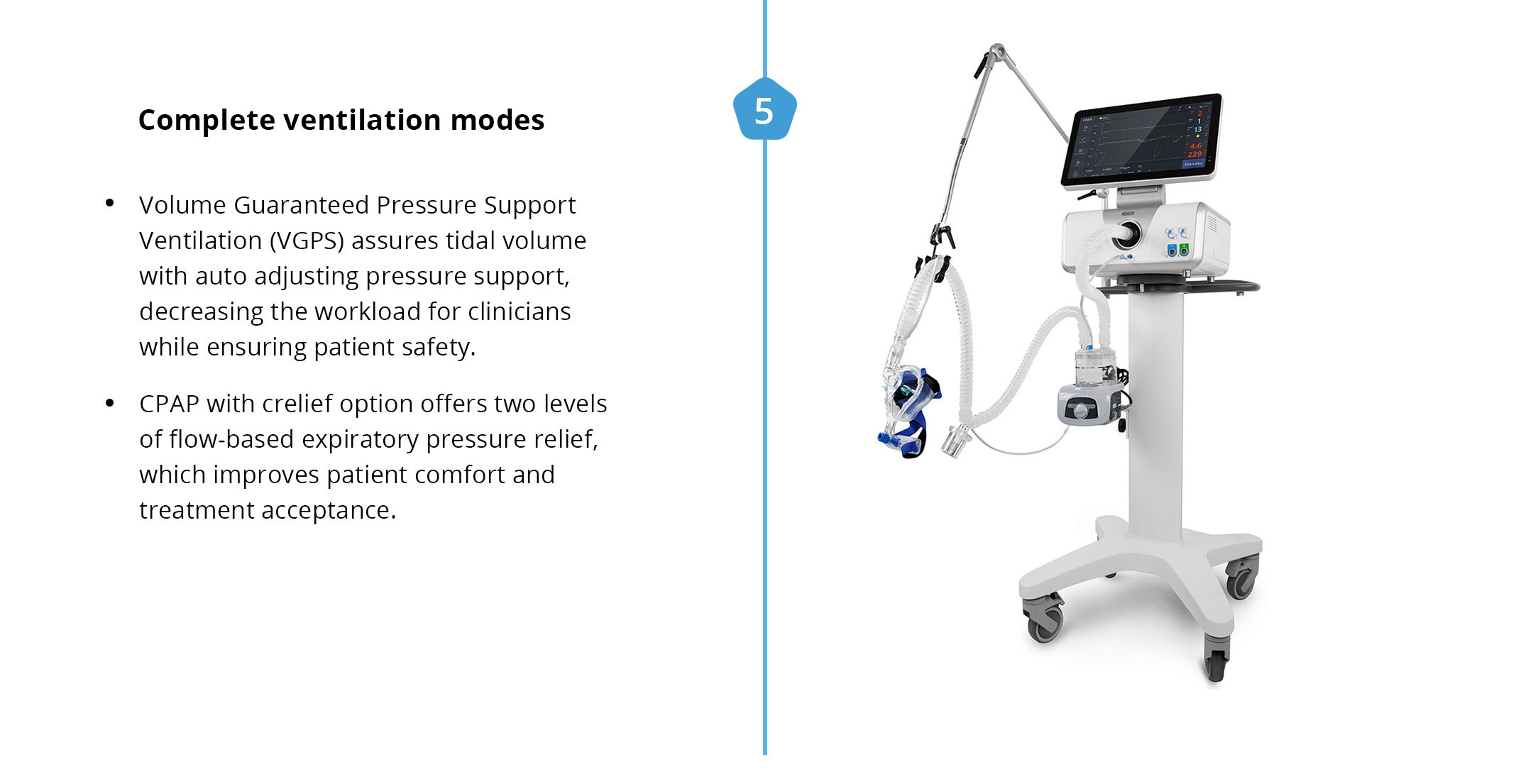

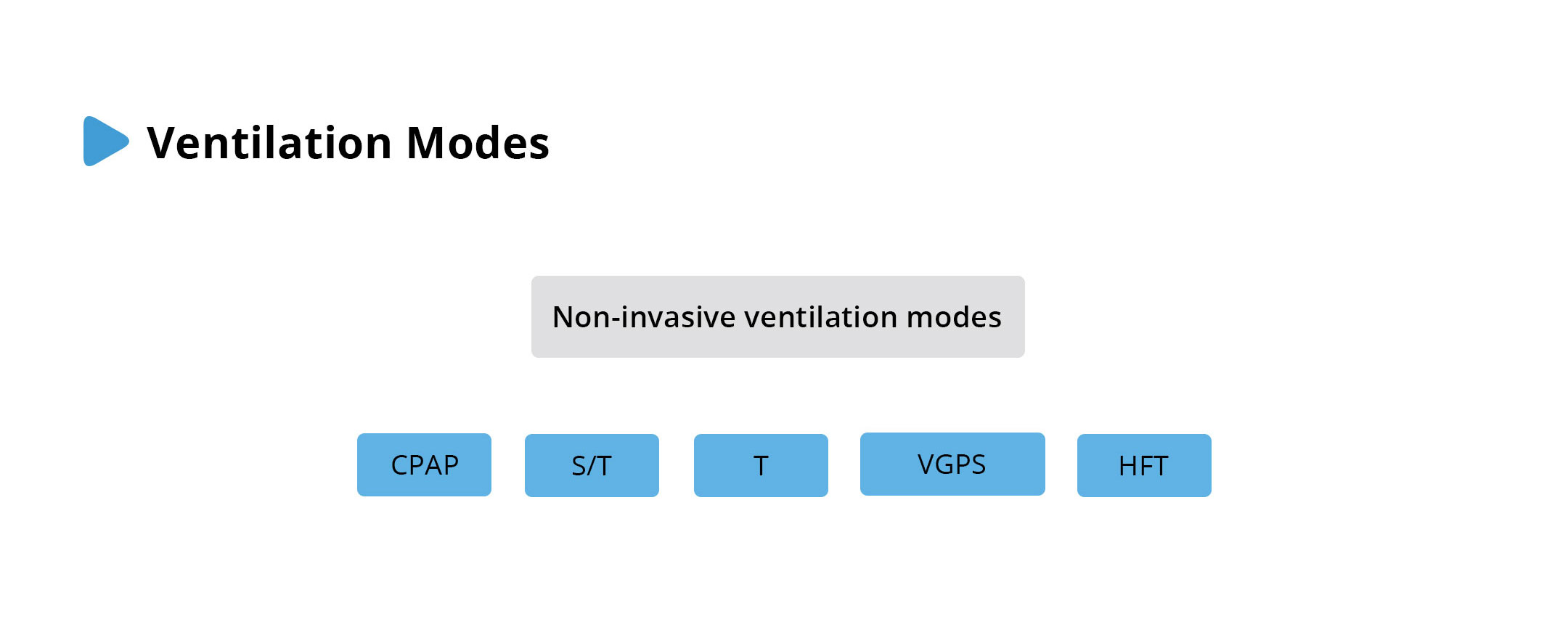

Ventilation modes

CPAP, S/T, T, VGPS, HFT

Parameter setting

Tidal volume: 50 ~ 2000 ml

Inspiratory time (Ti): 0.3 ~ 5 s

Frequency (f): 1 ~ 60 bpm

IPAP: 4 ~ 50 cmH₂O

EPAP: 4 ~ 30 cmH₂O

CPAP: 4 ~ 25 cmH₂O

Pmax: 6 ~ 50 cmH₂O

Pmin: 5 ~ 30 cmH₂O

Rise time (Tslope): 0.1 ~ 2 s

FiO₂: 21 ~ 100 %

Crelief level: 0, 1 & 2 (relative scale)

Trigger level: 1, 2 & 3 (relative scale)

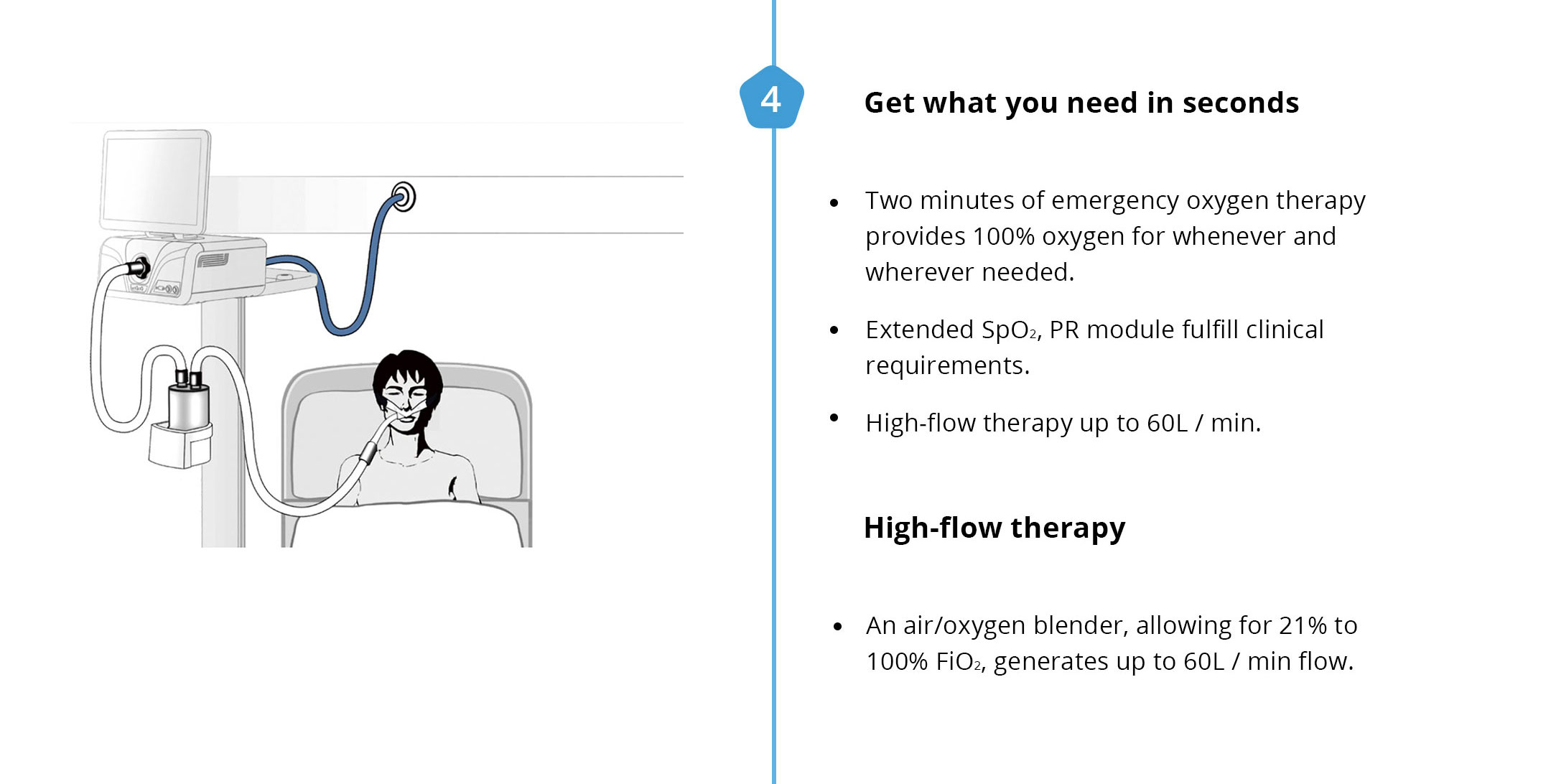

Flow (HFT): 2 ~ 60 L/min

Waveform display

Flow-T, Paw-T, Volume-T

Enhancements

2 min O₂ therapy: high flow O₂ therapy

Mesh type nebulization: screen lock

Data export: waveform freeze

Leakage compensation: 0 ~ 200 L/min

Parameter monitoring

Ppeak: 0 ~ 99 cmH₂O

Ftotal: 0 ~ 99 bpm

FiO₂: 21 ~ 100 %

SpO₂: 70 ~ 100 %

EPAP: 0 ~ 99 cmH₂O

Vt: 0 ~ 3500 ml

MV: 0 ~ 99 L

LEAK: 0 ~ 99 L/min

Flow: 0 ~ 240 L/min

PR: 30 ~ 240 bpm

Alarm setting

High Ppeak: 5 ~ 70 cmH₂O

Low Ppeak: OFF, 1 ~ 50 cmH₂O

High EPAP: OFF, 5 ~ 45 cmH₂O

Low EPAP: OFF, 1 ~ 20 cmH₂O

High ftotal: 10 ~ 90 bpm

Low ftotal: OFF, 1 ~ 89 bpm

High FiO₂: OFF, 21 ~ 100 %

Low FiO₂: OFF, 20 ~ 99 %

MV High: OFF, 2 ~ 60 L

MV Low: OFF, 1 ~ 40 L

Vt High: OFF, 50 ~ 3500 ml (adult); OFF, 10 ~ 500 ml (child)

Vt Low: 5 ~ 1500 ml (adult), 5 ~ 400 ml (child)

Low SpO₂: 70 ~ 99 %

High PR: 35 ~ 240 PR/min

Low PR: 30 ~ 235 PR/min

Other settings

Screen lock: OFF, ON

Alarm volume: 10 ~ 100 %

Trend: 72 H

Brightness: 0 ~ 100 % (relative scale)

Log: 3000 messages

Operating environment

Temperature: 5 ~ 40 ℃

Relative humidity: 15 ~ 95 %

Altitude: 0 ~ 3000 m

Barometric pressure: 70 ~ 106 kPa

Storage environment

Temperature: - 20 ~ 50 ℃

Relative humidity: 10 ~ 95 %

Altitude: 0 ~ 5500 m

Barometric pressure: 50 ~ 106 kPa

Gas supply

Supply pressure (O₂): 280 ~ 600 kPa (41 ~ 87 psi)

Connection standard: DISS, NIST

Low-flow oxygen inlet: ≤ 600 kPa (pressure), ≤ 15 L/min (flow)

Electrical

AC voltage: 100 ~ 240 V, 50 / 60 Hz

AC consumption: 300 VA

One battery run time: 2 H in normal condition
