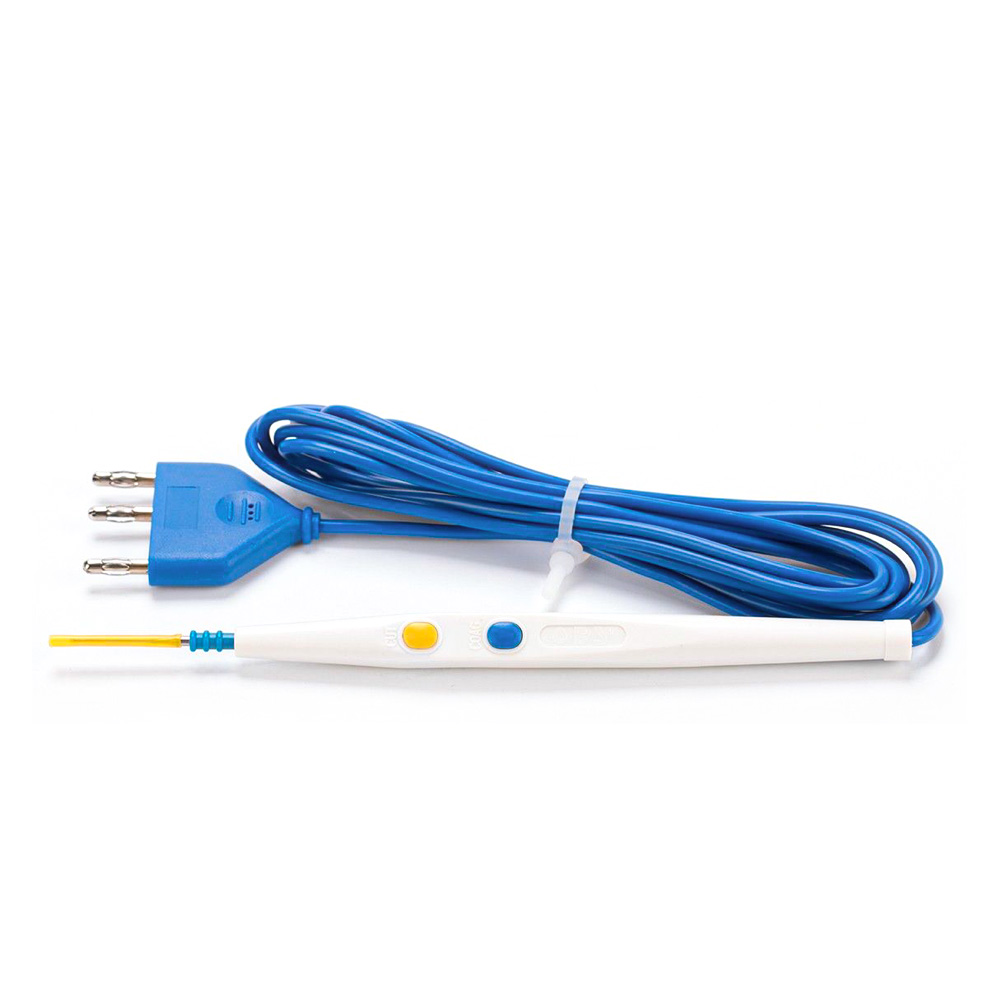

Disposable electrosurgical pencil (hand switching pencils, push-button)

Product ID: MT36265

P/N: MT362667

Used together with high frequency surgical equipment. 2 buttons, for cutting and coagulation separately.

Hot commodity

Control mode (cutting or coagulation)

Push-button control

Select the model of electrode

#0306

#0306C

#0325

#0325C

#0312

#0312C

#0326

#0326C

#0327

#0327C

#0324

#0324C

#0323

#0323C

#0308

#0309

#0318

#0318C

#0319

#0319C

#0313

#0313C

#0311

#0311C

#0310

#0310C

#0315

#0315C

#0301

#0301C

#0317

#0317C

#0302

#0302C

#0321

#0321C

#0307

#0307C

#0314

#0314C

#0316

#0316C

#0305

#0305C

#0303

#0303C

#0340

#0341

#0342

#0343

#0344

#0353

#0354

#0345

#0346

#0347

#0348

#0349

#0350

#0351

#0352

#0360

#0361

#0362

#0363

#0364

#0365

#0366

#0367

#0368

#0369

#0370

#0371

#0372

Select the cable length

3 m

5 m

Select the packing method

Paper-plastic bag

Blister package

Quantity

Please note:

piece ( MOQ: 100 pieces )

1 piece/pack, 100 pack(s)/carton

Medmay QRS Quickly meets your needs

Product Details

Parameters

FEATURES

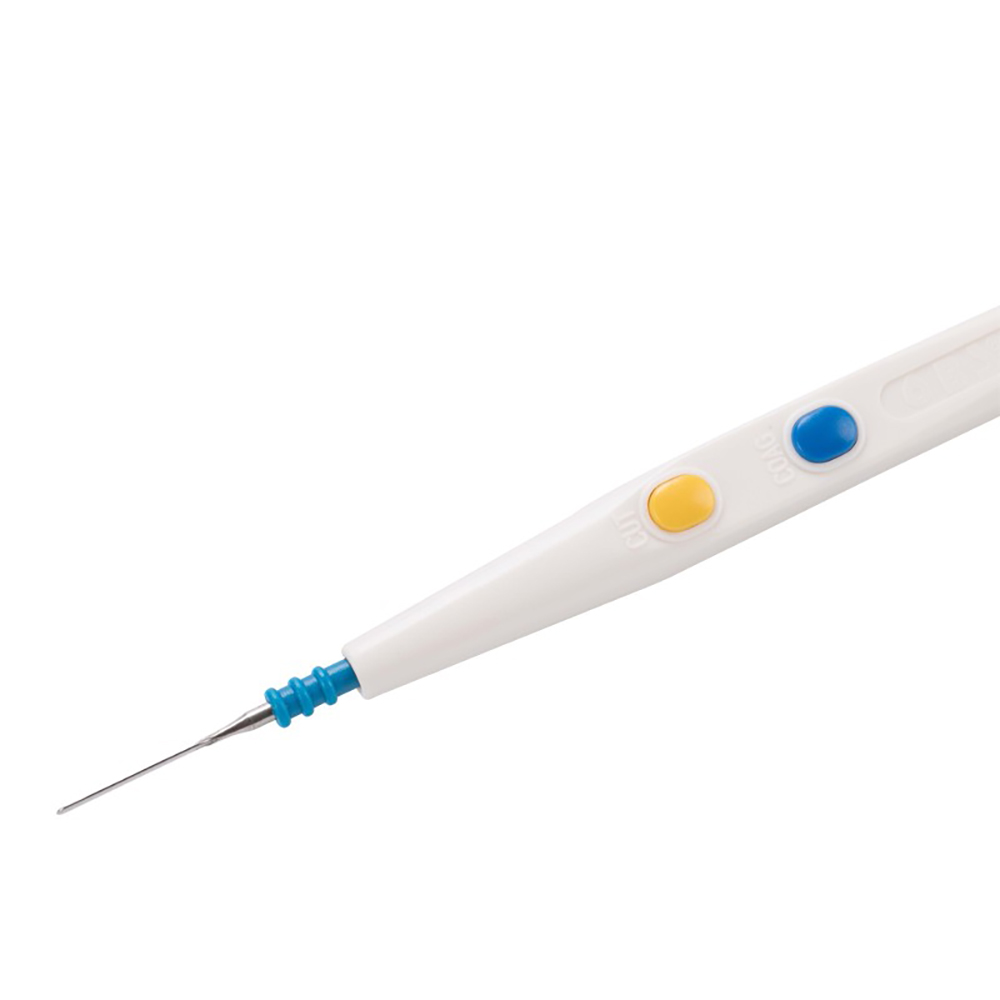

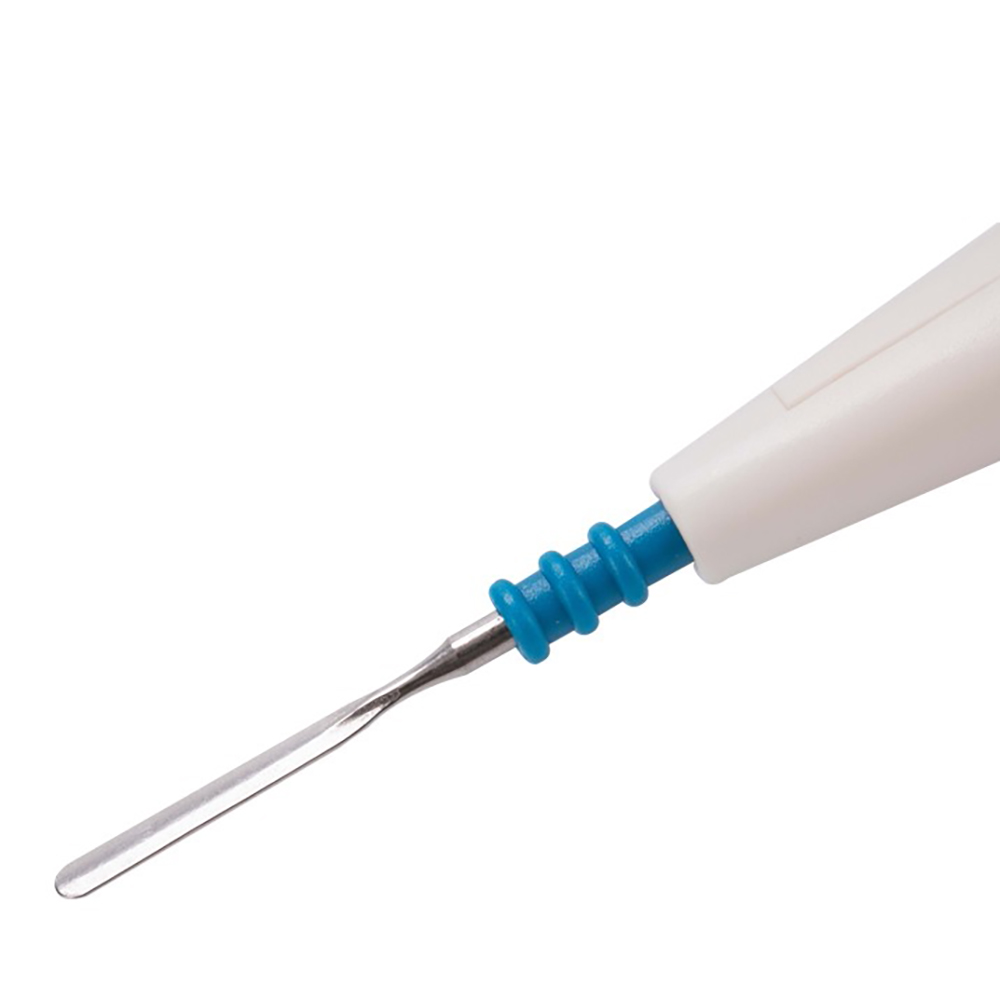

Disposable electrosurgical pencil:

1. Slim and lightweight, tapered ergonomic design, streamlined design.

2. Slip-proof handing and water resistant push-button switch.

3. Switches have a high level of tactile feedback, surgeons can hear and feel the switch engage, preventing accidental activation of the device.

4. Equip with a range of monopolar cutting and coagulation electrodes to satisfy all users requirements.

5. With hexagonal shape to protect against inadvertent twisting, the electrodes can be locked safely into place and are easily exchanged and replaced.

Usage:

1. Match with electrosurgical generator (unit), radio frequency generator (unit) and other high frequency equipments.

2. Check plug matching on generator base and connect.

3. Press CUT / yellow button for cutting and COAG / blue button for coagulation.

4. Maximum voltage is not be exceed 90KV peak.

Warning:

These devices should never be used when:

1. There is visible evidence of damage to the exterior of the device such as cracked or damaged plastic or connector damage.

2. These devices fail the inspection described herein.

3. In the presence of flammable gases, flammable prep solutions or drapes. Oxidizing, gases such as Nitrous Oxide (N₂O), or in oxygen-riched environments.

4. Do not used monopolar electrosurgery on small appendages, as in circumcision or finger surgery.

Product

Control mode

Available electrodes

Cable length

Packing method

Electrical performance data

Disposable
electrosurgical pencil

Hand switching,

push-button

(Cutting or Coagulation)

RELYPOINT series

MICROPOINT series

ULTRALENGHT series

LOOP series

LOOPCUT II series

3 m

5 m

Paper-plastic bag

25100 pcs/ctn

Blister package

25 pcs/box, 4 boxes/ctn

Maximal output current: 1 A

Frequency confine: 0 - 1.0 MHz

Current resistence: 200 Ω

Output power: 50 - 80 W

Optional Electrodes

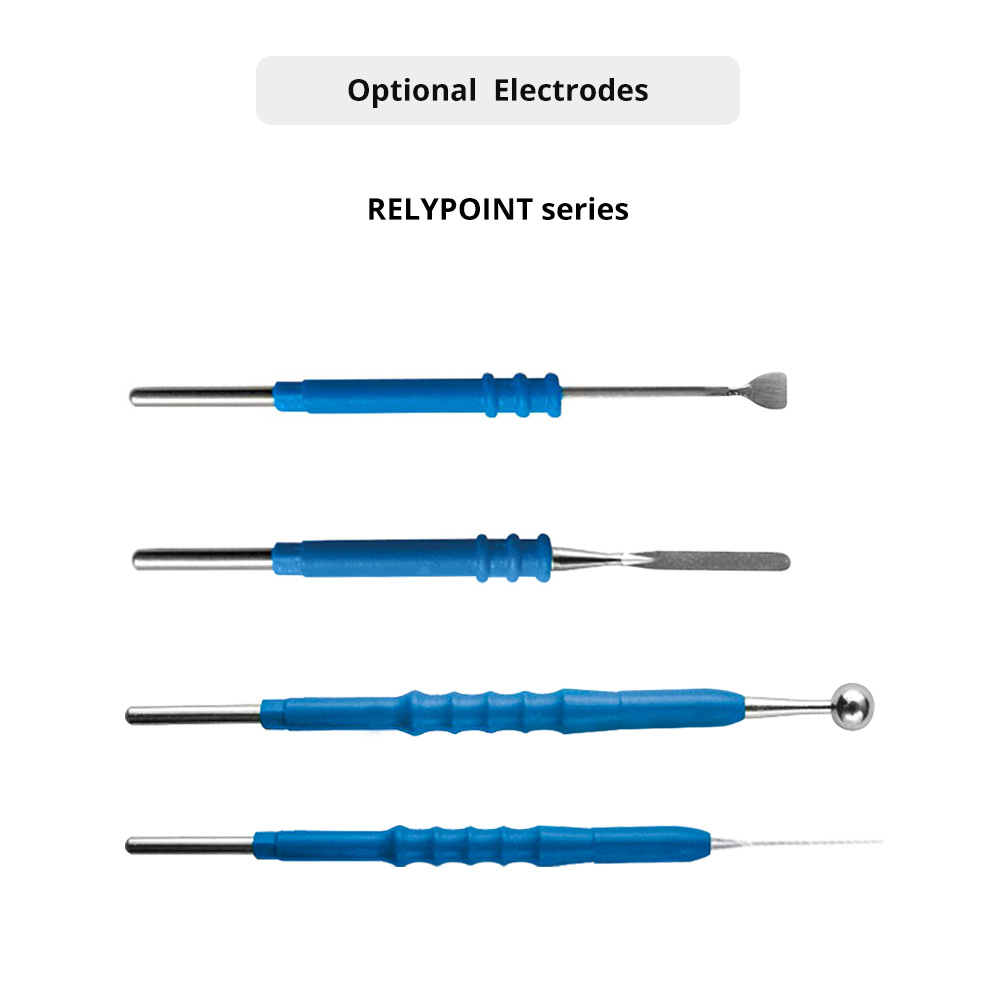

Disposable RELYPOINT Series
Image	Model	Tip material	Shape	Size
	#0306	Stainless steel	Spatula	70 mm
	#0306C	Non-stick
	#0325	Stainless steel		89 mm
	#0325C	Non-stick
	#0312	Stainless steel	Blade	70 mm
	#0312C	Non-stick
	#0326	Stainless steel		100 mm
	#0326C	Non-stick
	#0327	Stainless steel	Needle	100 mm
	#0327C	Non-stick
	#0324	Stainless steel	Ball	88 mm, Φ3 mm
	#0324C	Non-stick
	#0323	Stainless steel		89 mm, Φ5 mm
	#0323C	Non-stick
	#0308	Stainless steel	Bent & sharp	70 mm
	#0309	Stainless steel	Bent & blunt	70 mm

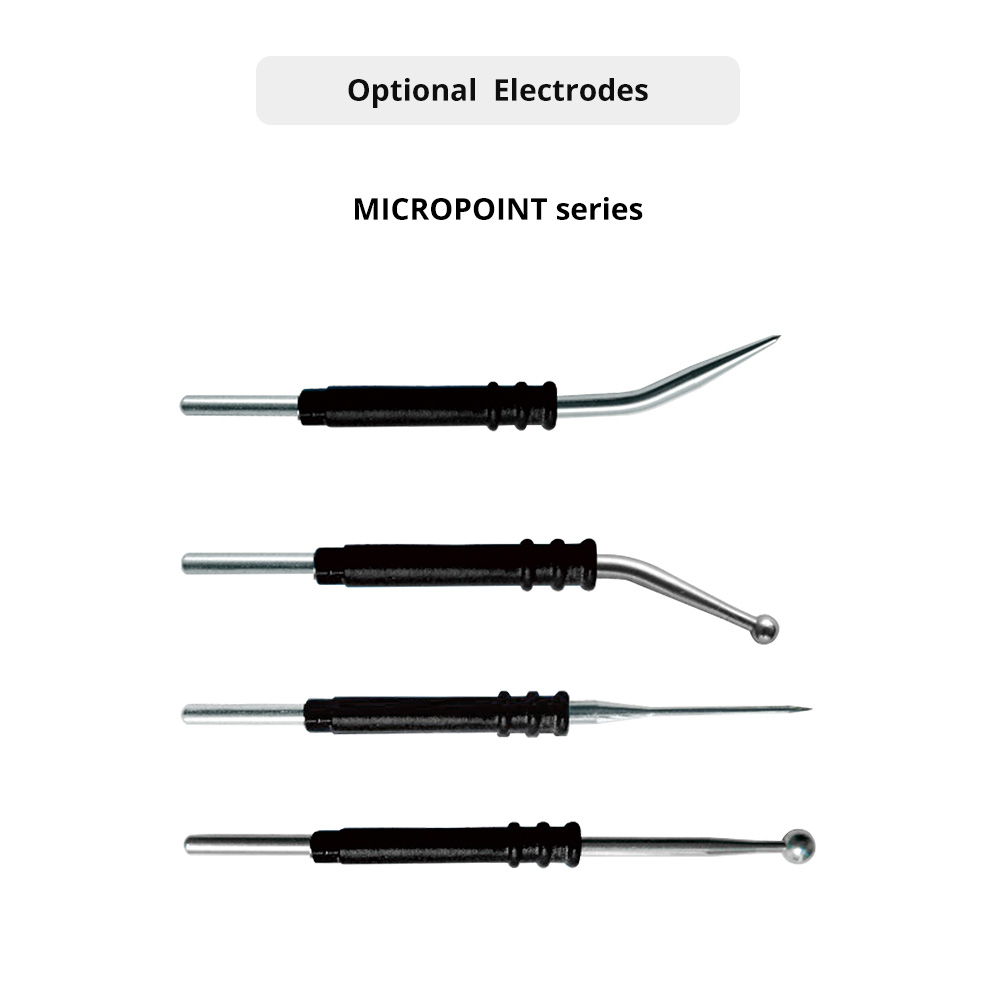

Disposable MICROPOINT Series
Image	Model	Tip material	Shape	Size
	#0318	Stainless steel	Needle	57 mm
	#0318C	Non-stick
	#0319	Stainless steel		69 mm
	#0319C	Non-stick
	#0313	Stainless steel		70 mm
	#0313C	Non-stick
	#0311	Stainless steel	Curved needle	50 mm
	#0311C	Non-stick
	#0310	Stainless steel		60 mm
	#0310C	Non-stick
	#0315	Stainless steel		68 mm
	#0315C	Non-stick
	#0301	Stainless steel	Ball	70 mm, Φ3mm
	#0301C	Non-stick
	#0317	Stainless steel		40 mm, Φ4mm
	#0317C	Non-stick
	#0302	Stainless steel		70 mm, Φ5mm
	#0302C	Non-stick
	#0321	Stainless steel	Curved ball	61 mm, Φ3mm
	#0321C	Non-stick

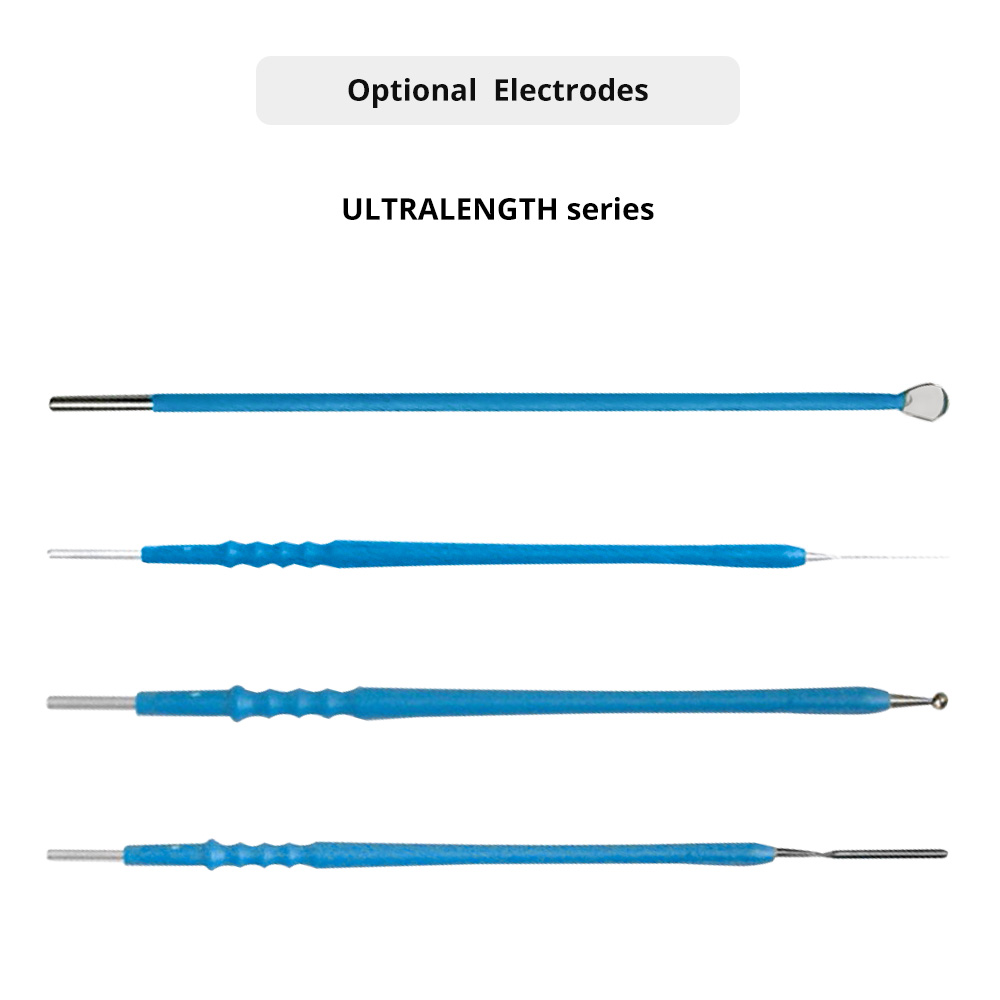

Disposable ULTRALENGHT Series
Image	Model	Tip material	Shape	Size
	#0307	Stainless steel	Extended spatula	150 mm
	#0307C	Non-stick
	#0314	Stainless steel	Extended blade	150 mm
	#0314C	Non-stick
	#0316	Stainless steel	Extended needle	150 mm
	#0316C	Non-stick
	#0305	Stainless steel	Ball	150 mm, Φ5mm
	#0305C	Non-stick
	#0303	Stainless steel	Ball	150 mm, Φ3mm
	#0303C	Non-stick

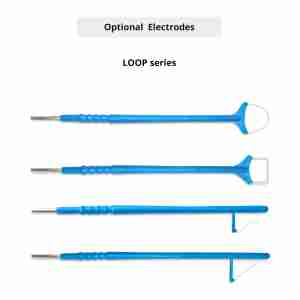

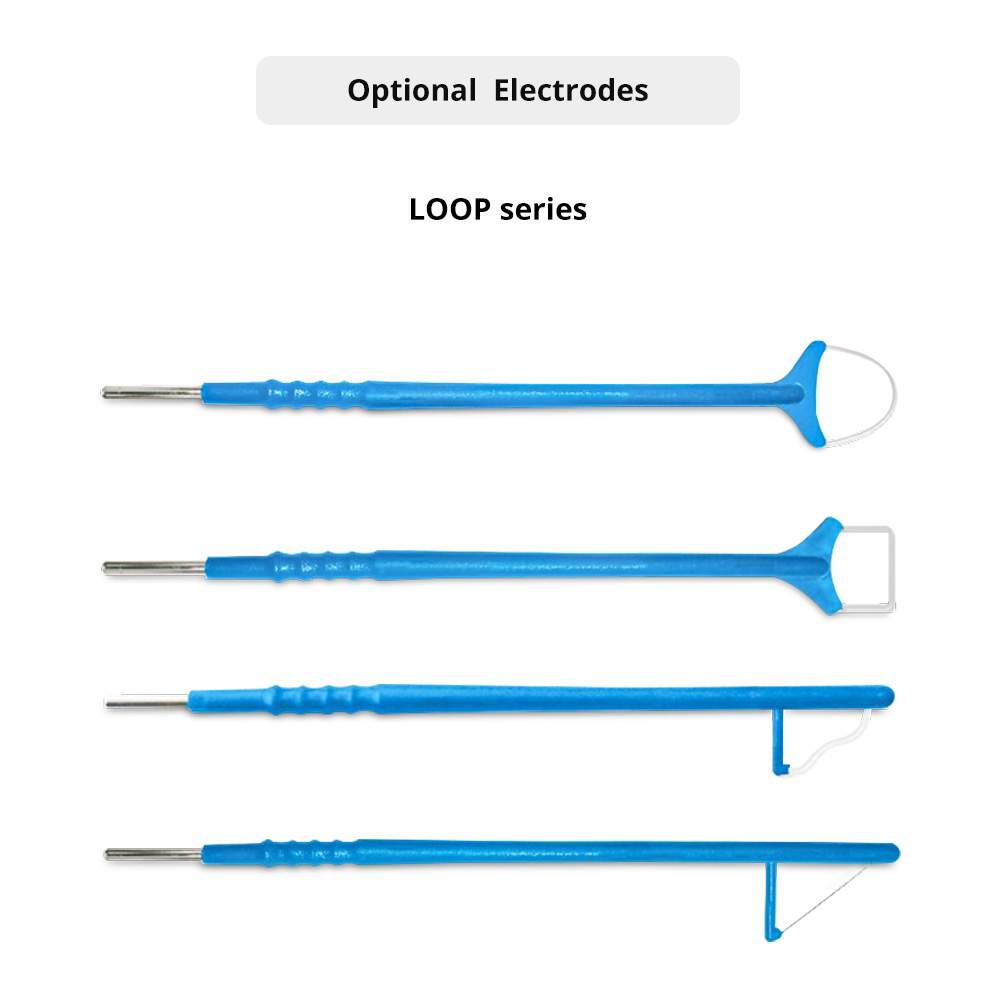

Disposable Loop Series
Image	Model	Tip material	Shape	Size
	#0340	Tungsten	Loop	130 mm, 10 mm × 5 mm
	#0341	Tungsten		130 mm, 10 mm × 8 mm
	#0342	Tungsten		130 mm, 10 mm × 10 mm
	#0343	Tungsten		130 mm, 15 mm × 15 mm
	#0344	Tungsten		130 mm, 20 mm × 20 mm
	#0353	Tungsten		130 mm, 20 mm × 12 mm
	#0354	Tungsten		130 mm, 20 mm × 15 mm
	#0345	Tungsten	Square	130 mm, 10 mm × 5 mm
	#0346	Tungsten		130 mm, 10 mm × 10 mm
	#0347	Tungsten		130 mm, 15 mm × 10 mm
	#0348	Tungsten		130 mm, 20 mm × 10 mm
	#0349	Tungsten	Triangle flag shape	130 mm, 15 mm × 10 mm
	#0350	Tungsten		130 mm, 17 mm × 12 mm
	#0351	Tungsten		130 mm, 20 mm × 15 m
	#0352	Tungsten	B shape	130 mm, 15 mm × 10 mm

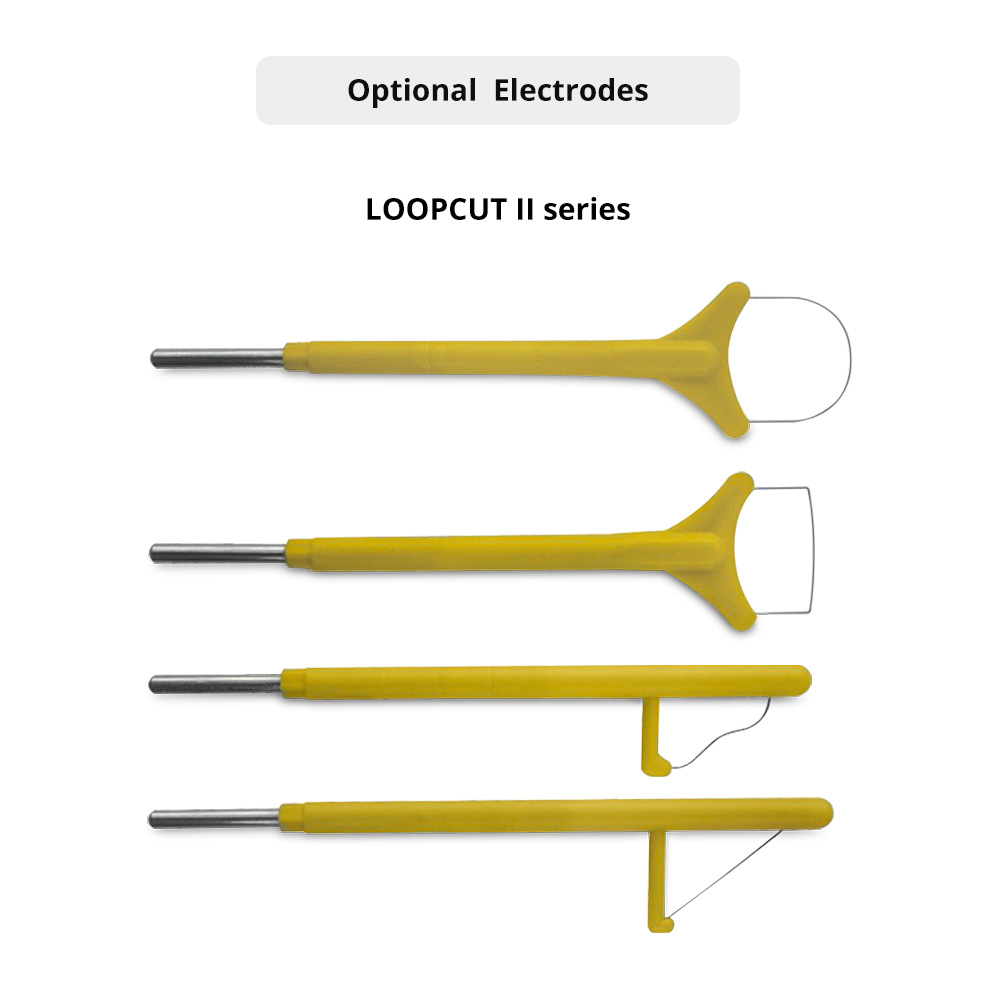

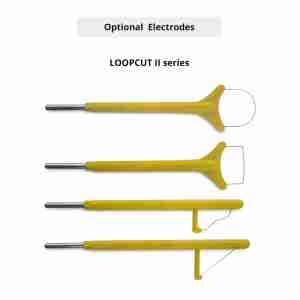

Disposable Loop Cut II Series
Image	Model	Tip material	Shape	Size
	#0360	Stainless steel	Loop	77 mm, 10 mm × 5 mm
	#0361	Stainless steel		78 mm, 10 mm × 10 mm
	#0362	Stainless steel		86 mm, 15 mm × 15 mm
	#0363	Stainless steel		85 mm, 20 mm × 12 mm
	#0364	Stainless steel		88 mm, 20 mm × 15 mm
	#0365	Stainless steel		92 mm, 20 mm × 20 mm
	#0366	Stainless steel	Square shape	79 mm, 10 mm × 5 mm
	#0367	Stainless steel		80 mm, 15 mm × 10 mm
	#0368	Stainless steel		82 mm, 20 mm × 10 mm
	#0369	Stainless steel	Triangle flag shape	82 mm, 15 mm × 10 mm
	#0370	Stainless steel		87 mm, 20 mm × 15 mm
	#0371	Stainless steel		85 mm, 17 mm × 12 mm
	#0372	Stainless steel	B shape	83 mm, 15 mm × 10 mm
