Model

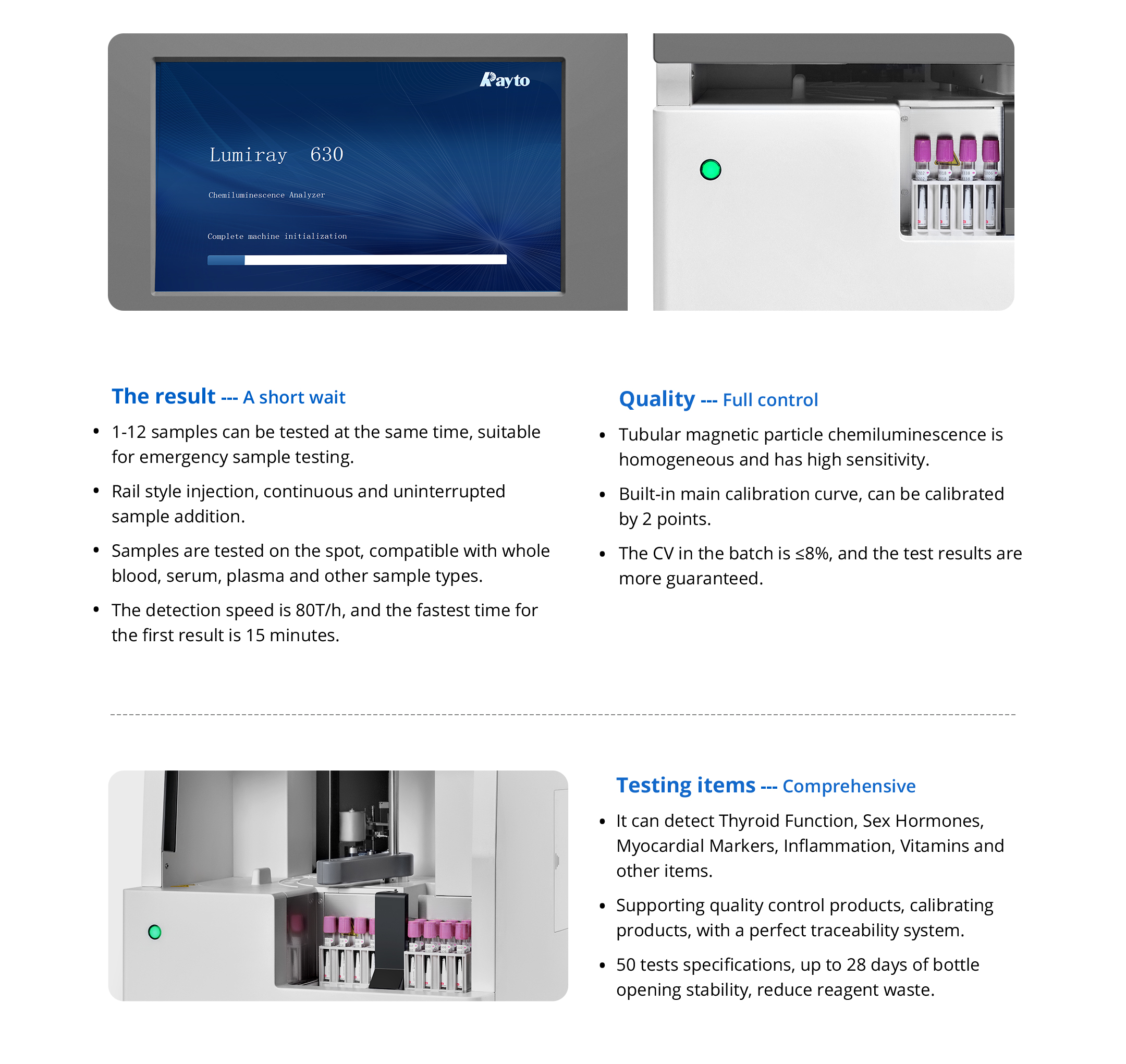

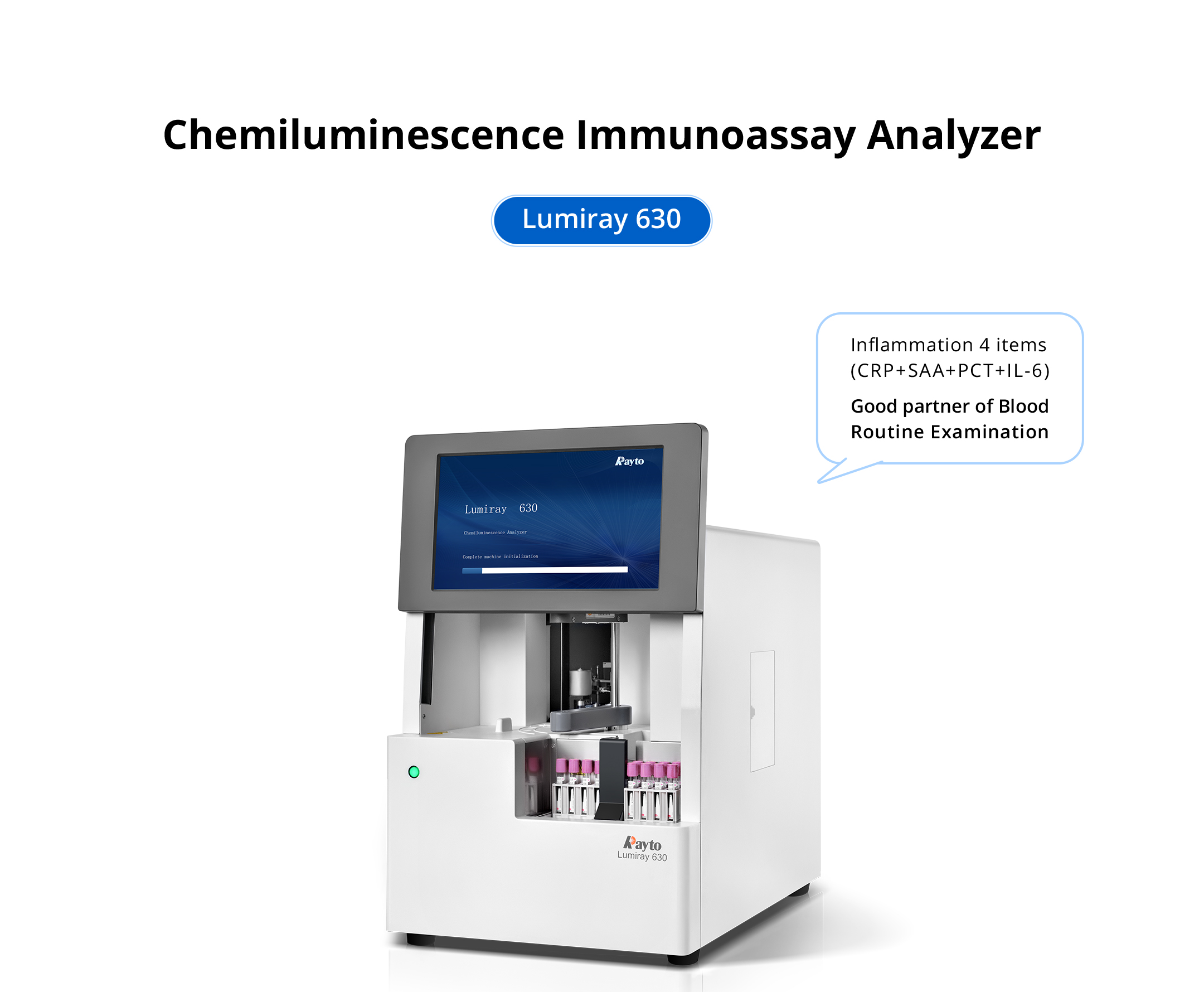

Lumiray 630

System function

Throughput

80 tests per hour

Parameters

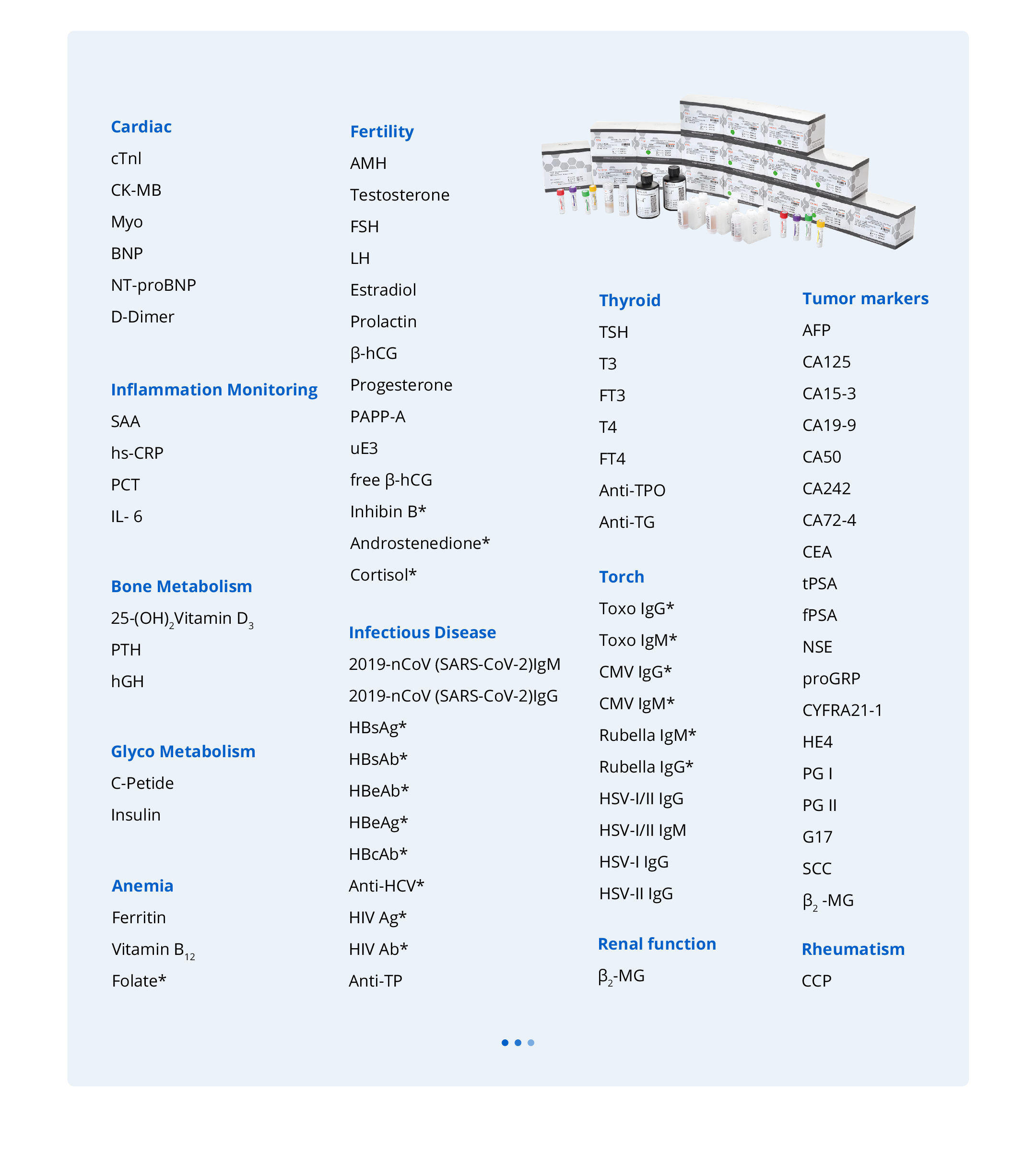

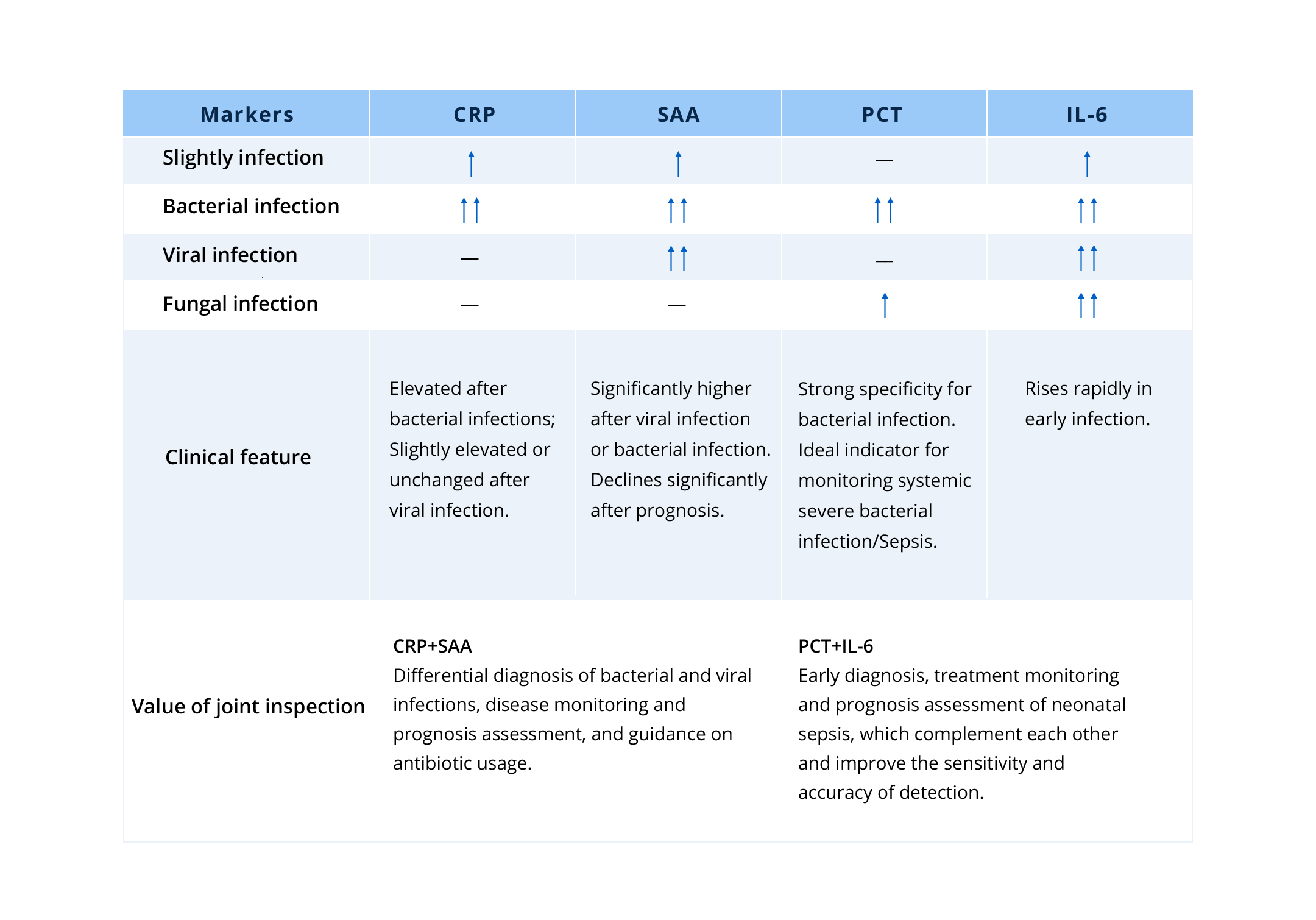

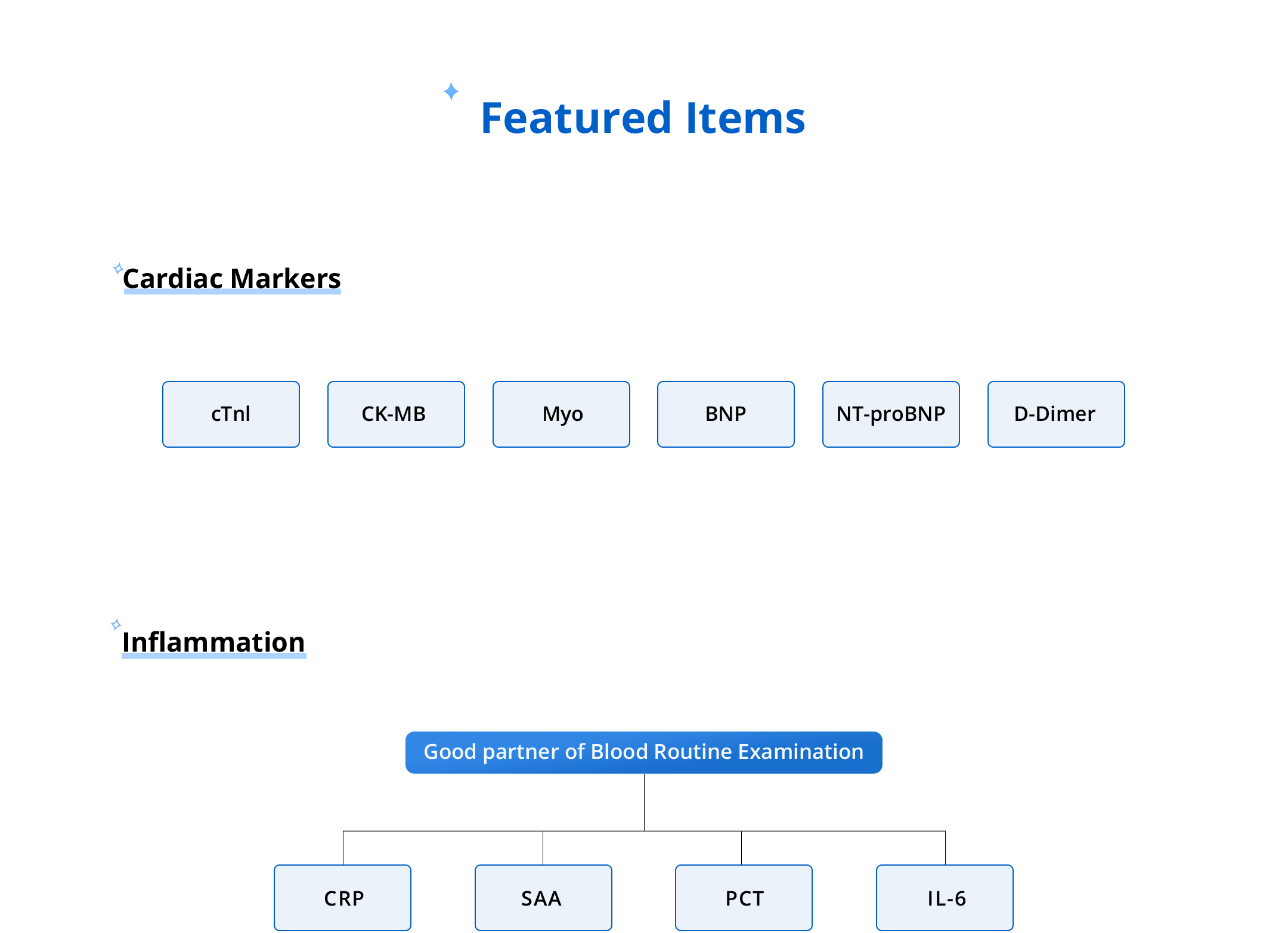

Anemia / Bone metabolism / Cardiac / Glyco metabolism / Inflammation Monitoring / Infections disease / Renal function / Torch / Tumor marker / ANA series and so on.

Measuring methods

Tubular magnetic particle chemiluminescence

Sample system

Sample position

4 positions per rack, 3 racks in 1 batch

Incubation temperature

37 ℃ ± 0.5 ℃

Test tube type

Support original blood collection tube, centrifuge tube, plastic test tube, small sample cup, etc.

Barcode

Built-in barcode scanner

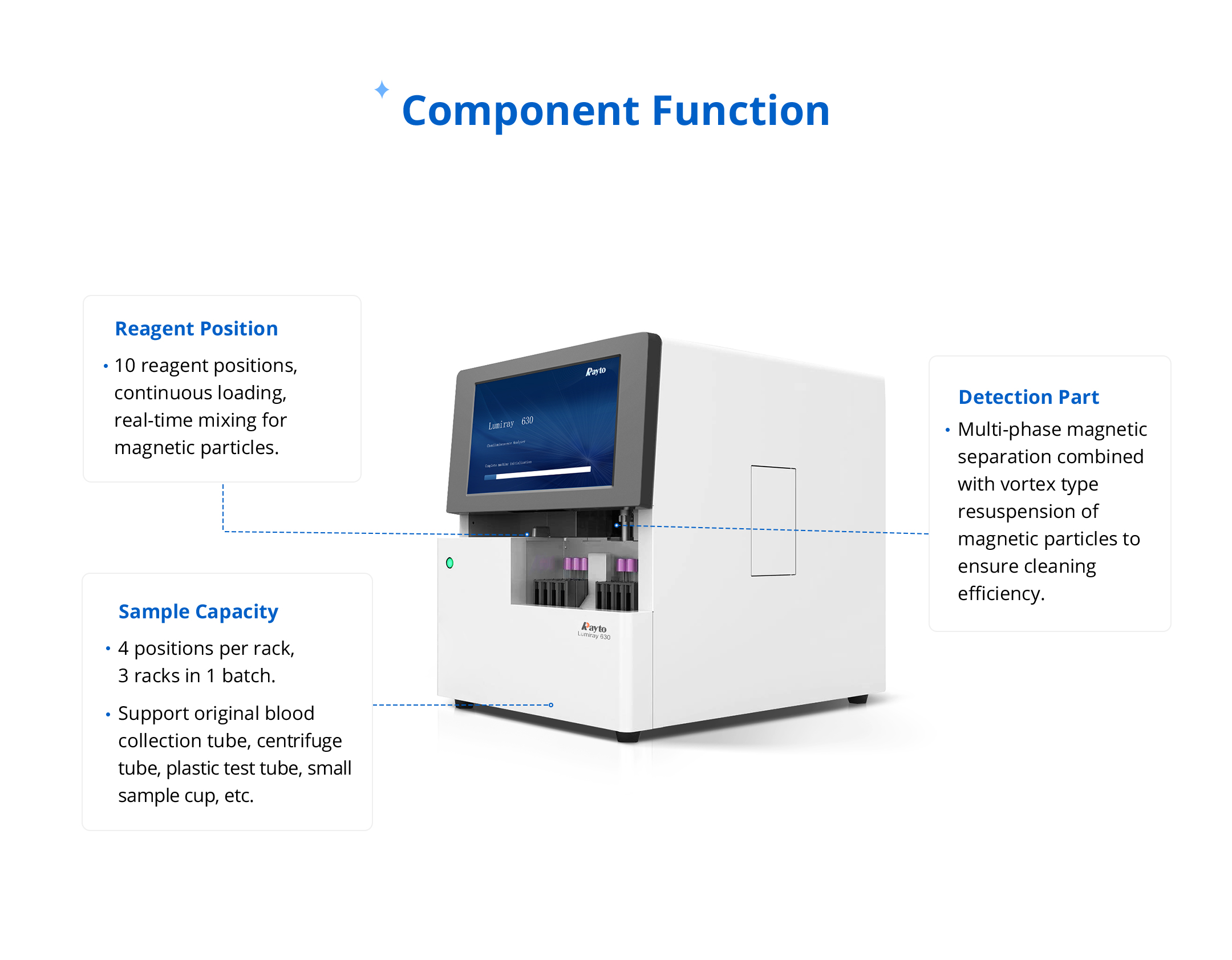

Reagent assembly

Reagent position

10 reagent positions, continuous loading, real-time mixing for magnetic particles

Refrigerated temperature

24 hours non-stop cooling system with 2 ~ 8 ℃

Module

Steel probe, liquid level detection, collision protection,

clotting detection and inventory checking

Loading cuvettes

Automatic loading reaction

cuvettes with automatic alarm

Reaction temperature

37 ℃, fluctuation ± 0.5 ℃

Independent magnetic separation unit

Magnetic separation

Multi-phase magnetic separation combined with vortex type resuspension of magnetic particles to ensure cleaning efficiency

Repeatability of magnetic separation

Array-type surrounding magnetic field design to precisely control the loose of magnetic particles, achieve optimal repeatability of magnetic separation

Power supply

AC 100～240 V, 50 / 60 Hz

Temperature

10～30 ℃, humidity ≤ 70 %

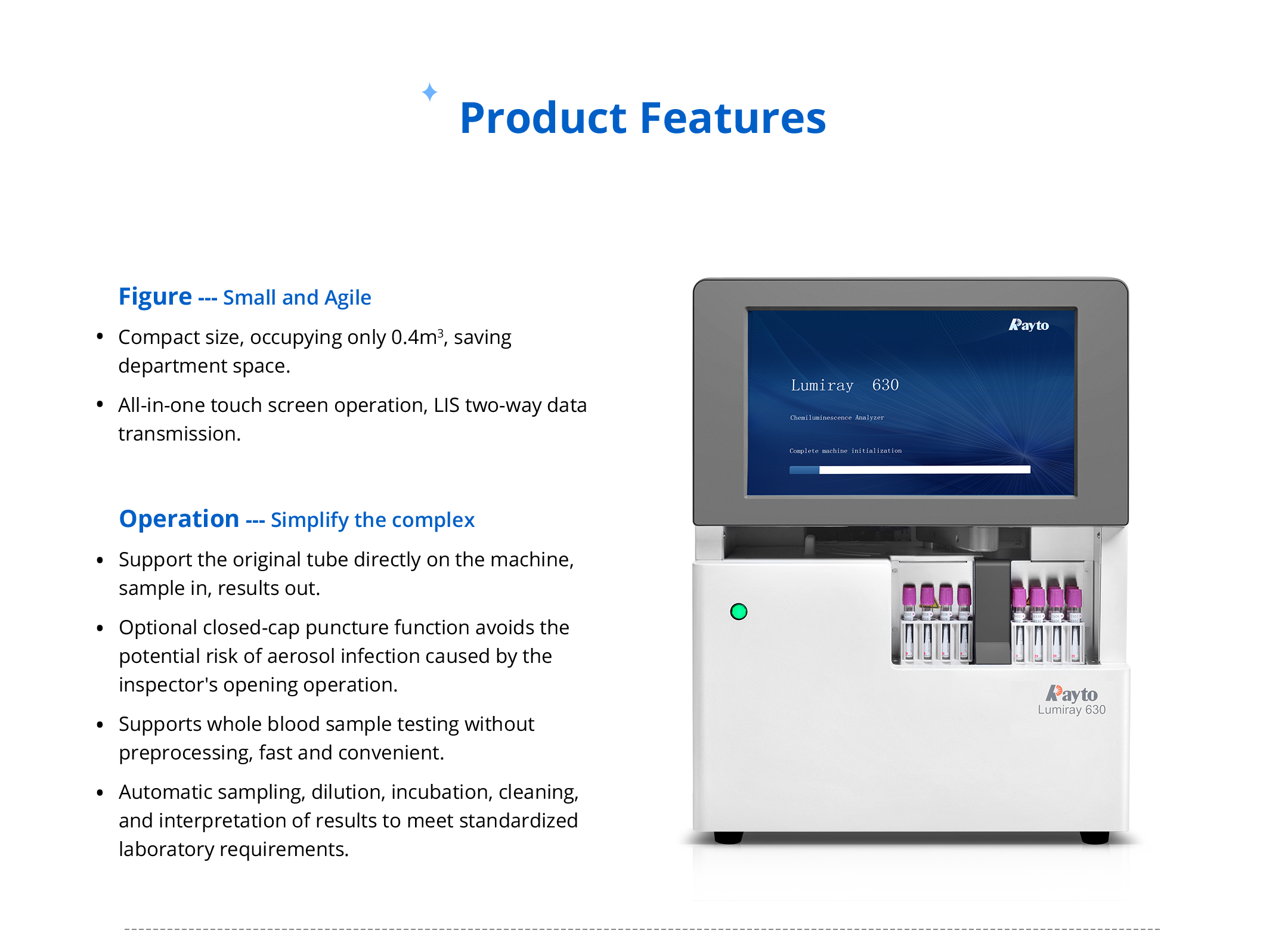

Dimension

95 cm (L)*70cm (W)*80 cm (H)

Weight (Net / Gross)

100 Kg / 150 Kg
