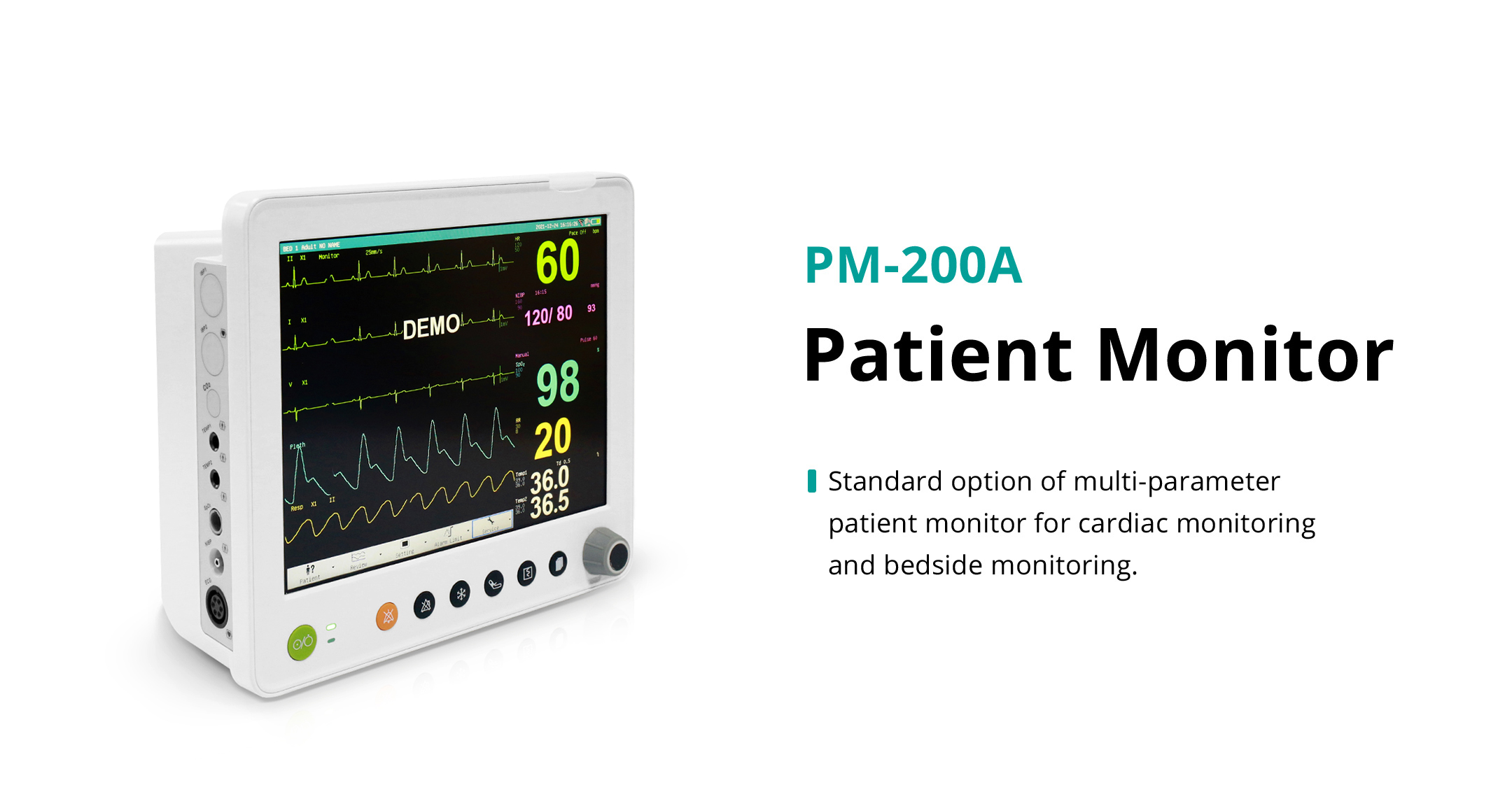

Model

PM-200A

Dimension

298 mm × 272 mm × 122 mm

Weight

2.5kg (excluding accessories)

Power supply

Voltage: AC 100 ~ 240 V, 50 / 60 Hz, Power ≤ 60 W

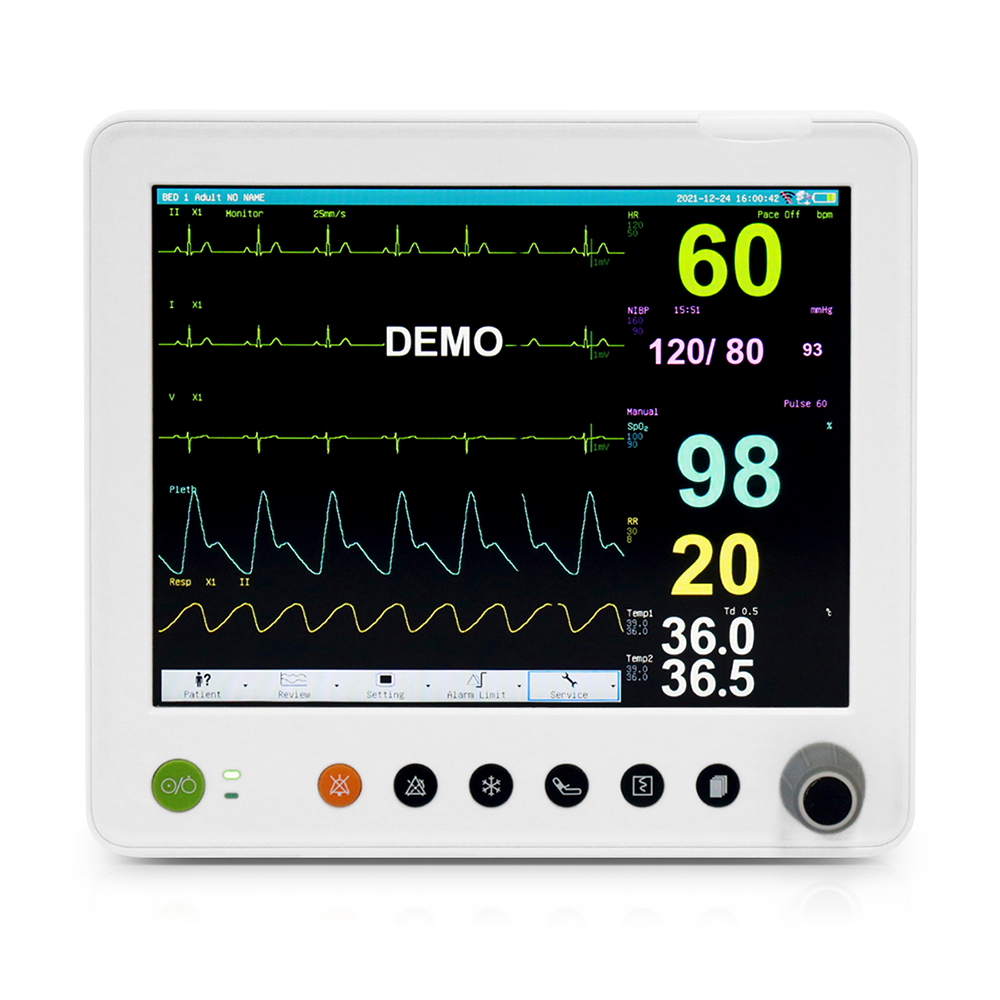

Display

12.1’’ color TFT LED resolution: 800 × 600 pixels

Battery

Type: rechargeable lithium battery 14.8 V / 2200 mAh

Charge cycle: ≥ 500 times

Working time: 3.5 hours

Alarm

Level: low, medium and high

Indication: auditory and visual

Alarm volume adjustable

Alarm pause time: 2min

Parameter alarm type: Latch / Unlatch

Input device

Standard: knob / keypress

Optional: touch screen

System output & extensible interface

Ethernet network: standard RJ45 socket × 1 pc

USB port: 1 pc

Operating environment

Temperature: 5 ~ 40 ℃

Humidity: 15 % ~ 90 % (non-condensing)

Atmosphere pressure: 86 KPa ~ 110 KPa

Transportation and storage

Temperature: - 20 ~ 50 ℃

Humidity: 10 % ~ 90 % (non-condensing)

Atmosphere pressure: 86 KPa ~ 110 KPa

Trend and reviewing

Trend: 720 hours

ARR events: 128 groups of ARR events and associated waveform

NIBP measurement reviewing: 1000 groups

Waveform review: 2 hours

Alarm event: 200 alarms events review

ECG

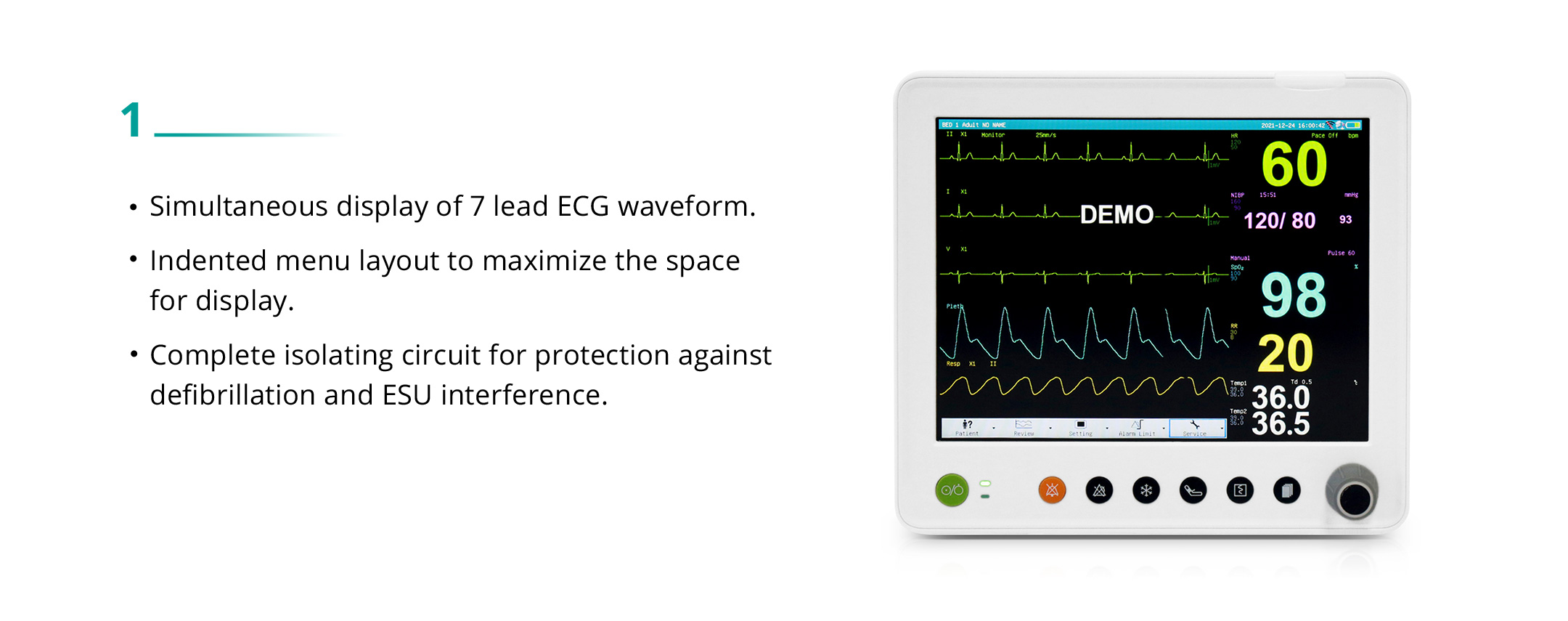

Lead mode: 3 / 5 leads, I, II, III or I, II, III, AVR, AVL, AVF, V

Protection: Breakdown voltage 4000 V AC 50 / 60 Hz, defibrillator proof

Gain: 2.5 mm/mV (× 0.25), 5.0 mm/mV (× 0.5), 10 mm/mV (× 1), 20 mm/mV (× 2)

Sweep speed: 12.5 mm/s, 25 mm/s, 50 mm/s

ECG signal range: ± 5 mVp-p

Accruacy: ± 1 %

Resolution: 1 bpm

Leakage current: < 10 μA

Baseline recovery: ≤ 3s after defibrillation

Bandwidth: surgery 1 ~ 20 Hz, monitor 0.5 ~ 40 Hz, diagnostic 0.05 ~ 130 Hz

Indication of electrode separation: every electrode (exclusive of RL)

RESP

Method: impedance between RA-LL, RA-LA

Gain: × 0.25, × 0.50, × 1, × 2, × 4

Respiration rate:

adult: 0 ~ 120 BrPM, neo/ped: 0 ~ 150 BrPM

Sweep speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s

Resolution: 1 BrPM

Accuracy: ± 2 BrPM or ± 2 % whichever is greater (7 ~ 150 BrPM), unspecified (0 % ~ 6 BrPM)

Apnea alarm: 10 ~ 40 s

NIBP

Method: oscillometric

Measure mode: manual, auto, stat

Measure interval in auto mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240, 480 min

STAT mode cycle time: 5 minutes

Measure and alarm range:

(adult)

sys: 40 ~ 280 mmHg, dia: 10 ~ 220 mmHg, mean: 20 ~ 240 mmHg

(pediatric)

sys: 40 ~ 220 mmHg, dia: 10 ~ 160 mmHg, mean: 20 ~ 170 mmHg

(Neonate)

sys: 30 ~ 135 mmHg, dia: 10 ~ 110 mmHg, mean: 20 ~ 110 mmHg

Static pressure accuracy: ± 3 mmHg

Resolution: 1 mmHg

Accuracy: maximum mean error ± 5 mmHg, maximum standard deviation ≤ 8 mmHg

Over pressure protection: dual protection

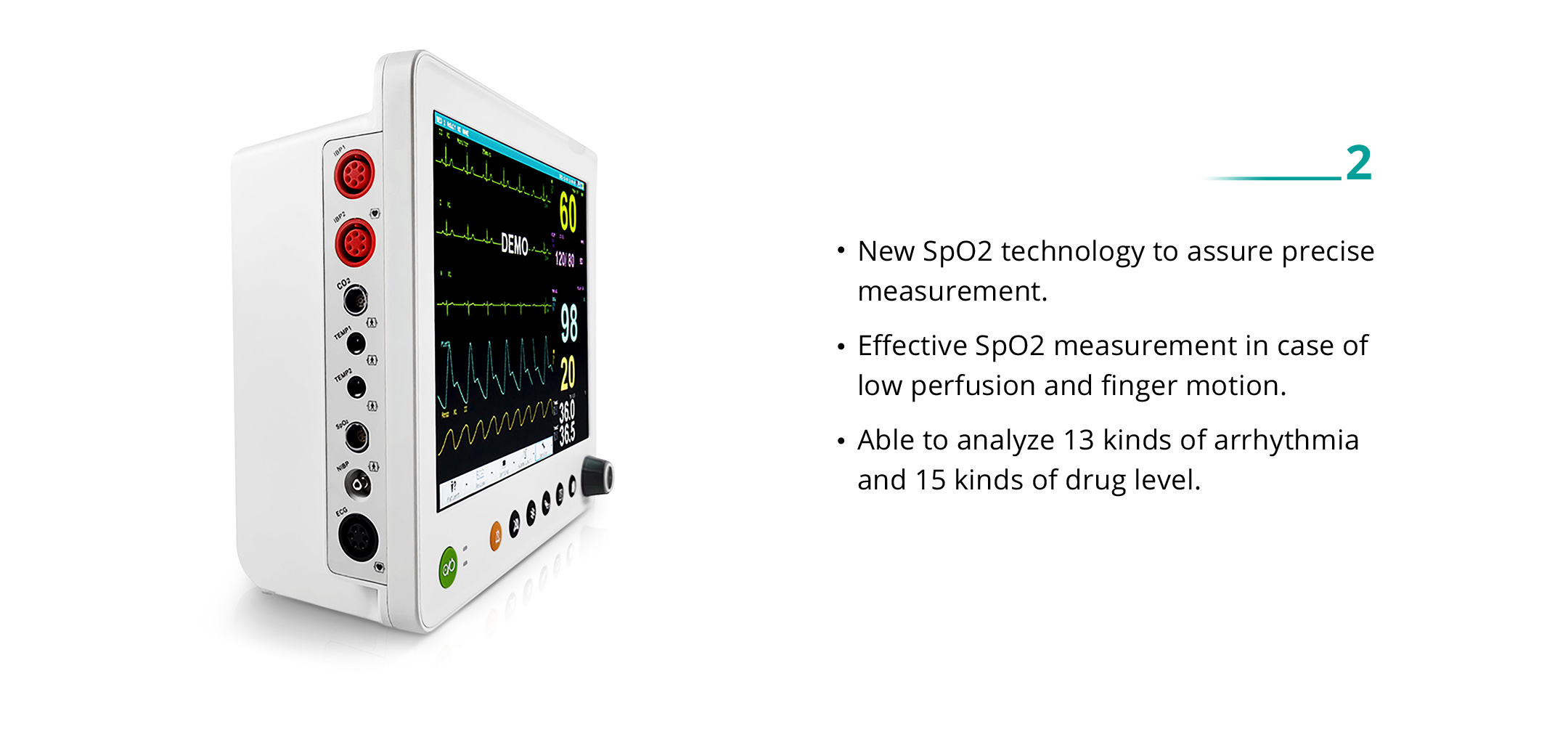

SpO2

Measurement range: 0 ~ 100 %

Resolution: 1 %

Accuracy: ± 2 % (70 % ~ 100 %), unspecified (0 % ~ 69 %)

Support pitch tone and multi-level volume

User-selectable waveform speed: 12.5, 25 mm/s

Pl range (option): 0.075 % ~ 20 %

Pluse rate

Measuring and alarm range: 20 ~ 250 bpm

Accuracy: ± 3 bpm

Resolution: 1 bpm

Heart rate

Measure range: adult 15 ~ 300 bpm, neo / ped 15 ~ 350 bpm

Resolution: 1 bpm

Accuracy: ± 1 %

ST measurement

Range: - 2.0 ~ + 2.0 mV

Accuracy: - 0.8 mV ~ + 0.8 mV, ± 0.02 mV or ± 10 %, whichever is greater, other range: unspecified

TEMP

Technique: thermistor probe (2.25K)

Channel: dual-channel, provide T1, T2, ∆T

Measuring and alarm range: 0 ~ 50 ℃

Resolution: 0.1 ℃

Accuracy:

no sensor ± 0.1 ℃ (25 ℃ ~ 45 ℃), ± 0.2 ℃ (other)

include sensor ± 0.2 ℃ (32 ℃ ~ 42 ℃), ± 0.3 ℃ (other)

Recorder

(optional)

Method: thermal printer

Paper width: 50 mm (1.97 in)

Printing speed: 12.5 / 25 / 50 mm/s

Trace: max. 3 tracks

Recording way: real-time recording, review printing, periodic recording, alarm recording

IBP

(optional)

Max channel: 2

Measurement way: thermal resistance way

Press sensor: sensitivity 5 uV / V / mmHg, ± 2 %; impedance 300 to 3000 Ω

Resolution: 1 mmHg

Transducer sites: ART, PA, LAP, RAP, CVP, ICP, P1 / P2

Measuring and alarm range:

ART: 0 ~ + 350 mmHg, PA: - 10 ~ + 120 mmHg, CVP / RAP / LAP / ICP: - 10 ~ + 40 mmHg, P1 / P2: - 50 ~ + 350 mmHg

Accuracy:

Static: ± 1 mmHg or ± 2 %, whichever is greater (exclusive of transducer); ± 4 mmHg or ± 4 %, whichever is greater (inclusive of transducer)

Dynamic: ± 4 mmHg or ± 4 %, whichever is greater

EtCO2

(optional)

Measure method: non-dispersive infrared (NDIR)

Measure range: 0 ~ 19.7 % (0 ~ 150 mmHg), 0 ~  20 kPa

Resolution: 0.1 mmHg

CO2 accuracy:

0 ~ 40 mmHg, ± 2 mmHg

41 ~ 70 mmHg, ± 5 % of reading

71 ~ 100 mmHg, ± 8 % of reading

101 ~ 150 mmHg, ± 10 % of reading

At 760 mmHg, ambient temperature of 25  ℃

Respiratory rate:

Range: 3 ~ 150 BrPM

Accuracy: ± 1 bpm
