Specifications

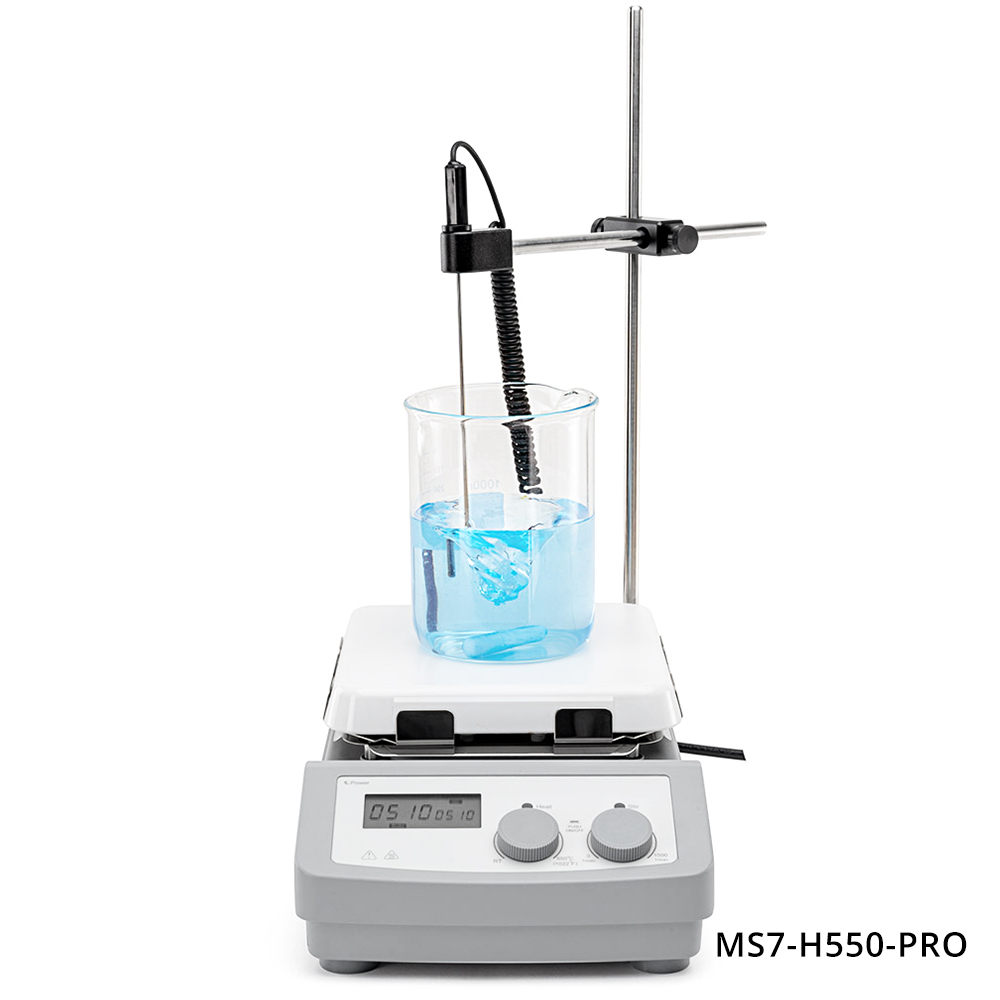

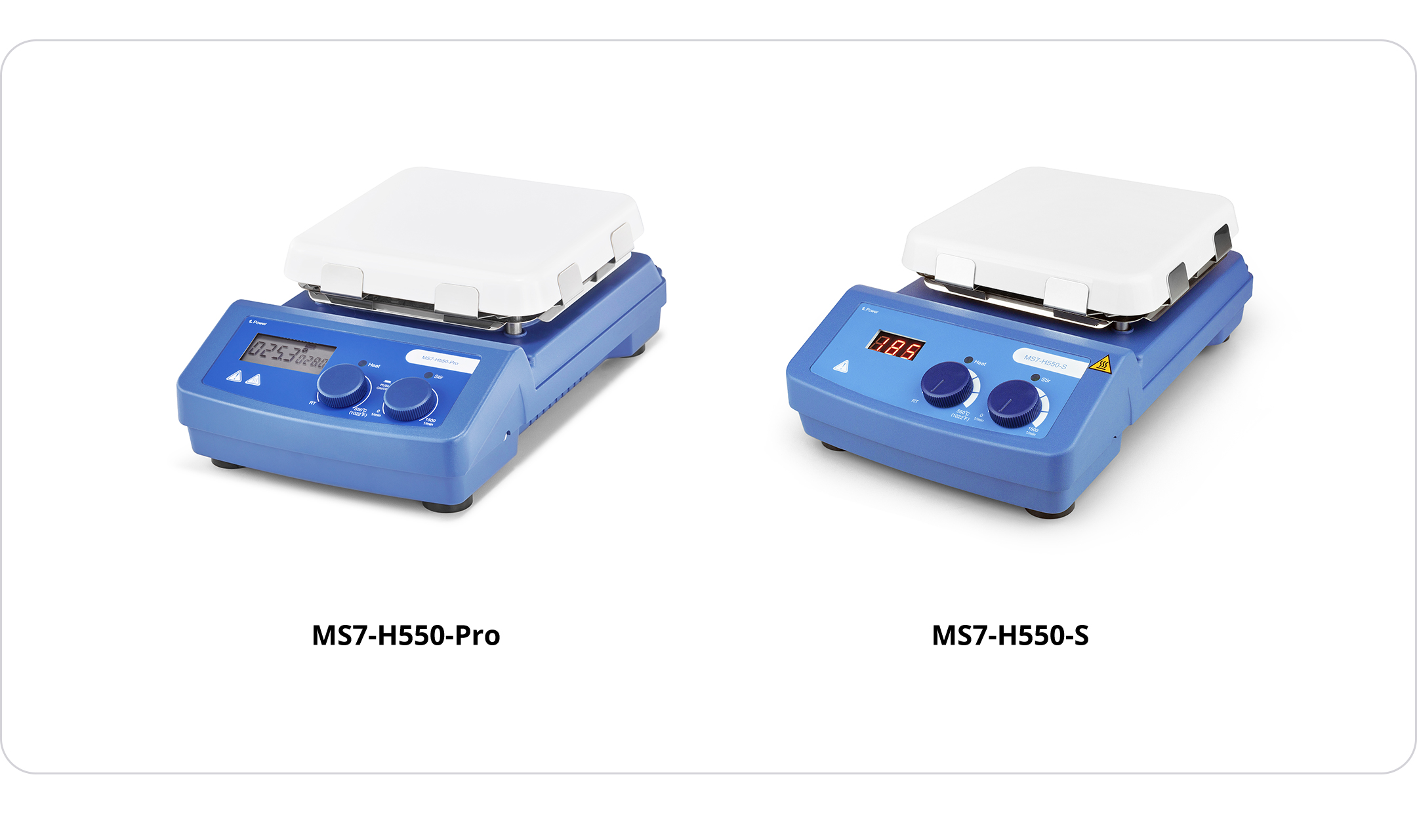

MS7-H550-Pro

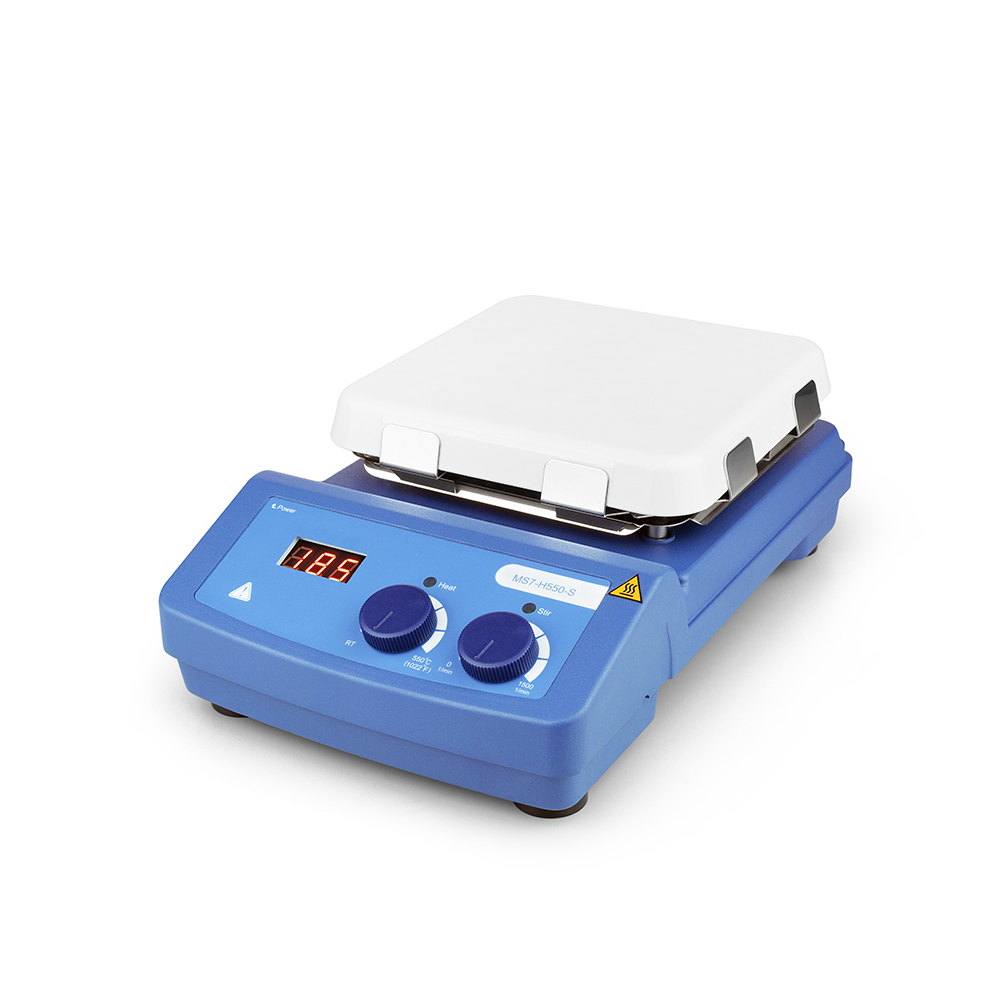

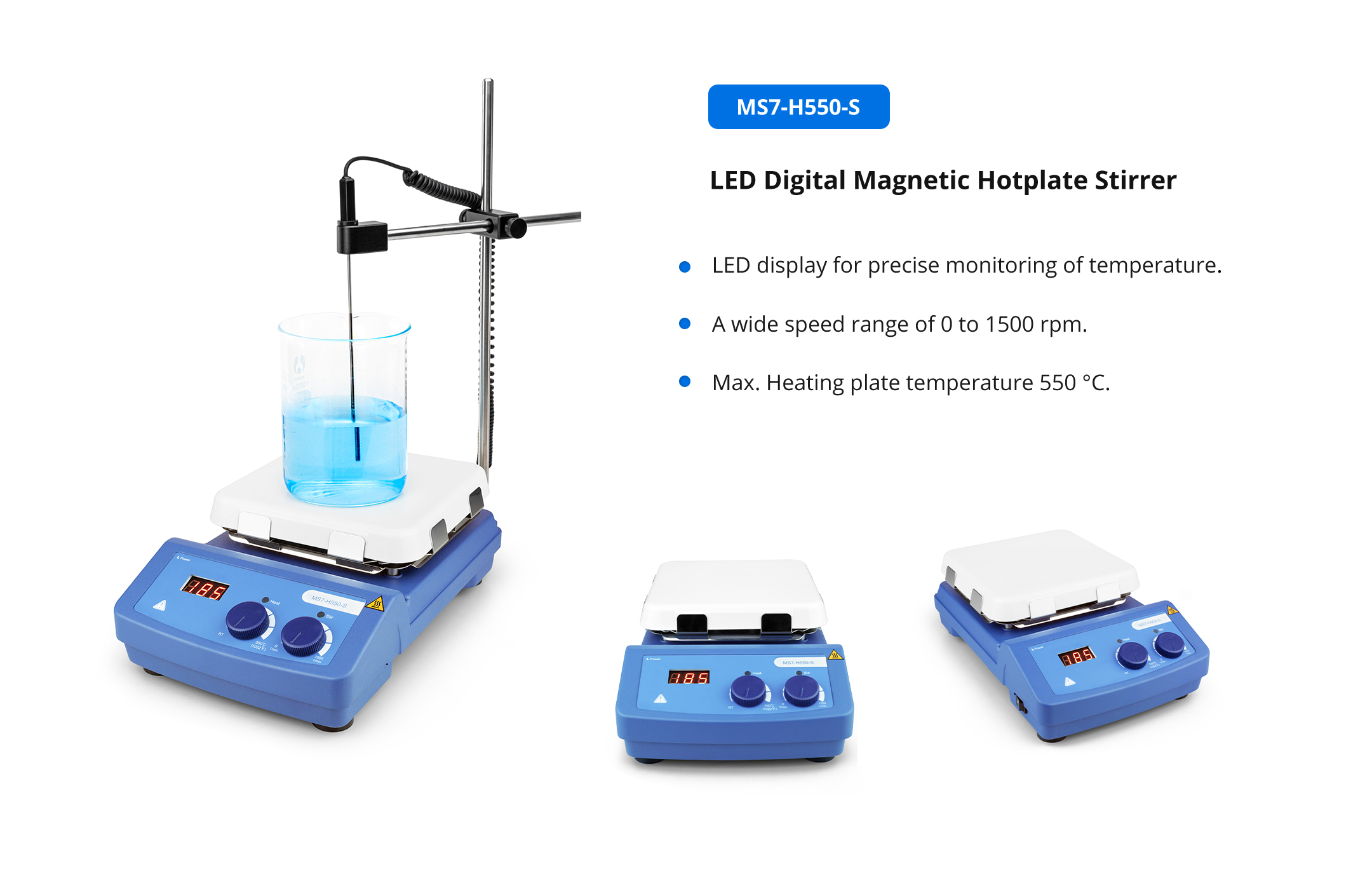

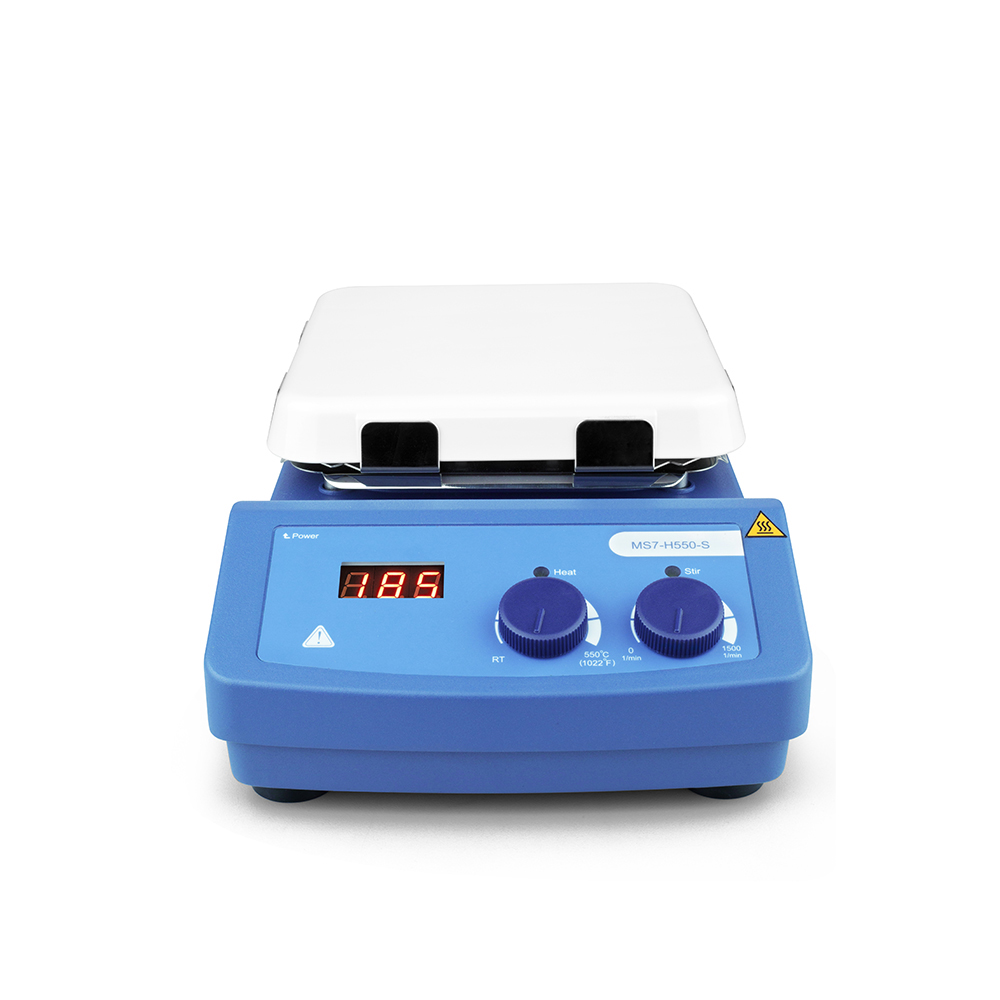

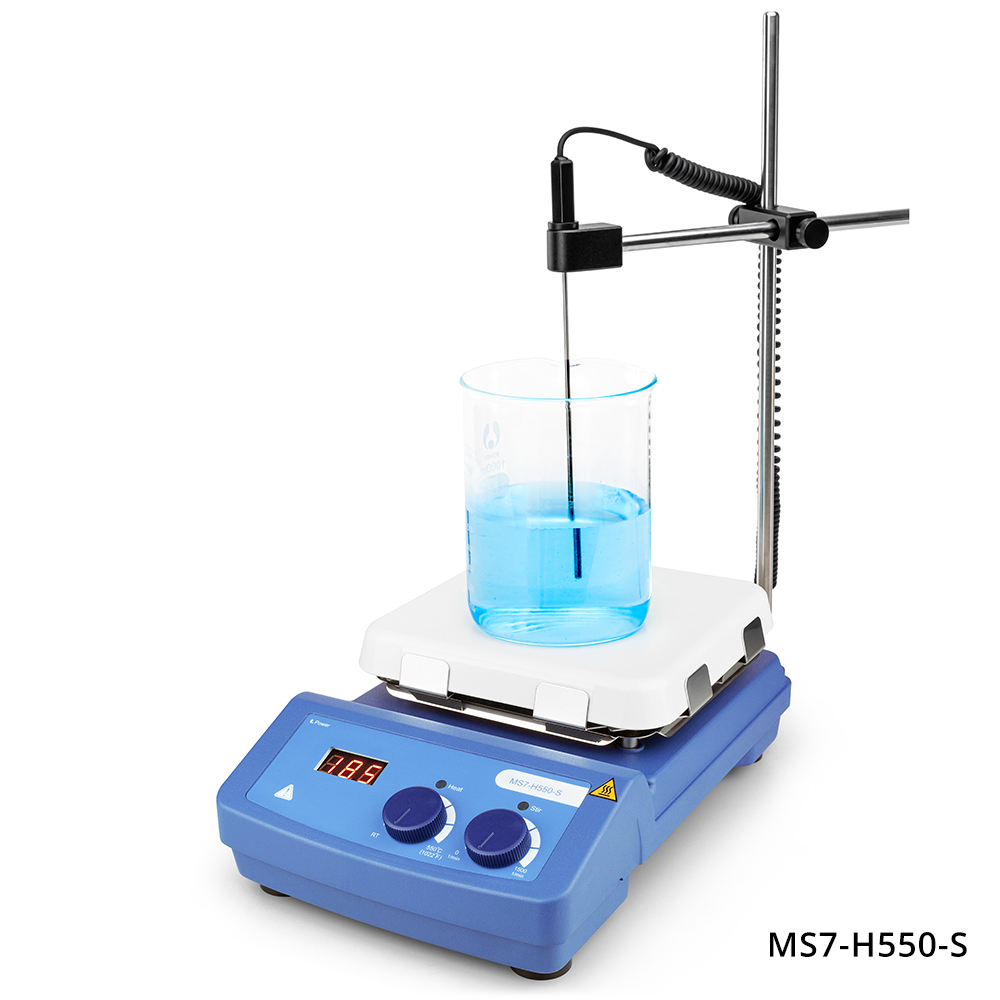

MS7-H550-S

Work plate dimension (W x D)

184 x 184 mm (7 inch)

184 x 184 mm (7 inch)

Work plate material

Glass ceramic

Glass ceramic

Motor type

Brushless DC motor

Shaded pole motor

Motor rating input

18 W

15 W

Motor rating output

10 W

1.5 W

Power

1050 W

1030 W

Heating output

1000 W

1000 W

Voltage

100 ~ 120 / 200 ~ 240 V  50 / 60 Hz

100 ~ 120 / 200 ~ 240 V  50 / 60 Hz

Stirring positions

1

1

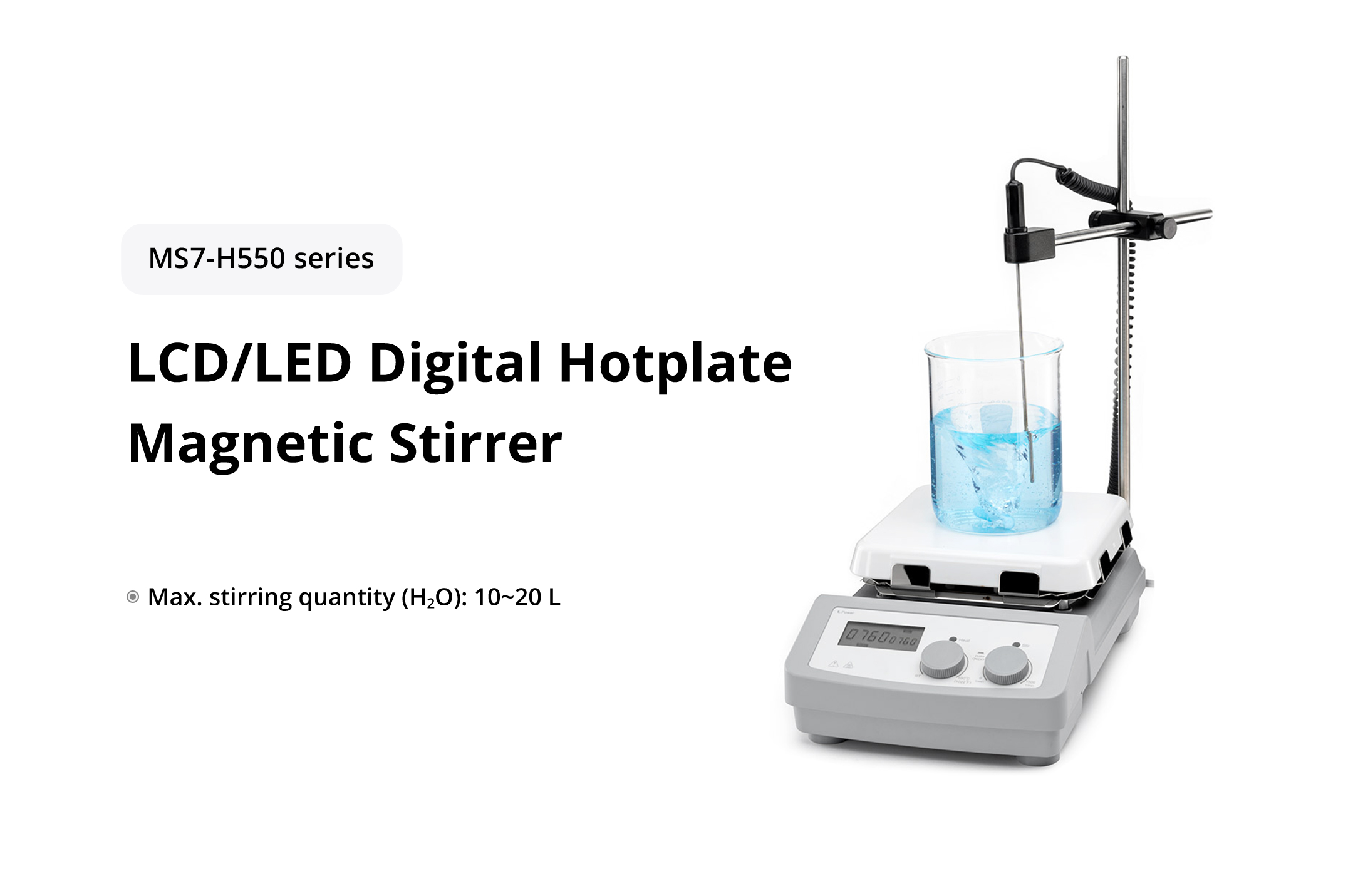

Max. stirring quantity (H₂O)

20 L

10 L

Max. magnetic bar (length)

80 mm

80 mm

Speed range

100 ~ 1500 rpm resolution ± 1 rpm

100 ~ 1500 rpm

Speed display

LCD

Scale

Temperature display

LCD

LED

Heating temperature range

Room Temp. ~ 550 °C, increment 1 °C

Room Temp. ~ 550 °C, increment 5 °C

Temperature control accuracy

± 1 °C ( < 100 °C)     ± 1 %( > 100 °C)

± 10 °C

Overheating protection

580 °C

580 °C

Temperature display accuracy

± 0.1 °C

± 1 °C

External temperature sensor

PT1000 (accuracy ± 0.2)

PT1000 (accuracy ± 0.2)

"Hot" warning

50 °C

50 °C

Data connector

RS232

-

Protection class

IP 21

IP 21

Dimension (W x D x H)

215 x 360 x 112 mm

215 x 360 x 112 mm

Weight

5.3 kg

4.5 kg

Permissible ambient temperature and humidity

5 ~ 40 °C, 80 % RH

5 ~ 40 °C, 80 % RH
