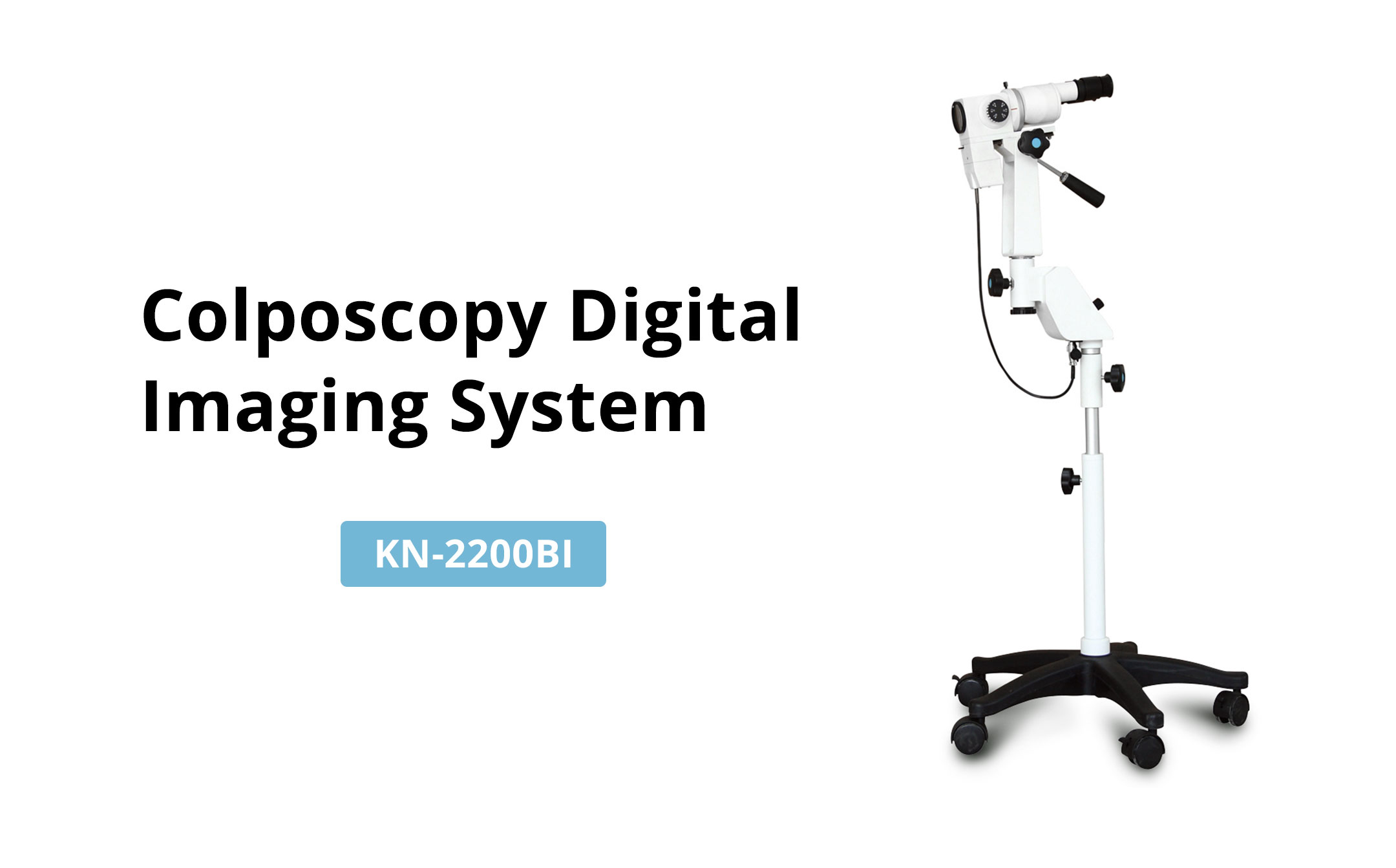

Model

KN-2200BI

Power supply

AC220V 50Hz/110V 60Hz

Rated power

200VA

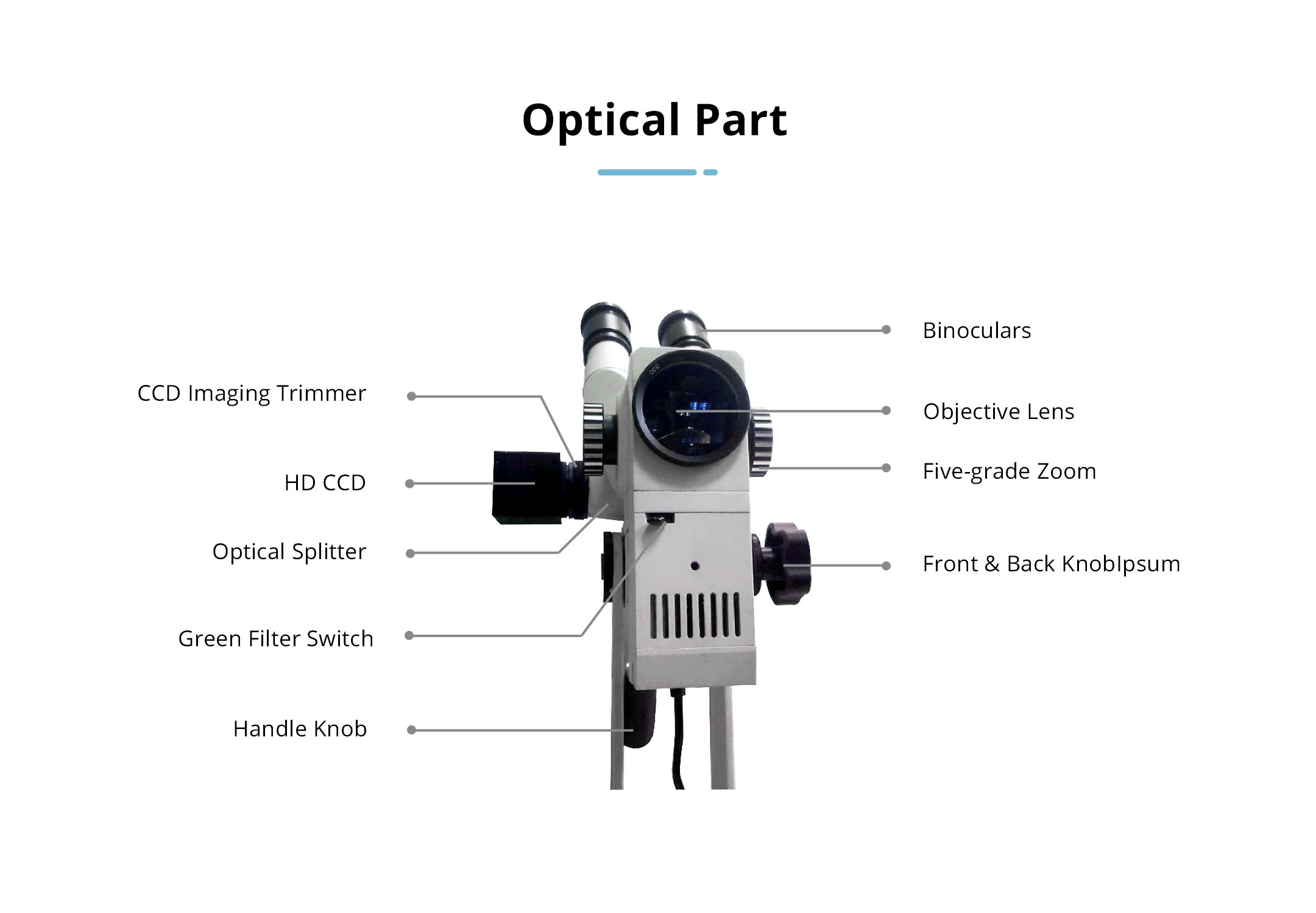

Binocular eyepiece technical parameter

Eyepiece

12.5x 45 degree eyepiece

Binoculars focal length

125mm

Eyepiece adjustment range

55mm ~ 75mm

Objective lens focal length

300mm

Diopter adjustment

-5D ~ +5D

Focusing

AF/MF

Micro focusing range

0mm ~ 40mm

12.5x eyepiece

300mm objective lens

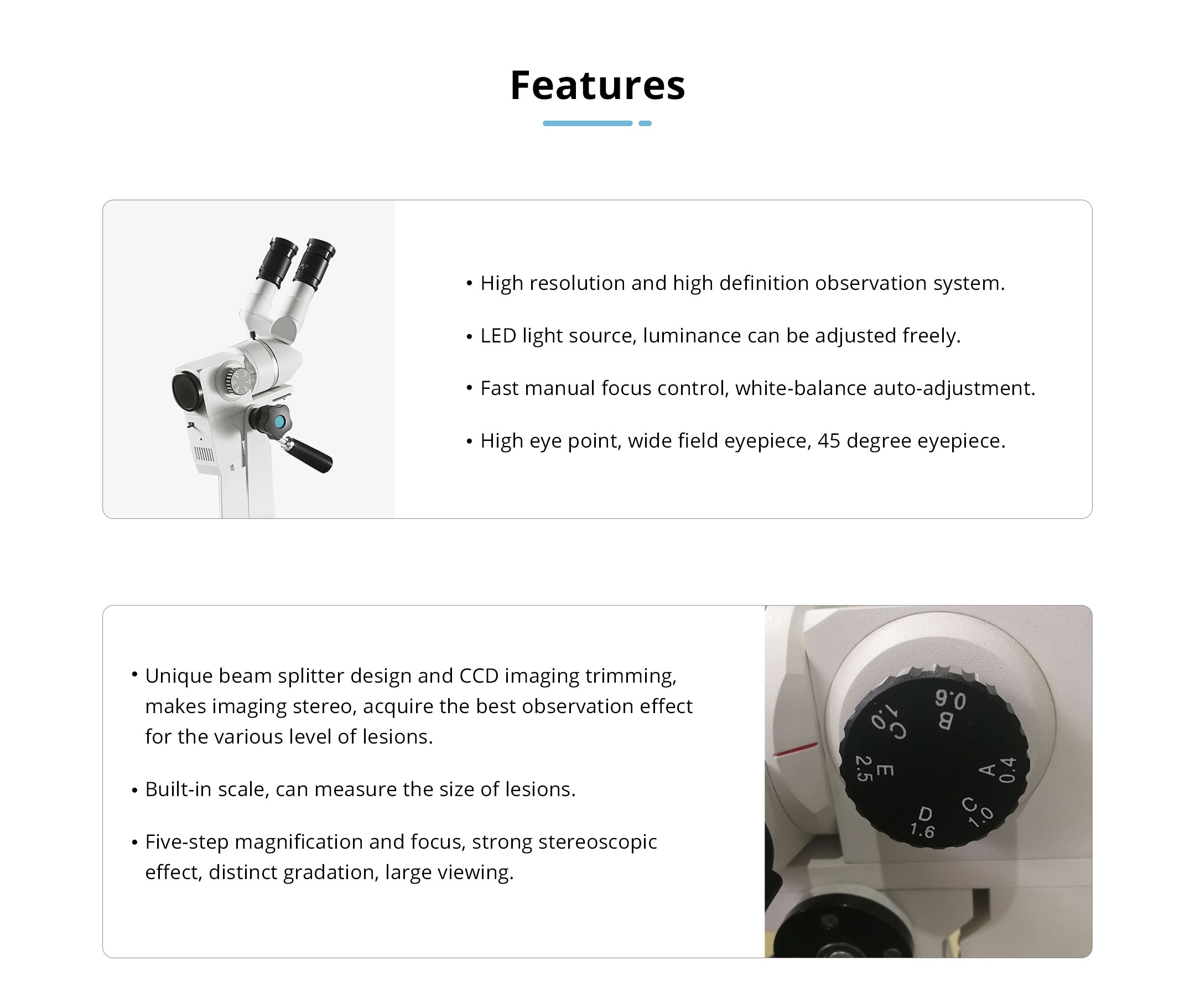

Five gears

0.4

0.6

1.0

1.6

2.5

Magnification times

2.8X

4X

7X

11.5X

17X

Field of view diameter

78mm

50mm

32mm

19mm

13mm

Working distance

250mm ~ 300mm

Observation angle

0 ~ 135 degree

Adjustable arm rotation range

270 degree

Lifting adjustment range

170mm

Bracket height

1130mm ~ 1300mm

Base diameter

520mm

Light source

Green filter, LED light source

Color temperature

5600K

Light illumination

≥ 30000Lux

Life time

≥ 60000 hours

Illumination range

Φ ≥ 80mm

Camera system technical parameter

CCD

1/3 Inch Sony CMOS

Effective pixels

2.1 millions pixel

Image size

1920×1080

Horizontal resolution

1080p/60

Image output method

USB video

Interface type

USB3.0

Magnification times

System magnification: 50X

Optical magnification: 17X

Digital magnification: 3X

Depth of field

5mm ~ 135mm

Color saturation

95%

Image geometric distortion

≤ 2.5%
