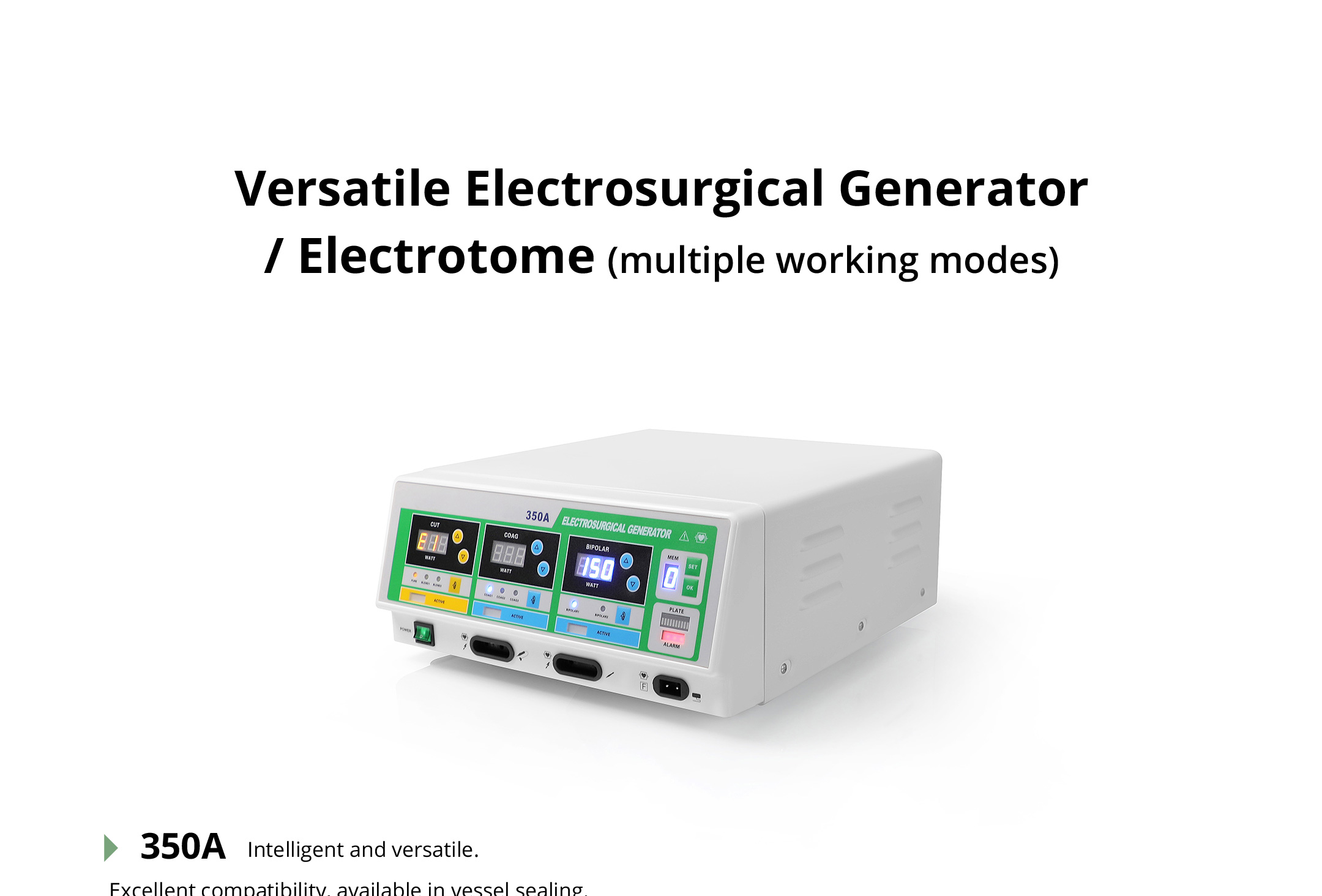

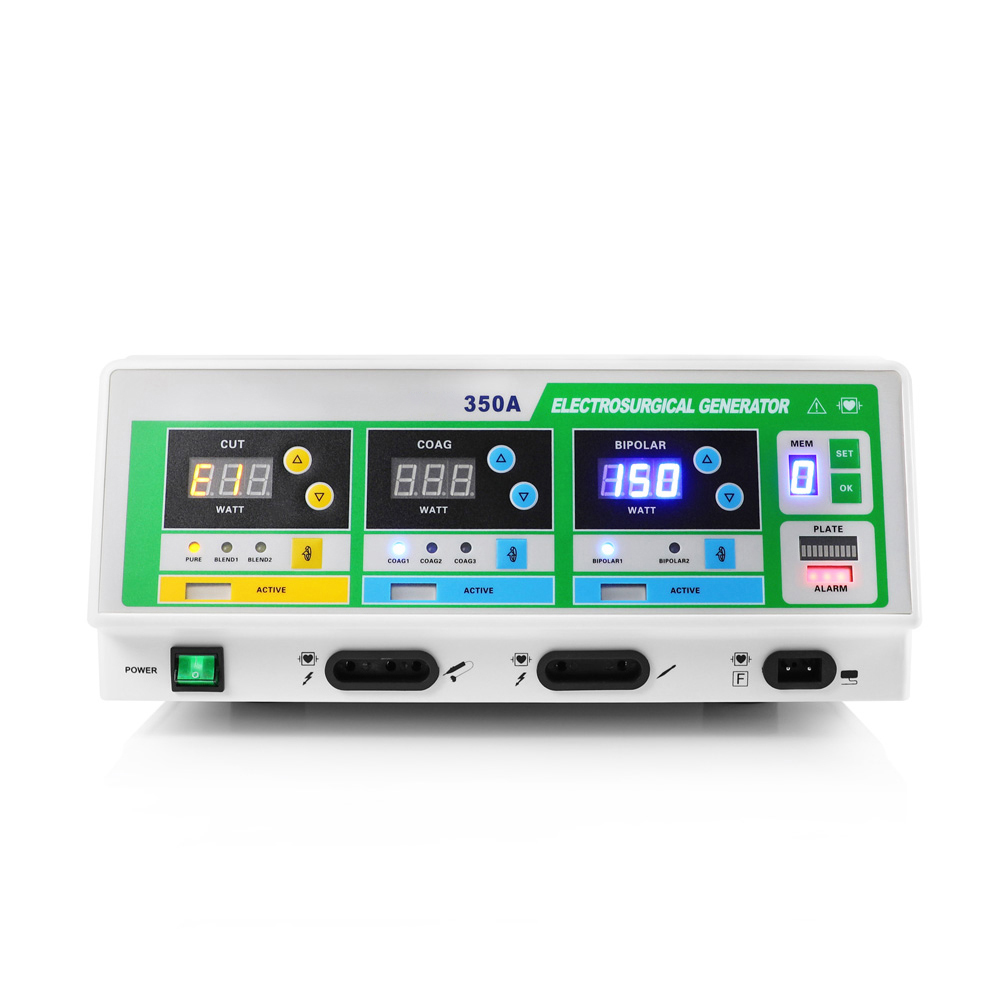

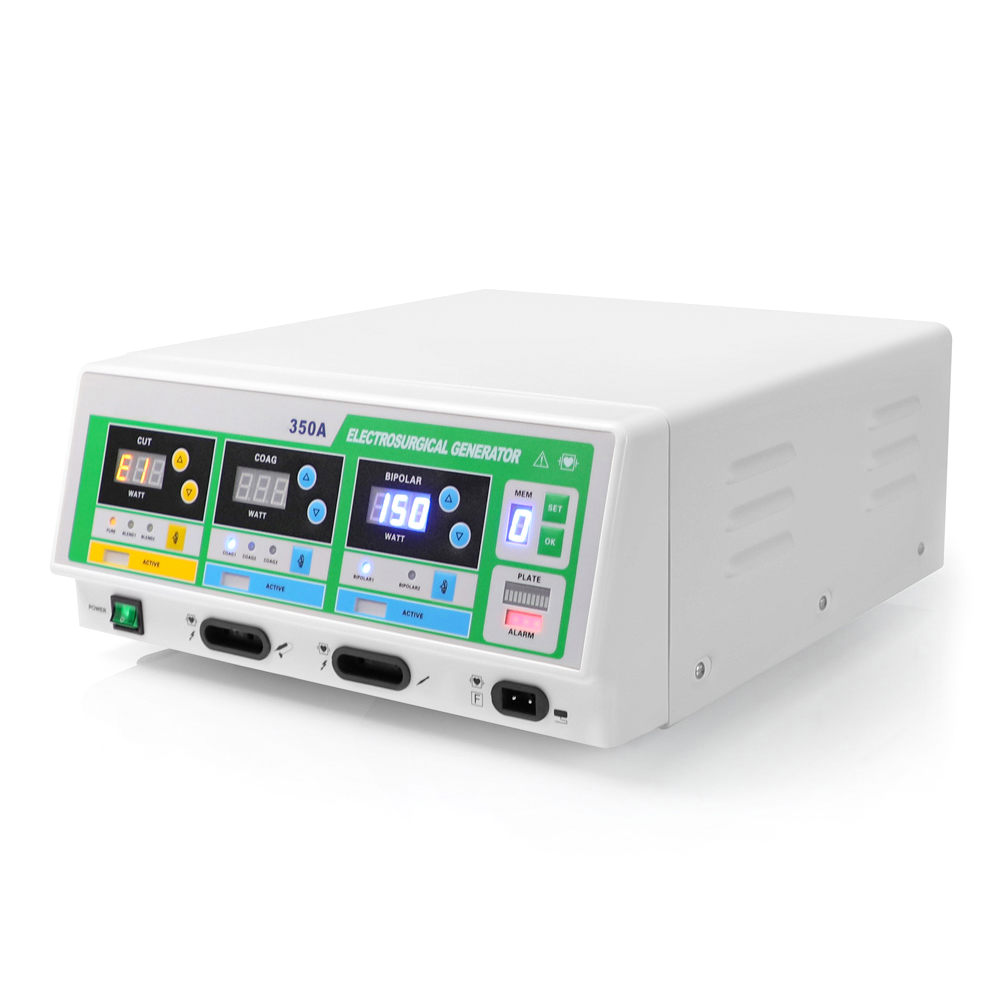

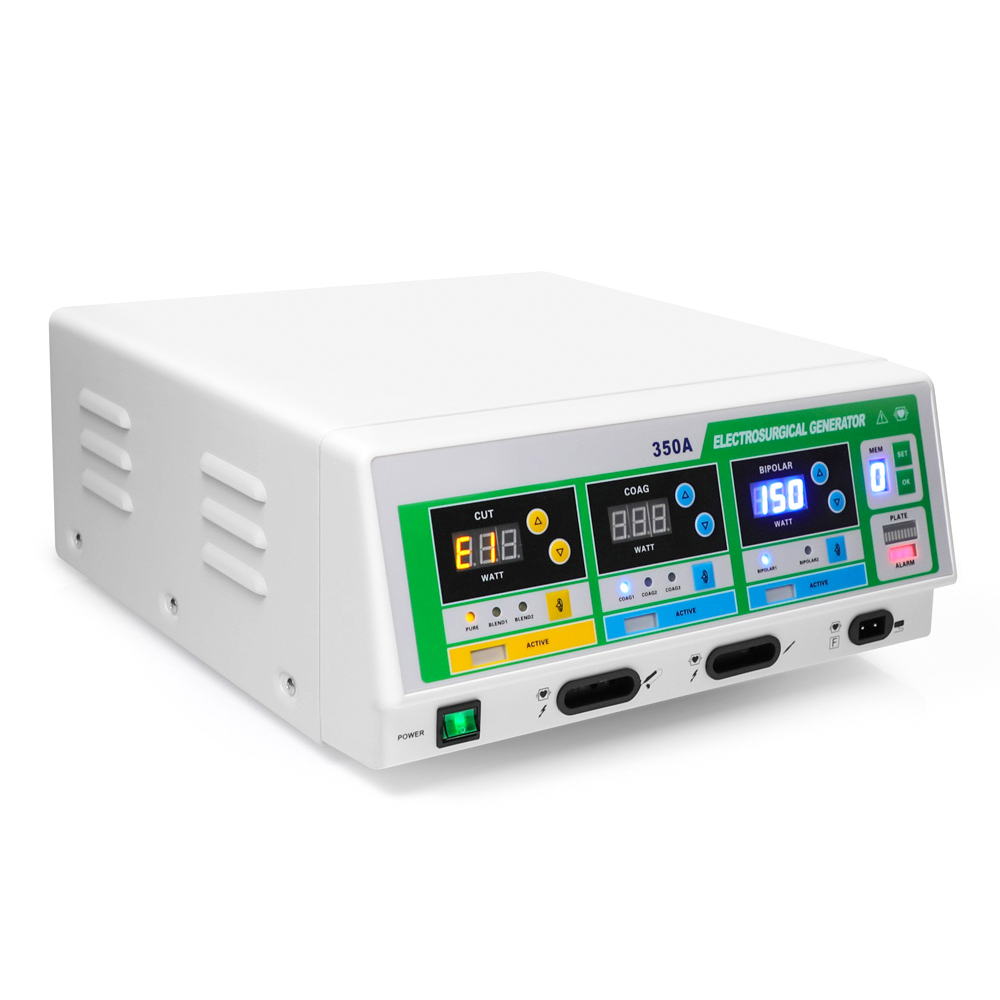

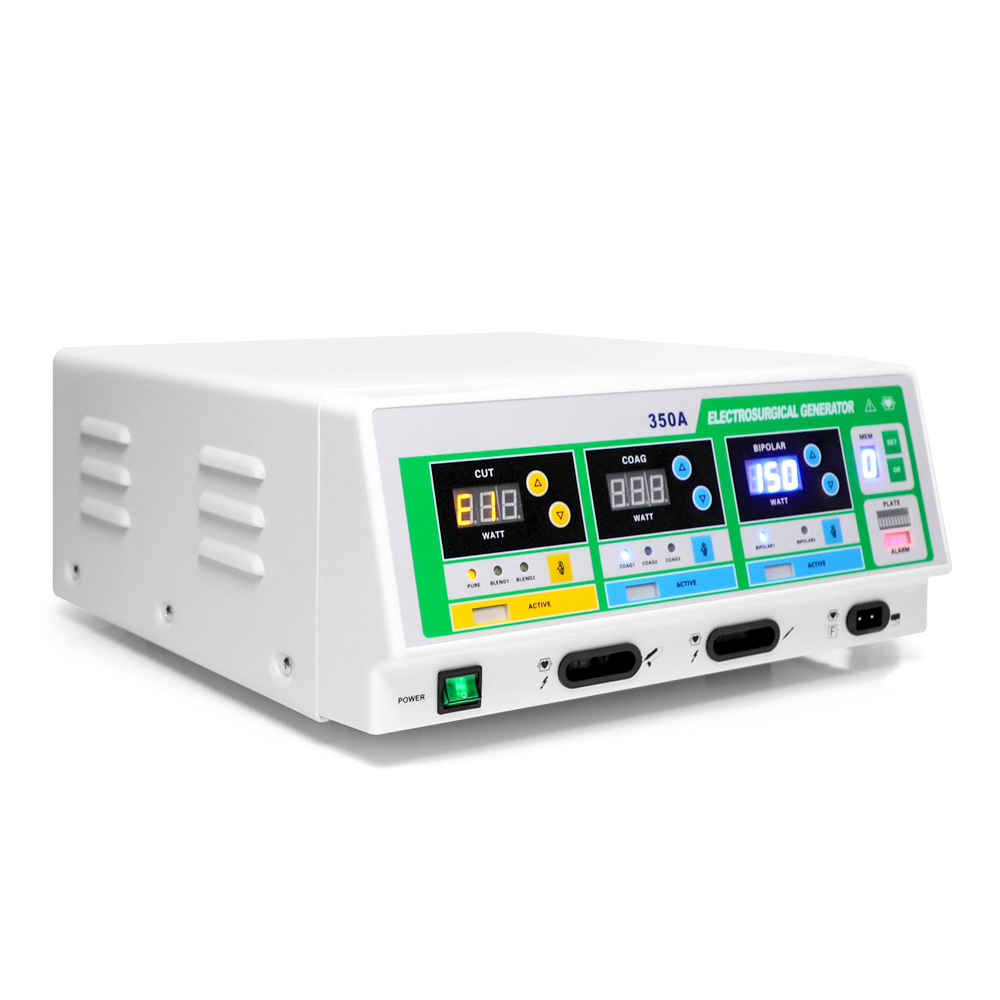

Model

350A

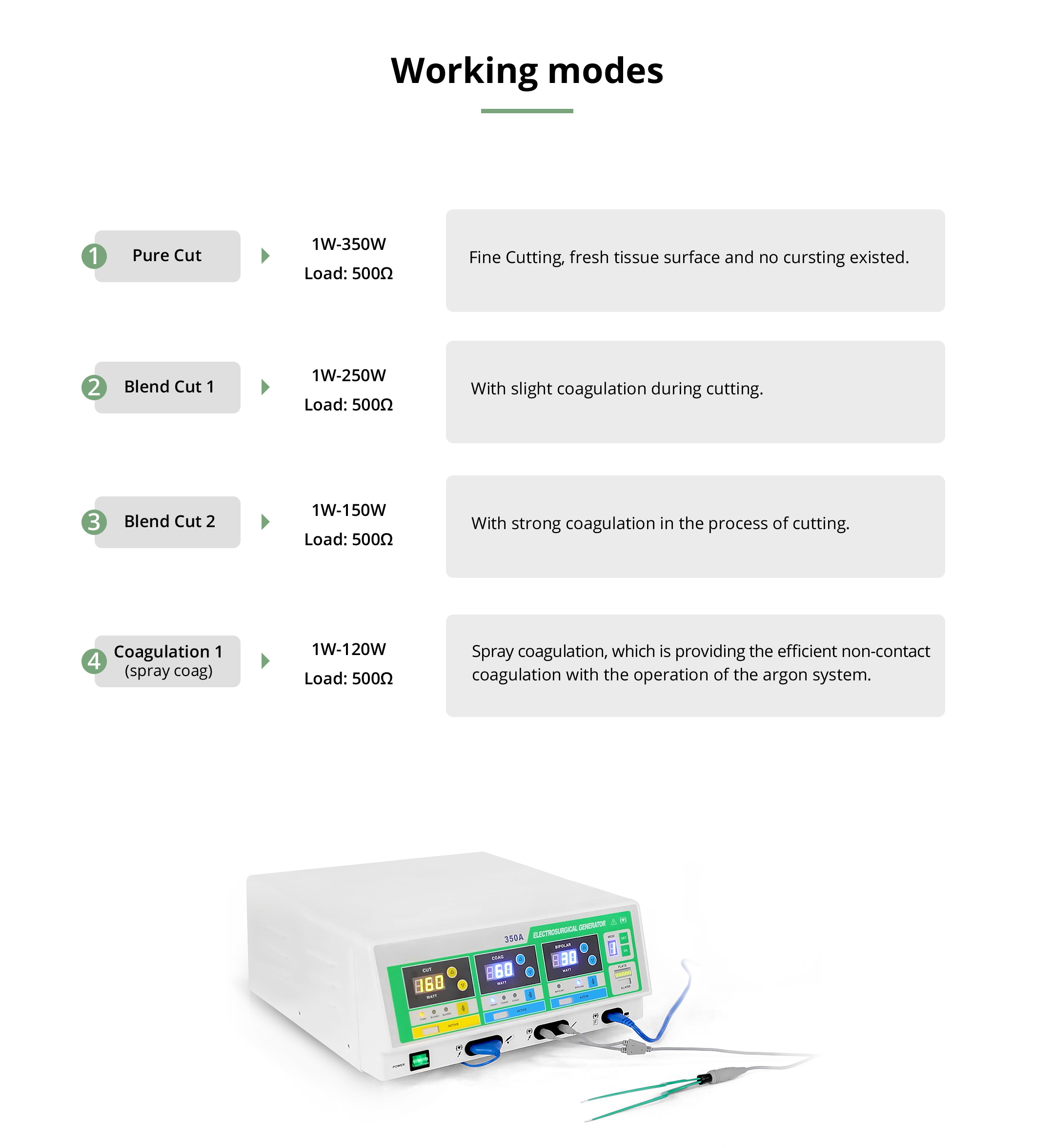

Working modes

Pure cut: 1 ~ 350 W (load: 500 Ω)

Blend 1: 1 ~ 250 W (load: 500 Ω)

Blend 2: 1 ~ 150 W (load: 500 Ω)

Coagulation 1 (Spray coag): 1 ~ 120 W (load: 500 Ω)

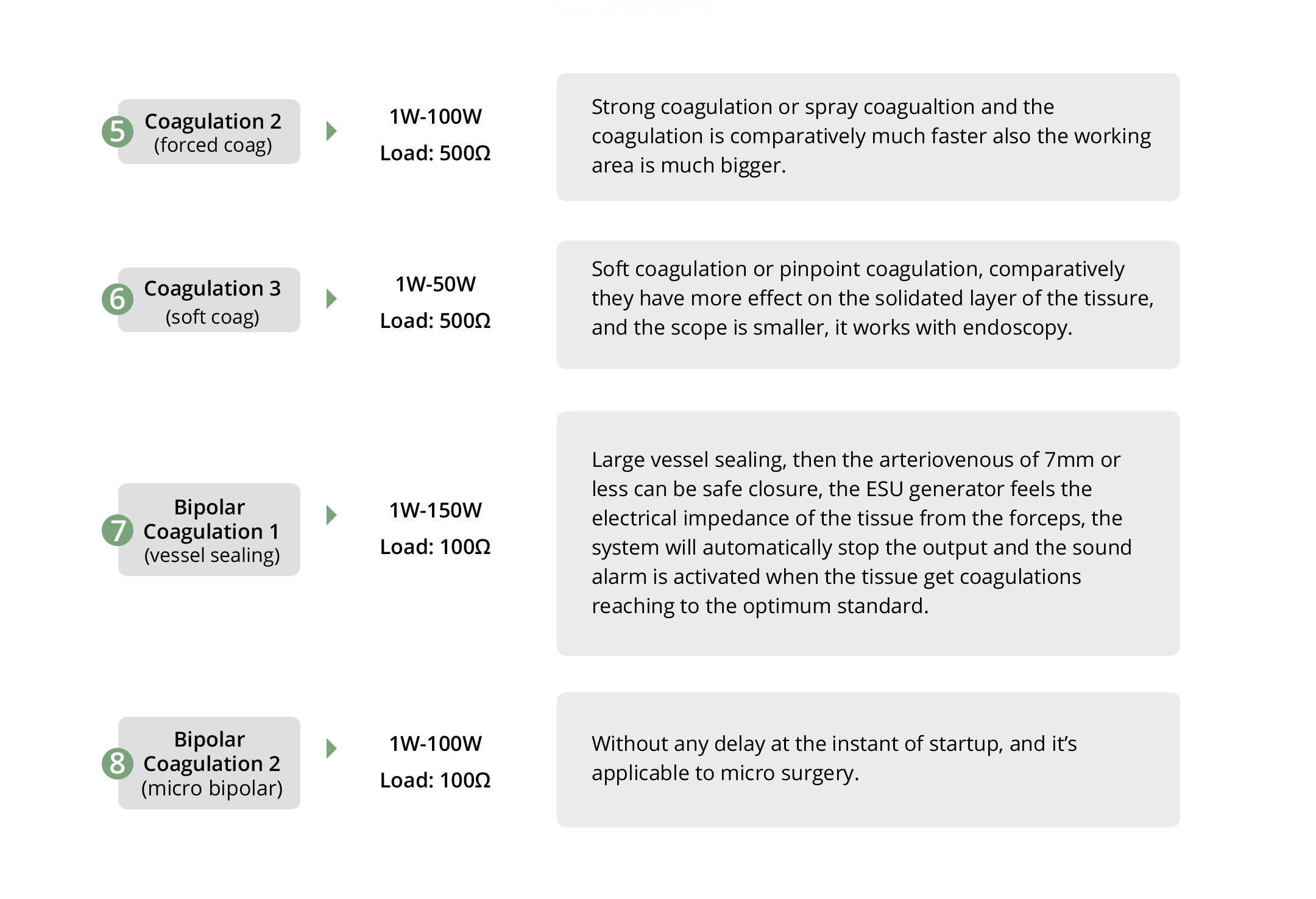

Coagulation 2 (Forced coag): 1 ~ 100 W (load: 500 Ω)

Coagulation 3 (Soft coag): 1 ~ 50 W (load: 500 Ω)

Bipolar 1 (Vessel sealing): 1 ~ 150 W (load: 100 Ω)

Bipolar 2 (Micro bipolar): 1 ~ 100 W (load: 100 Ω)

Environmental temperature range

5 ℃ ~ 40 ℃

Relative humidity range

≤ 80 %

Atmosphere pressure range

86.0 ~ 106.0 kPa

Voltage

120 / 230 V, 60 / 50 Hz

Operating frequency

330 ~ 460 kHz

Equipment rated power

850 VA

Leakage currents to ground

Less than 0.5 mA

Leakage currents to patient

Less than 0.01 mA

Size (L × W × H)

43 cm × 38 cm × 16.5 cm

Weight

10 kg

Packing

1 unit/carton
