Model

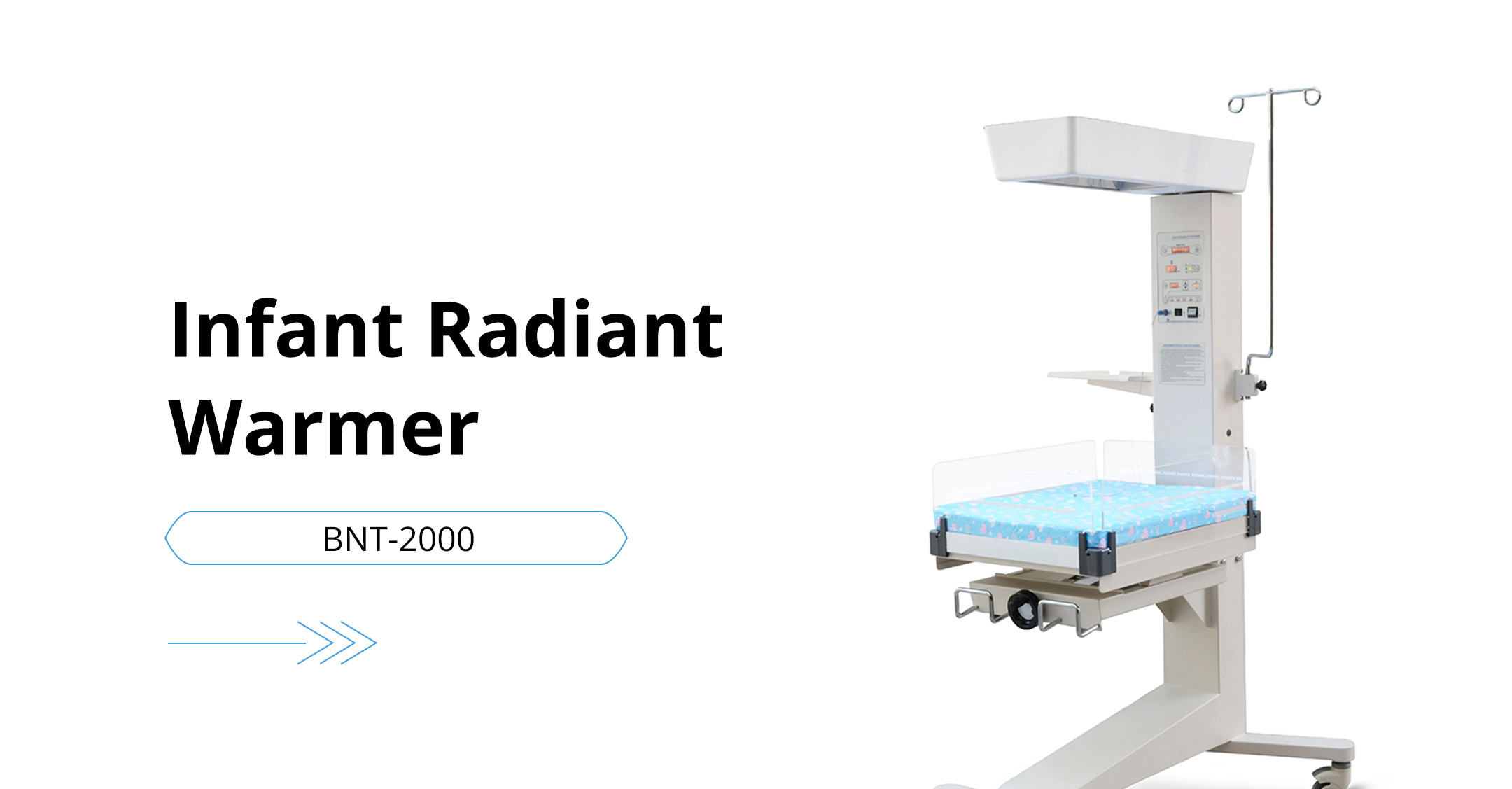

BNT-2000

Screen

LED

Power consumption

≤ 1000VA

Control mode

Pre-heating control, servo control & manual control

Instant parameter display

Set temp, skin temp, heat power rate

Temperature control range

20.0℃ ~ 37.0℃

Temperature override mode

37.1℃ ~ 38.0℃

Temperature sensor accuracy

≤ 0.3℃

Mattress surface temperature uniformity

≤ 2.0℃

Temperature rise time

≤ 45mins

Heat output indicate

0 ~ 100%

Radiant box horizon angle adjust range

0 ~ 90°adjustable in step-less

Bed tilt adjustment

Continues adjustable in ± 10°

Mattress tray size

68cm×54cm

Mattress tray Max. load

10kg

Transfusion pole Max. load

2kg

Shelf Max. load

2kg

Distance from mattress to radiation head

81cm

Heater infrared wavelength

1 ~ 3 μm

Audible and visual alarm

Temp deviation, sensor failure, power failure, temp override

Air mode temp. alarm

≤ 38.0℃, ≤ 39.0℃

Deviation alarm

± 1℃

APGAR time

Alarm with audible when run between 50 seconds to 1 minute,

4 minutes 50 seconds to 5 minutes,

9 minutes 50 seconds to 10 minutes.

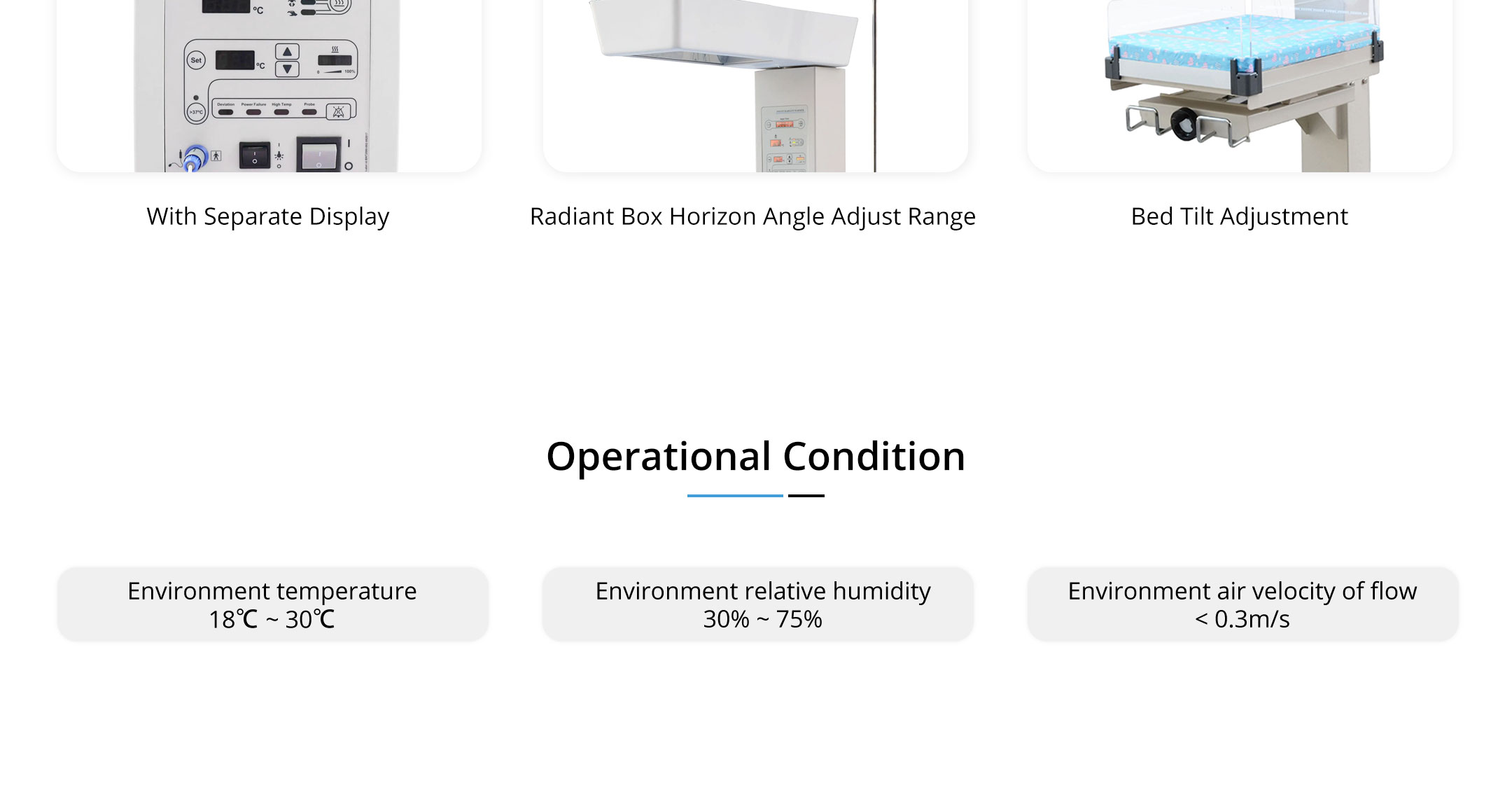

Operational condition

Environment temperature

18℃ ~ 30℃

Environment relative humidity

30% ~ 75%

Environment air velocity of flow

< 0.3m/s

Product packaging

Dimension

110cmx90cmx110cm

Gross weight

140kg

Net weight

110kg
