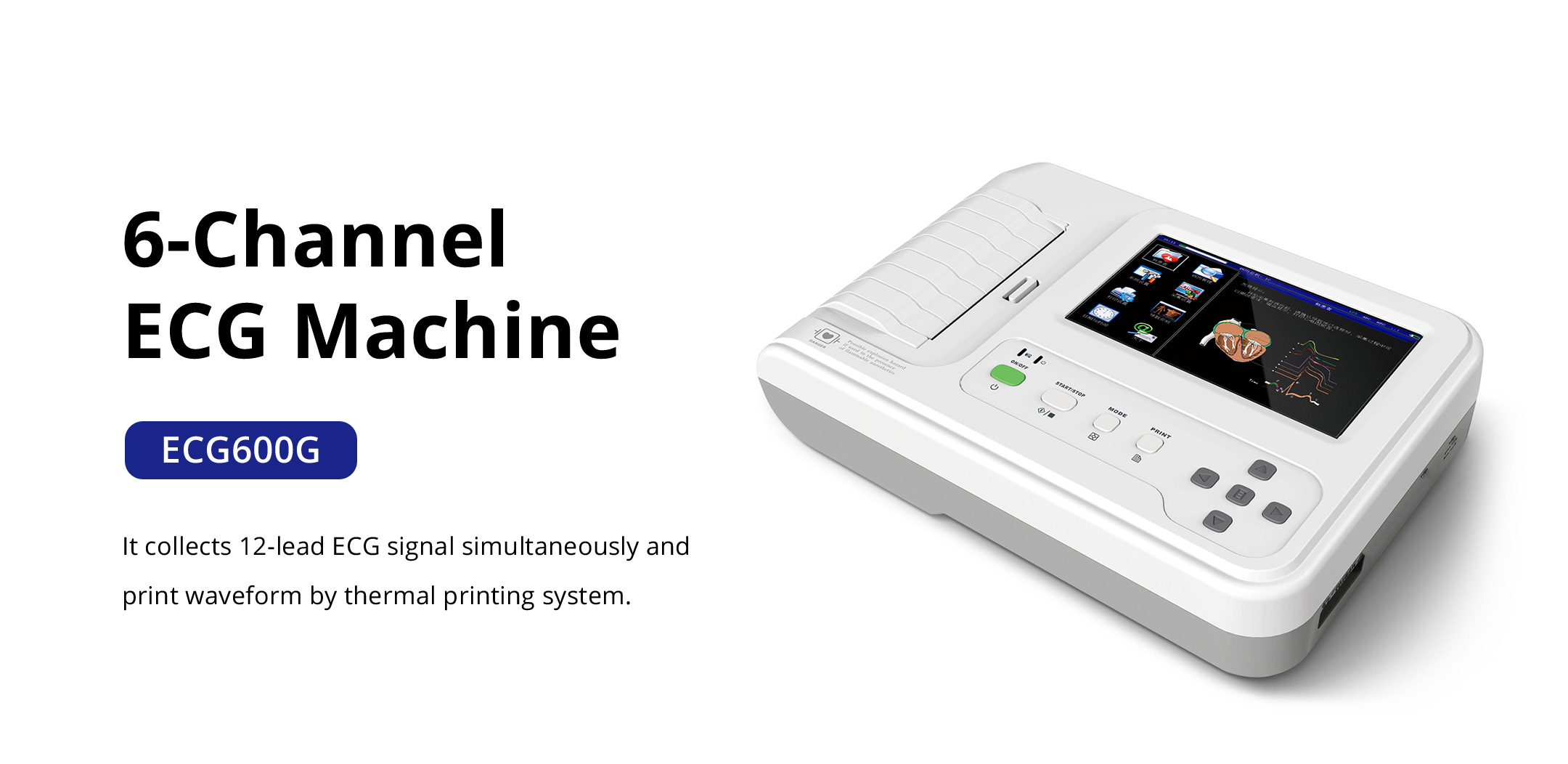

Model

ECG600G

Dimension

315 mm (L) × 215 mm (W) × 92 mm (H)

Weight

1.7 kg

Display

7” color LCD touch screen

Resolution

1024 × 600

Working environment

Temperature: 5 ℃ ~ 40 ℃

Relative humidity: 25 % ~ 95 % (no condensation)

Atmospheric pressure: 70 kPa ~ 106 kPa

Storage environment

Temperature: - 20 ℃ ~ 55 ℃

Relative humidity: ≤ 95 %

Atmospheric pressure: 50 kPa ~ 106 kPa

Input mode

Floating and defibrillation protection

Input impedance

≥ 2.5 MΩ

Patient leak current

< 10 µA

Frequency response

0.67 Hz ~ 150 Hz (- 3 dB)

Lead

12-lead

Time constant

≥ 3.2 s

CMRR

> 105 dB

Filter

Power frequency (AC 50 / 60 Hz), EMG (25 Hz / 35 Hz (- 3 dB)), baseline drift filter

Recording way

Thermal printing system

Specification of recording paper

110 mm (W) × 20 m (L), high-speed thermal paper

Time base selection (paper speed)

12.5 mm/s, 25 mm/s, 50 mm/s, error: ± 5 %

Gain control (sensitivity)

5, 10, 20 mm/mV, accuracy is ± 2 %

Standard sensitivity

10 mm/mV ± 0.2 mm/mV

Recording mode

Auto mode, rhythm mode and manual mode

Measurement parameters

HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-T_C,
P Axis, QRS Axis, T Axis, R (V5), S (V1), R (V5) + S (V1)

Safety classification

Class I, type CF defibrillation-proof applied part

Polarization resistance voltage

± 610 mV

Noise level

≤ 12 µVp-p

ECG signal input sampling frequency

32 kHz

Waveform data processing sampling frequency

1 kHz

Sampling accuracy

24-bit

The minimum detection signal

10 Hz, 20 µV (peak-peak value), deflected sinusoidal signal can be detected

Pacing detection channel

Standard II

Accuracy of input signal

± 5 %

Amplitude quantization

≤ 5 µV / LSB

Interchannel time deviation

< 100 µs

Power supply

AC: 100 V ~ 240 V (50 / 60 Hz), DC: 7.4 V / 3500 mAh rechargeable lithium battery

Degree of protection against ingress of liquid

IPX0

Working mode

Continuous working
