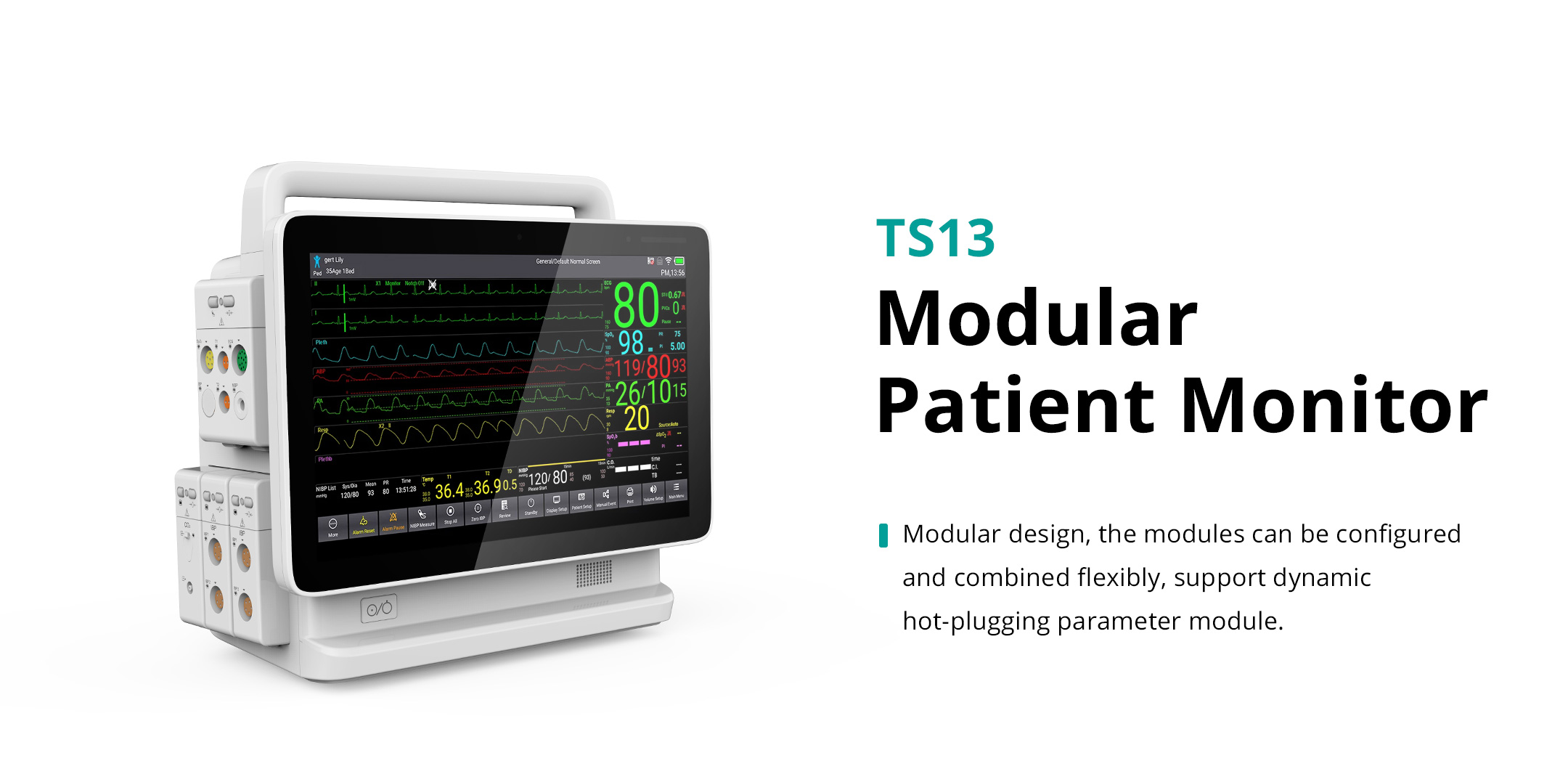

Modular patient monitor TS13
Product ID: MX50893
P/N: MX508931

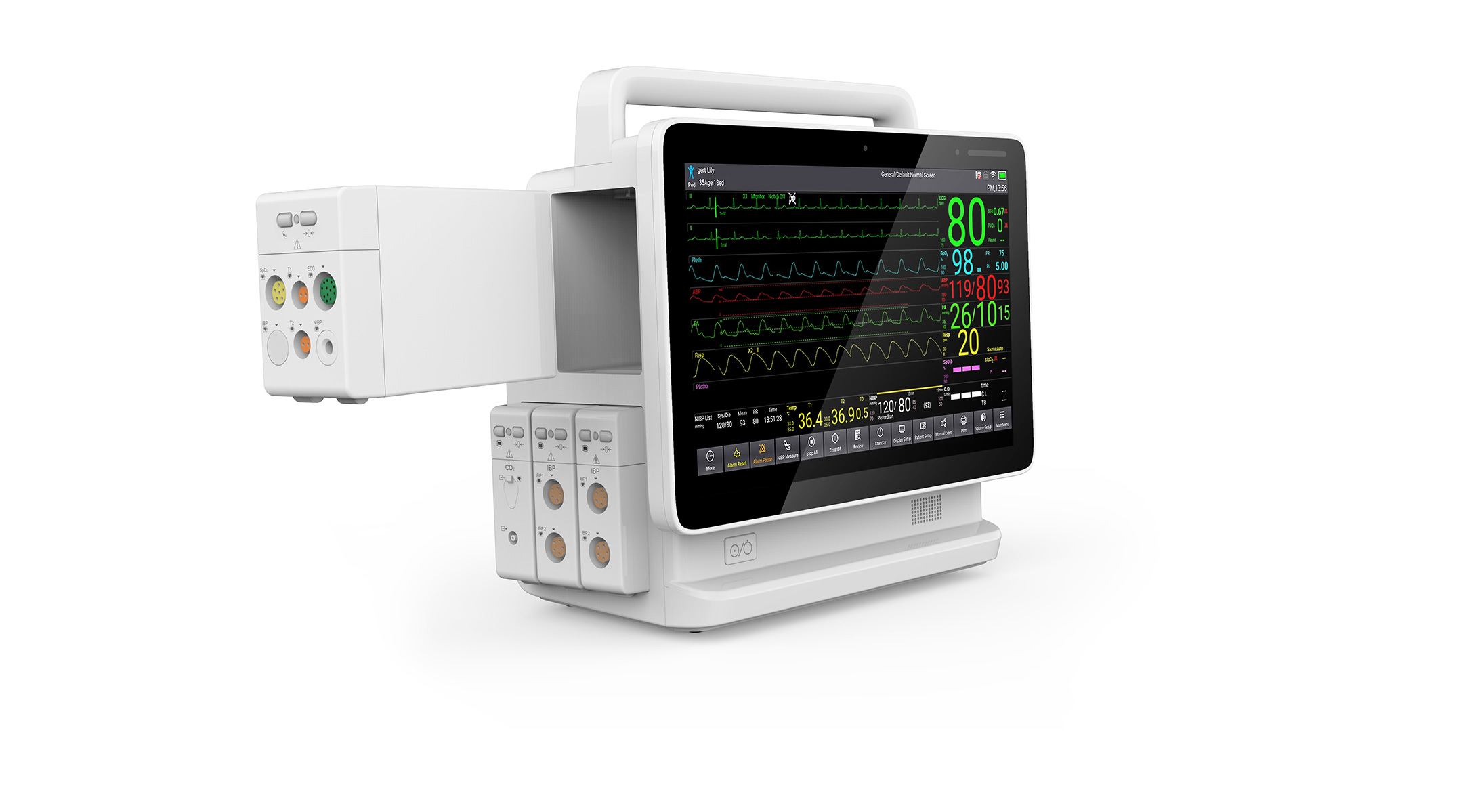

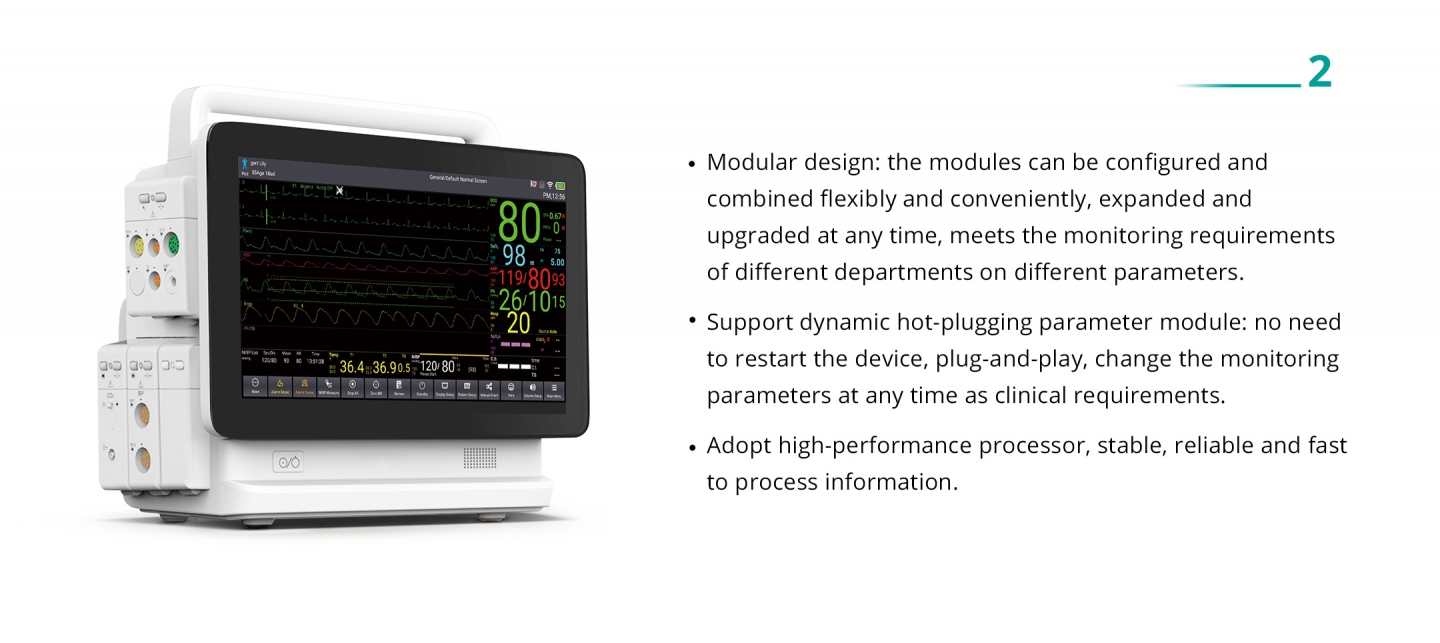

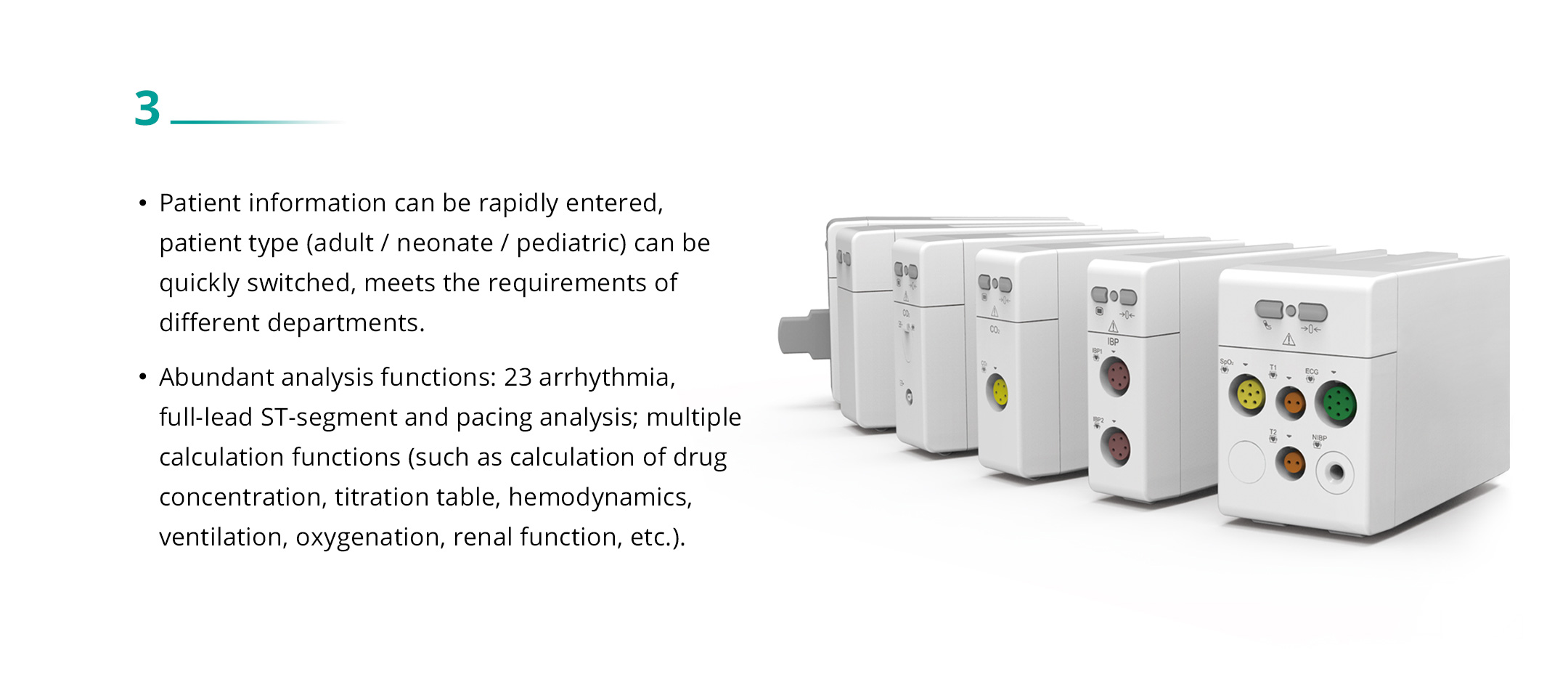

Modular design, the modules can be configured and combined flexibly, support dynamic hot-plugging parameter module.
Model
TS13
Optional configuration and accessoriesMultiple choices available
Selected ( 0 )
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/pack, 1 pack(s)/carton
Recommend related products
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In
$ Inquiry after Sign-In

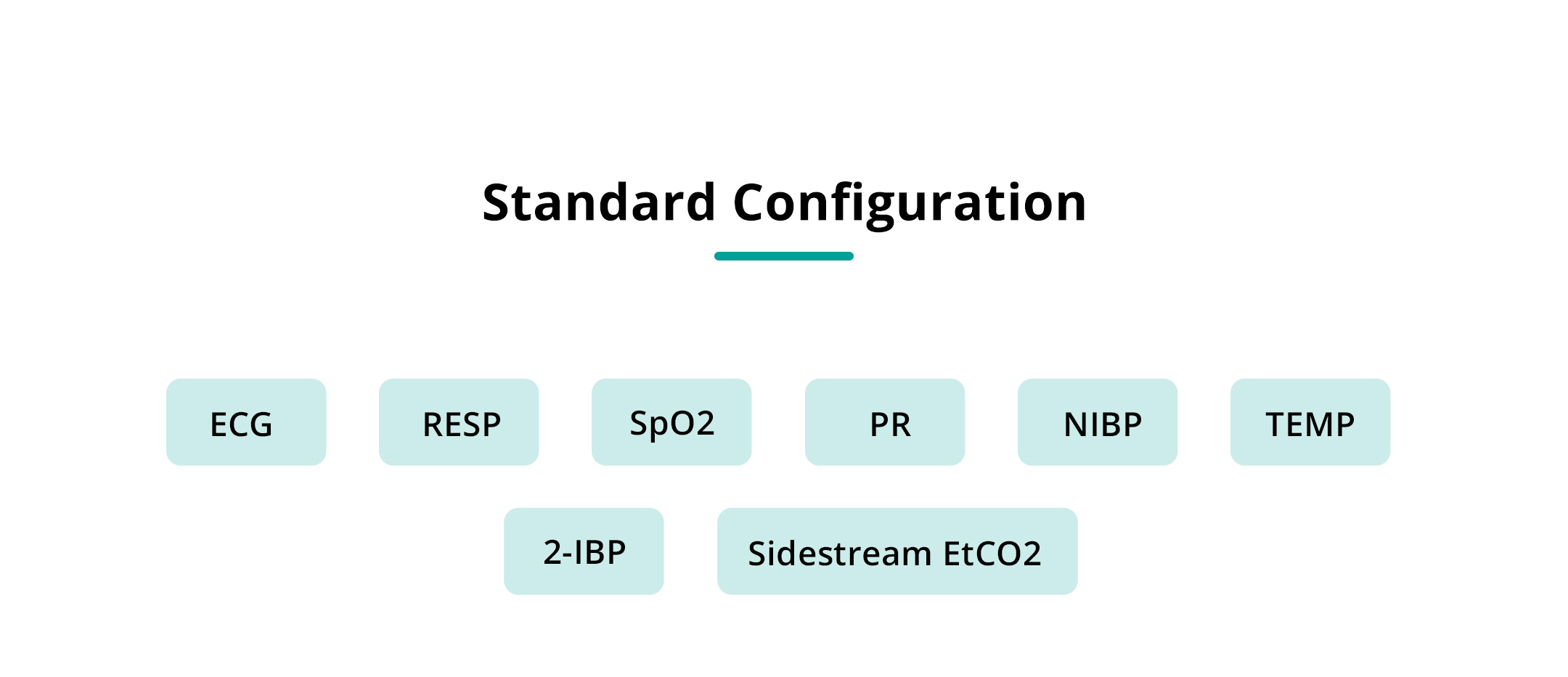

Model

TS13

ECG

Lead type: 3-lead (I, II, III) / 5-lead (I, II, III, aVR, aVL, aVF, V) /

12-lead (I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6)

Gain: 2.5 mm/mV, 5.0 mm/mV, 10 mm/mV, 25 mm/mV, 50 mm/mV

Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s

HR:

measurement and alarm range: (adult) 15 ~ 300 bpm, (pediatric / neonate) 15 ~ 350 bpm

resolution: 1 bpm

accuracy: ± 1 % or ± 1 bpm, whichever is greater

ST-segment detection:

measurement and alarm range: - 2.0 mV ~ + 2.0 mV

accuracy: - 0.8 mV ~ + 0.8 mV, ± 0.04 mV or ± 10 %,which is greater

other range: unspecified

Arrhythmia analysis: 23 kinds

Pacemaker: yes

RESP

Measurement mode: R - F (RA - LL) impedance

Respiration rate:

measurement and alarm range: 0 ~ 150 rpm

resolution: 1 rpm

accuracy: 7 ~ 150 rpm, ± 2 rpm or ± 2 %, whichever is greater; 0 ~ 6 rpm, unspecified

Apnea alarm: 10 ~ 60 s, not alarm

Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s

SpO2

Measurement and alarm range: 0 ~ 100 %

Resolution: 1 %

Accuracy: 70 ~ 100 %, ± 2 %; 0 ~ 69 %, unspecified

PR

Measurement and alarm range: 25 ~ 250 bpm

Accuracy: ± 2 bpm or ± 2 %, whichever is greater

NIBP





Measurement mode: oscillometry

Working mode: manual / auto / continuous / sequential

Measurement interval in auto mode: 1 min, 2 min, 2.5 min, 3 min, 5 min,

10 min, 15 min, 20 min, 30 min, 1 h, 1.5 h, 2 h, 3 h, 4 h, 8 h

Measurement period in continuous mode: 5 minutes

Measurement and alarm range: 0 ~ 300 mmHg

Resolution: 1 mmHg

Cuff pressure accuracy: ± 3 mmHg

Measurement accuracy:

maximal mean deviation: ± 5 mmHg

maximal standard deviation: 8 mmHg

Over-pressure protection:

adult mode: 297 mmHg ± 3 mmHg

pediatric mode: 260 mmHg ± 3 mmHg

neonatal mdoe: 147 mmHg ± 3 mmHg

TEMP

Channel: dual-channel

Measurement range: 0 ~ 50

Resolution: 0.1

Accuracy: ± 0.1

CO2

Measurement mode: mainstream or sidestream

 CO2 measuring range: 0 ~ 150 mmHg

Accuracy: 0 ~ 40 mmHg, ± 2 mmHg; 41 ~ 70 mmHg, description ± 5 %;

71 ~ 100 mmHg, description ± 8 %; 101 ~ 150 mmHg, description ± 10 %

AwRR measurement range: (sidestream) 2 ~ 120 rpm, (mainstream) 2 ~ 150 rpm

AwRR accuracy: ± 1 rpm

Apnea alarm: yes

IBP

Channel: 4-channel

Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2

Measurement and alarm range: - 50 ~ 300 mmHg

Resolution: 1 mmHg

Accuracy: ± 2 % or 1 mmHg, whichever is greater

Power supply

100 - 240 V, 50 / 60 Hz

Safety classification

Class I, defibrillation-proof type CF applied part

Waterproof degree

IPX2
