Model

DGT-18B

(automatic door)

DGT-23B

(automatic door)

DGT-45B

(automatic door)

Capacity

18 L

23 L

45 L

Automatic door

The door will be opened automatically after the sterilization procedure has been performed.

Chamber dimensions

Ø 250 × 370

Ø 250 × 470

Ø316 × 615

Product size

620 ×505 × 450

505 × 710 × 450

657 × 870 × 575

Packing size (L × W × H) (mm)

670 × 560 × 510

790 × 750 × 510

980 × 900 × 630

Gross / Net weight

62 / 54 kg

64 / 56 kg

135 / 102 kg

Voltage

110 ~ 220 V / 50~60 Hz

Water capacity

2 L

Sterilization temperature

139 ℃

Sterilization temperature difference

± 0.5 ℃

Temperature control accuracy

Temperature sensing control，≤ ± 1 ℃

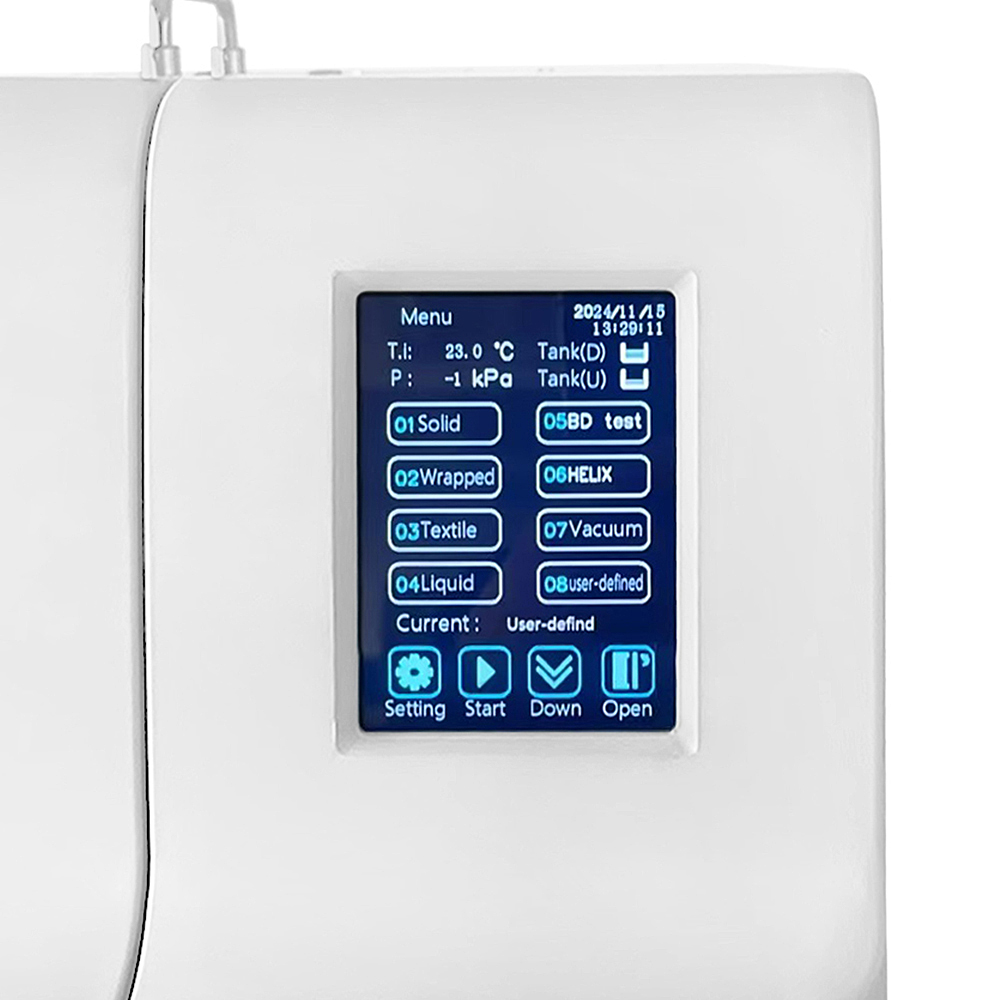

Display

LED, real-time display of temperature, pressure, time, etc.

Program

B & D / Helix test program / Leak test program

Standard

European B standard

Locks

Double door lock protection, mechanical lock equipped with air lock, the machine cannot be opened when the pressure in the pot is not about to reach 0

Water supply system

Open double water tank for disinfection and cleaning

Water quality testing

It can detect whether the water quality meets the requirements of this equipment

Special sterilization

Inactivation of AIDS, hepatitis B, mad cow virus and spore

Pulsating pre-vacuum

3 times pre-vacuum

Maximum vacuum

Not less than - 0.8 bar

Sterilization pressure

Maximum sterilization pressure ≥ 2.0 bar

Drying procedure

After intense vacuum drying, the residual humidity of the instrument < 0.2 %

Cleaning procedure

Automatic cleaning of internal piping and steam generator

Sterilization records

Built-in USB / Connect a printer to print the sterilization record

Security

A safety valve is provided to ensure that the machine safely relieves the pressure in the pot in case of emergency, fault self-test

Fault alarm

Automatically display fault information and display fault alarms

The number of error messages

28

Sterilized items

It can be used to sterilize surgical instruments, dental instruments, glassware, injection instruments, fabrics, etc.
