Instrument model

DX-80

(CBC+DIFF)

DX-80C

(CBC+DIFF+CRP)

DX-80S

(CBC+DIFF+CRP+SAA)

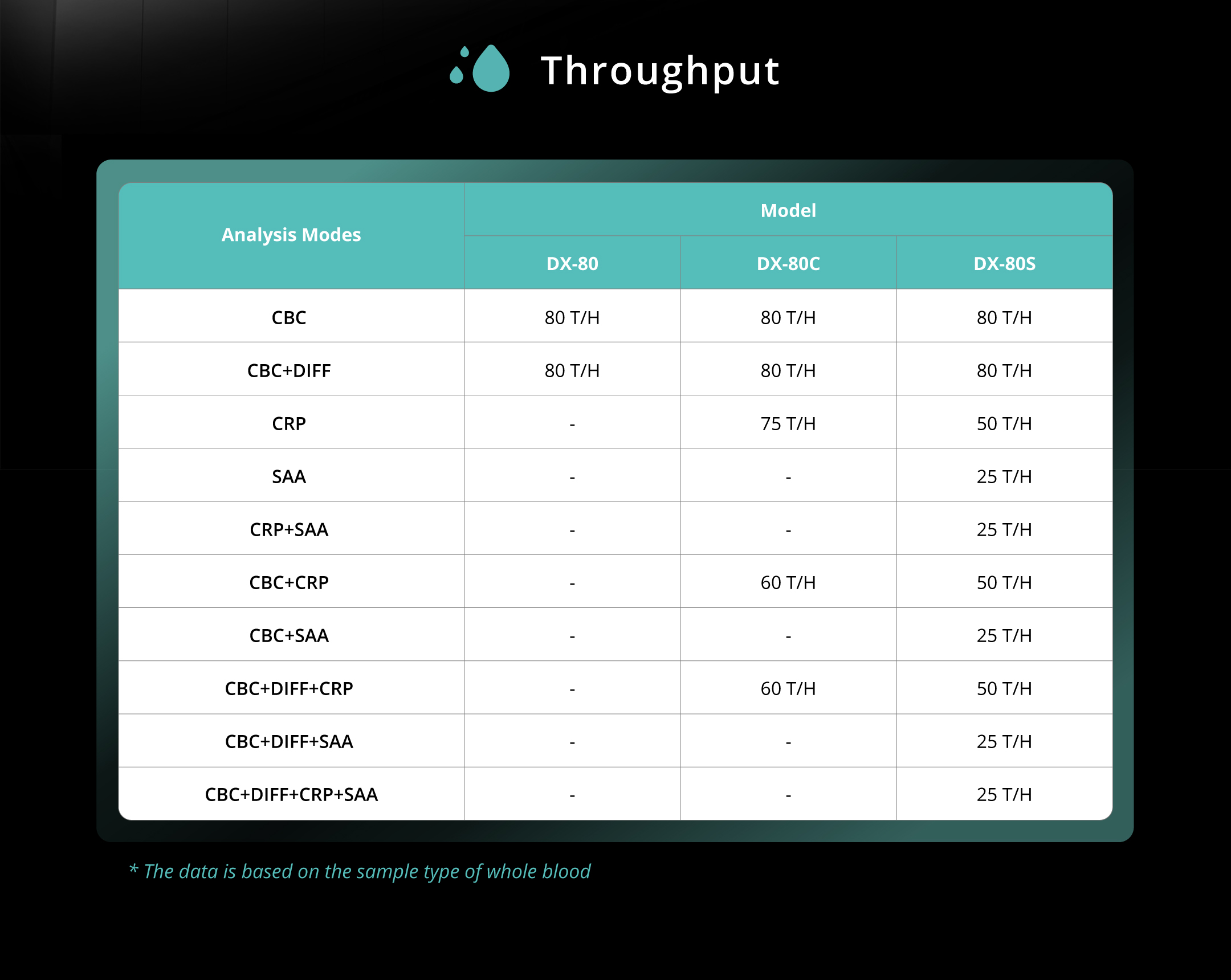

Throughput

under different analysis modes

(*The data is based on the
sample type of whole blood)

CBC

80 T/H

80 T/H

80 T/H

CBC+DIFF

80 T/H

80 T/H

80 T/H

CRP

--

75 T/H

50 T/H

SAA

--

--

25 T/H

CRP+SAA

--

--

25 T/H

CBC+DIFF+CRP

--

60 T/H

50 T/H

CBC+DIFF+SAA

--

--

25 T/H

CBC+DIFF+CRP+SAA

--

--

25 T/H

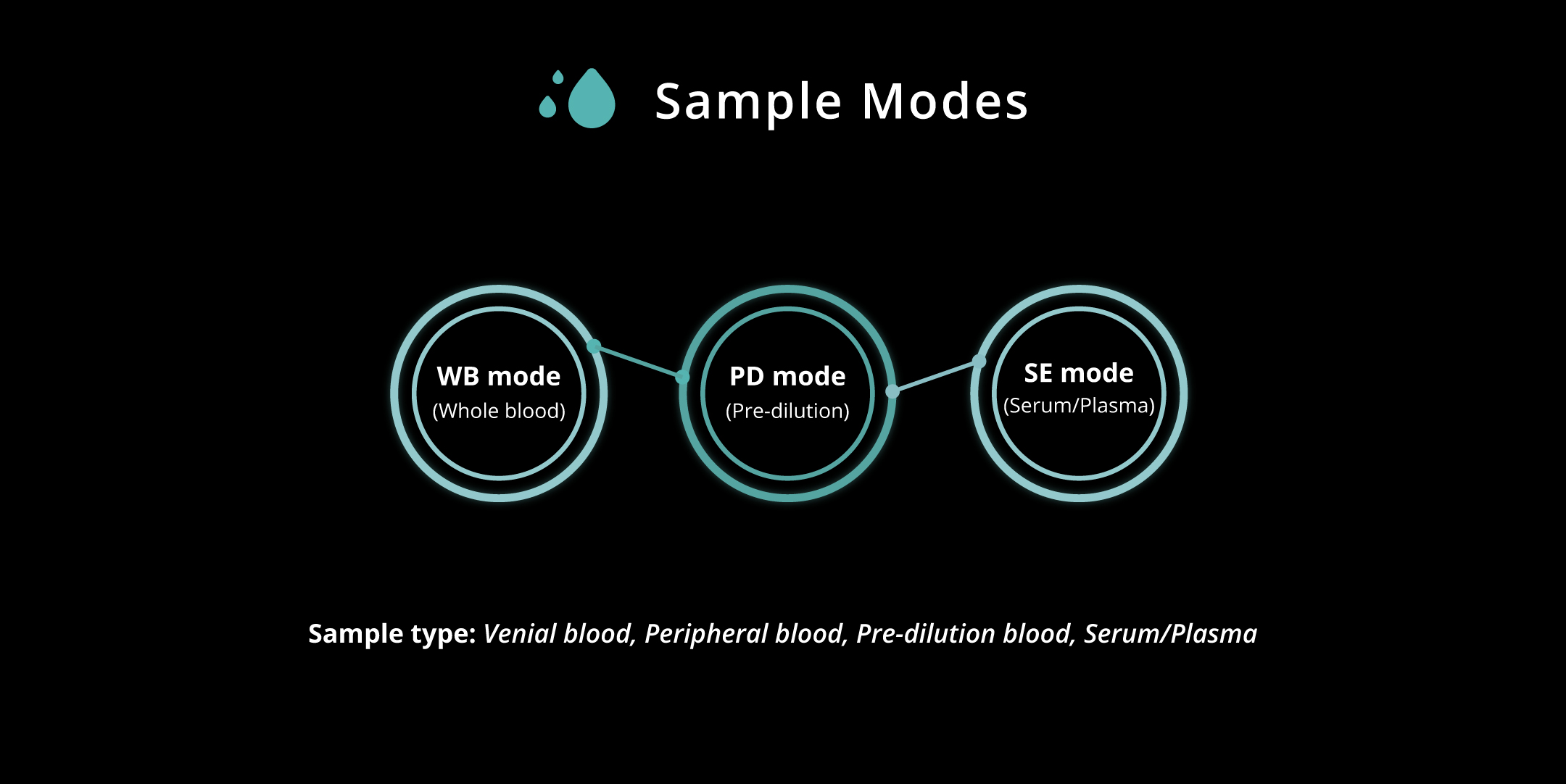

Sample mode

WB mode

(Whole blood)

√

√

√

PD mode

(Pre-dilution)

√

√

√

SE mode

(Serum/Plasma)

--

√

√

Parameters

Hematology analysis

26 reportable parameters:

WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV,
PDW, MPV, P-LCC, P-LCR, PCT, NEUT#, NEUT%, LYMPH#,
LYMPH%, MONO#, MONO%, EO#, EO%, BASO#, BASO%, NLR

5 research parameters:

IG%, IG#, WBC-D, Other%, Other#

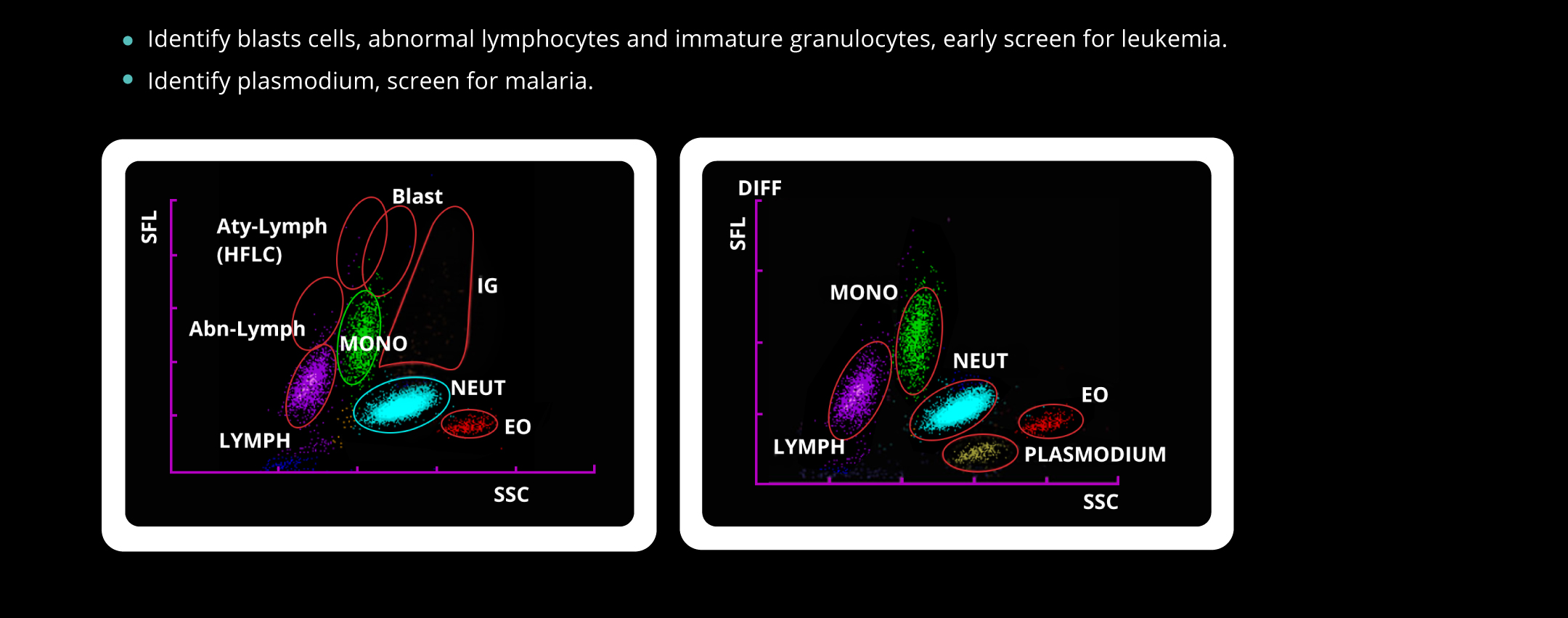

1 scattergram (DIFF) 2D/3D switch

3 histograms (WBC/RBC/PLT)

CRP analysis

3 reportable parameters (CRP/FR-CRP/hs-CRP)

SAA analysis

1 reportable parameter (SAA)

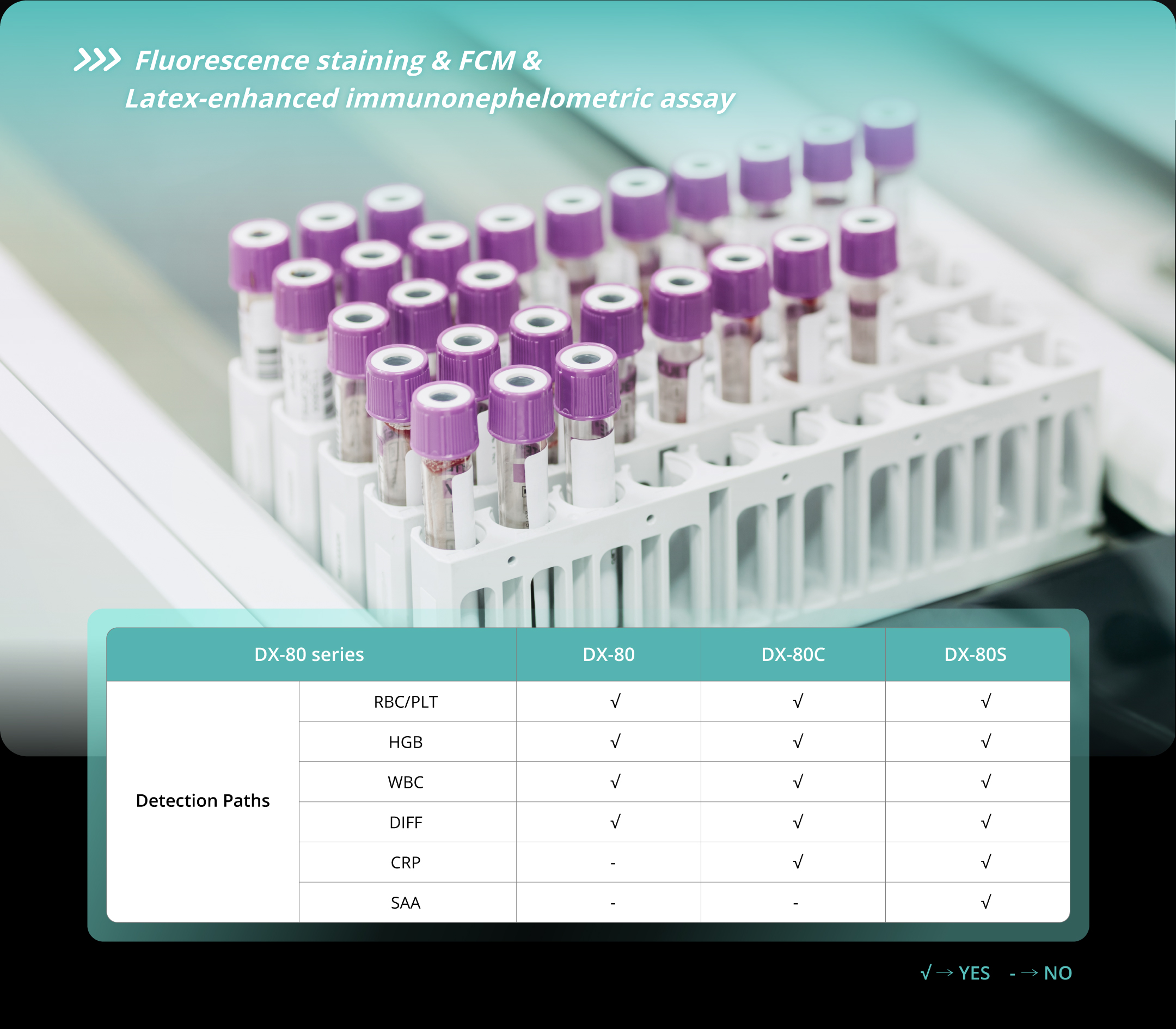

Analysis principle

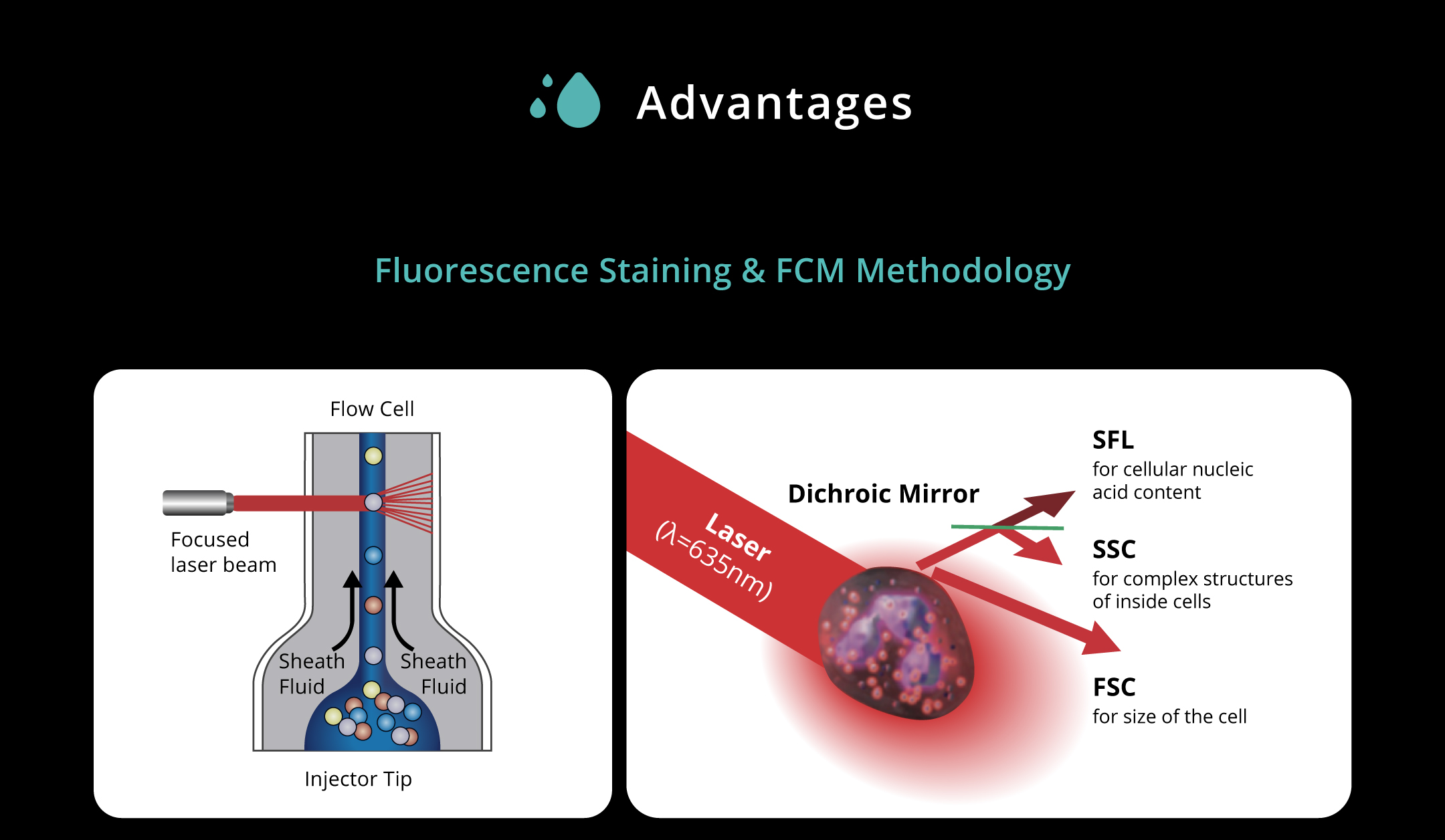

FCM & Fluorescence staining: DIFF

Colorimetric method: HGB

DC impedance method: WBC / RBC / PLT

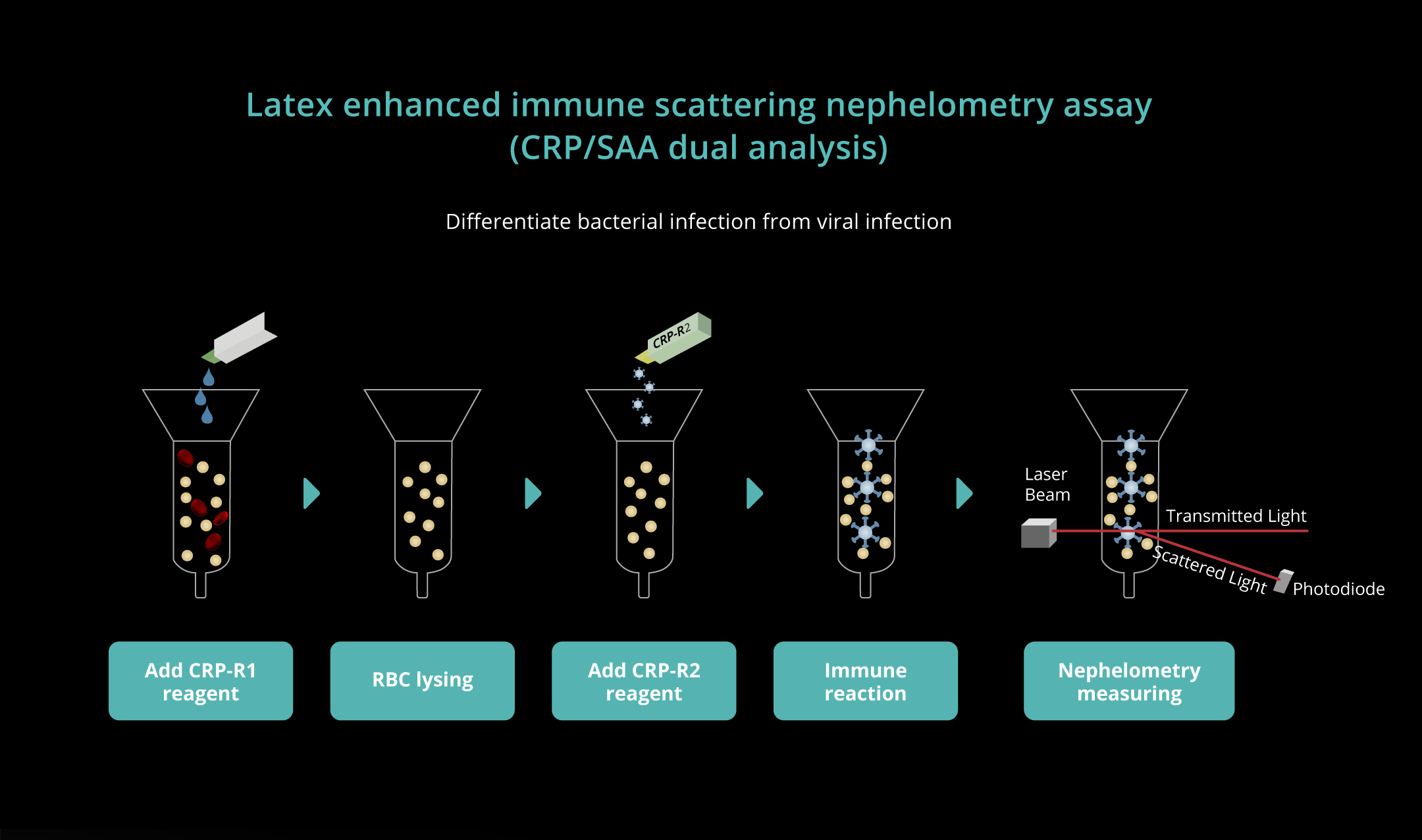

Latex-enhanced immunonephelometric assay: CRP / SAA

Linear range

WBC: 0-400 ×10⁹/L

RBC: 0-8.0 ×10¹²/L

HGB: 0-250 g/L

PLT: 0-4000 ×10⁹/L

Precision

WBC ≤2.5%

RBC ≤1.5%

HGB ≤1.0%

HCT ≤1.5%

PLT ≤4.0%

Sample type

Venial blood, Peripheral blood, Pre-dilution blood, Serum / Plasma

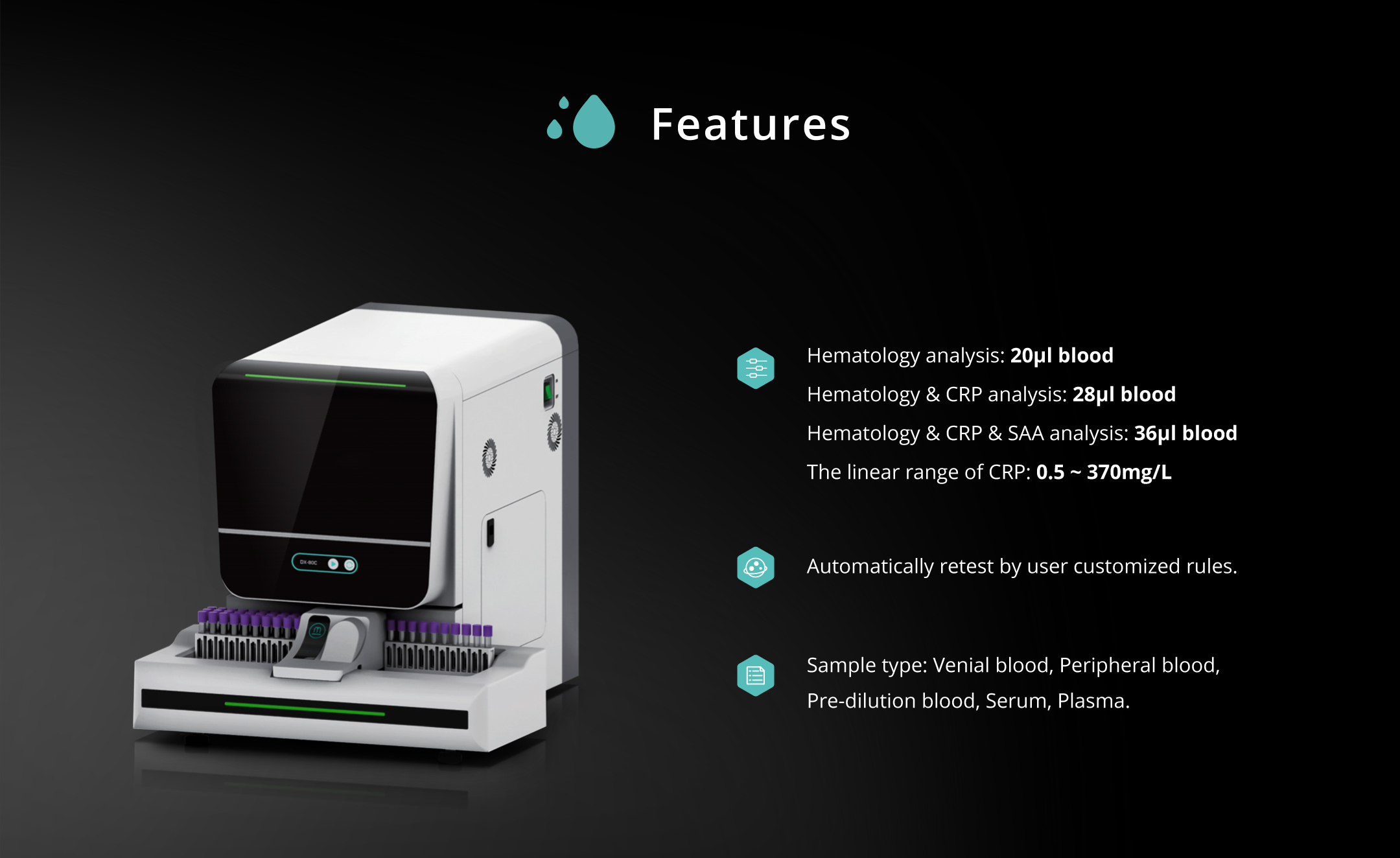

Sample volume

CBC+DIFF: 20μL

CBC: 20μL

Pre-dilution mode: 20μL blood sample + 120μL Diluent (Auto-dispensing)

Pre-dilution mode

Auto-dispensing of diluent

Sample loading

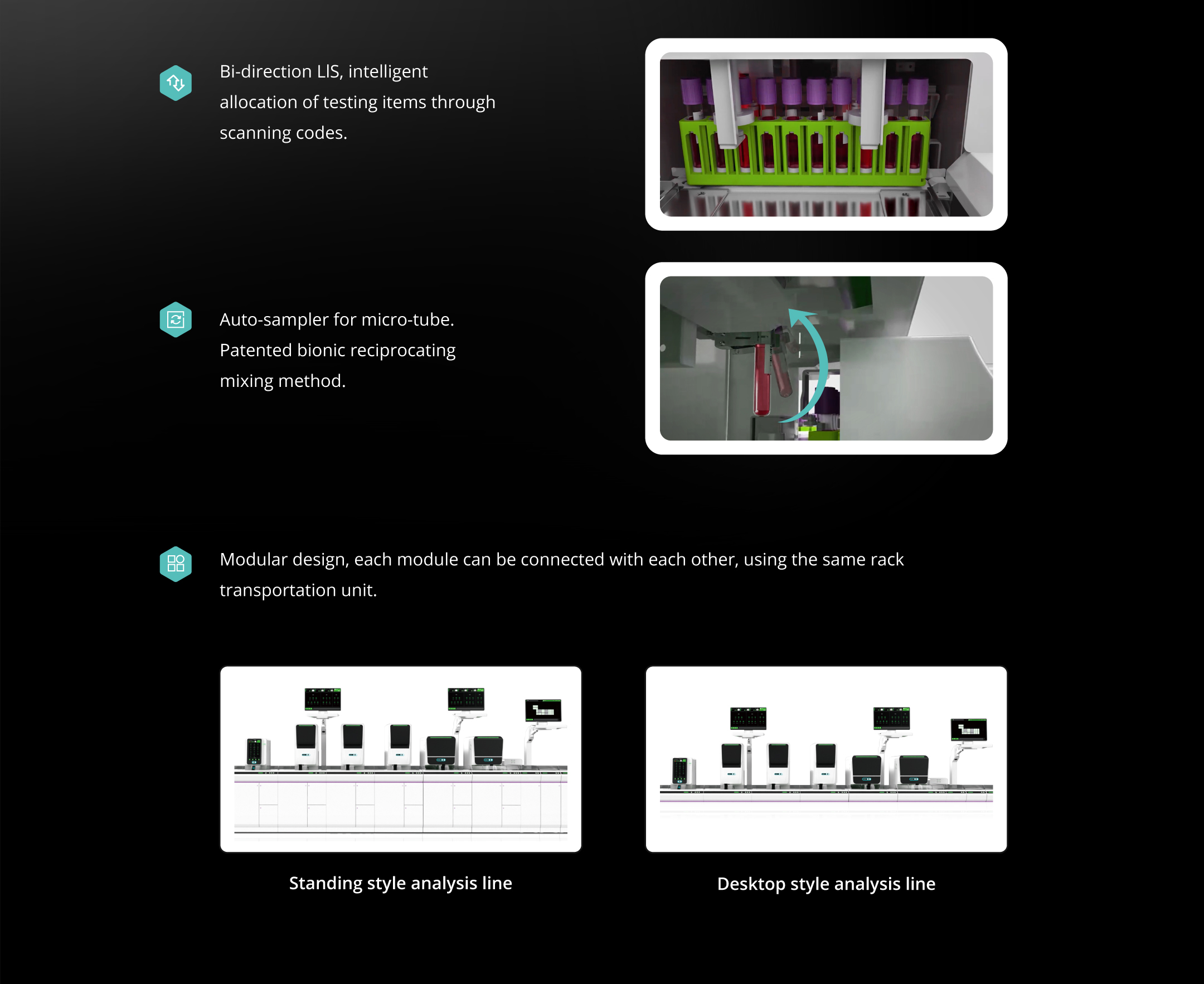

Auto-sampler for venous blood samples (normal tube with cap)

Auto-sampler for fingerstick blood samples (micro-tube)

Manual mode for priority access

Capacity of sample loader

5 racks, 10 samplers / rack

Language

Chinese / English

LIS transfer and Data storage

Supports bidirectional LIS function, Data result storage capacity ≥ 100,000 records

QC mode

Three quality control methods: L-J, X-Bar, X-BarM floating mean quality control

Retest function

Automatically retests the abnormal samples at local machine or other machines on the same workstation.

Retest function can be switched off by users.

Retesting criteria is editable.

Air-Compressor

Built-in air source

Operation

External computer

Operating environment

Temperature: 15℃ ~ 30℃, Humidity: 30% ~ 85%, Atmospheric pressure 70 KPa–106 KPa

Power requirement

100 V ~ 240 V, 50 Hz / 60 Hz

Dimension (W×D×H)

66 cm × 87 cm × 66 cm

Weight

≤ 70 KG
