Model

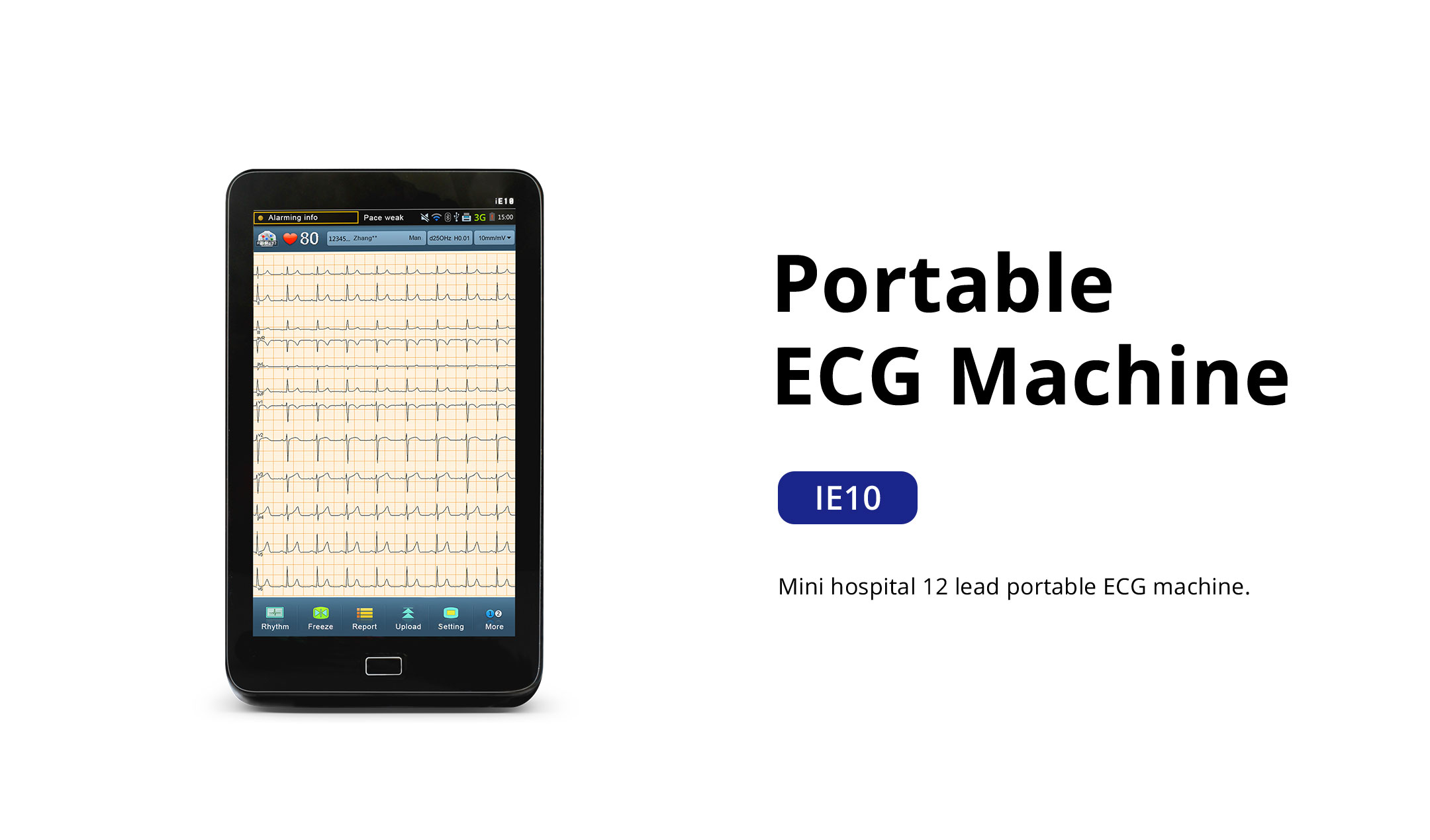

IE10

Power supply

AC / DC

AC / DC power supply

100 V ~ 240 V, 50 Hz / 60 Hz, 12 W

Battery power supply

Rechargeable lithium battery, 3.7 V, 5800 mAh

Battery capacity

Support more than 4.0 hours for continuous operation

Battery charge time

Approximately 4 hours from total discharge

Dimensions

194 mm × 117 mm × 25 mm

Net weight

About 0.5 kg

ECG interpretation

CardioPro ECG analysis program for adults and pediatrics

Acquisition mode

Simultaneous standard 12-lead in pre-acquisition or post-acquisition

A/D conversion

24 bit

Sampling rate

1,000 samples/s

Dynamic range

± 9 mV

Frequency response

0.01 Hz ~ 250 Hz

Common mode rejection

> 115 dB

Input circuit

Floating circuit input

Input impedance

≥ 50 MΩ

Input CIR current

≤ 0.1 μA

Patient leakage current

< 10 μA

Time constant

≥ 3.2 s

Noise level

< 15 μVp-p

Sensitivity threshold

≤ 20 μVp-p

Calibration voltage

1 mV ± 5 %

Sensitivity

Eight levels as (1.25, 2.5, 5, 10, 20, 10/5, 20/10) mm/mV

Filter setting

EMG filter: 25 / 35 / 75 / 100 / 150 / 250 Hz

Baseline wander filter: 0.01 / 0.02 / 0.05 / 0.35 / 0.5 / 0.8 Hz

AC filter

50 Hz, 60 Hz

Heart rate range

30 ~ 300 bpm

Special acquisition functions

Lead-off detection, lead overflow, AC interference, baseline wander interference, EMG interference

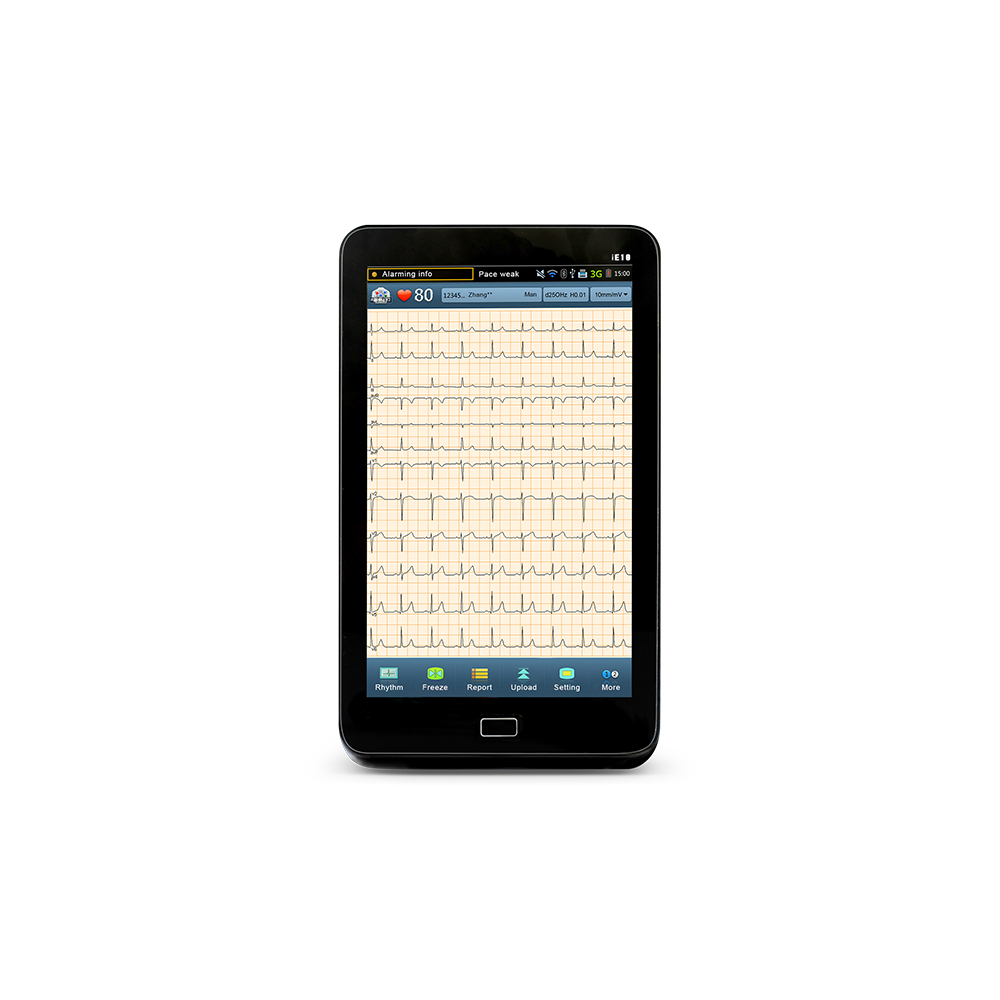

Display type

7 inch LCD with touch screen

Display resolution

1280 × 800

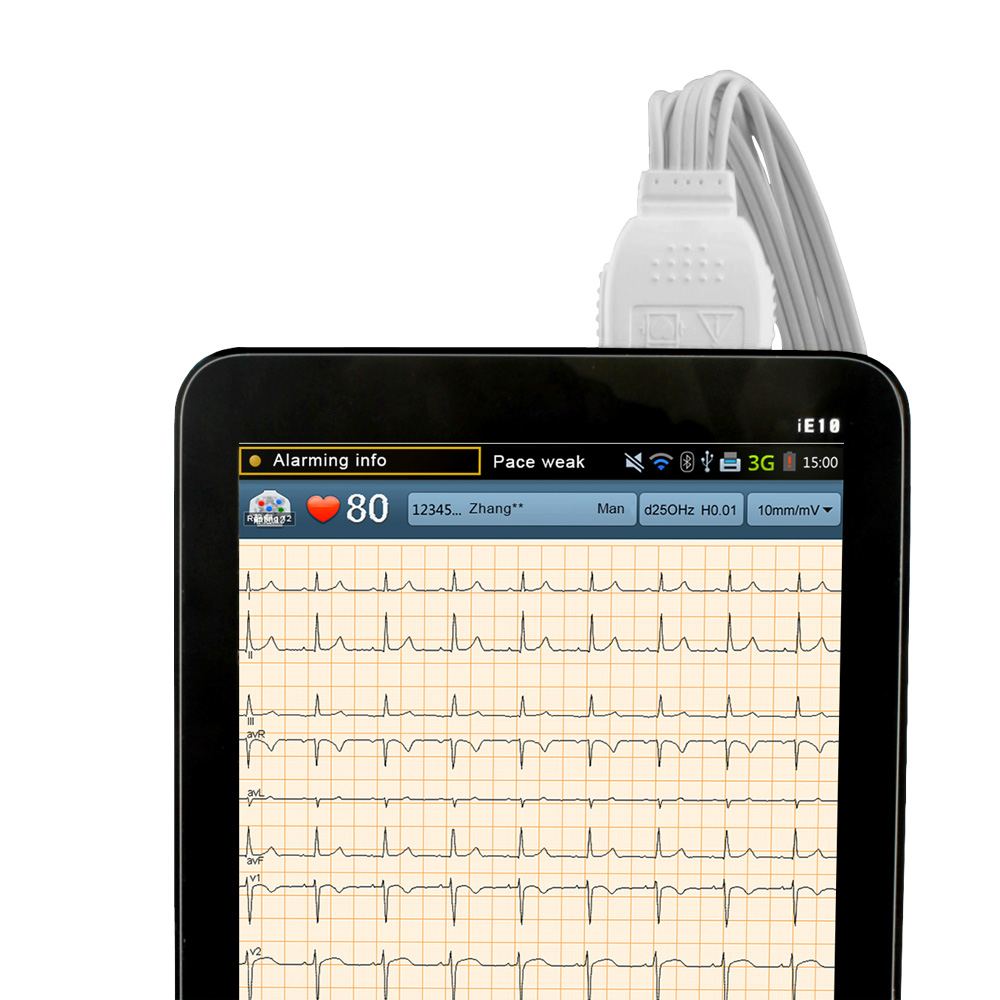

Display data

Waveforms, heart rate, lead connection, clock, record mode, filters, sensitivity, system prompt,
alarming messages, battery, power indicator, SD card label

Waveform display mode

6 × 2 + 1 R, 12 × 1

Recorder

Connect to an external Laser printer

Recorder speed

(6.25, 12.5, 25, 50) mm/s

Measurement and interpretation

Supports measurement and interpretation with CardioPro ECG analysis program
for adults and pediatrics

Measurement values

HR, PR interval, QRS duration, QT/QTC interval, P/QRS/T axis, RV5/SV1 voltage, RV5+SV1 voltage

Minnesota code

With newest Minnesota code

Working mode

Automatic mode, Manual mode, Upload mode

DEMO mode

Normal ECG, Arrhythmia ECG

Rhythm analysis

Single rhythm mode: 30 - 300 seconds

Three rhythms mode: 30 - 100 seconds for each lead

Extended printing in arrhythmia

Supports extended arrhythmia waveform printing in automatic mode

Waveform frozen

Supports 300 seconds of waveform frozen

Pacemaker detection

Weak, Normal, Enhance

Report auto-saved

Selectable auto-saved file

Report preview

Preview the report before printing

File format

JPEG, XML, DICOM, PDF, ECG

Alarming system

Voice and visual alarming for: lead off, low battery

Patient information setting

Record No., Name, Gender, D.O.B, Height, Weight, BP, Race, Pacemaker, Medication,
Accession No., Ref-physician, Technician, Physician, Room No., User-define

Language

Chinese, English

Local memory capacity

More than 3000 files

Report type

Simple report, Detail report, MVB report (media beat report)

Record format

3 × 4 + 1 R (H), 3 × 4 + 3 R (H); 6 × 2 + 1 R (VH), 12 × 1 (V/H)

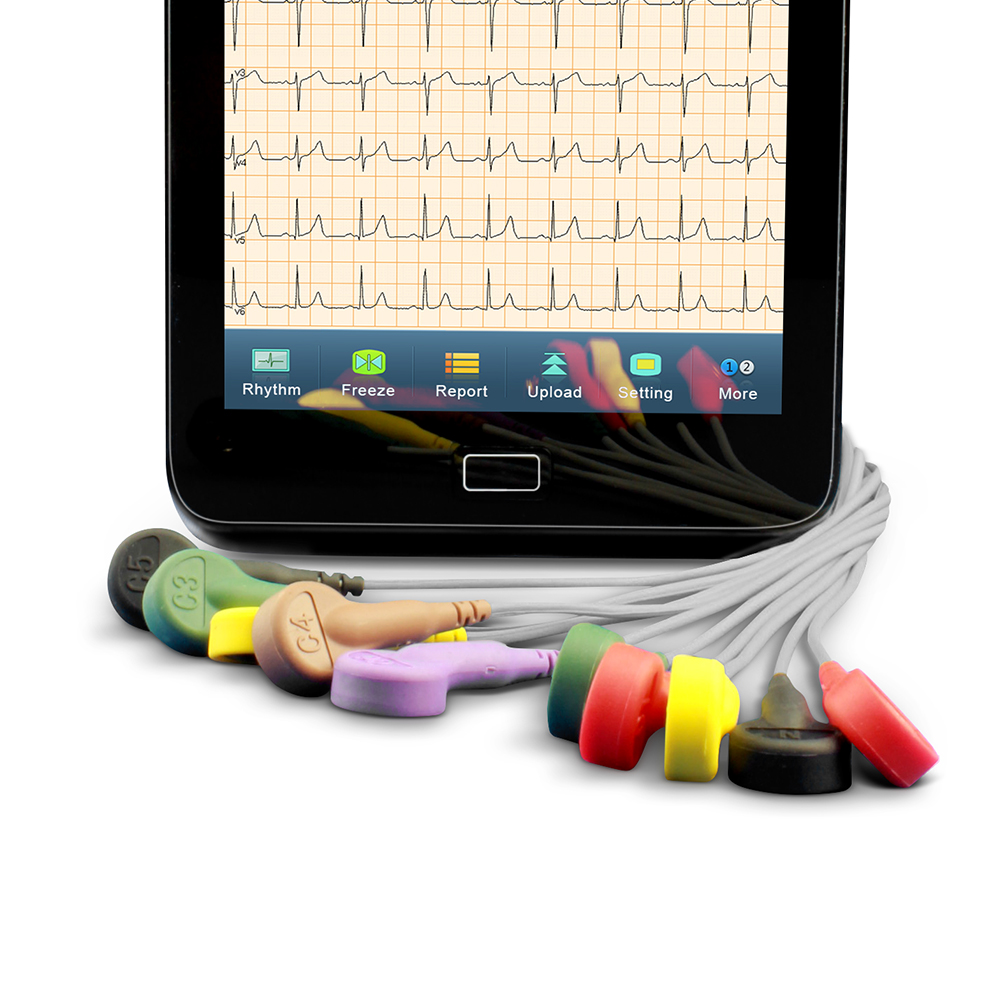

Patient cable socket

Connect to the patient cable

Micro SD card port

16 GB TF card for data transfer (optional)

USB ports

Unlimited USB flash disk for data transfer, barcode scanner for patient information input,
connect to an external printer.

Transportation

Environment temperature: - 20 ℃ ~ + 55 ℃

Relative humidity: ≤ 95 % (no condensation)

Air pressure: 70 kPa ~ 106 kPa

In accordance with the requirements stipulated in the contract order, the transport process
to prevent rain and sun.

Storage

Environment temperature: - 20 ℃ ~ + 55 ℃

Relative humidity: ≤ 95 % (no condensation)

Air pressure: 70 kPa ~ 106 kPa

The packaging of ECG stored in the non-corrosive gases and well-ventilated room.

Using

Environment temperature: + 0 ℃ ~ + 40 ℃

Relative humidity: ≤ 82 % (no condensation)

Air pressure: 70 kPa ~ 106 kPa
