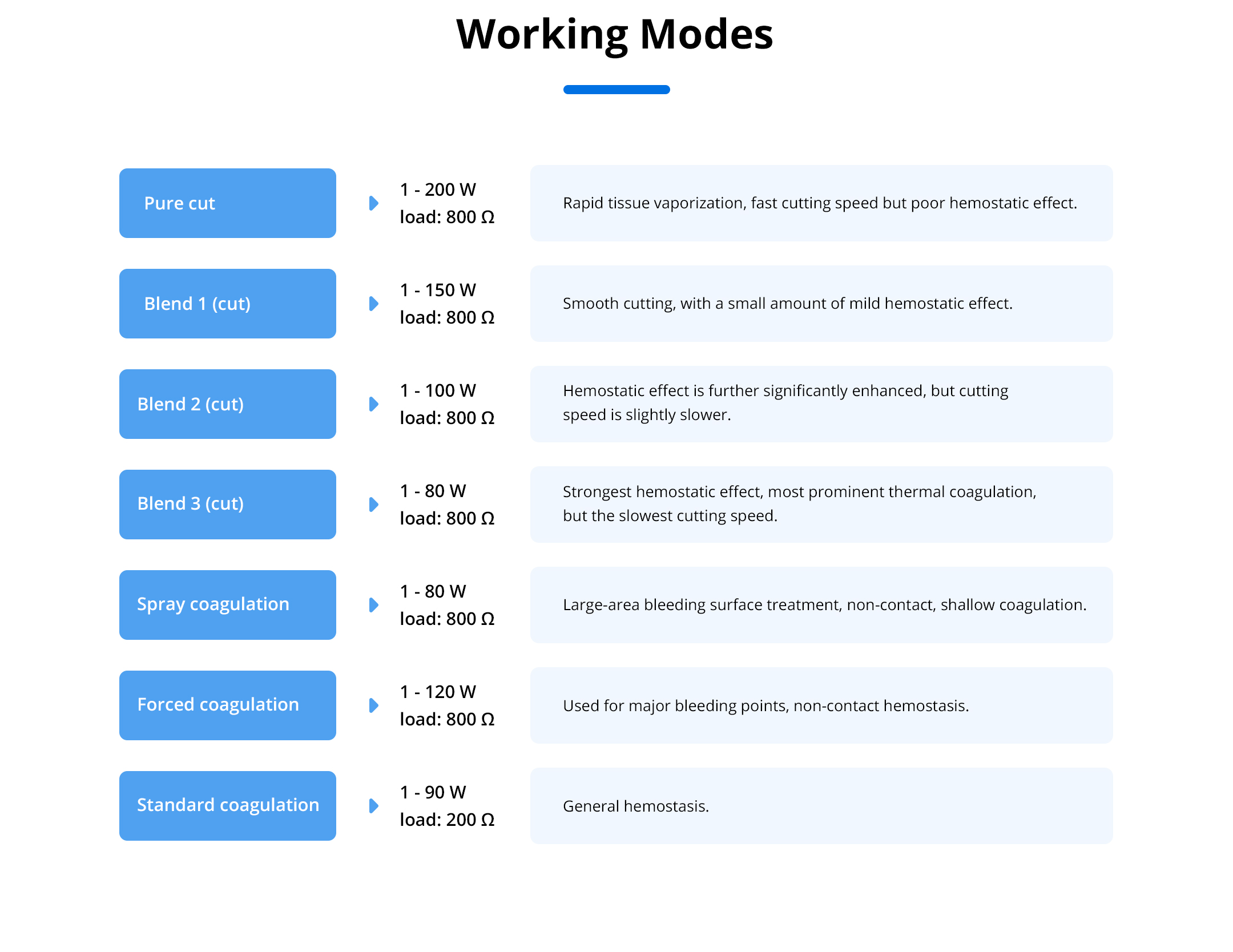

Working modes

Function

Modes

Output power (load)

V-PP

CF

Monopolar cut

Pure cut

1 - 200 W (load: 800 Ω‌)

2.6 KV

1.5

Blend 1

1 - 150 W (load: 800 Ω‌)

4 KV

1.8

Blend 2

1 - 100 W (load: 800 Ω‌)

4.2 KV

2.1

Blend 3

1 - 80 W (load: 800 Ω‌)

4 KV

2.7

Monopolar coagulation

Spray

1 - 80 W (load: 800 Ω‌)

5.3 KV

7.4

Forced

1 - 120 W (load: 800 Ω‌)

5 KV

3.8

Bipolar

Standard coag

1 - 90 W (load: 200 Ω‌)

350 V

1.6

Surgical smoke evacuation

Blowing rate

100 L/min (6 mm tube)

Start control

Manus / Foot / Synchronize

Suction adjust

10 % - 100 %

Stop delay time

0 - 60 s

AC Power

AC 90 - 250 V, 50 Hz

Power consumption

< 350 W

Filter characteristics

99.999 % (0.1 - 0.2 μm)

Active carbon

97% (1 year)

Basic parameters

Display

Digital dispaly

Dimensions

38 cm × 37 cm × 16 cm

Weight

9 kg

Input voltage

100 - 240 V - ± 10 %

Mains line frequency range

50 - 60 Hz

Power rating

1100 VA

Power consumption

≤ 1100 VA

Fuses (two)

5 A / 10 A

Working frequency

416 KHz

Monopolar RF leakage current

< 150 mA

Bipolar RF leakage current

< 50 mA

Ambient temperature range

5 ℃ - 40 ℃

Relative humidity

≤ 80 %

Atmospheric pressure

86 kPa - 106 kPa
