Specifications

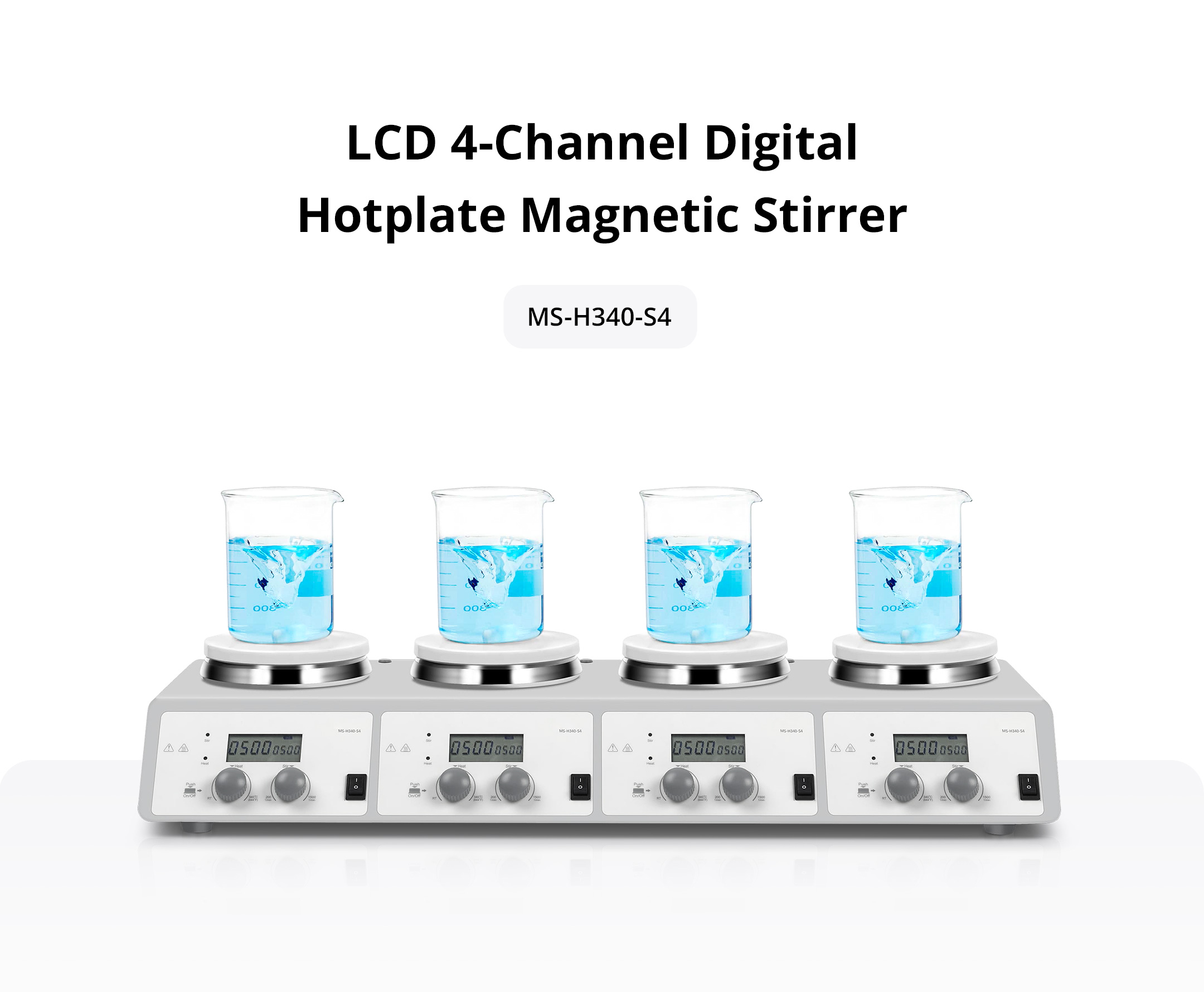

MS-H340-S4

Work plate dimension

Φ 135 mm (5 inch)

Plate material

Stainless steel with ceramic coating

Motor type

Brushless DC motor

Motor rating input

1.8 W × 4

Power

515 W × 4

Heating Power

500 W × 4

Voltage

100 ~ 240 V, 50 ~ 60 Hz

Stirring positions

4

Max. stirring quantity of single position (H₂O)

10 L

Max. magnetic bar

40 mm

Speed range

200 ~ 1500 rpm

Speed display

LCD

Temperature display

LCD

Control accuracy of sensor[rpm]

± 20

Temperature range

25 ~ 340 ℃

Over temperature protection

420 °C

Temperature display accuracy

± 0.1 °C

External temp. sensor

PT1000 (Accuracy ± 0.2 ℃)

IP protection class

IP 21

Dimensions (W x D x H)

698 × 270 × 128 mm

Weight

9.5 kg

Permissible ambient temperature

5 ~ 40 °C

Permissible relative humidity

80 % RH
