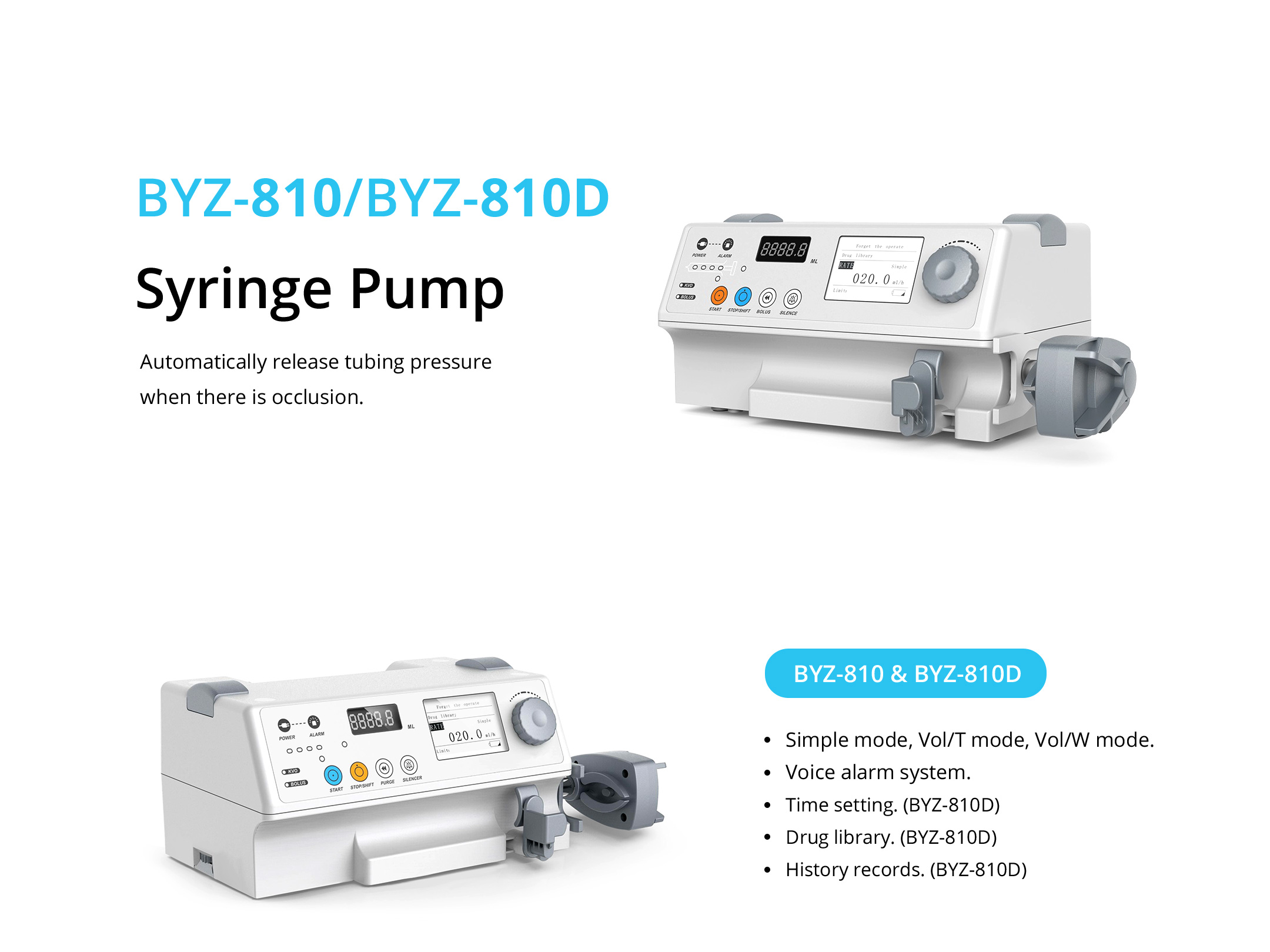

Syringe pump BYZ-810/810D
Product ID: MW84930
P/N: MW849301

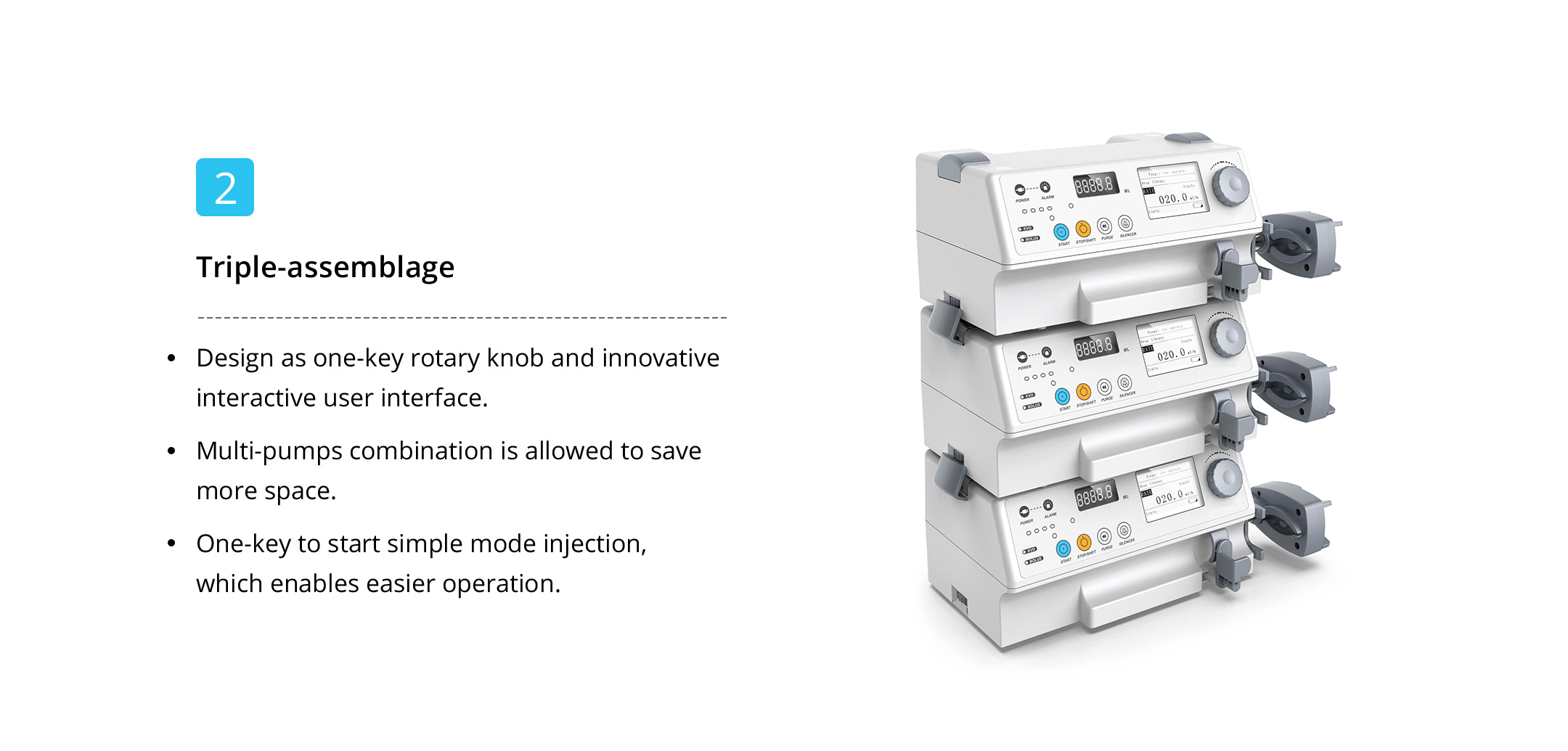

Portable design, triple-assemblage is available.
Monthly Promotion
Hot commodity
5% OFF
Discount ends in 00h : 00m : 00s
Model
BYZ-810
BYZ-810D
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/carton, 1 unit/carton
Recommend related products

Model

BYZ-810

BYZ-810D

Function

Voice alarm system

Simple mode

Vol/T mode

Vol/W mode

Voice alarm system

Simple mode

Vol/T mode

Vol/W mode

Time setting

Drug library

History records

Applicable syringe size

10 ml, 20 ml, 30 ml, 50 / 60 ml

Rate

10 ml: 0.1 ~ 300 ml,    30 ml: 0.1 ~ 900 ml,

20 ml: 0.1 ~ 600 ml,   50 / 60 ml: 0.1 ~ 1500 ml

Bolus rate & volume

10 ml: 0.1 ~ 240 ml/h       0.1-5 ml

20 ml: 0.1 ~ 480 ml/h       0.1-10 ml

30 ml: 0.1 ~ 720 ml/h       0.1~10 ml

50 / 60 ml: 0.1 ~ 1200 ml/h   0.1~10 ml

KVO Rate

0.1 ~ 5.0 ml/h

VTBI (Volume to be injected)

0.1 ~ 9999.9 ml

Cumulative volume

0.1 ~ 9999.9 ml

Injection accuracy

Within ± 3% (after calibration)

Anti-Bolus

Automatically release tubing pressure when there is occlusion.

Alarms information

Injection finished, soon finish, injection is blocked, syringe falls off, syringe installation error, forgotten operation, low battery, battery runs out, abnormal running state, equipment failure, system power down etc.

Power source

Three options for power supply:

First: 100 - 240 VAC, 50 / 60 Hz.

Second: Inserted Li-battery 11.1 V, capacity 21800 mAh, 4 hours backup time at the rate of 5ml/h for a fully charged battery.

Third: External DC 12 V power supply.

Connector

DC12 V

Drug library

Up to 500 drugs are provided.

Dimensions

270 mm (L) x 210 mm (W) x 121 mm (H)

Syringe pump BYZ-810/810D
Please select the sample parameters
Model
BYZ-810
BYZ-810D
