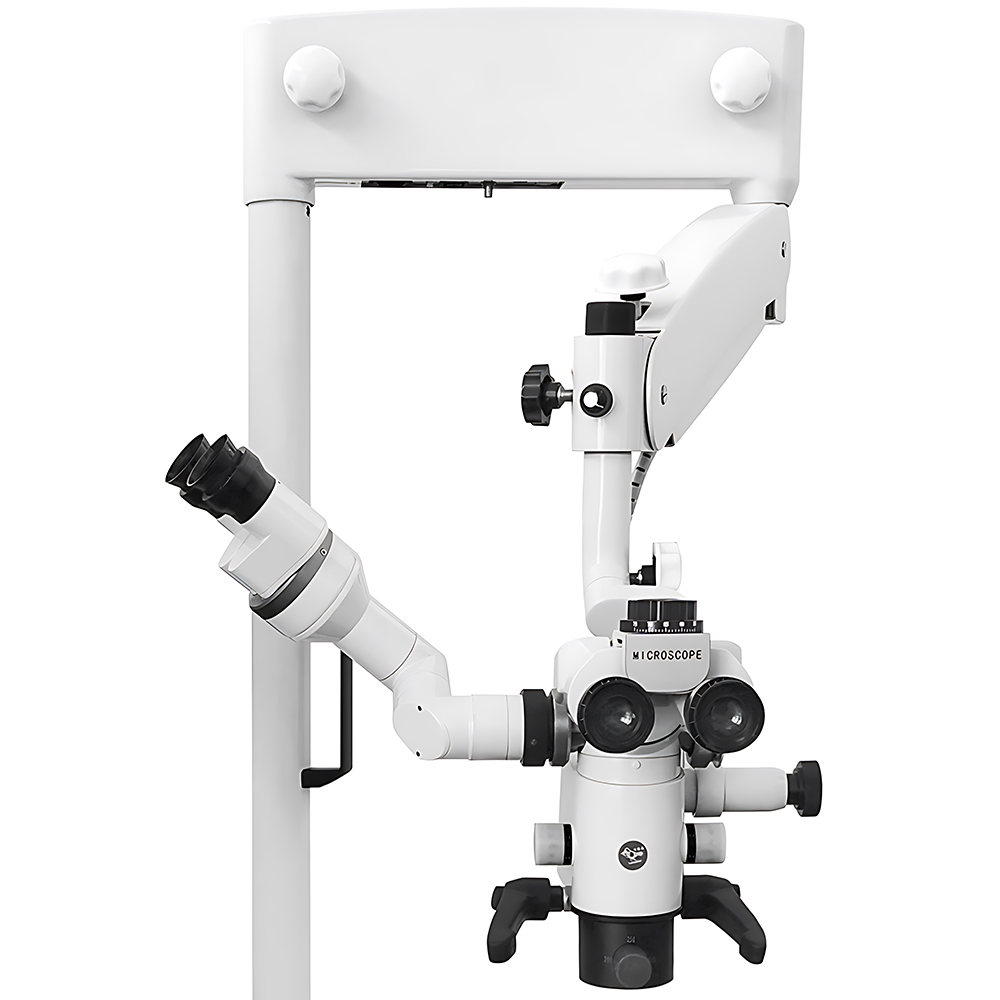

Microscope

Binocular tube

The adjustable binocular tube with 0 - 180° optics hinges angle

Binocular tube foci

F = 170 mm

Binocular tube rotating disc type adjuster of PD

The range: 50 mm ~ 80 mm

The diameter of vision filed

Φ66 mm ~ Φ10.4 mm

Eyepiece magnification

12.5X / 18B

Adjustable range of vision degree

±6 D

Zoom method

Five-step drum wheel magnification zoom (magnification: 3.4X, 5.1X, 8.3X, 13.5X, 20.5X) / Continuous zoom

Zoom objective working distance

250 mm ~ 400 mm

Zoom objective adjustable range

150 mm

Illumination

LED illuminance, object plane illuminace (F = 250), the max illuminance ≥ 30000 lx ~ 60000 lx, adjustable brightness, with automatic power-off switch

Diameter of illuminating light spot (F250)

Φ85 mm

Filter adjuster

Yellow and green filter, heat filter

Movable floor stand frame

Constitute

Base, column, big cross arm (510 mm), small cross arm (620 mm)

The spread length of total arm

1350 mm

The spread height of total arm

1750 mm

The range of up-down

≥ 350 mm

Balance arm

120° balancing arm with damping, freely rotate to any position with damping
