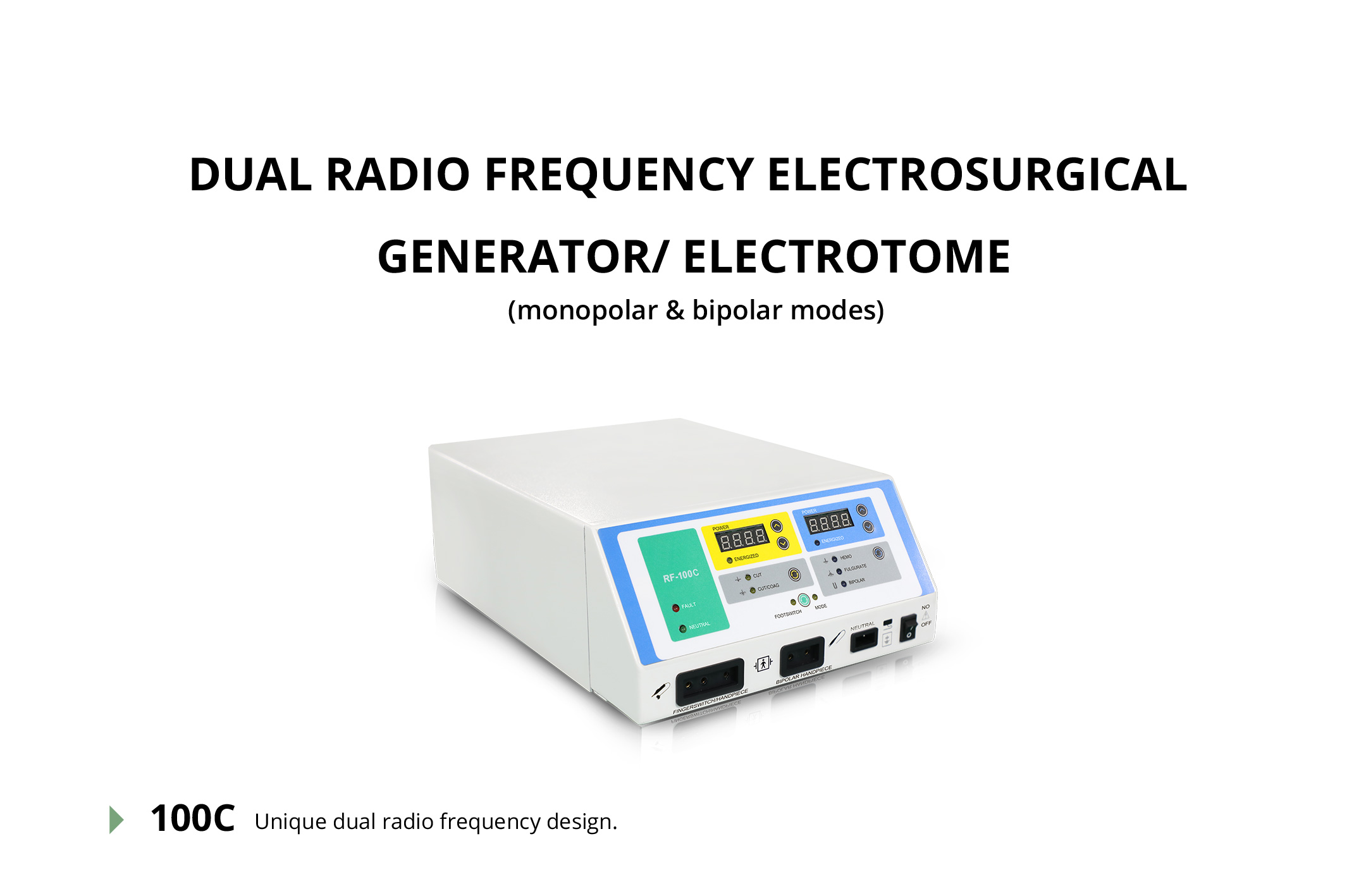

Model

100C series (100C)

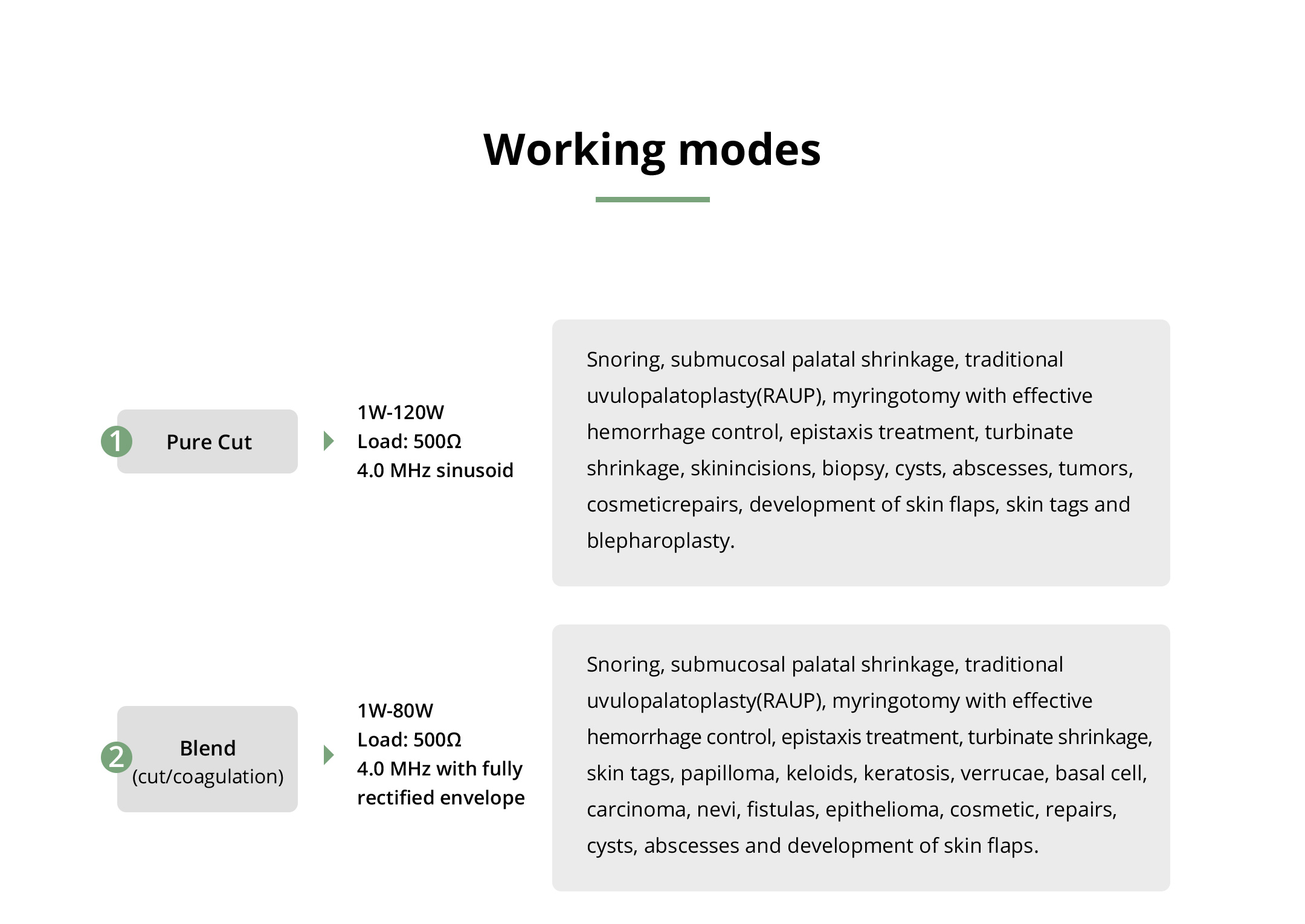

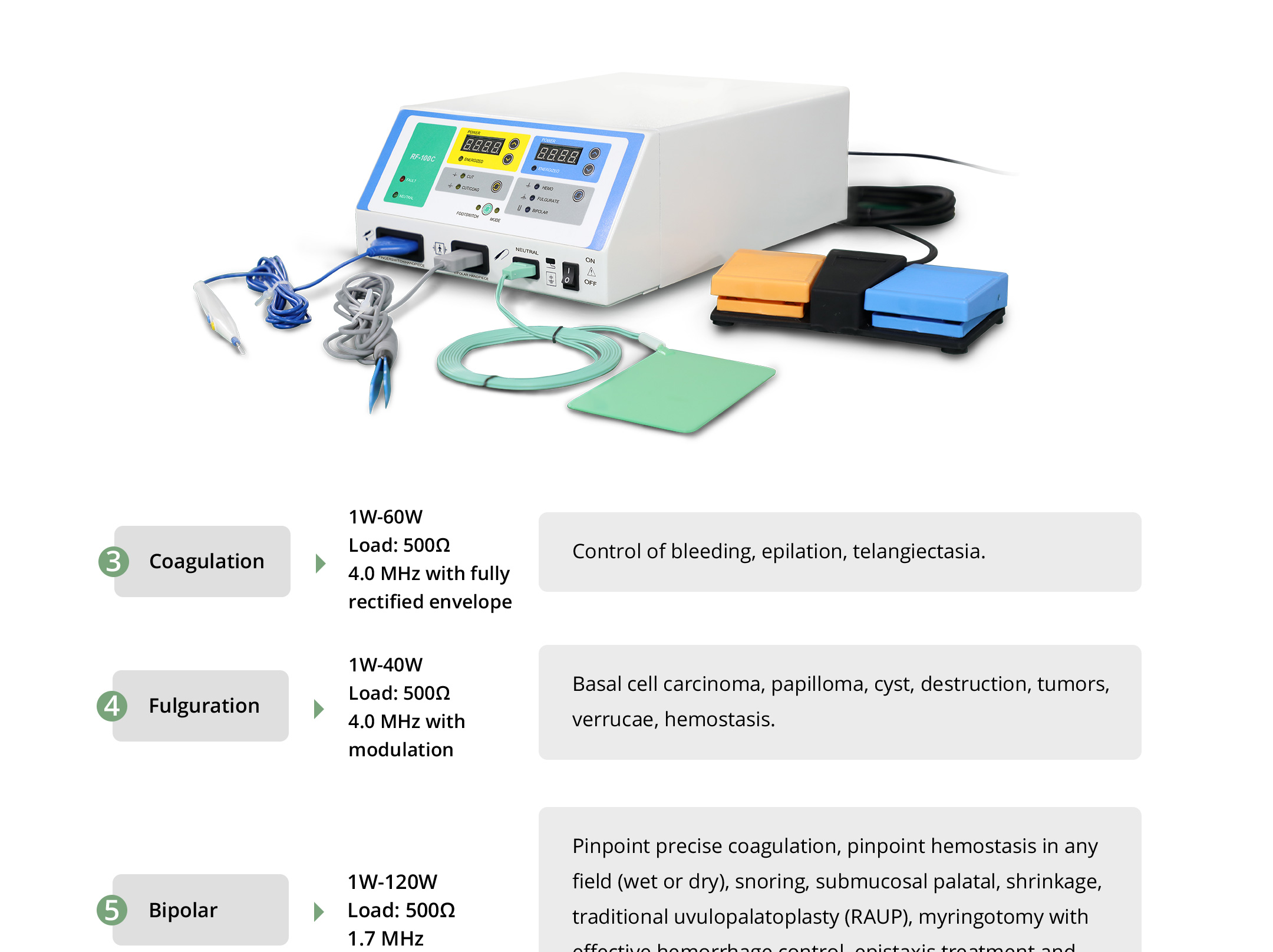

Working modes

Pure cut: 1 ~ 120 W (load: 500 Ω)

Blend: 1 ~ 80 W (load: 500 Ω)

Coagulation: 1 ~ 60 W (load: 500 Ω)

Fulguration: 1 ~ 40 W (load:500 Ω)

Bipolar: 1 ~ 120 W (load: 200 Ω)

Operating ambient temperature

5 ℃ ~ 40 ℃

Relative humidity range

30 % ~ 75 %

Atmosphere pressure range

50.0 ~ 106.0 kPa

Power supply

120 / 230 V, 60 / 50 Hz

Working frequency

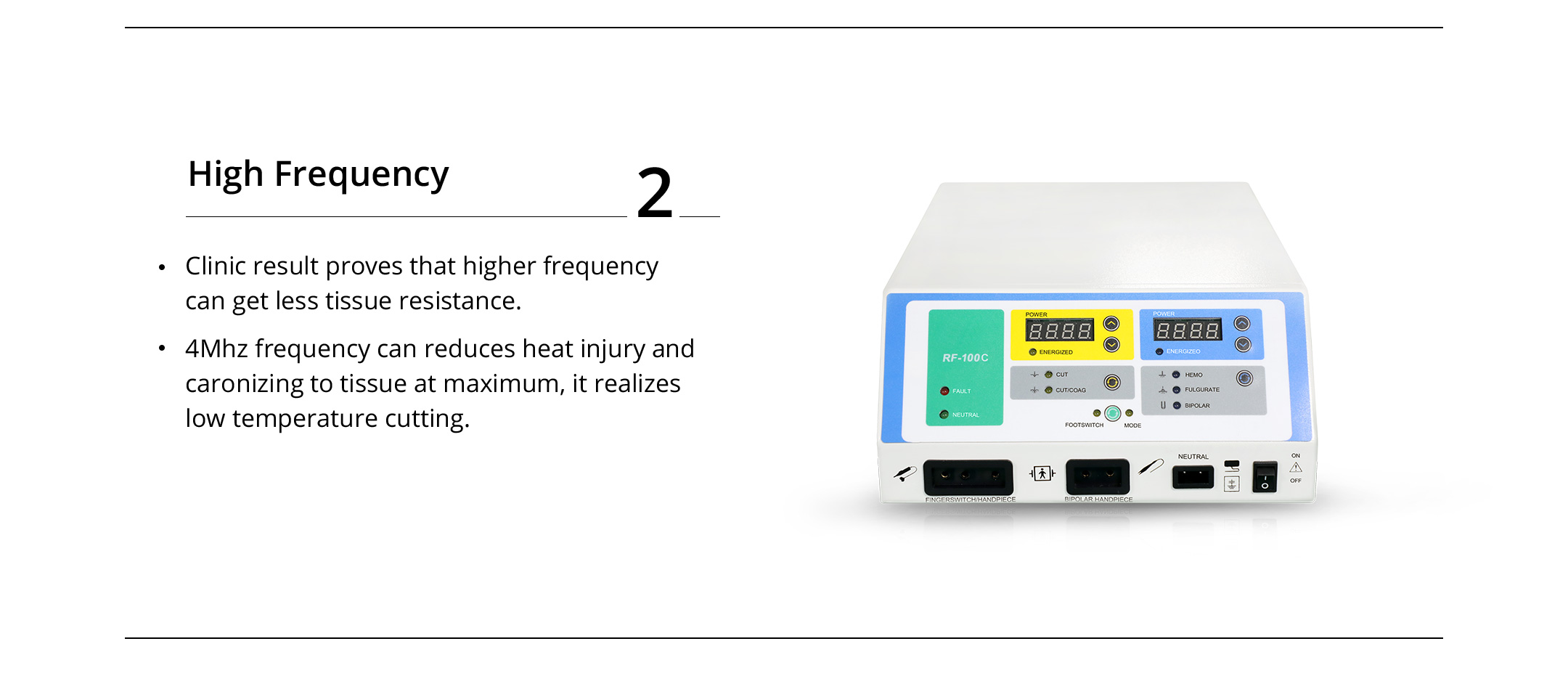

4.0 MHz, 1.7 MHz

Equipment rated power

400 VA

Leakage currents to ground

Less than 0.5 mA

Leakage currents to patient

Less than 0.01 mA

 Size (L × W × H)

34 cm × 23.5 cm × 10.6 cm

Weight

8.2 kg

Packing

1 unit/carton
