Test items

Physical parameter module:

Specific gravity, Color, Clarity.

Dry chemistry module:

Urobilinogen (UBG), Bilirubin (BIL), Ketone (KET), Blood (BLD), Protein (PRO), Nitrite (NIT), Leukocyte (LEU), Glucose (GLU), Specific gravity (SG), pH (pH), Ascorbic Acid (VC), Microalbumin (MAL), Creatine (CREA), Calcium (CA).

Sediment module:

Normal RBC, Standing RBC, Dysmorphic RBC, Normal WBC, WBCC, Pus Cell, Hyaline Cast, Granular Cast, WBC Cast, Squamous Epithelial Cell, Normal Epithelial Cell, Sperm, Calcium Crystal, Oxalate Crystal Bacteria, Yeast, Amorphous Urates, Mucus, etc.

Sampling method

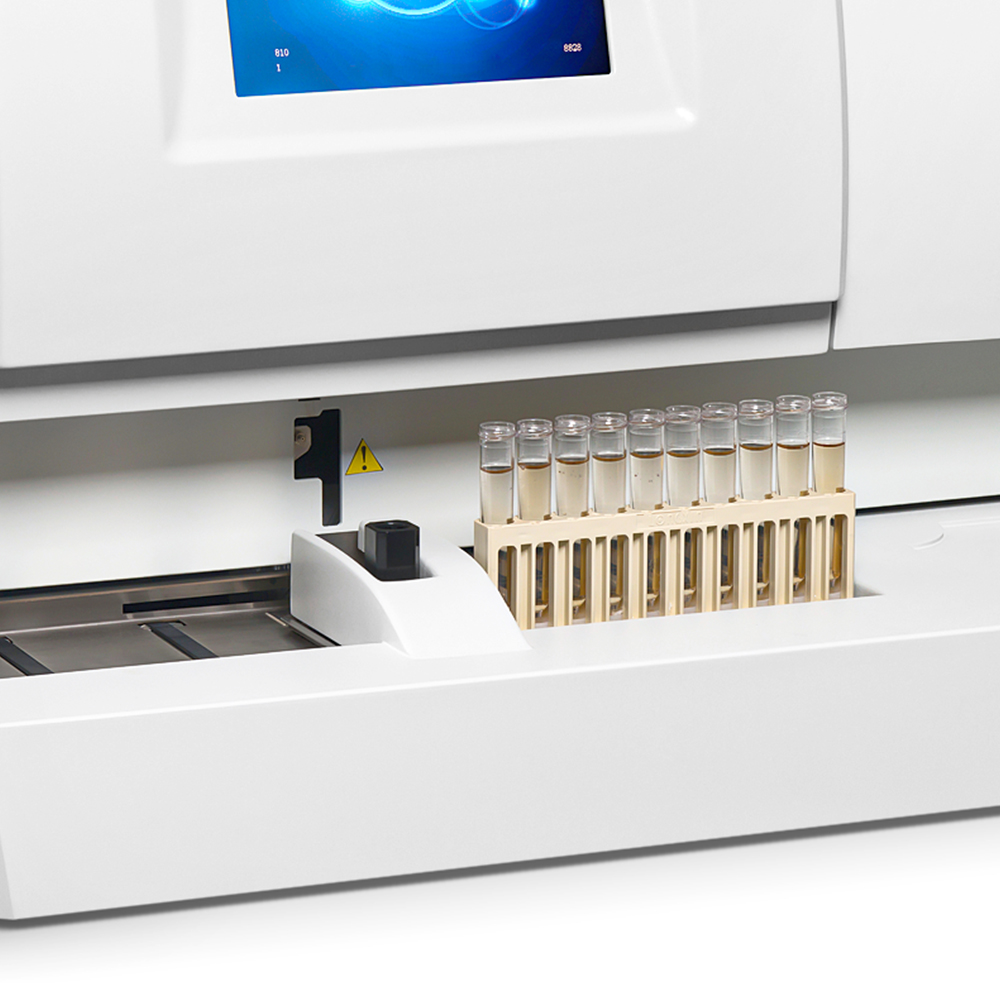

Fully automatic rail-based sample loading.

Counting chamber

4 channels quantitative flow counting chamber.

Throughput

Up to 120 samples / hour

Repeatability

Dry chemistry CV ≤ 1%, Sediment CV ≤ 12%

Accuracy

≥ 95% Auxiliary with manual judgement.

Contamination rate

≤ 0.05%

Sensitivity

≥ 5 cells / ul

Urine sample

Suggest 5 - 10 ml (min 2.5 ml)

Test quantity

Up to 60 tests / load

Capacity of strip container

200 pcs

Data storage

200,000 results

Test strip

Urine strip 10, 11, 12, 14 parameters.

Data interface

Socket communication, direct reading database, intermediate text file, network communication, RS232.

Dry chemistry

Qualitative or semi quantitative result.

Sediment

Picture-test report presented.

Working environment

+18℃ ~ 30℃

Power

AC 110 / 230 V, 50 / 60 Hz

Dimensions (L×W×H)

830×550×550 mm

Weight

80 kg

Printer

Optional
