Model

A8-1

A8-2

Water supply

Bottle and external access

Bottle

Handpiece

LED detachable handpiece

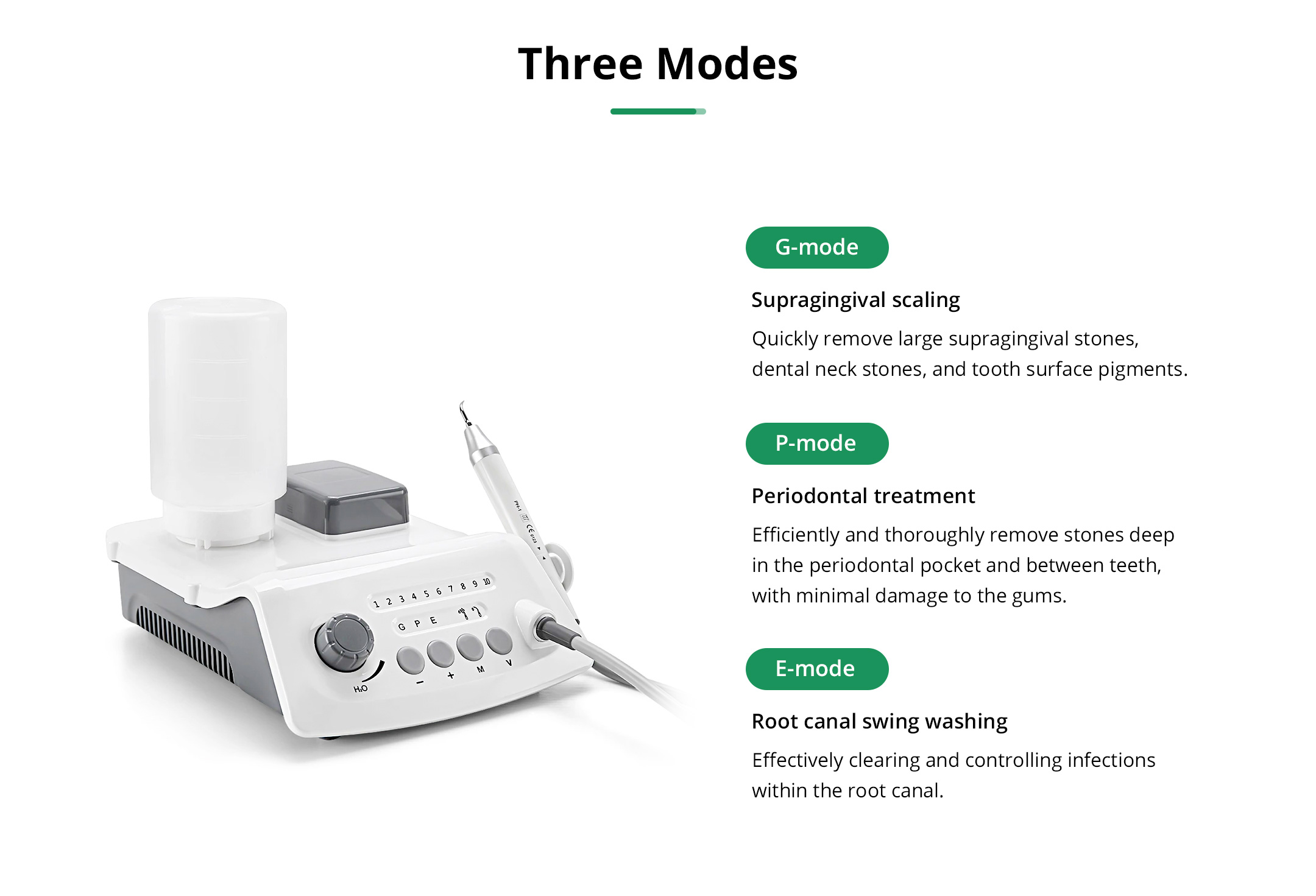

Treatment mode

Scaling & Perio & Endo

Control mode

Wireless foot control

Receiving sensitivity

-114dB

Receive frequency

2.4G ~ 2.5G

Tip vibration frequency

25kHz ~ 31kHz

Tip amplitude

Minimum

1μm

Maximum

100μm

Deviation

± 50%

Half deflection force

Minimum

0.1N

Maximum

2N

Deviation

± 50%

Input voltage

100V ~ 240V, 50Hz/60Hz

Input power

30VA ~ 48VA

Ultrasonic output power

3W ~ 20W

Water pressure

0.1bar ~ 5bar (0.01MPa ~ 0.5MPa)
