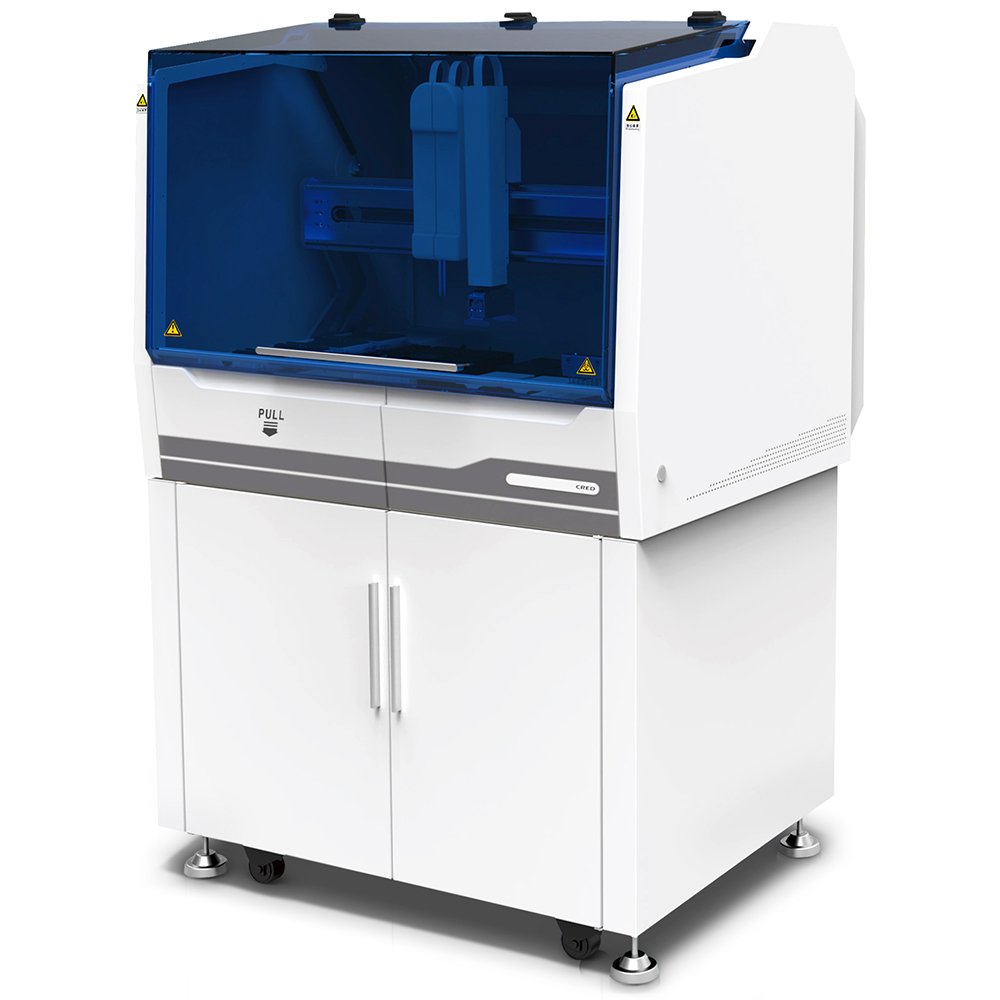

Model

HB-300E

Detection ability

576 tests at one time

Sample capacity

128 samples can be loaded at once, supporting continuous sample loading

Reagent positions

28 reagent positions, or support original bottle customization

Sampling module

2 sampling channels, disposable tips, zero cross contamination

Microplate position

6 independent oscillation incubation positions

Microplate washing machine

With a 16-channel, 32-needle microplate washer (2 washing positions)

Sample tube type

Original collection tubes or Sample cups

Barcode scanning

Handheld barcode gun (optional)

Pre-dilution

The sample can be pre-diluted

Liquid level detection

With independent and highly sensitive liquid level detection function

LIS / HIS communication

Support LIS / HIS communication

Operating environment

Temperature: 15 ℃ ~ 30 ℃  Humidity: 30 % ~ 70 %

Power requirement

100 V ~ 240 V, 50 Hz / 60 Hz

Dimension (L × W × H)

105 cm (L) × 86 cm (W) × 155 cm (H)

Weight

100 KG
