Biological microscope L3200B (Trinocular, Quintuple objectives)
Overview
Details & Parameters
Chat Now

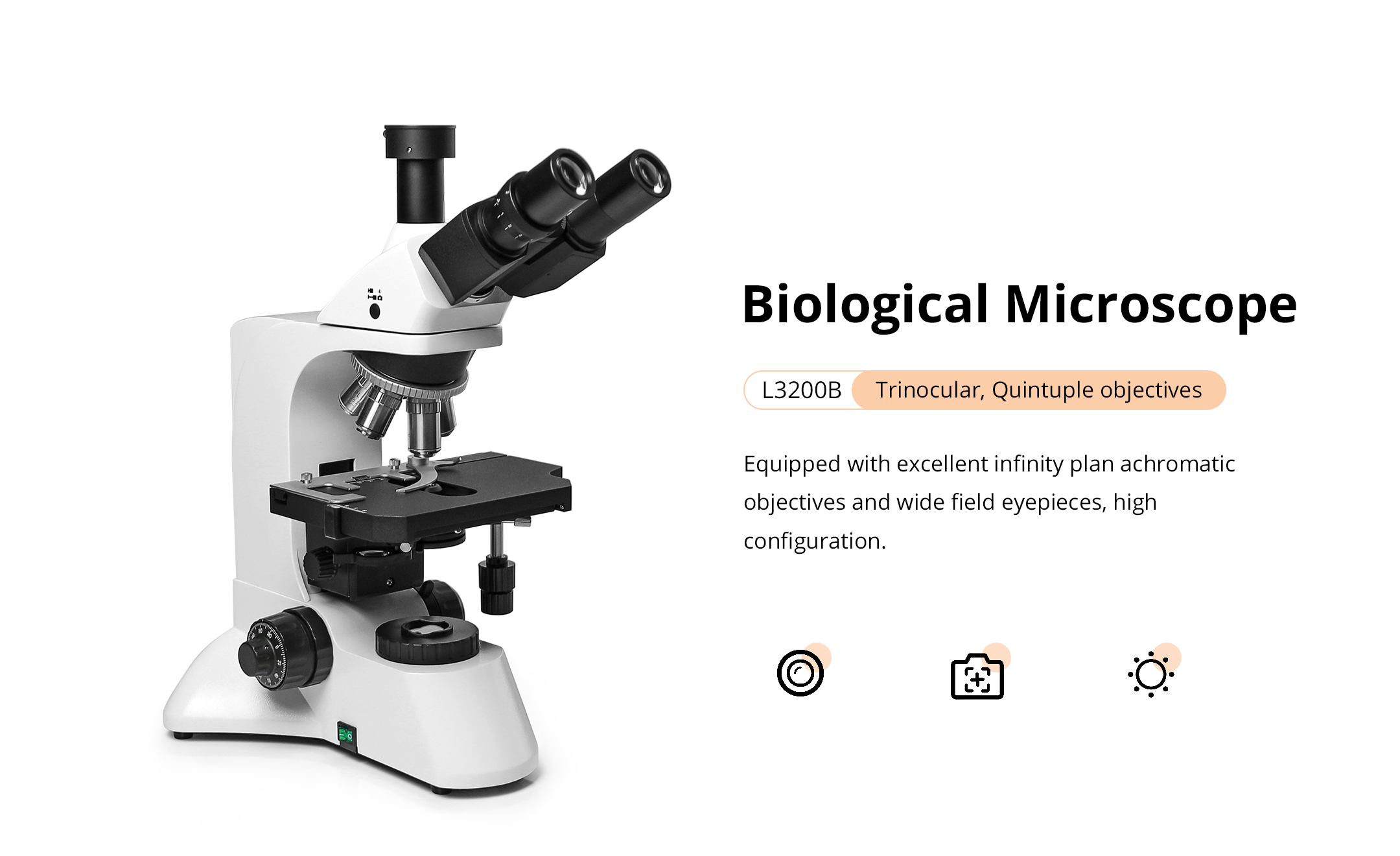

Biological microscope L3200B (Trinocular, Quintuple objectives)
Product ID: MX58824
P/N: MX588241
Equipped with excellent infinity plan achromatic objectives and wide field eyepieces, high configuration.
Model
L3200B
Optional accessoriesMultiple choices available
Selected ( 0 )
Quantity
Please note:
unit ( MOQ:  1 unit )
1 unit/pack, 1 pack(s)/carton
Medmay QRS Quickly meets your needs
Recommend related products
Centrifuge
Microscope
Moisture Analyzer/Meter
Microscope Slides & Cover Glass
Universal Pipette Tips
Reagent Bottle
Low-speed centrifuge DM0412
$ Inquiry after Sign-In
Low-speed centrifuge TD4
$ Inquiry after Sign-In
Low-speed centrifuge (Model: Nextspin)
$ Inquiry after Sign-In
Low-speed centrifuge TDZ4
$ Inquiry after Sign-In
High-speed Micro centrifuge D3024
$ Inquiry after Sign-In
High-speed medium capacity centrifuge KBH-16000
$ Inquiry after Sign-In
High-speed Micro centrifuge TG16A-WS
$ Inquiry after Sign-In
Low-speed refrigerated medium capacity centrifuge HBL-6500R
$ Inquiry after Sign-In
High-speed refrigerated Micro centrifuge D1524R
$ Inquiry after Sign-In
High-speed refrigerated multi-capacity centrifuge TGL20
$ Inquiry after Sign-In
Low-speed refrigerated multi-capacity centrifuge DL5M
$ Inquiry after Sign-In
Low-speed Mini centrifuge D1008
$ Inquiry after Sign-In
High-speed Mini centrifuge (model: SmartPro)
$ Inquiry after Sign-In
High-speed Mini centrifuge D2012plus
$ Inquiry after Sign-In
Low-speed refrigerated large capacity centrifuge LC-456R
$ Inquiry after Sign-In
High-speed refrigerated large capacity centrifuge GL12
$ Inquiry after Sign-In
High-speed refrigerated large capacity centrifuge GL-21M
$ Inquiry after Sign-In
Economical hematocrit centrifuge DM1224
$ Inquiry after Sign-In
Blood group ID centrifuge / Gel card centrifuge
$ Inquiry after Sign-In
Cell smear centrifuge TXD3
$ Inquiry after Sign-In
Low-speed refrigerated large capacity centrifuge DL-6MB
$ Inquiry after Sign-In
Microplate centrifuge MPC2800
$ Inquiry after Sign-In
Multi-Purpose low-speed centrifuge DM0636
$ Inquiry after Sign-In
Hematocrit centrifuge DM1424
$ Inquiry after Sign-In
Cell washing / Immunohematology centrifuge TDZ4C
$ Inquiry after Sign-In
Low-speed large capacity centrifuge MC1012
$ Inquiry after Sign-In
Low-speed centrifuge XZ-6
$ Inquiry after Sign-In
Classic economical low-speed centrifuge 80-1
$ Inquiry after Sign-In
Classic hematocrit centrifuge SH120
$ Inquiry after Sign-In
Low-speed refrigerated medium capacity centrifuge MC2011
$ Inquiry after Sign-In
Microplate centrifuge HPC2500
$ Inquiry after Sign-In
Cell smear centrifuge / Cytocentrifuge
$ Inquiry after Sign-In
Low-speed medium capacity centrifuge TD5
$ Inquiry after Sign-In
High-speed Micro centrifuge TGW16
$ Inquiry after Sign-In
Product Details
Parameters

Model

L3200B

Objective

Infinity plan achromatic objectives: 4X, 20 X, 10X, 40X (S), 100X (S, Oil)

Eyepieces

Wide field WF10X (Φ 22 mm)

Viewing head

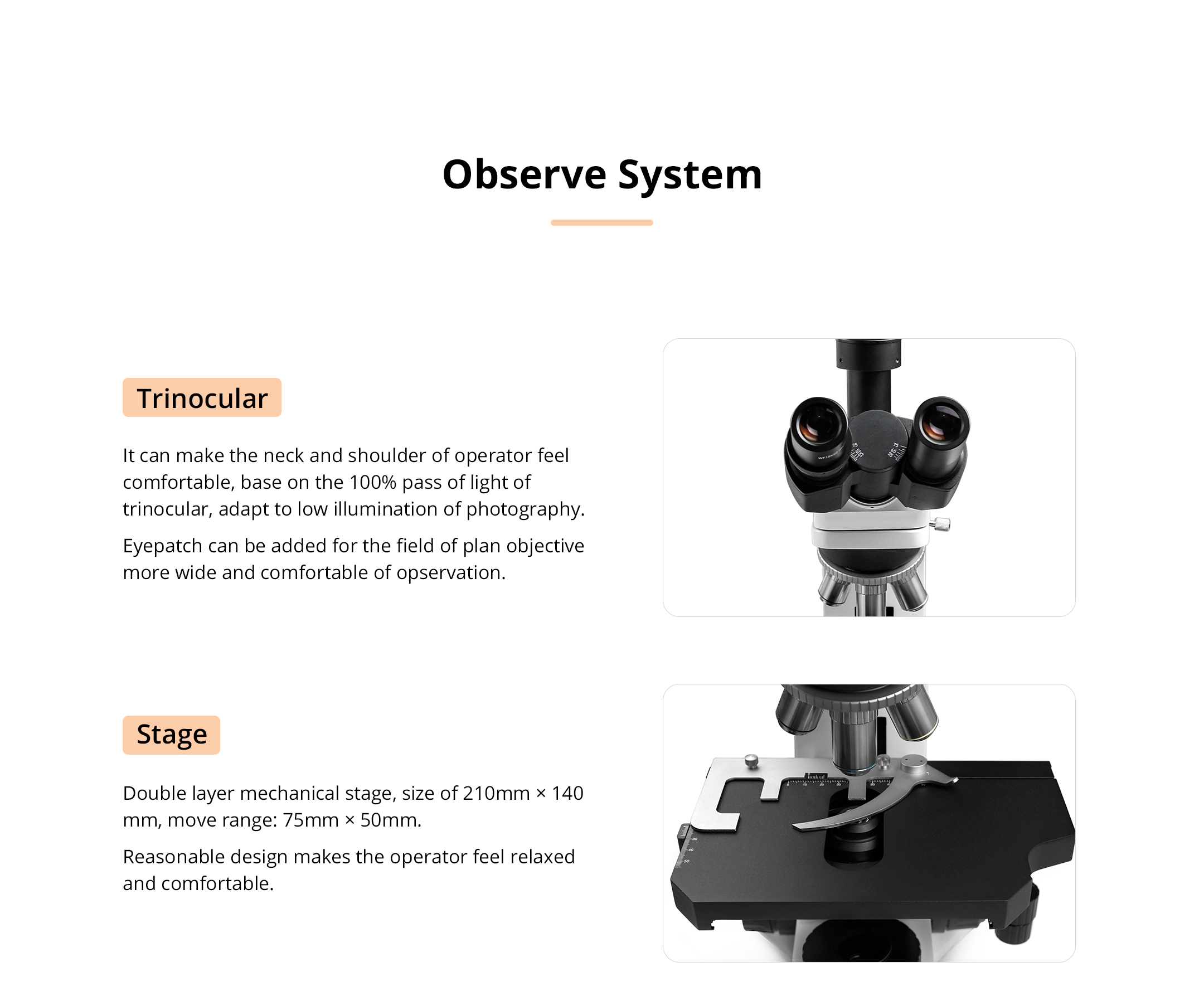

HTG Trinocular (Inclination of 30 ˚); Eye point height adjustable

Nosepiece

Quintuple (backward ball bearing inner locating)

Stage

Double layer mechanical stage and overall size: 210 mm × 140 mm,
moving range: 75 mm × 50 mm

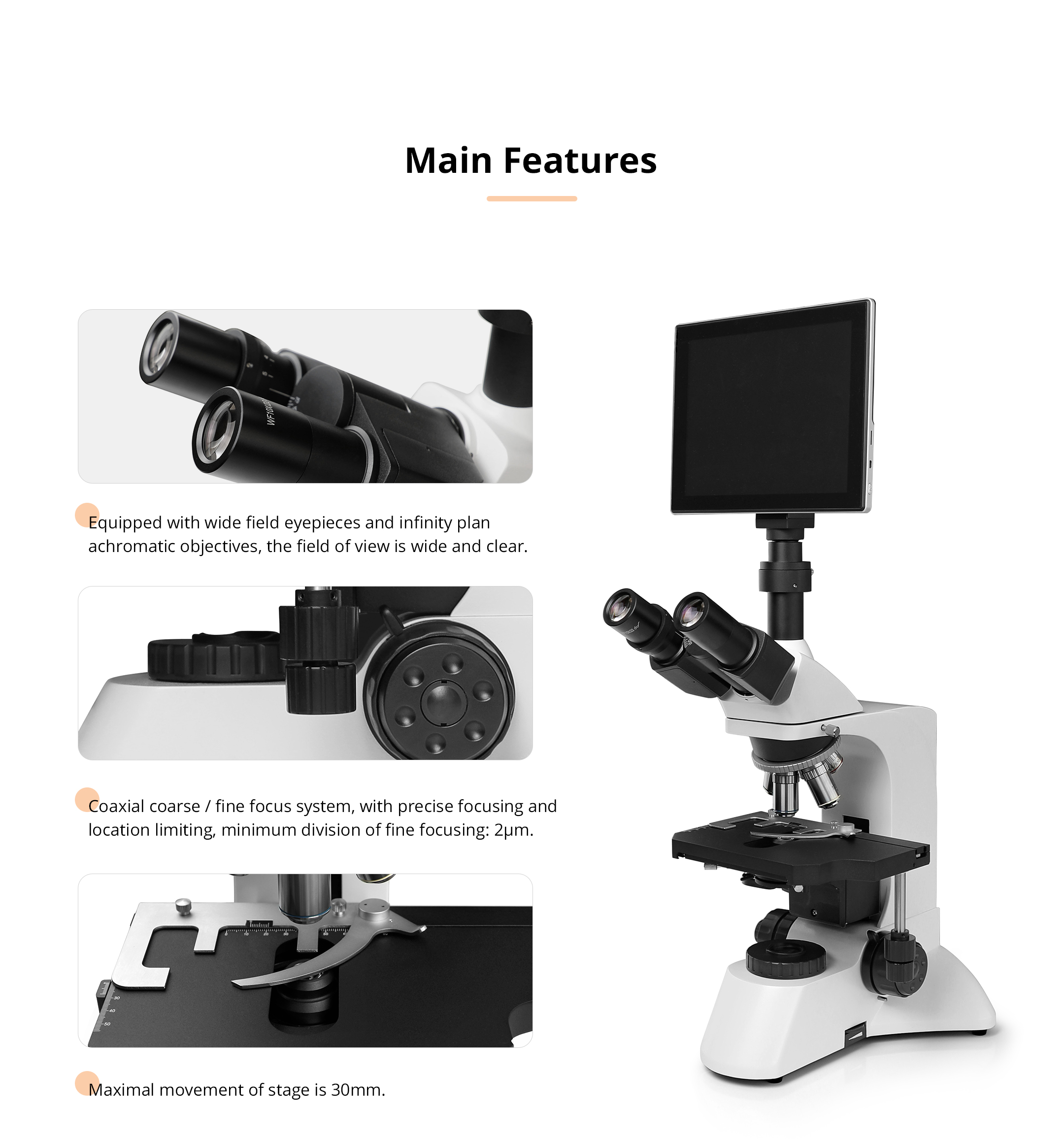

Focusing

Coaxial coarse / fine focus system, with tension adjustable and limit stopper,
minimum division of fine focusing: 2 μm

Condenser

Abbe condenser N.A. 1.25 rack & pinion adjustable

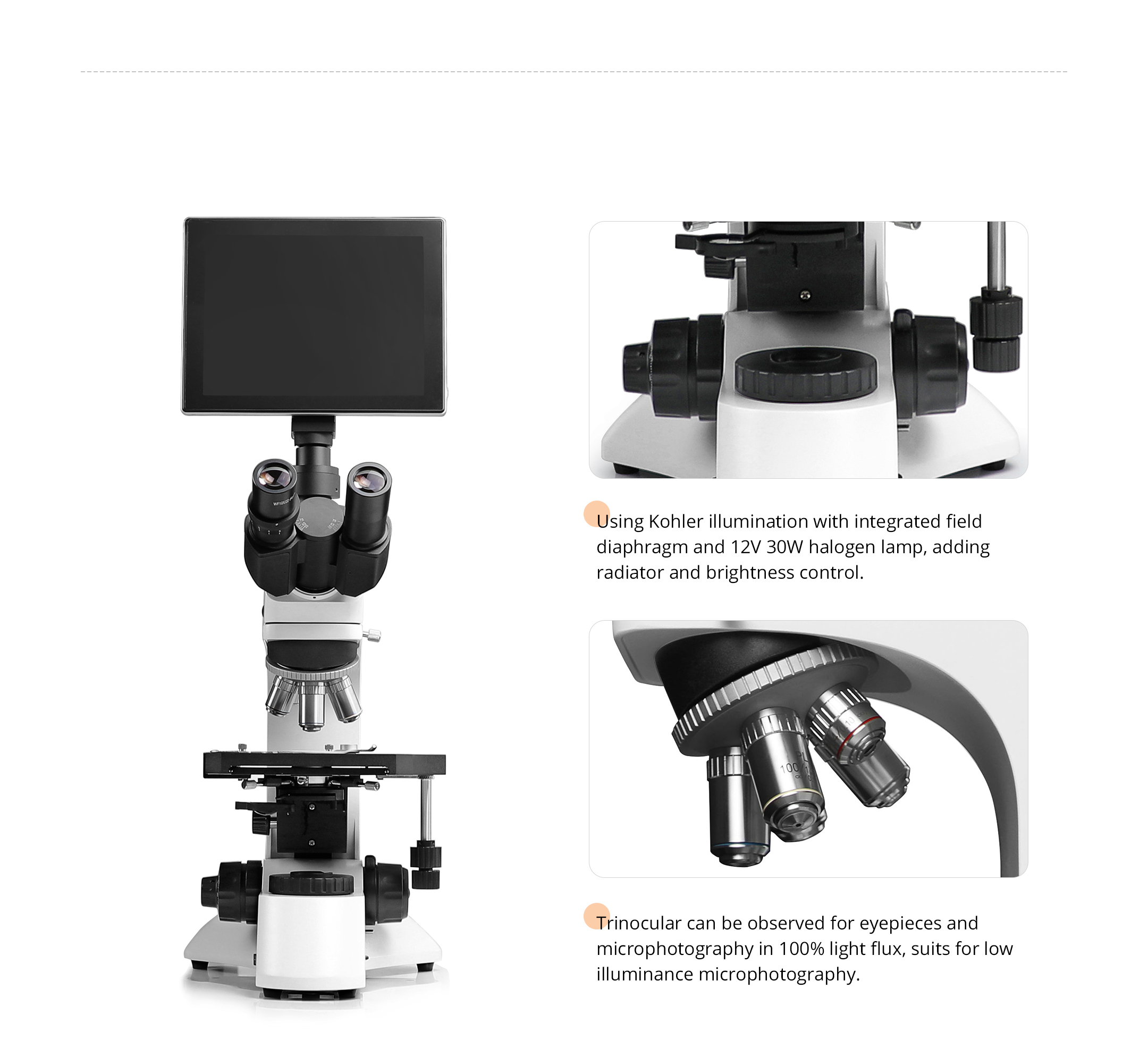

Illumination

Blue filter, frosted filter, 6V 20W halogen lamp

Optional accessory

Eyepiece

Dividing eyepiece 10X（Φ22mm）

Objective

Infinity plan achromatic objective 60X

CCD adapter

0.5X / 1X / 0.5X with dividing

Camera

USB output: 1.3M/2.0M/3.0M/5.0M pixel

VIDEO output: 380/520 TV Line

Screen

LISSPAD, A10 or other screens

Phase contrast unit

Centering telescope

Infinity phase contrast plan achromatic 10X / 20X / 40X / 100X

Turnplate (Ⅰ / Ⅱ), Flashboard / Pull board phase contrast condenser

Dark field

Dry or oil type dark field condenser
Biological microscope L3200B (Trinocular, Quintuple objectives)
Please select the sample parameters
Model
L3200B
